|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
Model No.: CLW5071TSLH5
Transmission Type: Manual
Engine Type: 4 Stroke
Emission Standard: Euro 4
Certification: CCC, ISO9000
Chassis Brand: JAC
Packaging: Nude packing,Waxing before shipping
Place of Origin: CHINA
Supply Ability: 300sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,Any Other Port in China
Cheap cost JAC 5cbm Road Sweeper Truck
Road sweeper truck is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
The street sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.
Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
Chassis specifications: chassis model HFC1070P93K1C3ZV, 5speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 7.00R16, wheelbase 3360mm, with ABS, CHAOCHAI 117hp.
Body specifications: auxiliary engine ISUZU 75hp, with four sweepers, SANYO motor, famous brand multifold solenoid valve, SIEMENS control switch, water pump, maintenance-free centrifugal fan, tail LED arrow light, manual pump emergency system, hydrualic lifting &dump garbage, automatically collision-avoiding function, max sweep width 3.5m, max suction particle diameter 140mm, stainless steel dustbin, capacity 5.5cbm(4cbm dustbin & 1.5cbm water tank), antiseptic treatment inside of dustbin, max sweep capacity: 50000㎡/h-100000㎡/h.
Files with vehicle: basic tool & accessories , english vesion manual book, operation vedio..
Road Sweeper Truck JAC ( 4CBM dustbin & 1.5 CBM water tank )
6200 * 2050 * 2510 mm
GVW / Kerb Weight
7360kg / 5130kg
2 persons allowed
W/ air conditioner
117 Ps (86KW)
4X2, left or right hand drive
5speed gear box, no overhaul within 500,000km
Wheelbase/No. of axle
3360 mm / 2
6 tyres and 1 spare tyre
Water Tank Capacity
15000 Litres (About 450gallons)
Max Sweeping Width
2 sets at each side
140 HP (106 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual--
** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

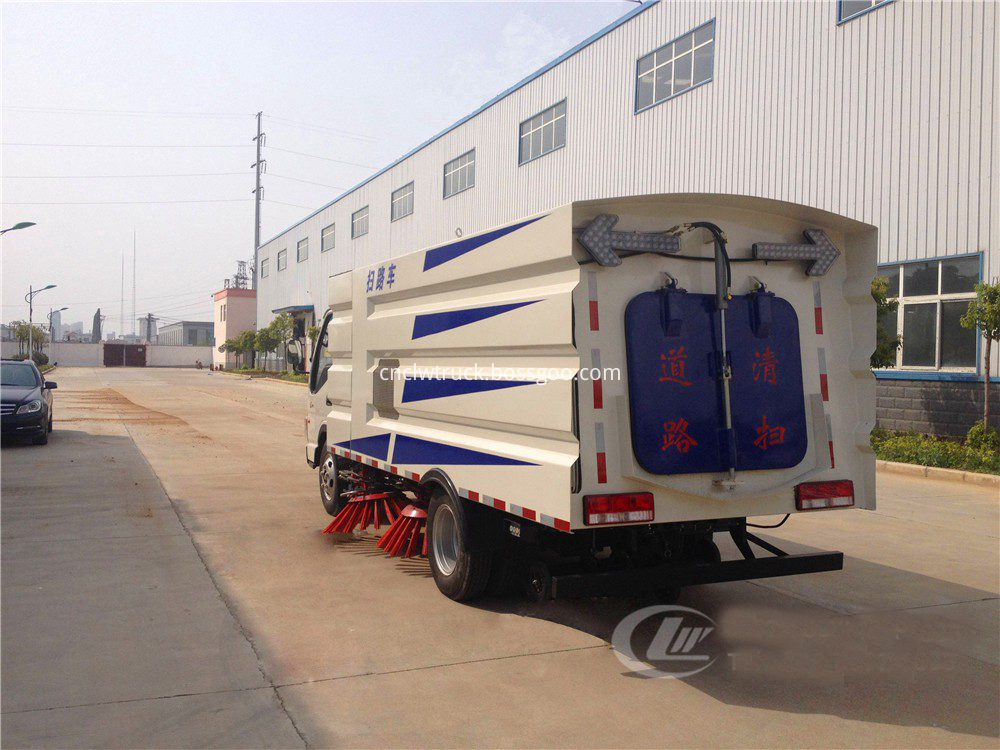

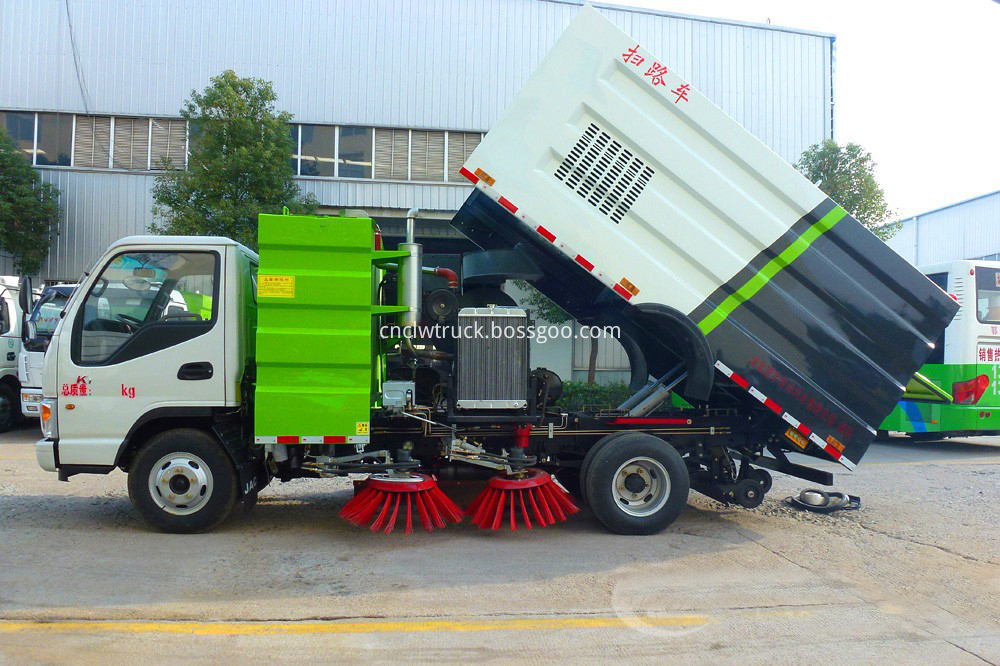

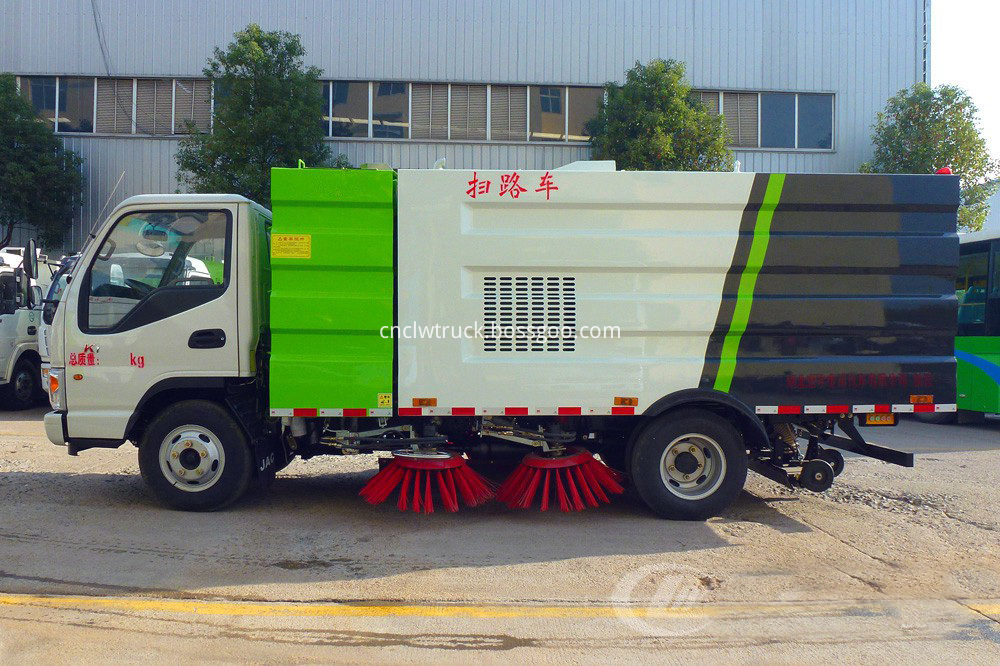

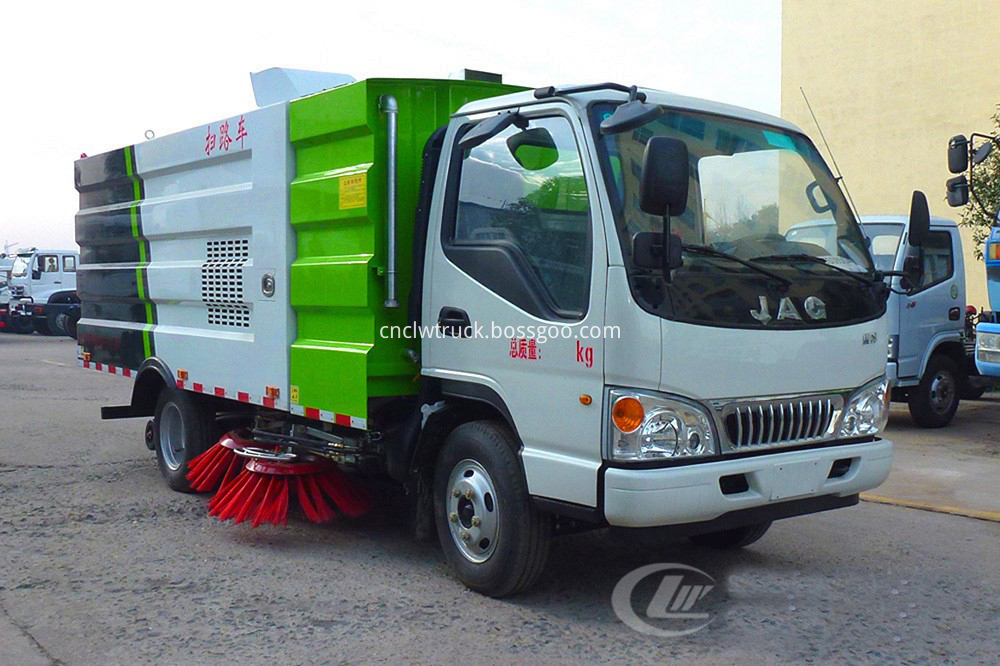

VEHICLE PICTURES :
JAC 5cbm Road Sweeper Truck Cost
Advantages of Our Road Sweeper Truck Cost
FACTORY SHOW :
Production Workshop of CLW Road Sweeper Truck Cost
CUSTOMER VISIT :
Customer from Saudi Arabia to buy our Road Sweeper Truck Cost
Similar Keywords: street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle
What we can supply for you:
We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.
Welcome to visit us and looking forward to bulid a long win-win business cooperation.
