Guranteed 100% ISUZU 5000litres water carrier truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info

Model No.: CLW5230ISUZU5

Volume: 5001 - 10000L

Transmission Type: Manual

Engine Capacity: 4 - 6L

Emission Standard: Euro 4

Sprinkling Area: >16m

Drive Wheel: 4×2

Certification: CCC, ISO9000

Engine Type: 4 Stroke

Fuel: Diesel

Payload: 20T

Condition: New

Chassis Brand: ISUZU

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA

Product Description

Guranteed 100% ISUZU 5000litres water carrier truck

water carrier truck  are designed to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc,  with non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, agua potavelsafe to human body.


ISUZU water delivery truck can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck,
with rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.


Band new ISUZU water truck can be also equipped with pesticide spraying machine or fire pump, to be used to spray pesticide in agriculture pest control field or fire fighting in emergency rescue.


.What the right ISUZU water carrier truck can do for your business:

  • ISUZU chassis, perfect performance
  • japanese ISUZU engine, super powerful; reliable performance, no overhaul within 100,000km
  • High quality , nice shape, rational structure
  • Extremely reliable with reduced running cost
  • Full spare parts backup and after sales support

SPECIFICATIONS :

Water CarrierTruck ISUZU (5,000 litres)
General Vehicle Brand CLW
Chassis Brand ISUZU
Overall Dimension 5990 * 2300 * 2600 mm
GVW / Kerb Weight 7,300 kg / 3,900kg
Cab Cab Capacity 3 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 120 Hp (88 KW)
Displacement 2999 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU gear box, no overhaul within 500,000km
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 98 km/h
Paint Metallic paint
Superstructure Tank Capacity 5,000 Litres ( About 1,320 gallons)
Tank Material Carbon steel
Flow Speed 500 litres / min
Delivery Head 45 m
Suction Head 6 m
Hose High quality PVC hose, anti-aging
All other standard accessories: manhole, ladder, inlet, discharge--.
Optional ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.


DETAILS :

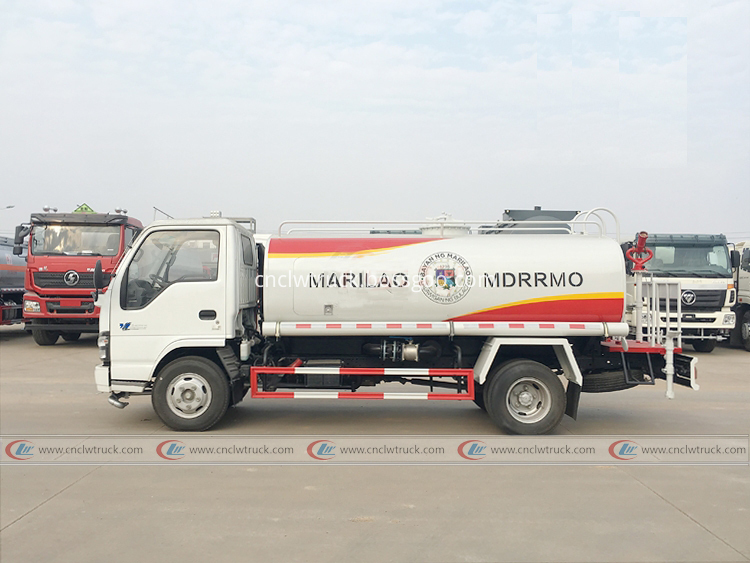

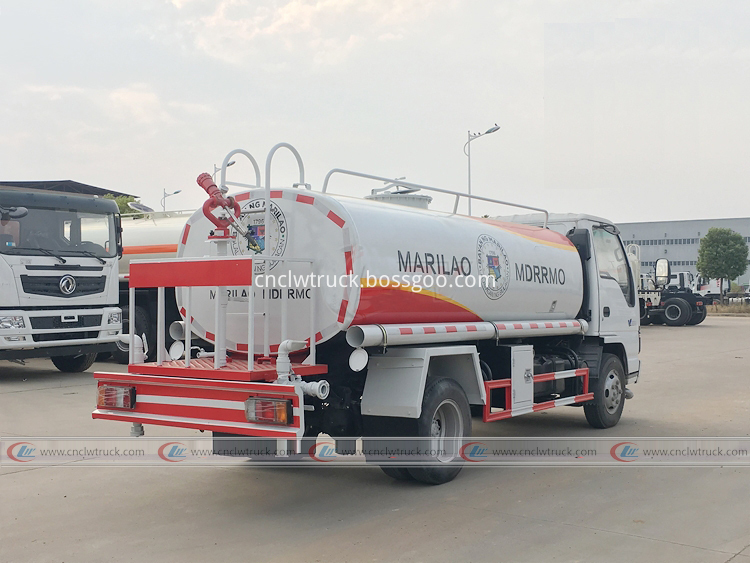

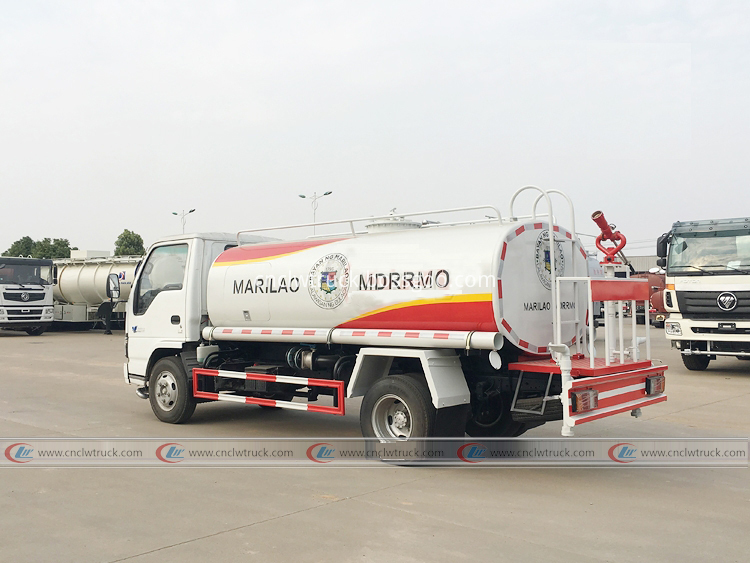

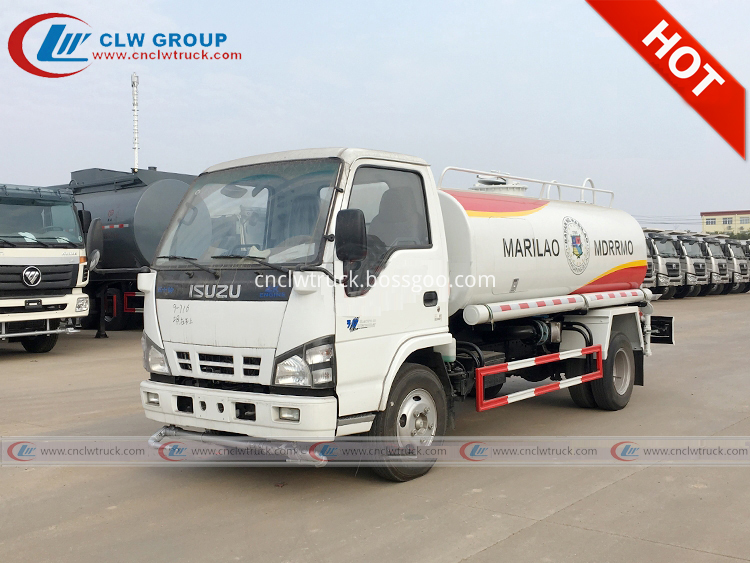

ISUZU water carrier truck pictures

Water Carrier Truck

Water Carrier Truck 2Water Carrier Truck 4Water Carrier Truck 3Water Carrier Truck 1



ISUZU water carrier truck  can be equipped with following options

optional equipments


ISUZU water carrier truck  structural composition

Water Truck Structure

ISUZU water carrier truck  parts' details

Water Truck Body Spec

What we can supply for you:

  • Off-road Water truck
  • Pesticide spraying truck
  • Trash trucks
  • Fuel tanker, Semi trailer, LPG tanker, Chemical liquid tanker, Milk tanker...
  • Fire fighting trucks
  • Aerial working platform trucks
  • Road sweepers
  • Road wreckers
  • Crane trucks
  • Concrete mixer trucks
  • Refrigerated trucks
  • Van trucks
  • LED adversting trucks
  • Sewage vacuum trucks
  • All wheel drive trucks, 4X4 trucks, 6X6 trucks ....
  • any other special purpose vehicles..


We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.

Welcome to visit us and looking forward to bulid a long win-win business cooperation.
