Brand New Arrival MAN CAFS foam fire truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 35 Days

Basic Info

Model No.: CLW5160GXFAP40

Type: Rescue

Certification: ISO9000, CCC

Volume: 3001-5000L

Emission Standard: Euro 4

Transmission Type: Manual

Engine Type: 4 Stroke

Payload: 30T

Fuel: Diesel

Drive Wheel: 4×2

Horsepower: 251-350hp

Condition: New

Vehicle Color: Red, Yellow, Blue Optional

Chassis Brand: MAN

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,Any Main Port in China

Product Description


Guaranteed 100% Brand New Arrival MAN CAFS foam fire truck

CAFS foam fire truck (also be named city fire truck, Class A foam fire truck) with high efficiency foam extinguishing, emergency rescue, incident light, water pumping functions.

It works by changing a drop of water into multipe bubbles(foams) through the compressed air foam system, and the fire extinguishing effect of each bubble is equal to that of a drop of water, so it greatly improves the fire extinguishing effect and is a poweful weapon against high-rise fires.



Superstructure Spec:with Germany Micro CAFS compressed air foam system

Applicable foam solution: Class A, Class B

Rated air supply: 3000L/min

Working pressure: 8-10bar

Max flowing rate: 3200L/min

Rated flow rate of water pump: ≥3000L/min

Rated flow rate of water cannon:≥2400L/min

Water shot range: ≥ 60m

CAFS: ≥ 65m

Fire fighting effectiveness:

Foam delivery in 2000meters distance, end muzzle pressure of 400L/min water cannon  is 6bar;

In 300meters, support 8units 400L/min water cannons simultaneously use CAFS for fire fighting;

Lay 380m pipes along up the fire corridor, support 2units 400L/min water cannons simultaneously use CAFS for fire fighting, end pressure 5bar.



SPECIFICATIONS :

CAFS Foam Fire Truck MAN (4,300 Litres)
General Vehicle Brand CLW
Chassis Brand MAN
Overall Dimension 9110 * 2500 * 3390 mm
GVW / Kerb Weight 15600kg / 10800kg
Cab Cab Capacity 2+4 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Germany Man
Power 293 Ps (216 KW)
Displacement 6871 ml
Emission Standard Euro V
Chassis Drive Type 4X2, left hand or right drive
Transmission 10-speed front, 1 reverse
Wheelbase/No. of axle 4725 mm / 2
Tyre Specification 10.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Water Capacity 3,200 Litres (About 1,000 gallons)
Foam Capacity 1,000 Litres (About 300 gallons)
Tank Material Carbon steel
Fire Pump Flow speed 60L/s
Pressure 1.0MPa
Fire Cannon Flow speed Water 48 L/s
Foam 48 L/s
Shot Water 60 m
Foam 65 m
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include  shovel, pike poles, axes and cutting equipment, halligan bars.-
Optional Ladders, floodlights...
 VEHICLE PICTURES:

CAFS Foam Fire Truck Pictures

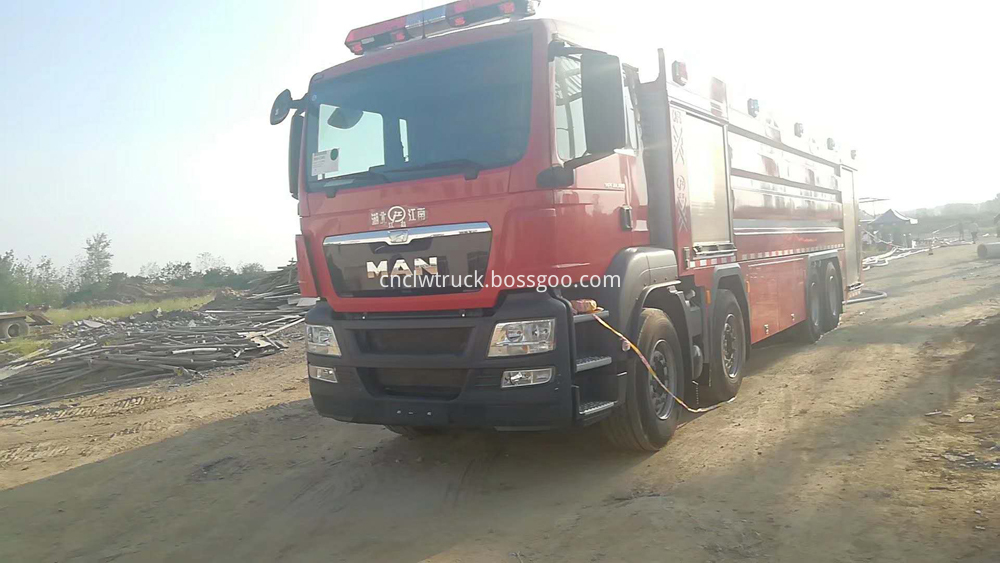

CAFS foam fire truck 1

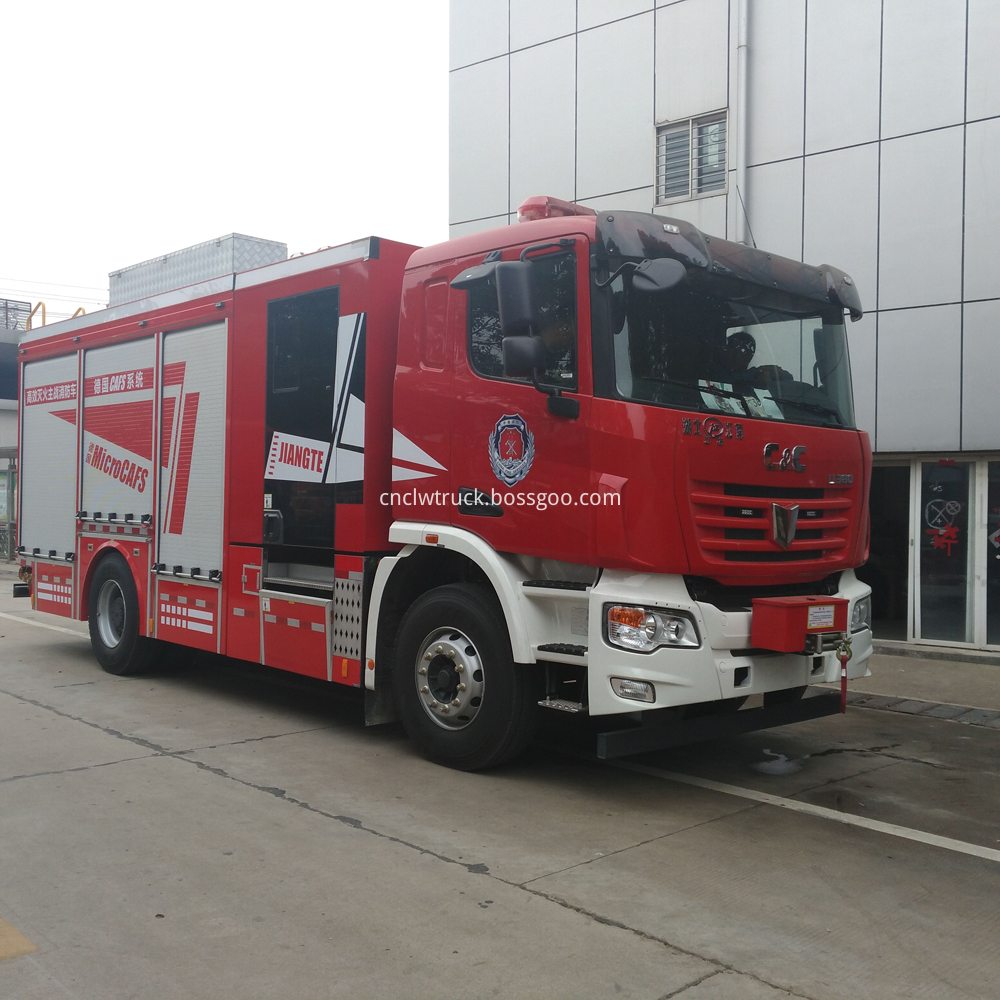

CAFS foam fire truck 2

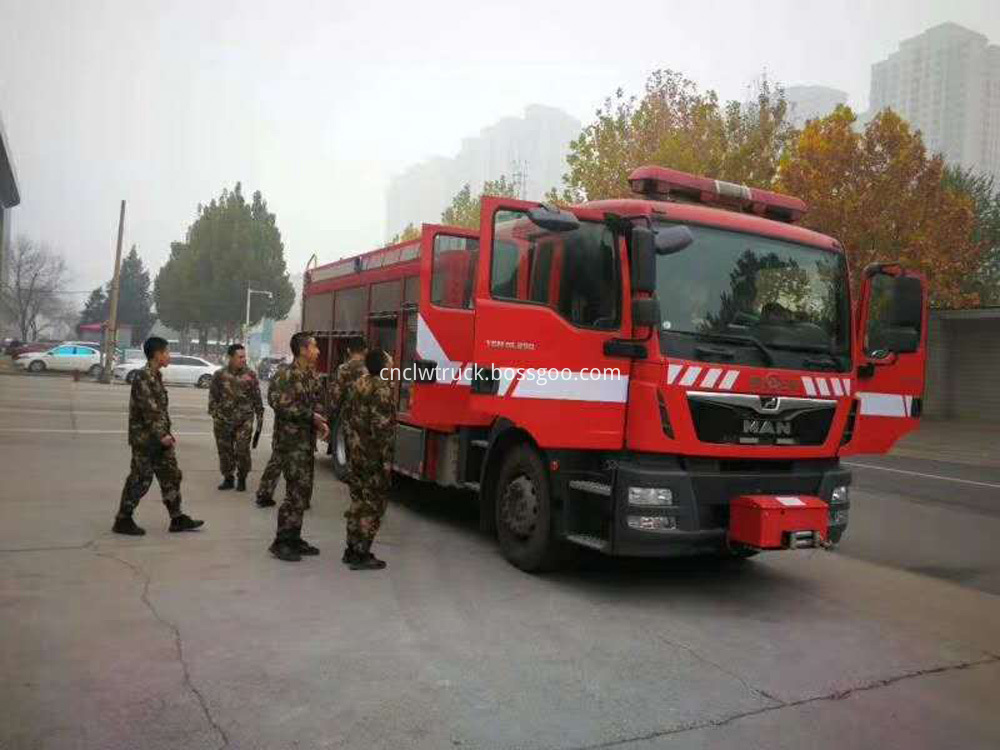

CAFS foam fire truck

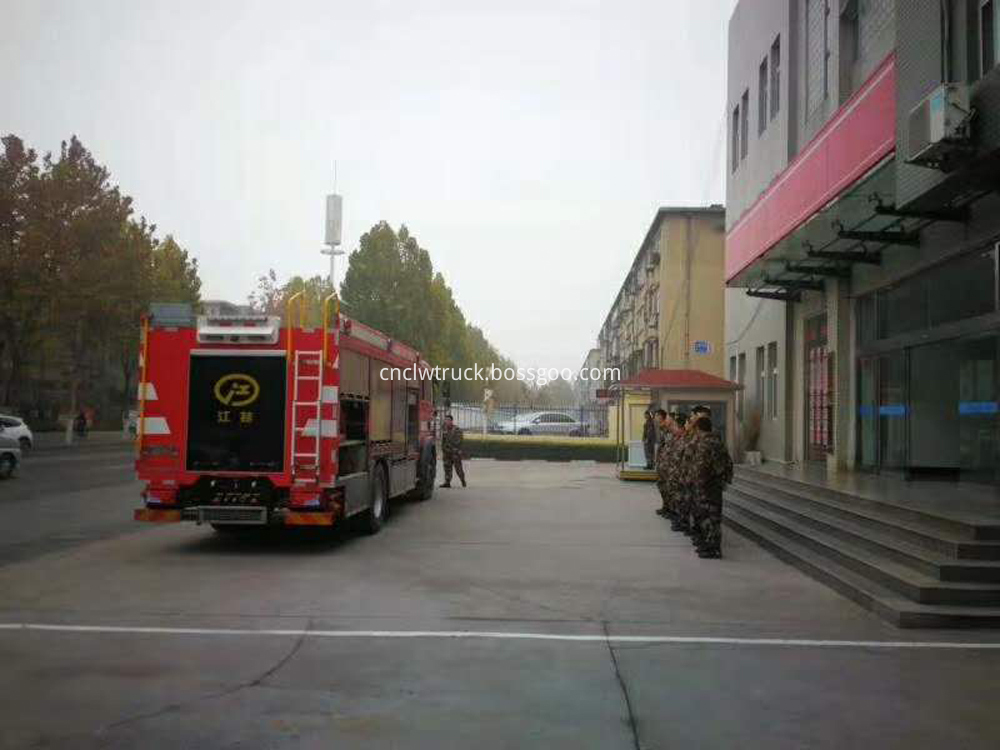

CAFS foam fire truck 3

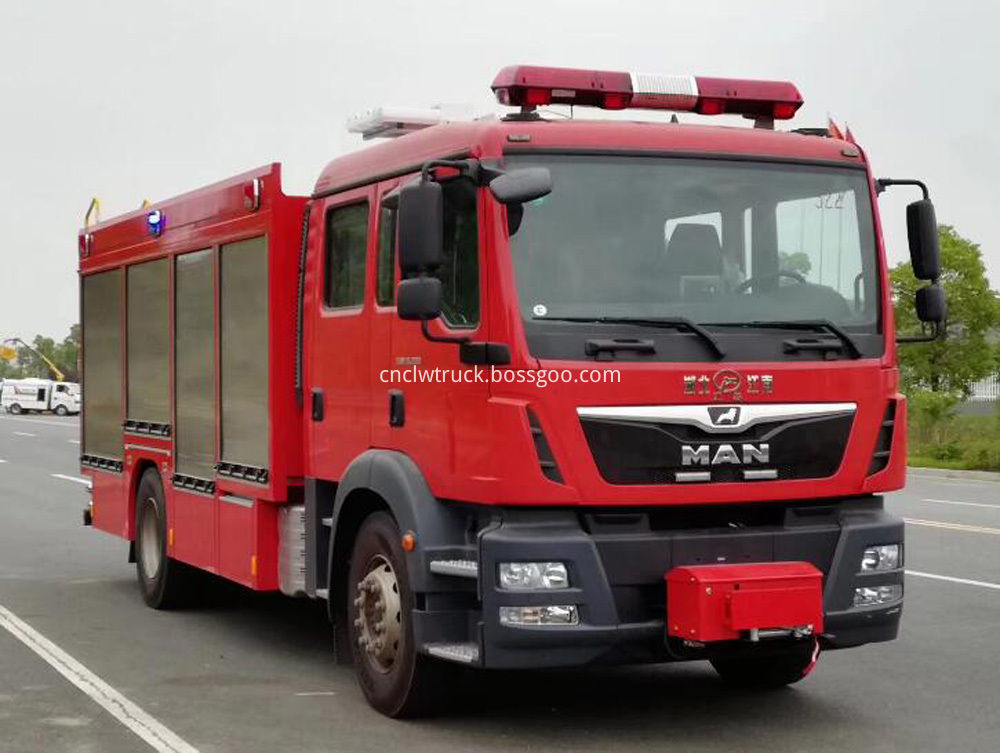

new CAFS foam fire truck


MORE DETAILS:

1. Fire Fighting Truck Accessories


Fire Fighting Truck Accessories

fire truck accessories


2. Fire Pump English Vesion Operation Instruction

fire pump operation instruction board


3. Our Fire Trucks Ready for Delivery

fire truck in stock


Need more details of our trucks welcome to contact us at any time!
