| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 30 Days |
Basic Info
Model No.: CLW5080TSLB5
Type: Dry-type
Payload: 20T
Transmission Type: Manual
Engine Type: 4 Stroke
Fuel: Diesel
Emission Standard: Euro 4
Certification: CCC, ISO9000
Condition: New
Chassis Brand: FOTON
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 300sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,Any Other Port in China
Product Description
HOT New FOTON 5cbm Road sweeping truck
Road sweeping truck is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.
Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
SPECIFICATIONS :
Chassis specifications: chassis model BJ1089VEJEA-F3, 6speeds gearbox, with power steering, A/C, central lock+ electric windows+ remote control, MP3, automatically air-cut brake, tire spec 7.50R16, wheelbase 2600mm, with ABS, Cummins engine 140hp
Body specifications: auxiliary engine ISUZU 75hp, with four sweepers, SANYO motor, famous brand multifold solenoid valve, SIEMENS control switch, water pump, maintenance-free centrifugal fan, tail LED arrow light, manual pump emergency system, hydrualic lifting &dump garbage, automatically collision-avoiding function, max sweep width 3.5m, max suction particle diameter 120mm, stainless steel dustbin, capacity 5.5cbm(4cbm dustbin & 1.5cbm water tank), antiseptic treatment inside of dustbin, max sweep capacity: 45000㎡/h-90000㎡/h.
Files with vehicle: basic tool & accessories , english vesion manual book, operation vedio..
Road Sweeping Truck FOTON( 4 CBM dustbin & 1.5 CBM water tank )
General
Vehicle Brand
CLW
Chassis Brand
FOTON
Overall Dimension
6150 * 2100 * 2600 mm
GVW / Kerb Weight
8280kg / 5550kg
Cab
Cab Capacity
2 persons allowed
Air Conditioner
W/ air conditioner
Engine
Fuel Type
Diesel
Engine Brand
Cummins
Power
140 Ps (105 KW)
Displacement
3760 ml
Emission Standard
Euro V
Chassis
Drive Type
4X2, left or right hand drive
Transmission
6 speed gear box, no overhaul within 500,000km
Wheelbase/No. of axle
3360 mm / 2
Tyre Specification
7.50R16
Tyre Number
6 tyres and 1 spare tyre
Max Speed
99 km/h
Paint
Metallic paint
Superstructure
Water Tank
Stainless Steel
Dustbin Capacity
4 CBM
Dustbin Material
Stainless Steel
Water Tank Capacity
1500 Litres (About 450 gallons)
Sweeping Capacity
42,000 m³/h
Sweeping Speed
3-15 km/h
Max Sweeping Width
2800mm
Brooms
2 sets at each side
Auxiliary Engine
ISUZU engine
75 HP (57 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual--
Optional
** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.
VEHICLE PICTURES :

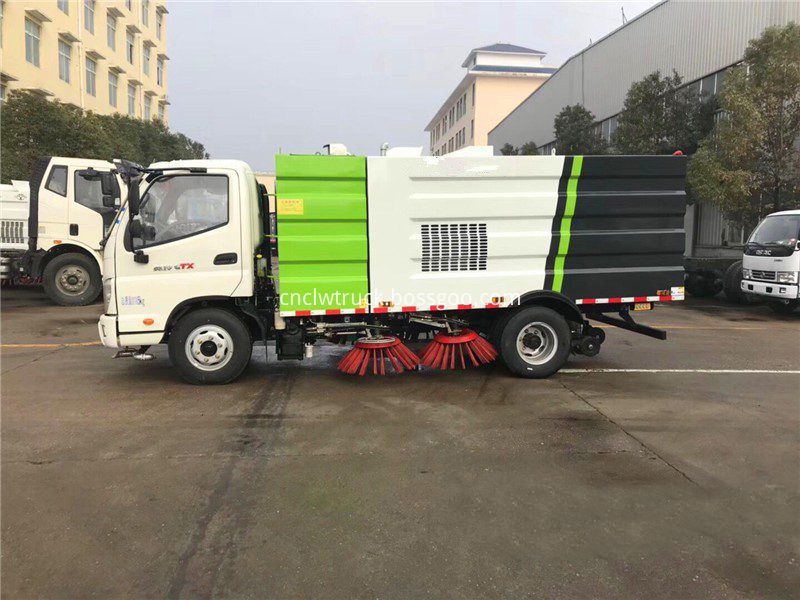

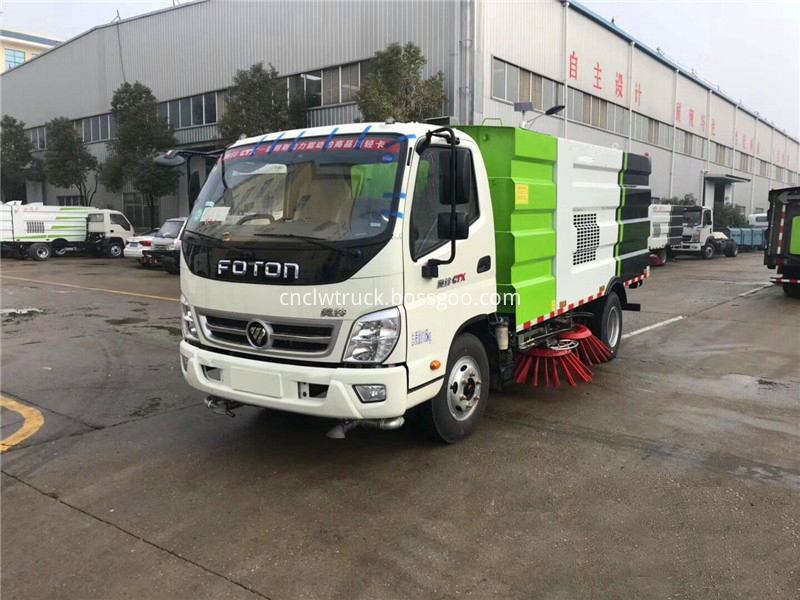

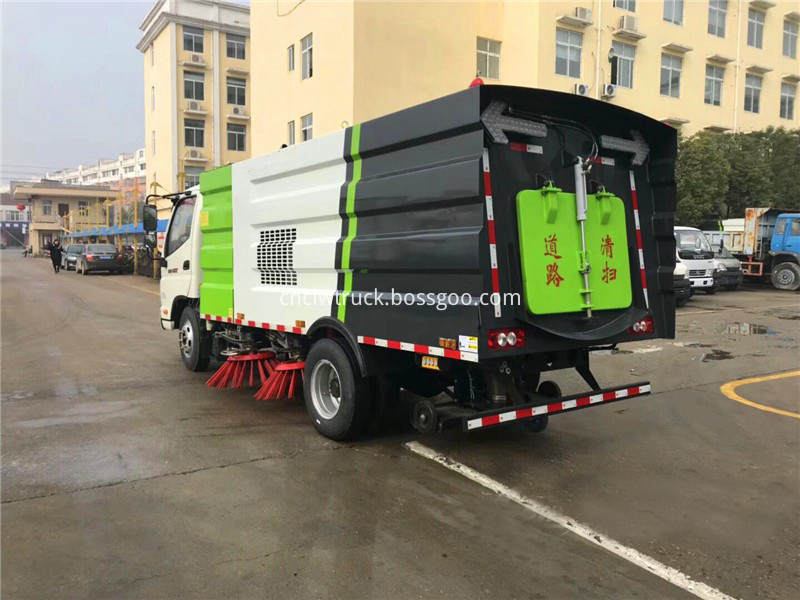

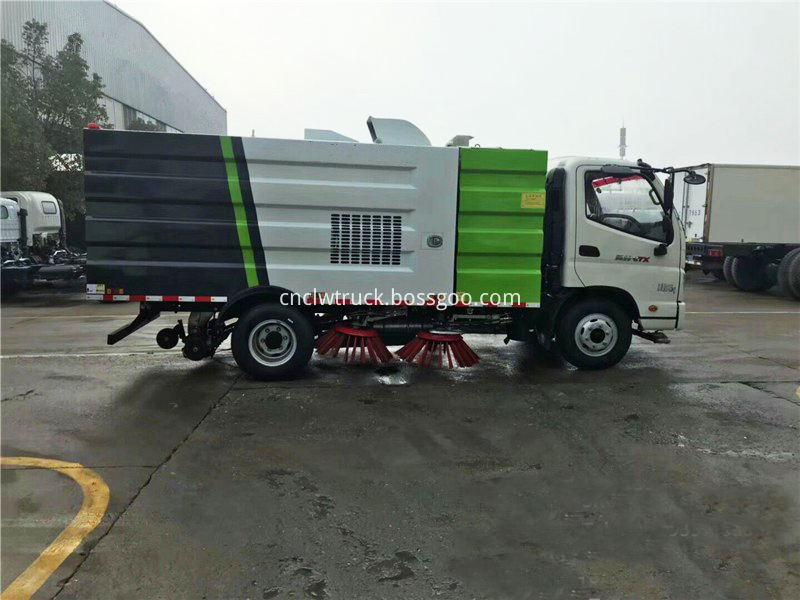

FOTON 5.5cbm Road Sweeping Truck
DETAILS :
Advantages of Our Road Sweeping Truck
FACTORY SHOW :
Production Workshop of CLW Road Sweeping Truck
CUSTOMER VISIT :
Customer from Kenya to buy our CLW Road Sweeping Truck
Similar Keywords: street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle
What we can supply for you:
We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.
Welcome to visit us and looking forward to bulid a long win-win business cooperation.
