New JMC 8cbm truck mounted street sweeper

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info

Model No.: CLW5080TSLJ5

Type: Dry-type

Payload: 20T

Transmission Type: Manual

Engine Type: 4 Stroke

Fuel: Diesel

Emission Standard: Euro 4

Certification: CCC, ISO9000

Condition: New

Chassis Brand: JMC

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 300sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,Any Other Port in China

Product Description

Brand New JMC 8cbm truck mounted street sweeper


Truck mounted street sweeper is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The street sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.


SPECIFICATIONS :

Chassis specifications:  chassis model JX1083TK25, 5speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 7.50R16, wheelbase 3815mm, with ABS, JMC engine (ISUZU technology)152hp.


Body specifications: auxiliary engine ISUZU 75hp, with four sweepers, SANYO motor, famous brand multifold solenoid valve, SIEMENS control switch, water pump, maintenance-free centrifugal fan,  tail LED arrow light, manual pump emergency system,  hydrualic lifting &dump garbage, automatically collision-avoiding function, max sweep width 3.5m, max suction particle diameter 140mm, stainless steel dustbin, capacity 8cbm(6cbm dustbin & 2cbm water tank), antiseptic treatment inside of dustbin, max sweep capacity: 50000㎡/h-100000㎡/h.


Files with vehicle:  basic tool & accessories , english vesion manual book, operation vedio..


Truck Mounted Street Sweeper

Truck Mounted Street Sweeper JMC ( 6CBM dustbin & 2 CBM water tank )
General Vehicle Brand CLW
Chassis Brand JMC
Overall Dimension 6830 * 2220 * 2650 mm
GVW / Kerb Weight 8210kg / 5550kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand JMC
Power 152 Ps (112KW)
Displacement 2892 ml
Emission Standard Euro V
Chassis Drive Type 4X2, left or right hand drive
Transmission 5speed  gear box, no overhaul within 500,000km
Wheelbase/No. of axle 3815 mm / 2
Tyre Specification 7.50R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 99 km/h
Paint Metallic paint
Superstructure Water Tank Stainless Steel
Dustbin Capacity 6CBM
Dustbin Material Stainless Steel
Water Tank Capacity 2000 Litres (About 600gallons)
Sweeping Capacity 50,000 m³/h-100,000m³/h
Sweeping Speed 3-15 km/h
Max Sweeping Width 3500mm
Brooms 2 sets at each side
Auxiliary Engine CUMMINS engine
140 HP (106 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual--
Optional ** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.



VEHICLE PICTURES  :

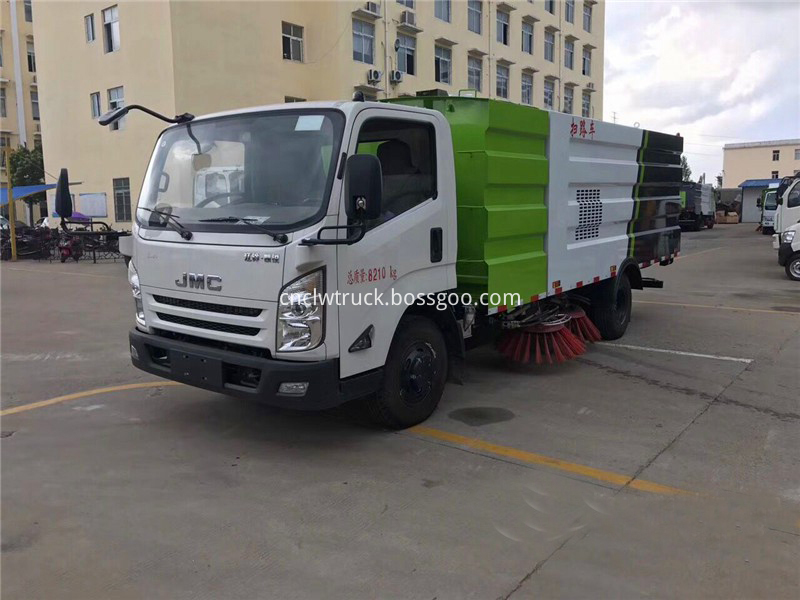

JMC 8cbm Truck Mounted Street Sweeper

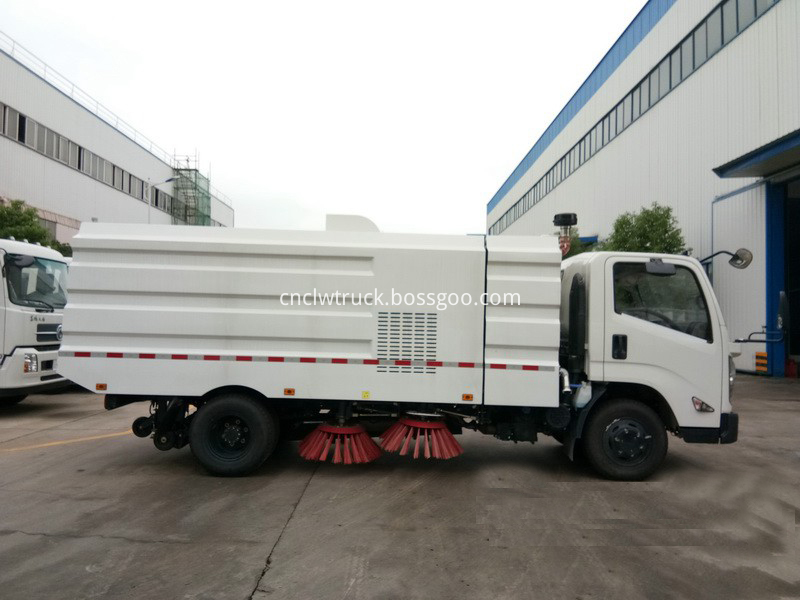

truck mounted street sweeper 1

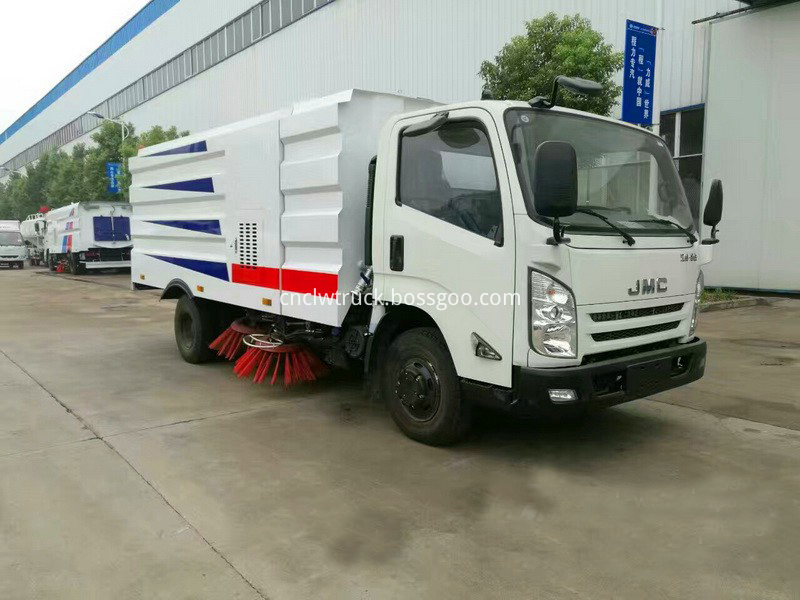

truck mounted street sweeper 2

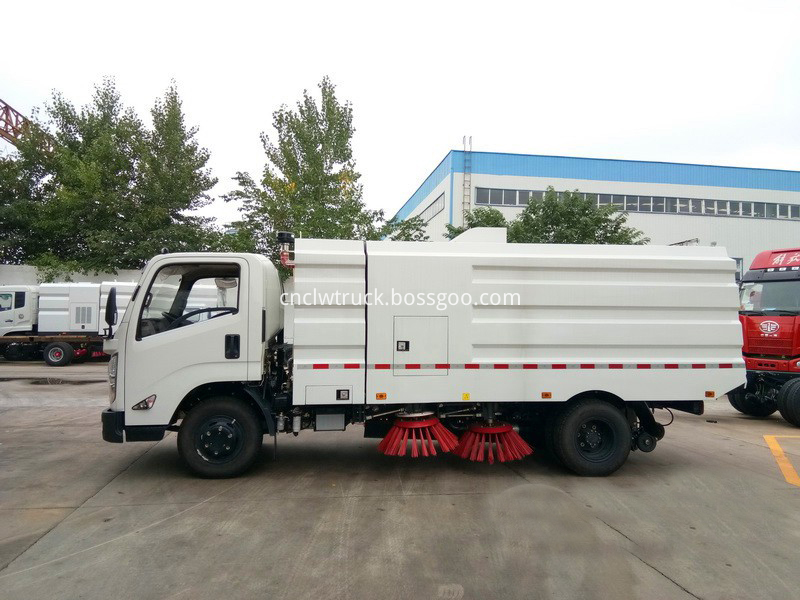

truck mounted street sweeper 3

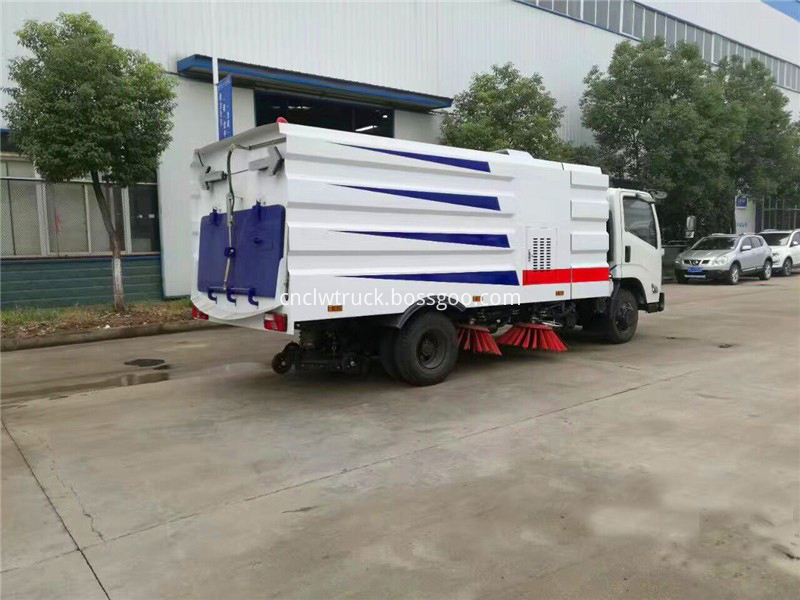

truck mounted street sweeper 4

truck mounted street sweeper 5



DETAILS :

Advantages of  Our Truck Mounted Street Sweeperstreet sweepers features logo


FACTORY SHOW :

  Production Workshop of CLW  Truck Mounted Street Sweeper




CUSTOMER VISIT :

Customer from Saudi Arabia to buy our Truck Mounted Street Sweeper

road sweep truck customer visit 2

street sweep truck customer visit 2

road sweep truck customer visit 3

street sweep truck customer visit 4
