New ISUZU 5.6m One Tow Two Road Wrecker

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5426RWT

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 4

Condition: New

Chassis Brand: ISUZU

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% 2019 ISUZU 5.6m One Tow Two Road Wrecker for Sale

ISUZU Road Wrecker is used to transport motor vehicles or tow the vehicles that are broken down, based on the type or size of vehicle to be towed, the road towing vehicles are usually designed into two types, ine is slidebed tow truck with wheel-lift function, another one is wheel-lift units mounted a combination boom with sling that can hauling all kinds of heavy duty equipments.

VEHICLE  DIAGRAM :

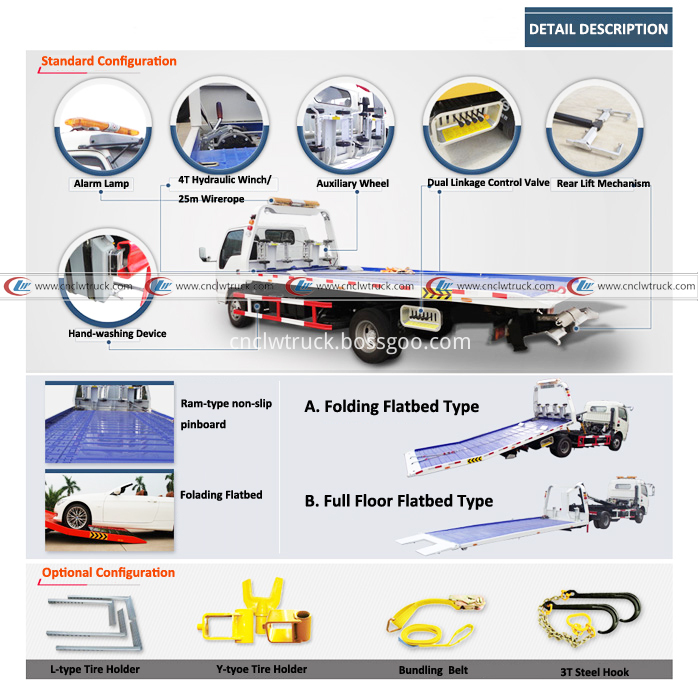

Road Wrecker Detailed Description logo

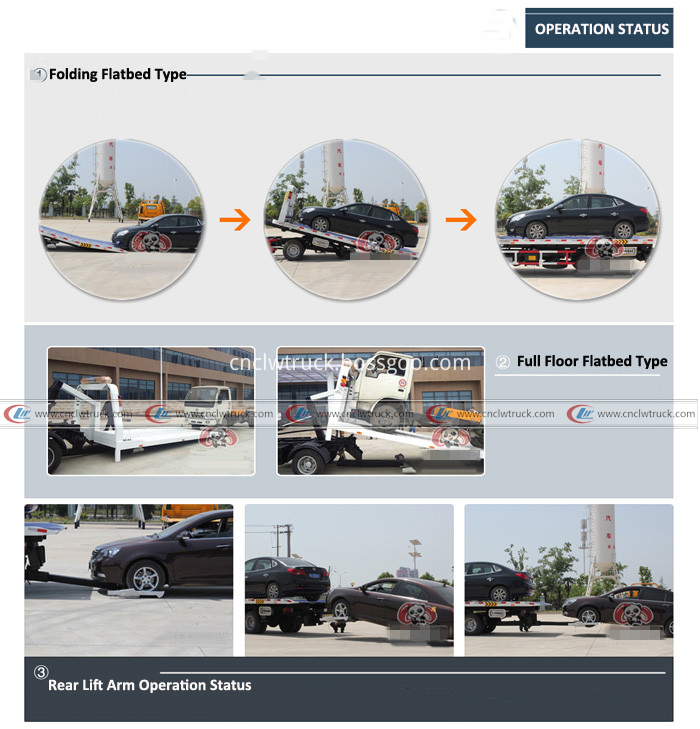

Operation Status of Road Wrecker logo


VEHICLE PICTURES :

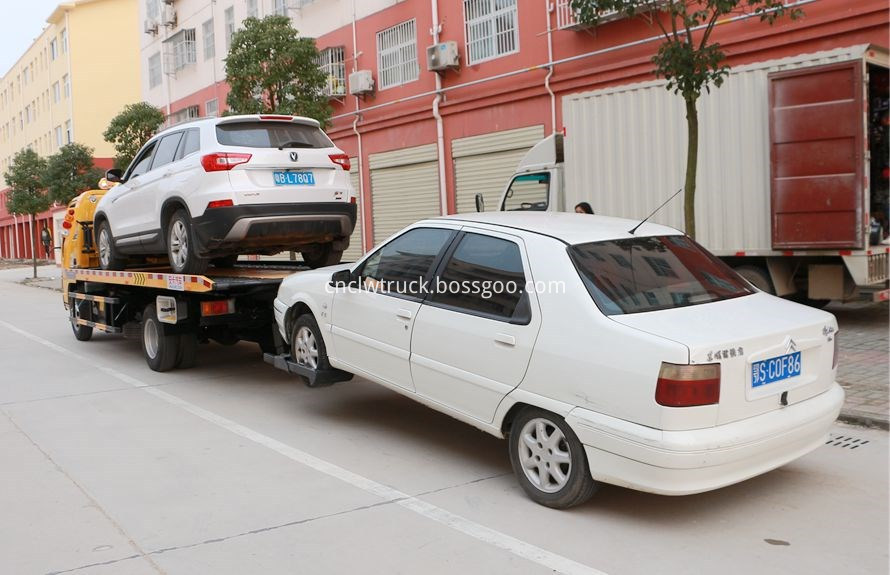

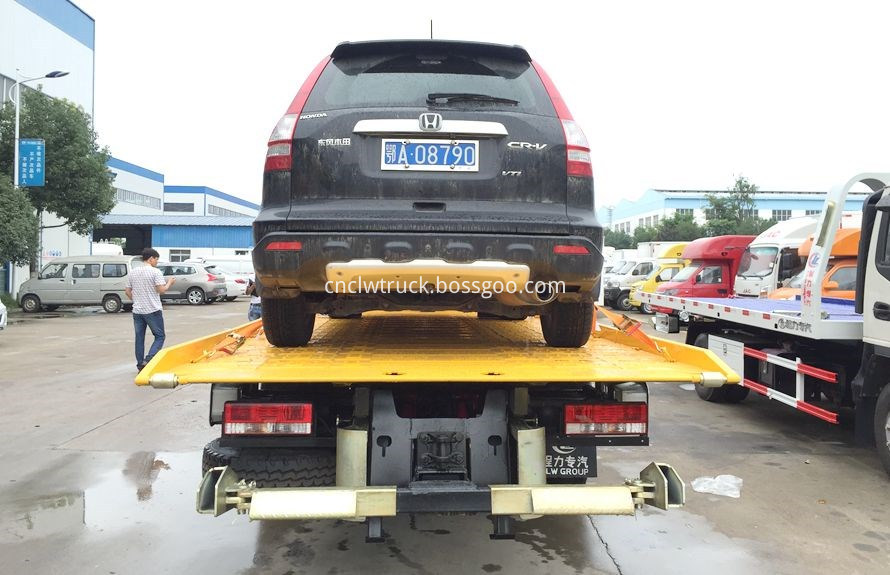

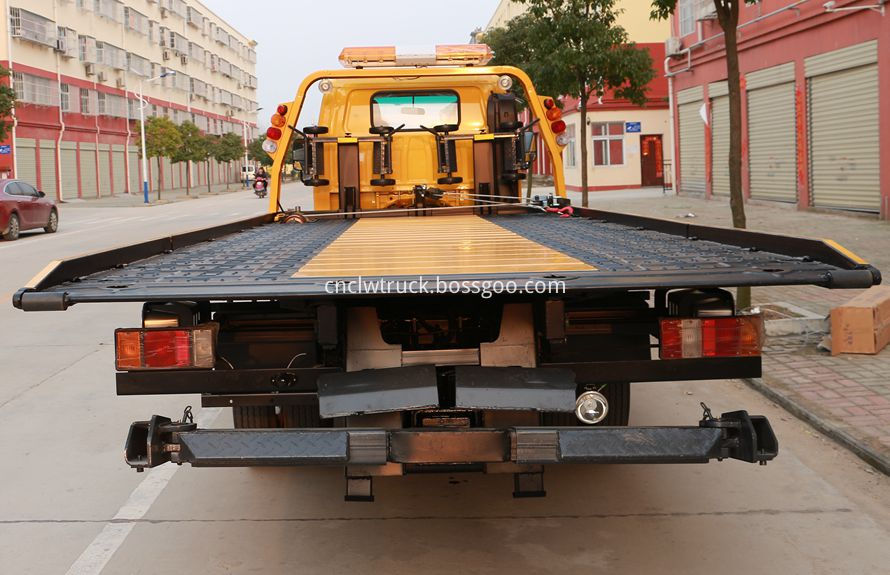

ISUZU road wrecker

ISUZU 5.6m One Tow Two Road Wrecker Picture 1

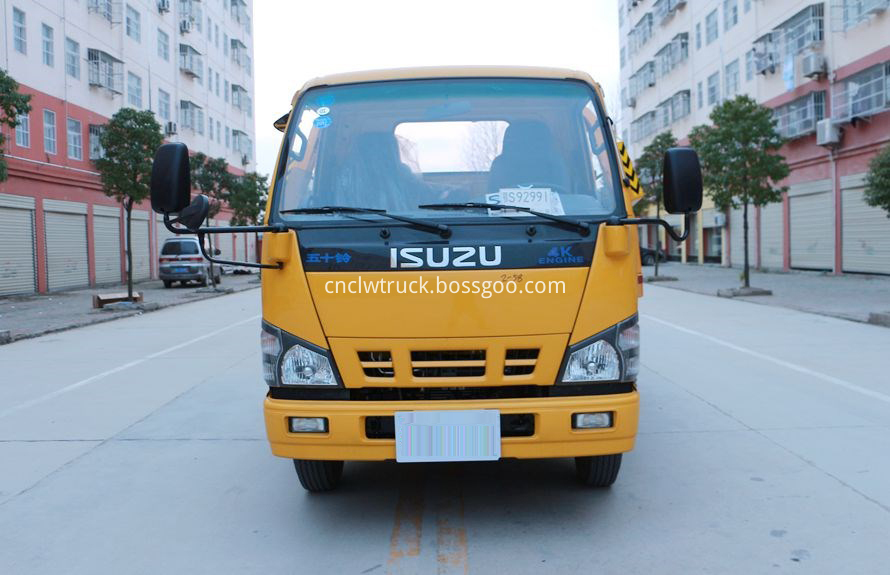

ISUZU road wrecker 1

ISUZU 5.6m One Tow Two Road Wrecker  Picture 2

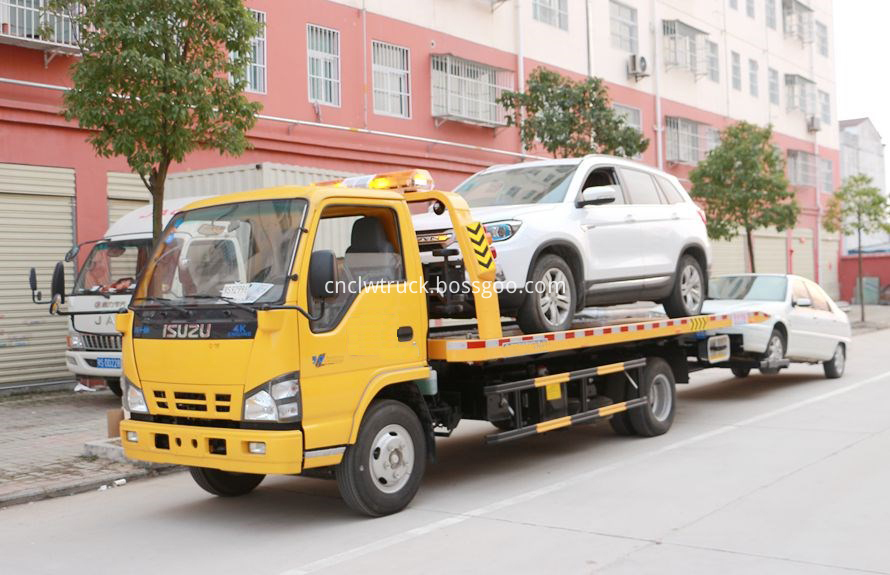

ISUZU road wrecker 2

ISUZU 5.6m One Tow Two Road Wrecker Picture 3

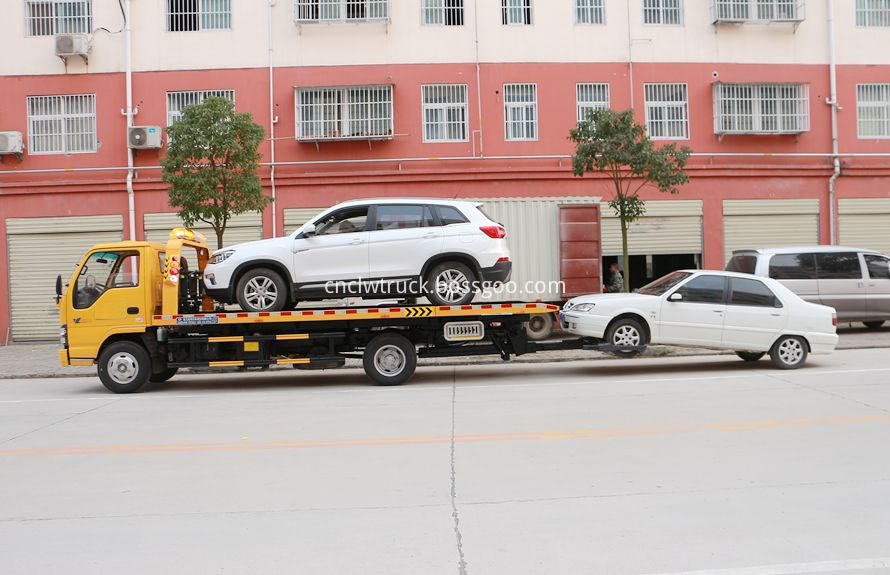

ISUZU road wrecker 3

ISUZU 5.6m One Tow Two Road Wrecker Picture 4

ISUZU road wrecker 4

ISUZU 5.6m One Tow Two Road Wrecker Picture 5

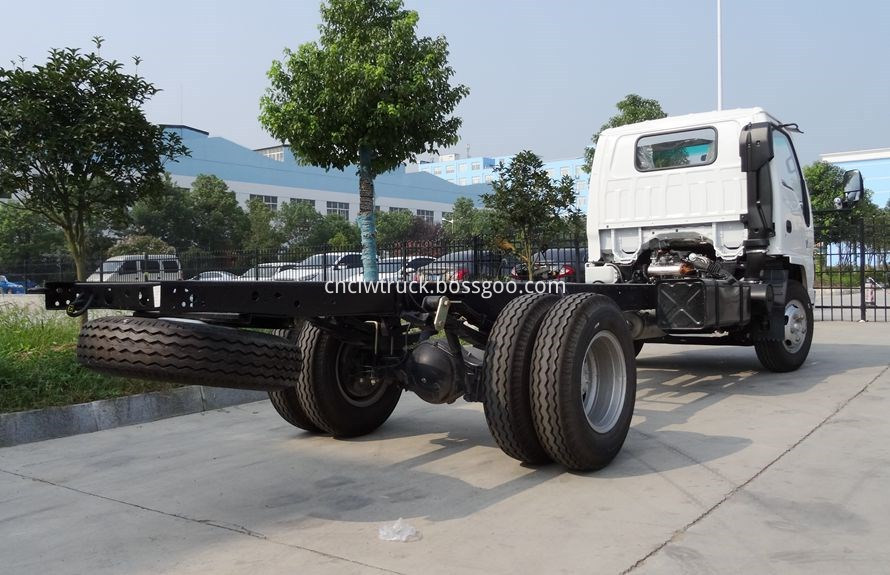

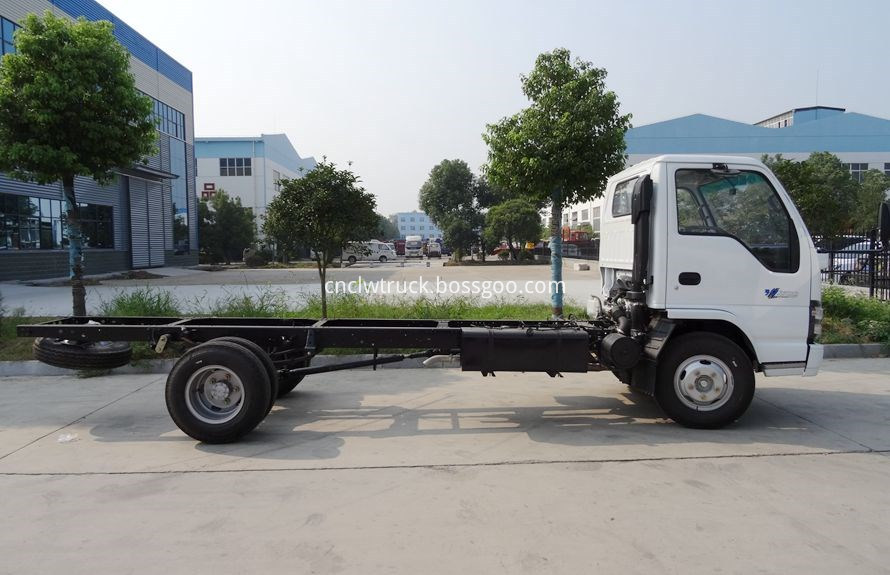

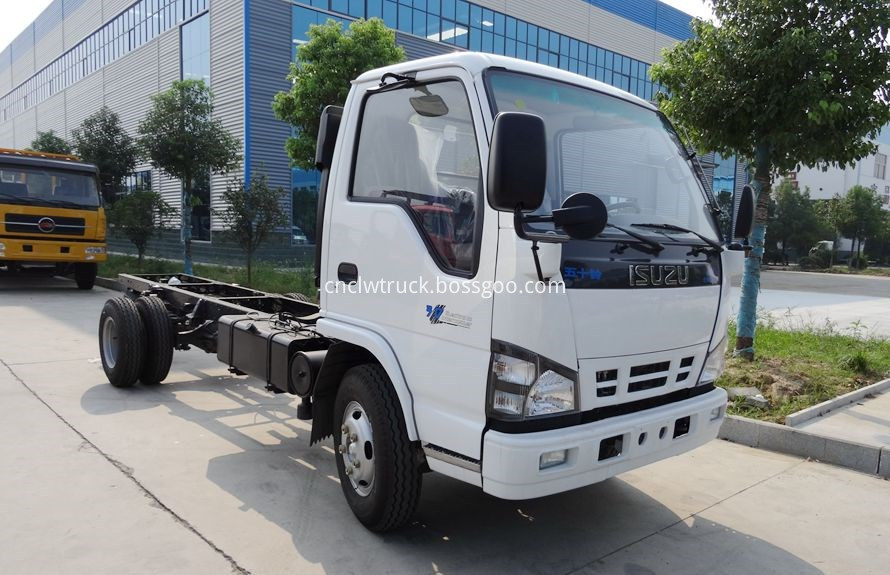

ISUZU road wrecker chassis 1

ISUZU 5.6m One Tow Two Road Wrecker Chassis Picture 1

ISUZU road wrecker chassis 2

ISUZU 5.6m One Tow Two Road Wrecker Chassis Picture 2

ISUZU road wrecker chassis 3

ISUZU 5.6m One Tow Two Road Wrecker Chassis Picture 3

ISUZU road wrecker chassis 4

ISUZU 5.6m One Tow Two Road Wrecker Chassis Picture 4

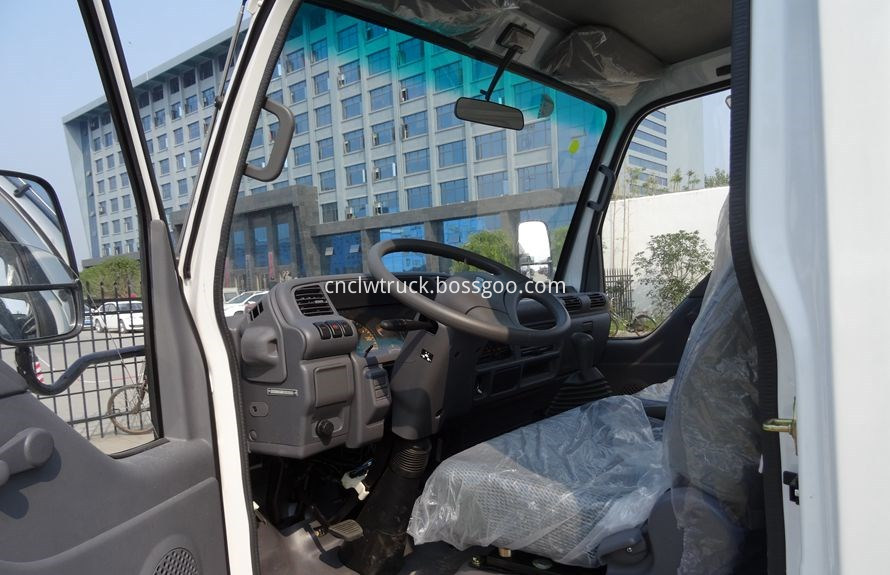

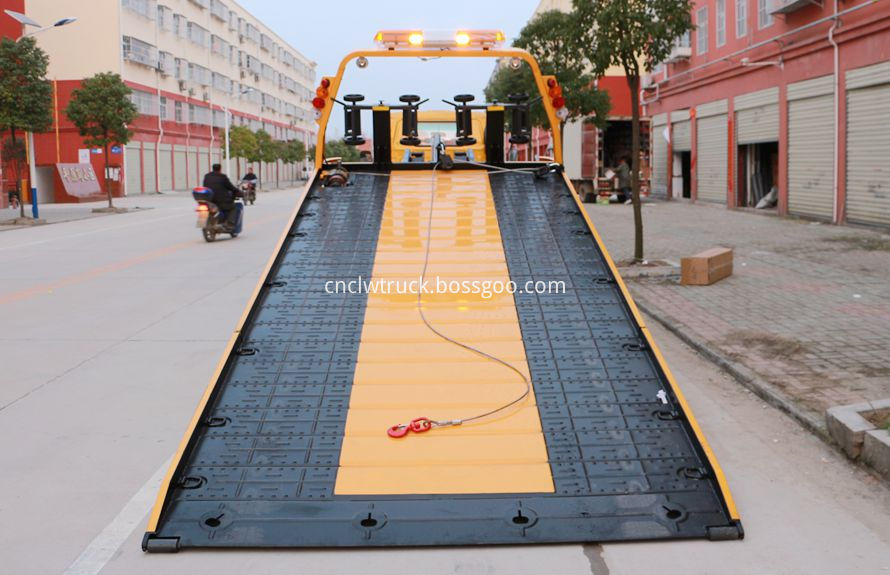

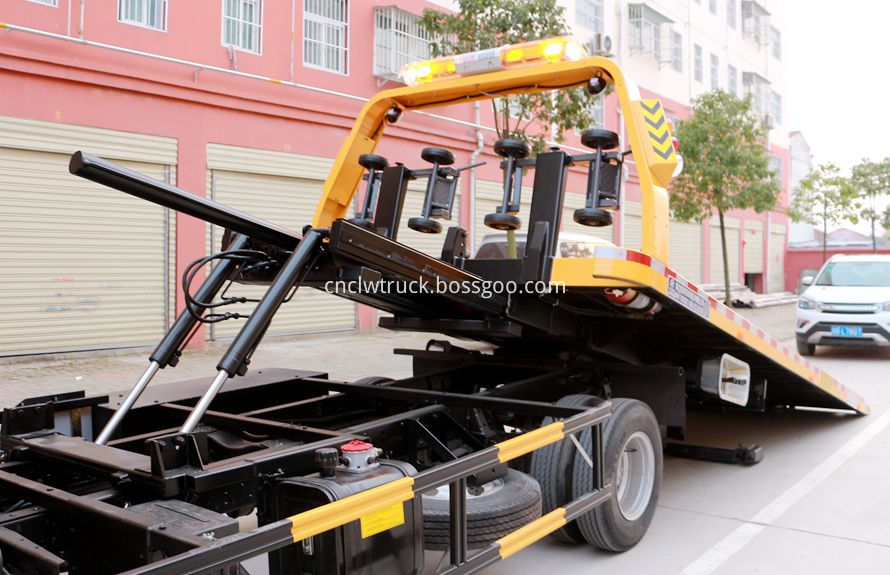

ISUZU road wrecker details 1

ISUZU 5.6m One Tow Two Road Wrecker Picture 1

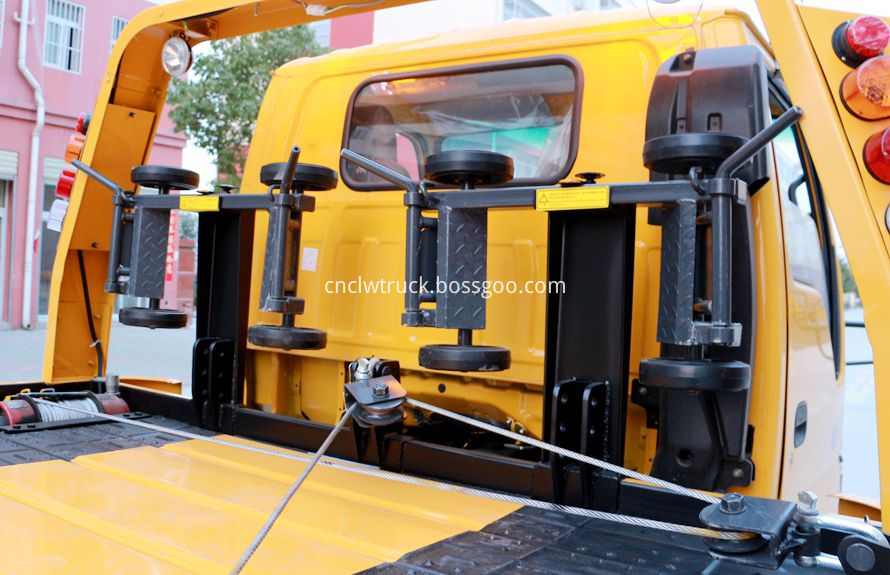

ISUZU road wrecker details 2

ISUZU 5.6m One Tow Two Road Wrecker Details Picture 2

ISUZU road wrecker details 3

ISUZU 5.6m One Tow Two Road Wrecker Details Picture 3

ISUZU road wrecker details 4

ISUZU 5.6m One Tow Two Road Wrecker Details Picture 4



VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Vehicle Name

ISUZU

Road Wrecker

Overall Size

(L*W*H/mm)

7280*2350*2400

GVW

7300kg

Curb Weight

4280kg

Flatbed Size

5.6*2.35m

Thickness Of Flatbed

4mm

Towing Capacity of Winch

4T

Lifting Capacity

3T

CHASSIS  PARAMETERS

Chassis Brand

ISUZU

Wheel Base

3815mm

Chassis Model

QL1070A

Drive Model

4X2, LHD/RHD

Axles Nos

2

Tire Spec.

7.50R16

Gearbox

5F,1R

Tire Nos.

6+1(spare)

Engine Model

4KH1CN5HS

Engine Brand

ISUZU

Displacement

2999ml

Engine Power

130HP

Fuel Type

Diesel

Brake Type

Air Brake

BODY CONFIGURATION

Stand Configuration

4T towing winch, 25m steel wire rope, one pair auxiliary wheel , L-type fork one pair, square sleeve one pair, bundling belt 8units, hook, working light 2units, yellow alarm lamp, tools and accessories

Optional Configuration

Imported parts, tire holder, hand washing device, LED burst flashing light,  full-floor flatbed


Chassis Configurations: ISUZU Chassis, New Type Single Row Cabin ,  ISUZU Diesel 130HP Engine, 5 Speed Transmission, Wheelbase 3815mm, 4.8T Rear Axle, 7.50R16 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows, Cruise Control System, Central Lock


Top flatbed Configurations:

Towing one by two type, length of flatbed 5.6m, width of flatbed 2.35m, with 1.2m length hydraulic pressure tailboard.


Files with vehicles:

Chassis Certificate, Vehicle Certificate, Proforma Invoice, English Vesion User Manual( any language version avaiable), Quality Warranty Certificate, Country of Original, Or Any other certificates can provide if  contract need.


ISUZU Road Wrecker Advantages :

1.  Diesel fuel type, super powerful engine, perfect driving performance, no overhaul  within 100,000km.

2. Wide and high-speed rotary, easy operation, strong load capacity.

3. Unique design, prolonged service life.

4. High quality hydraulic system.

5. Manufacturer directly sale, cheap price with promptly after-sales response.

CHENGLI SPECIAL AUTOMOBILE CO

Need more details of our ISUZU Road Wrecker welcome to contact us at any time!
