| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: CLW5426RWT
Fuel: Diesel
Certification: ISO9000, CCC
Emission Standard: Euro 4
Condition: New
Chassis Brand: DONGFENG
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA
Product Description
Guaranteed 100% New Dongfeng 7.2m Green Road Car Wrecker for Sale
Green Road Car Wrecker is used to transport motor vehicles or tow the vehicles that are broken down, based on the type or size of vehicle to be towed, the road towing vehicles are usually designed into two types, ine is slidebed tow truck with wheel-lift function, another one is wheel-lift units mounted a combination boom with sling that can hauling all kinds of heavy duty equipments.
VEHICLE DIAGRAM :
VEHICLE PICTURES :

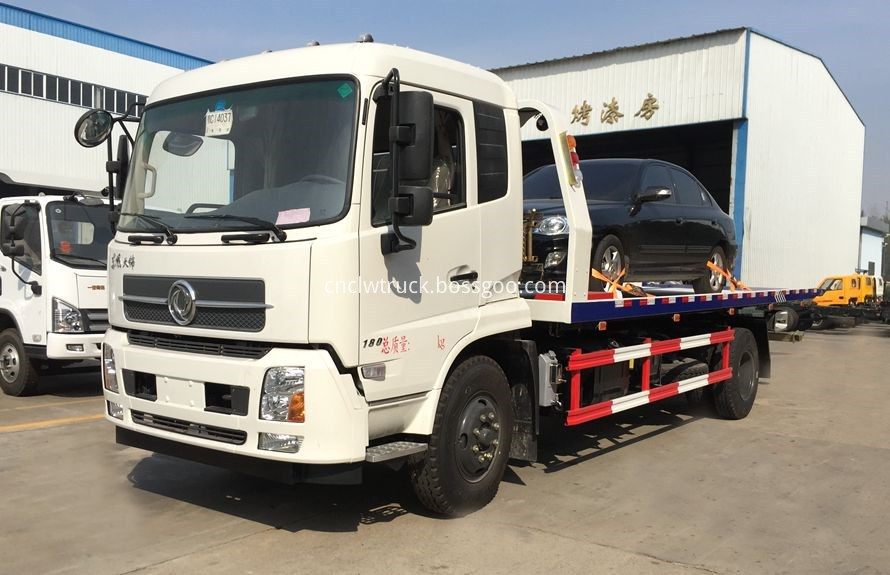

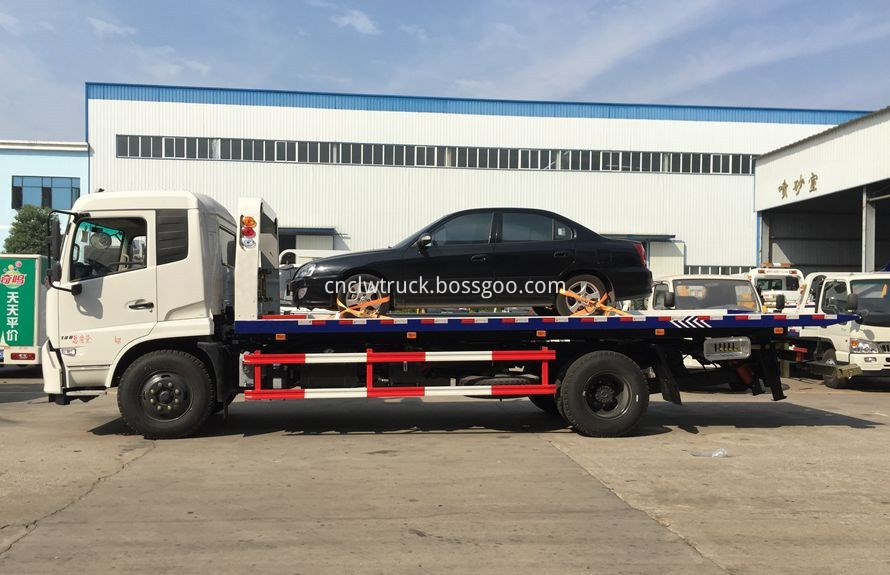

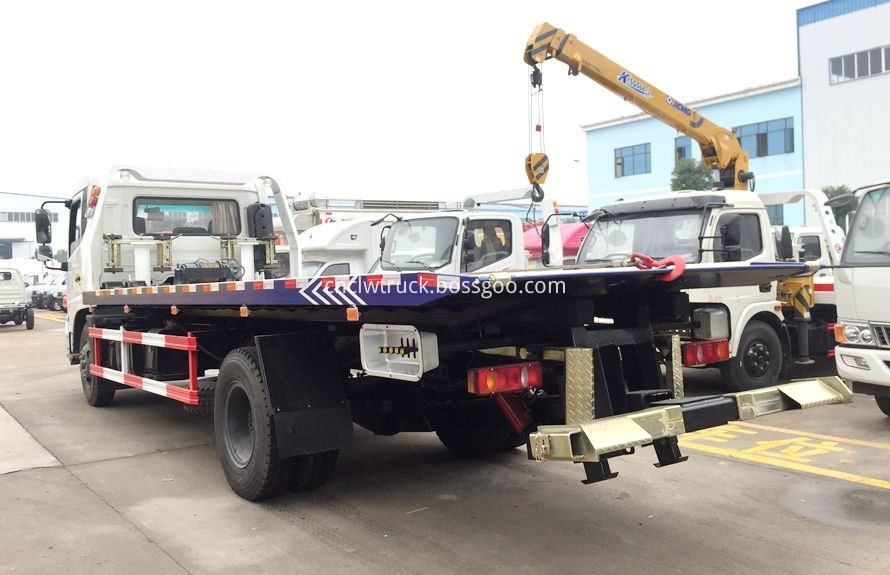

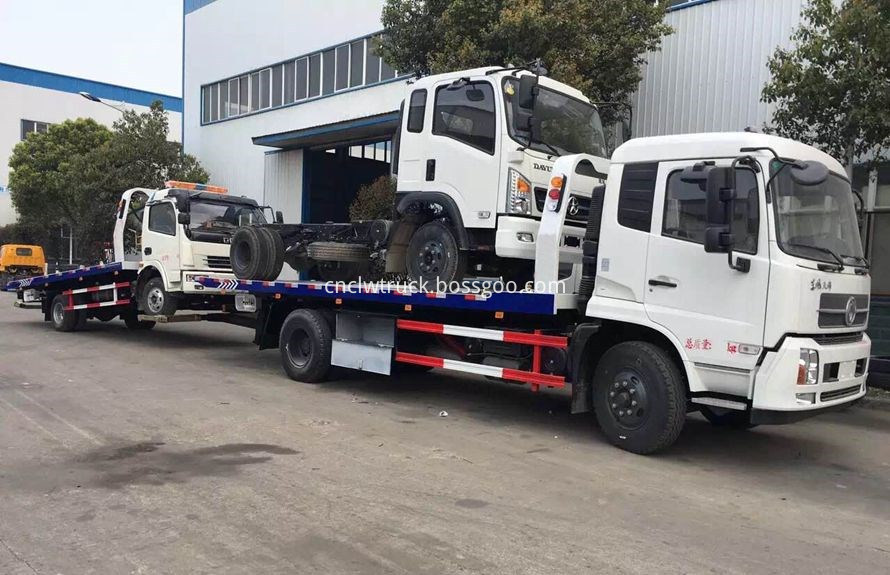

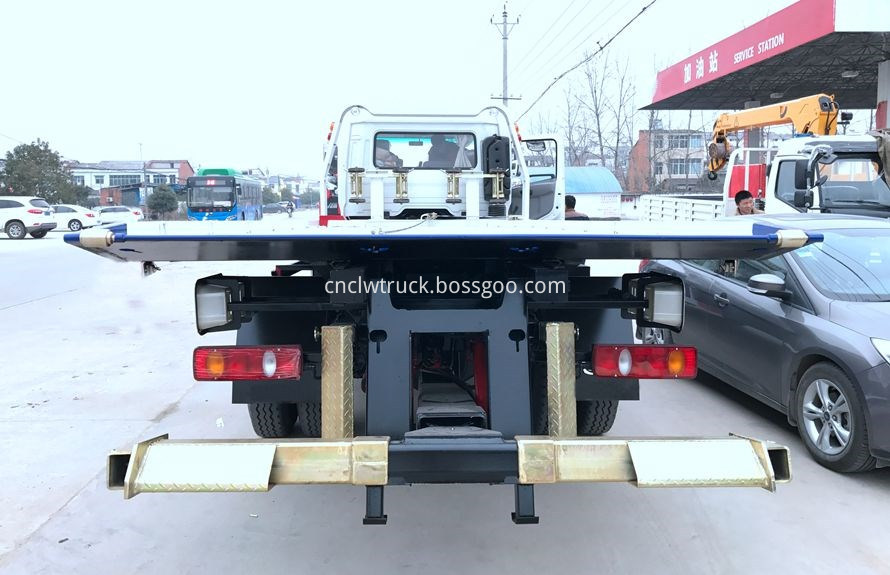

Dongfeng 7.2m Green Road Car Wrecker Picture 1
Dongfeng 7.2m Green Road Car Wrecker Picture 2
Dongfeng 7.2m Green Road Car Wrecker Picture 3
Dongfeng 7.2m Green Road Car Wrecker Picture 4
Dongfeng 7.2m Green Road Car Wrecker Picture 5

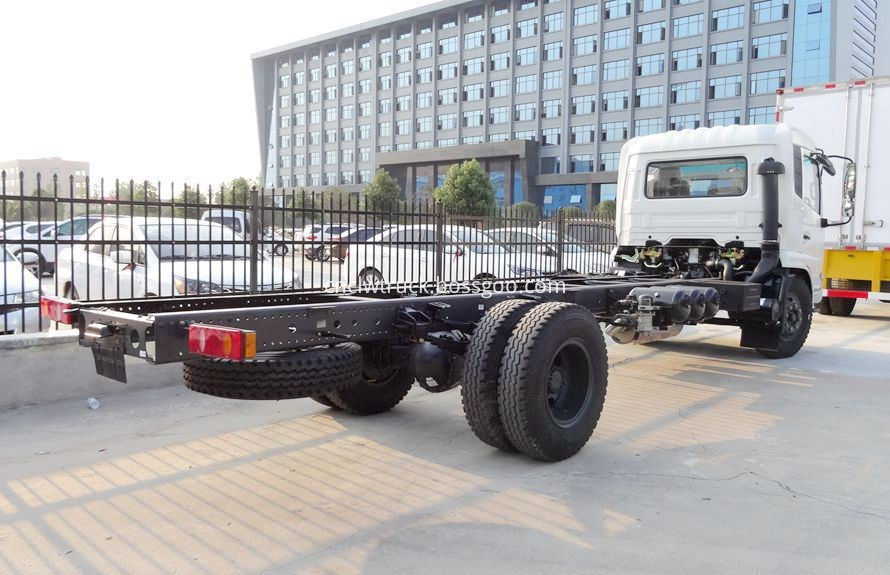

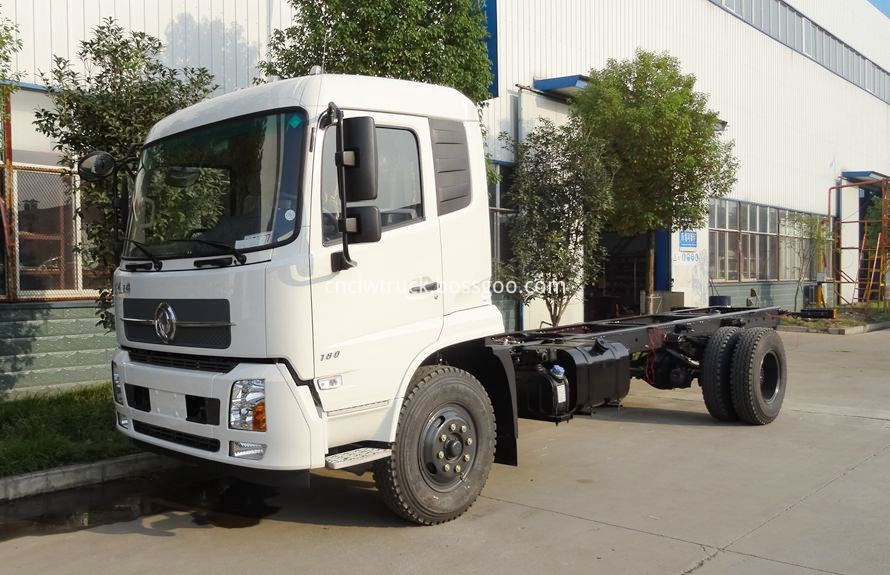

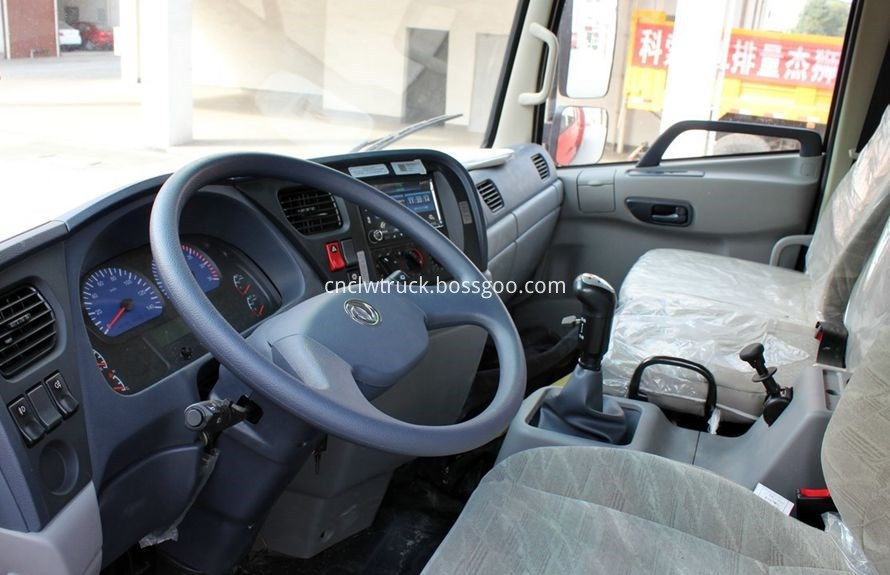

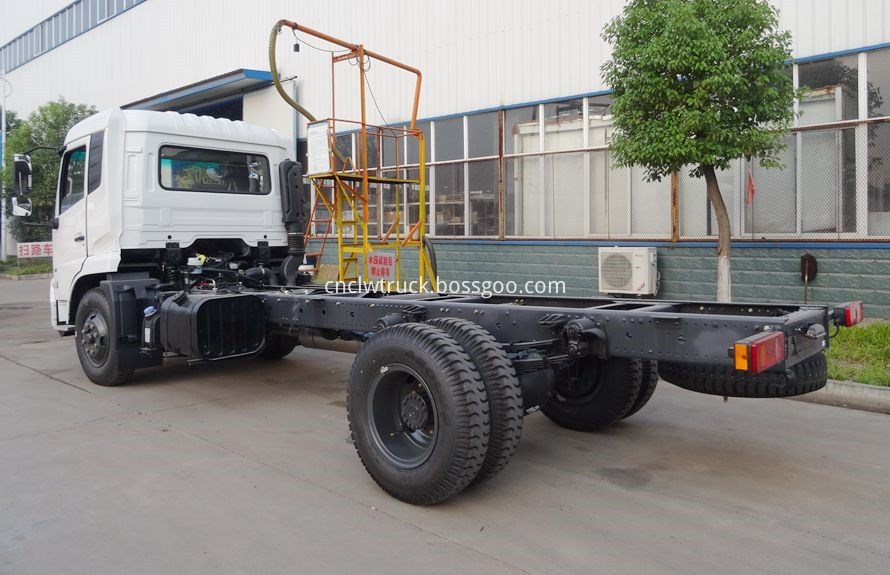

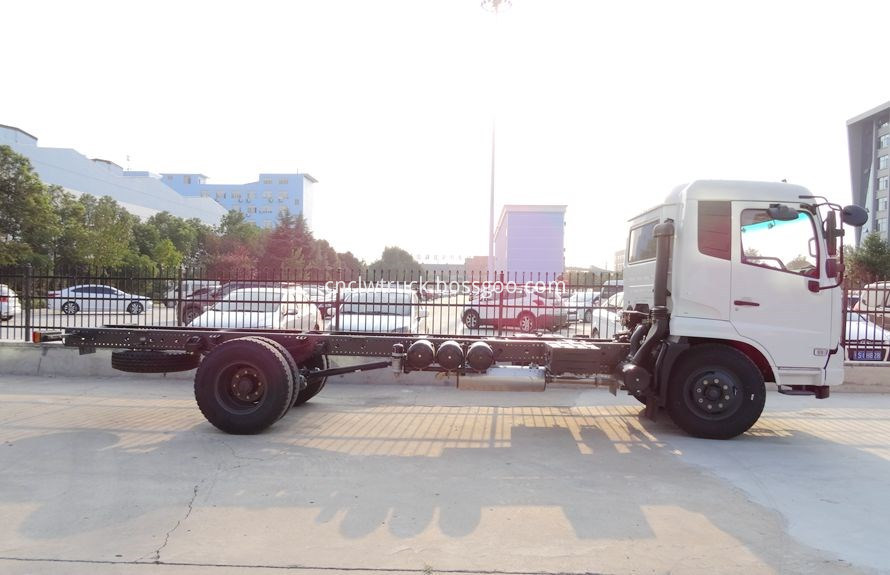

Dongfeng 7.2m Green Road Car Wrecker Chassis Picture 1
Dongfeng 7.2m Green Road Car Wrecker Chassis Picture 2
Dongfeng 7.2m Green Road Car Wrecker Chassis Picture 3
Dongfeng 7.2m Green Road Car Wrecker Chassis Picture 4
Dongfeng 7.2m Green Road Car Wrecker Chassis Picture 5
VEHICLE PARAMETERS :
VEHICLE PARAMETERS
Vehicle
Name
DONGFENG
Road Wrecker
Overall
Size
(L*W*H/mm)
9440*2480*2760
GVW
12495kg
Curb
Weight
8000kg
Flatbed
Size
7.2m
Thickness Of Flatbed
6mm
Towing
Capacity of Winch
6T
Lifting Capacity
6T
CHASSIS PARAMETERS
Chassis
Brand
DONGFENG
Wheel
Base
4700mm/5000mm
Chassis
Model
Drive
Model
4X2,
LHD/RHD
Axles
Nos
2
Tire
Spec.
9.00R20
Gearbox
6F,1R
Tire
Nos.
6+1(spare)
Engine
Model
ISD180 50
Engine
Brand
CUMMINS
Displacement
4500ml
Engine
Power
180HP
Fuel
Type
Diesel
Brake
Type
Air
Brake
BODY
CONFIGURATION
Stand
Configuration
6T towing winch, 35m steel wire rope, one pair auxiliary wheel ,
L-type fork one pair, square sleeve one pair, bundling belt 8units, hook,
working light 2units, yellow alarm lamp, tools and accessories
Optional
Configuration
Imported
parts, tire holder, hand washing device, LED burst flashing light, full-floor flatbed
DFL1120B21
Chassis Configurations: DONGFENG Chassis, New Type Single Row Cabin , CUMMINS Diesel 180HP Engine, 6 Speed Transmission, Wheelbase 4700/5000mm, 9T Rear Axle, 9.00R20 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows, Cruise Control System, Central Lock
Top flatbed Configurations:
Towing one by two type, length of flatbed 7.2m, width of flatbed 2.45m, with 1.2m length hydraulic pressure tailboard.
Files with vehicles:
Chassis Certificate, Vehicle Certificate, Proforma Invoice, English Vesion User Manual( any language version avaiable), Quality Warranty Certificate, Country of Original, Or Any other certificates can provide if contract need.
Green Road Car Wrecker Advantages :
1. Diesel fuel type, super powerful engine, perfect driving performance, no overhaul within 100,000km.
2. Wide and high-speed rotary, easy operation, strong load capacity.
3. Unique design, prolonged service life.
4. High quality hydraulic system.
5. Manufacturer directly sale, cheap price with promptly after-sales response.
Need more details of our Green Road Car Wrecker welcome to contact us at any time!
