Brand New SINO Truck with Asphalt Distributor Machine

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: CLW5709ADT

Fuel: Diesel

Certification: ISO9000, CCC, CE

Emission Standard: Euro 4

Condition: New

Chassis Brand: SINO TRUCK

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,ANY MAIN SEA PORT IN CHINA

Product Description

Guaranteed 100%  SINO Truck with Asphalt Distributor Machine for Sale

Truck with asphalt distributor machine is an high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil.

truck with asphalt distributor machine is basically made up of chassis, asphalt tank, asphalt pump, spray system, heat conduction oil heating system, hydraulic system, electric control system, distribution control system and rinsing series. And the distribution system has two main types: hand-controlled and computer-controlled.

VEHICLE PICTURES :

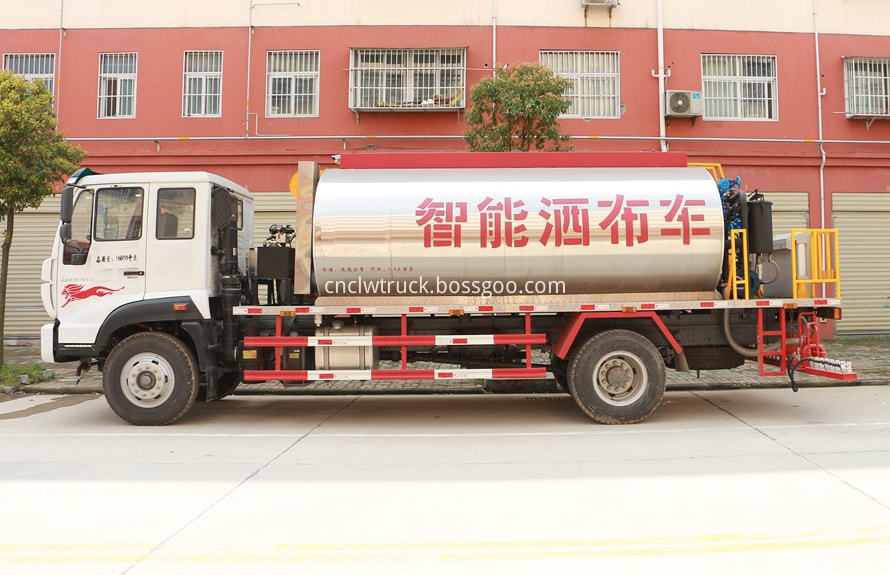

asphalt distributor machine

SINO Truck with Asphalt Distributor Machine Picture 1

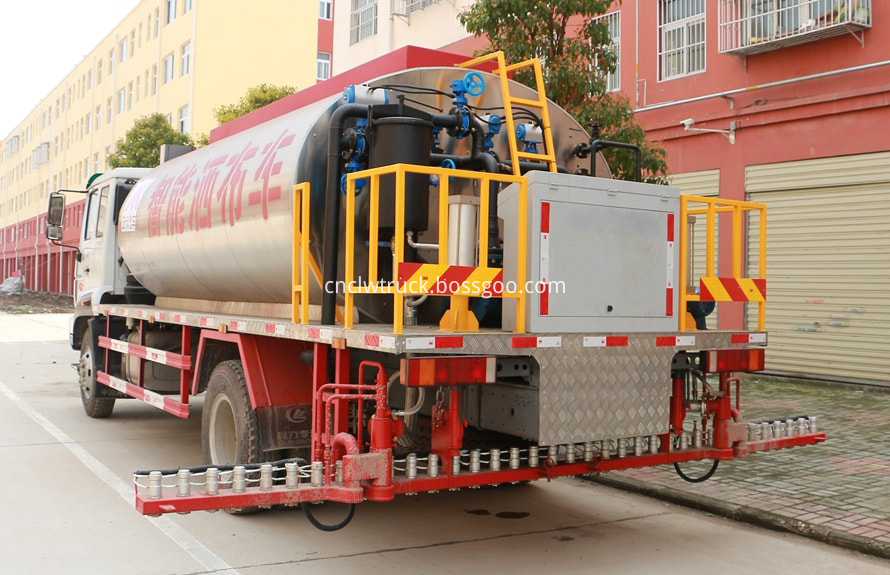

asphalt distributor machine 1

SINO Truck with Asphalt Distributor Machine Picture 2

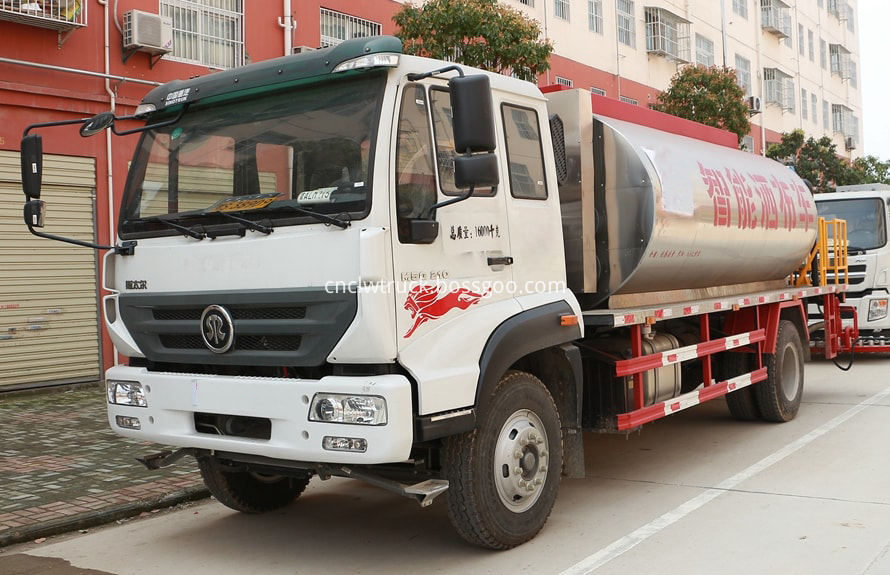

asphalt distributor machine 2

SINO Truck with Asphalt Distributor Machine Picture 3

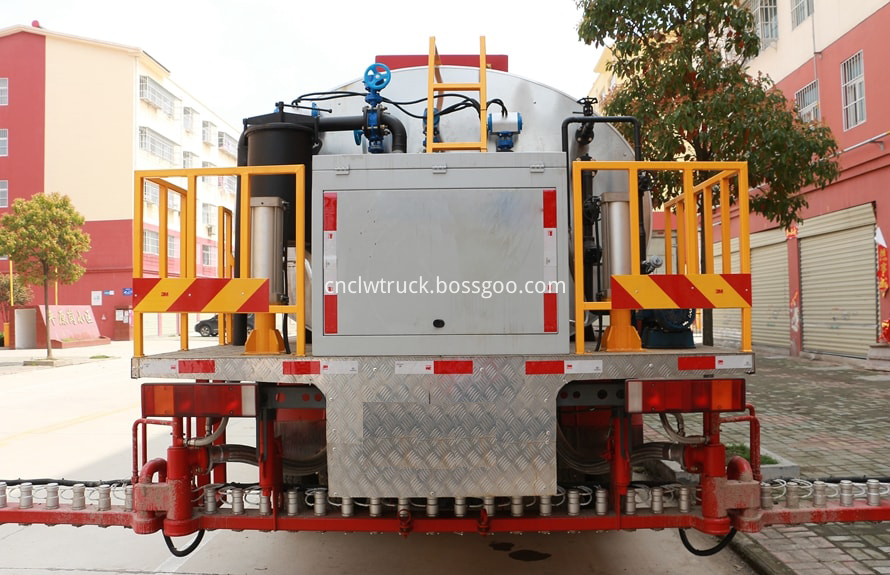

asphalt distributor machine 3

SINO Truck with Asphalt Distributor Machine Picture 4

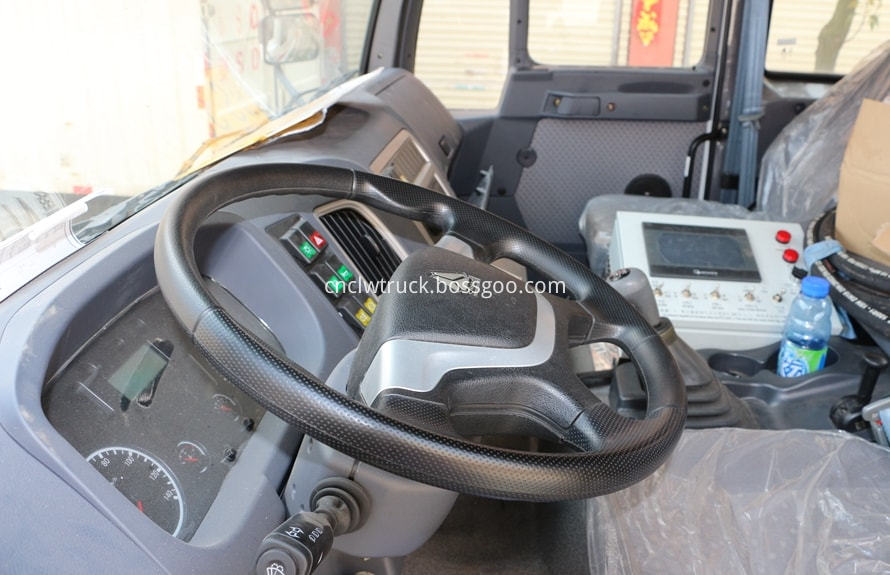

asphalt distributor machine 4

SINO Truck with Asphalt Distributor Machine Picture 5

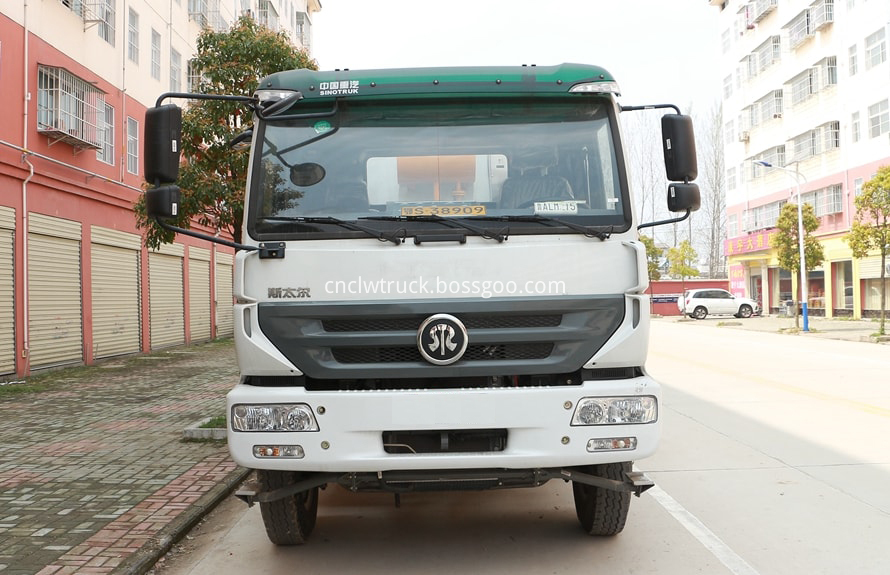

asphalt distributor machine 5

 SINO Truck with Asphalt Distributor Machine Picture 6

asphalt distributor machine working

SINO Truck with Asphalt Distributor Machine At Work

VEHICLE PARAMETERS:

Items

Unit

Reference Value

Rated Tank Capacity

L

12000

Spray Width

mm

4500-6000

Spray Density

Kg/㎡

0.2-3.0

Max Speed

Km/h

90

GVW

kg

16000

Rated Load Weight

kg

5570

Curb Weight

kg

10300

Engine Power

kw

151

Gearbox

/

6F 1R

Fuel Type

/

Diesel

Emission Standard

/

Euro 5

Wheelbase

mm

5000

Tire Spec

/

10.00R20

Vehicle Size

mm

8650*2500*3050


Items

Parameters

Chassis Brand

SINO

Chassis Model

ZZ1161

Bitumen Tank Material

Carbon steel covered with stainless steel

Spray Medium

Hot asphalt, emulsified asphalt, rubber asphalt(need customized)

Asphalt Pump

QGB950 (International Brand Optional)

Spray Pipe

4.5m(or 6m)

Hand Held Spray Gun

Manual, with 5m pipe

Heat-transfer Oil Pump

RY65-40 (International Brand Optional)

Generator

5.5kw

Variable Pump

CBQ550-L

Hydraulic Motor Of Asphalt Pump

05-110-BD31

Heat-transfer Oil Pump

40-25-160

Burner

G20

Proportional Valve

EFBG-03-160-HF

Reversing Valve

Chinese Brand

Overflow Valve

Chinese Brand

Gas Cylinders

40L

Air Cylinder

100*250

Operation in Cab

Automatic Computer-Controlled,

Germany WST System

Operation at Rear

Manual,

Germany WST System

Temperature Control System

Omron(Japanese Brand)

Multifold Solenoid Valve

4 units

Features of  Truck with Asphalt Distributor Machine

---Best System

1. Manual/automatic control of spraying amount and operation width, each nozzle can be controlled separately, and the determinant of nozzle can be freely combined, so as to realize arbitrary adjustment of spraying width.Sprinkling control is available in cab or rear platform.

2. The automatic control system can measure the speed and calculate the asphalt pump revolution automatically according to the input sprinkling quantity, spraying width and asphalt type, and then automatically adjust the number of asphalt pump through the system.

3. Vehicle-mounted rapid heating system (10-15 degree/h), which can improve heating efficiency and reduce construction assistance time to ensure the spraying temperature;

4. The punching nozzle system can blow out the remaining bitumen of the nozzle through diesel oil and high-pressure air to prevent the bitumen from freezing in the nozzle and improve the service life of the nozzle.

---Best Parts

5. The key parts of the vehicle (hydraulic pump, hydraulic motor, asphalt pump, proportional valve, automatic control system) adopt internationally renowned and best components, effectively extending the service life;

6. Adopt international advanced high viscosity asphalt pump, can pump the external asphalt into the tank, achieve "self-priming", can also pump out the tank asphalt;

7. The heating system USES Italian burner, with automatic ignition and temperature control functions.

---Personalized Device

8. Heat insulation layer is provided outside all heat pipes to reduce heat loss and avoid scalding operators.

9. Asphalt spraying rod adopts a three-section folding structure. Double or multiple spraying can be achieved by moving the spraying rod up and down.

10. The asphalt tank is equipped with precipitation sewage tank, liquid level indicator, alarm and safety device.


Similar Keywords:

The bitumen sprayer engine also can be named asphalt distribution truck , asphalt road maintainer, bitumen spray truck, bitumen pressure distributor, asphalt road maintenance vehicle, asphalt distribution tank truck, asphalt distribution tank truck pictures, videos, pictures, asphalt distribution truck manufacturers etc..
