Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CIF,EXW |
Min. Order: | 1 Set/Sets |
Delivery Time: | 30 Days |
Basic Info
Model No.: CLW5070TSLD5
Type: Dry-type
Payload: 20T
Transmission Type: Manual
Engine Type: 4 Stroke
Fuel: Diesel
Emission Standard: Euro 3
Certification: CCC, ISO9000
Condition: New
Chassis Brand: DONGFENG
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 300sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,Any Other Port in China
Product Description
Brand New Benz U423 Multifunction Railway Sweep Truck
Road sweeper truck is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.
Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
SPECIFICATIONS :
Road Sweeper Truck Dongfeng ( 4 CBM dustbin & 1.5 CBM water tank )
General
Vehicle Brand
CLW
Chassis Brand
DONGFENG
Overall Dimension
5950 * 2000 * 2590 mm
GVW / Kerb Weight
7,360kg / 5,040kg
Cab
Cab Capacity
2 persons allowed
Air Conditioner
W/ air conditioner
Engine
Fuel Type
Diesel
Engine Brand
CHAOCHAI
Power
102 Ps (75 KW)
Displacement
3707 ml
Emission Standard
Euro III
Chassis
Drive Type
4X2, left or right hand drive
Transmission
5speed gear box, no overhaul within 500,000km
Wheelbase/No. of axle
3308 mm / 2
Tyre Specification
7.00-16
Tyre Number
6 tyres and 1 spare tyre
Max Speed
99 km/h
Paint
Metallic paint
Superstructure
Water Tank
Stainless Steel
Dustbin Capacity
4 CBM
Dustbin Material
Stainless Steel
Water Tank Capacity
1,500 Litres (About 400 gallons)
Sweeping Capacity
42,000 m³/h
Sweeping Speed
3-15 km/h
Max Sweeping Width
2800mm
Brooms
2 sets at each side
Auxiliary Engine
JMC engine (ISUZU technology)
77 HP (57 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual--
Optional
** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

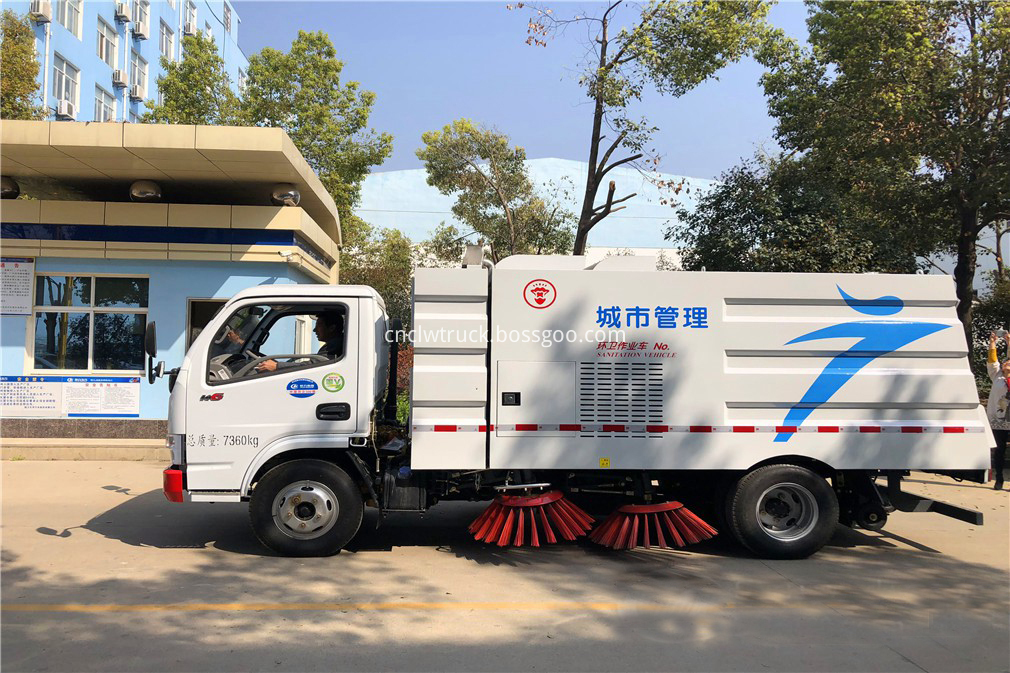

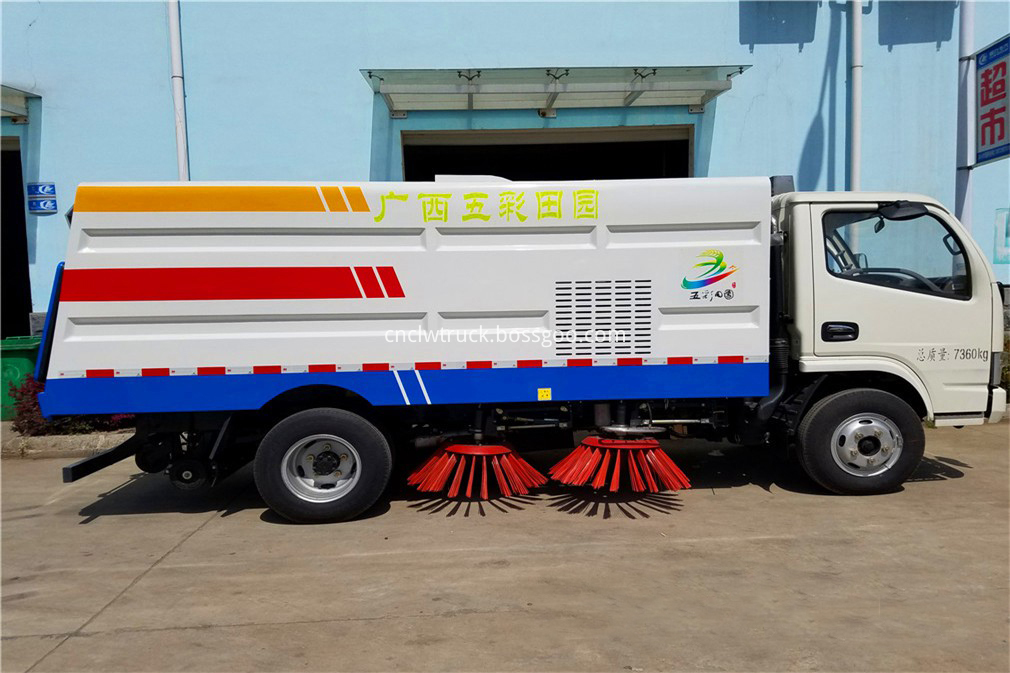

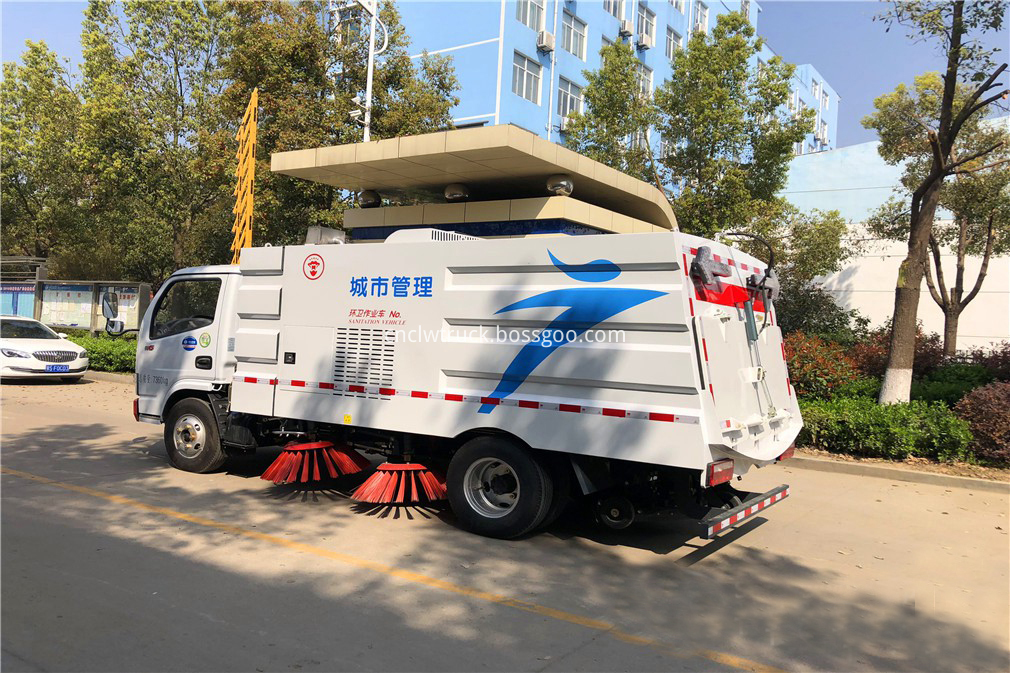

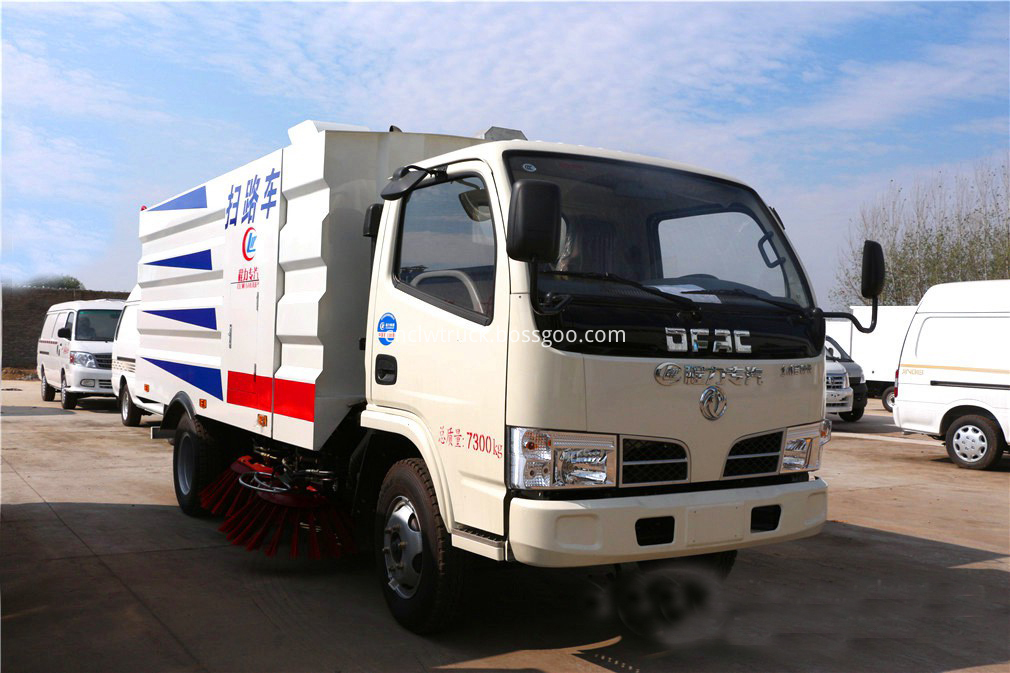

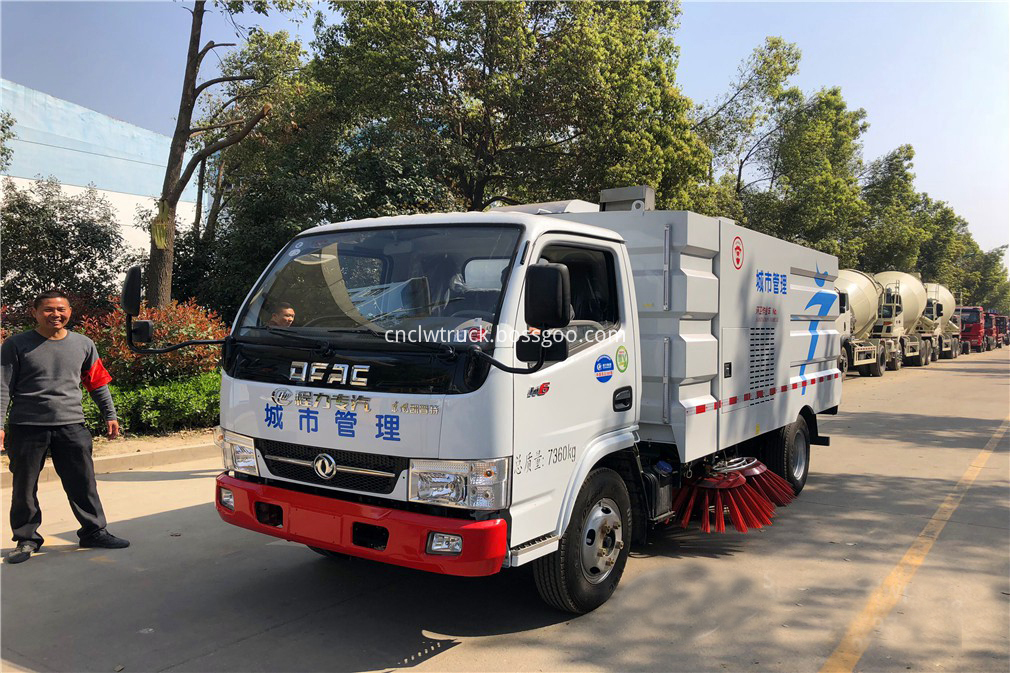

VEHICLE PICTURES :
5CBM Road Sweeper Truck
DETAILS :
Advantages of Our Road Sweeper Truck
FACTORY SHOW :
Production Workshop of CLW Road Sweeper Truck
CUSTOMER VISIT :
Similar Keywords: street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle
What we can supply for you:
We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.
Welcome to visit us and looking forward to bulid a long win-win business cooperation.
