Brand New DONGFENG D9 7.4m Road Recovery Truck

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5403RWT

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 4

Condition: New

Chassis Brand: DONGFENG

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% Brand New DONGFENG D9 7.4m Road Recovery Truck for Sale

Road Recovery Truck is used to transport motor vehicles or tow the vehicles that are broken down, based on the type or size of vehicle to be towed, the road towing vehicles are usually designed into two types, ine is slidebed tow truck with wheel-lift function, another one is wheel-lift units mounted a combination boom with sling that can hauling all kinds of heavy duty equipments.


VEHICLE  DIAGRAM :

Road Wrecker Detailed Description logo

Operation Status of Road Wrecker logo


VEHICLE PICTURES :

road recovery truck

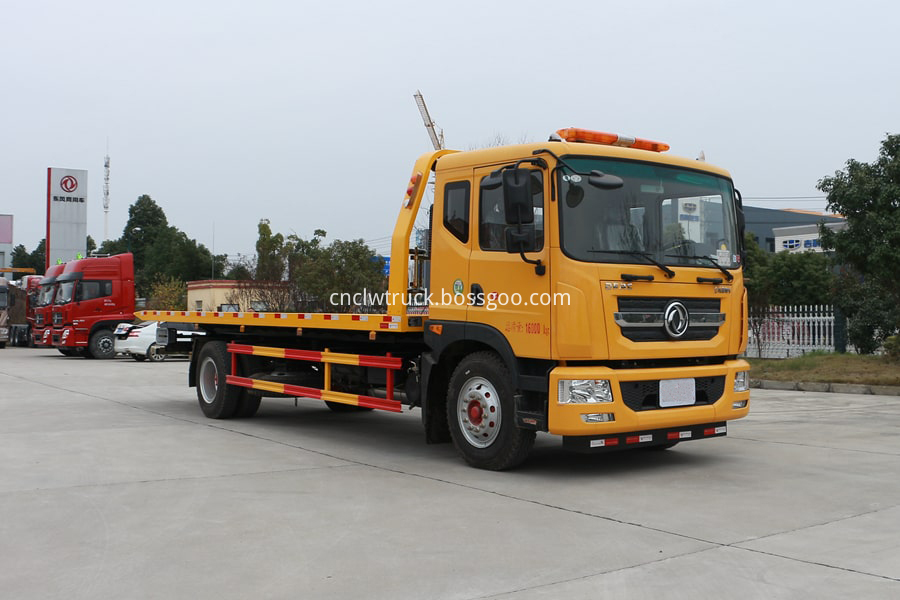

DONGFENG D9 7.4m Road Recovery Truck Picture 1

road recovery truck 1

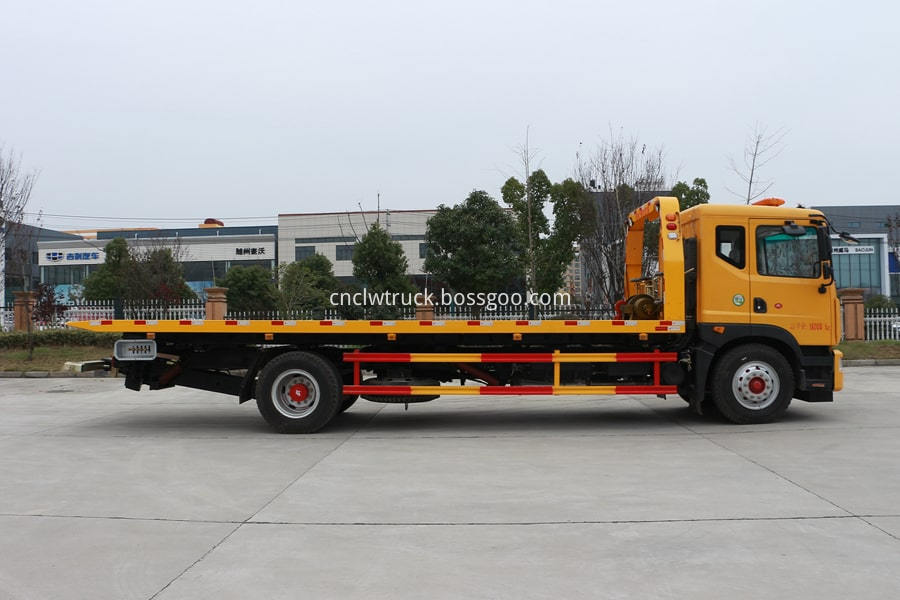

DONGFENG D9 7.4m Road Recovery Truck Picture 2

road recovery truck 2

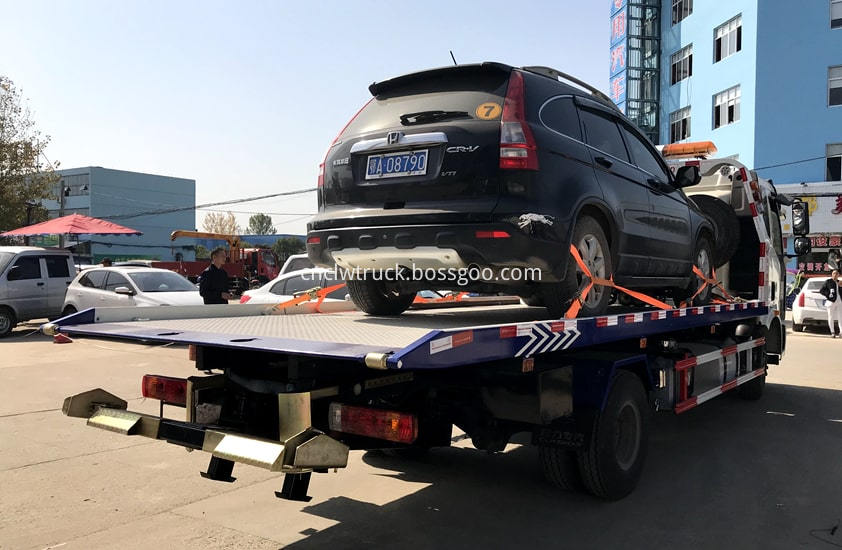

DONGFENG D9 7.4m Road Recovery Truck Picture 3

road recovery truck 3

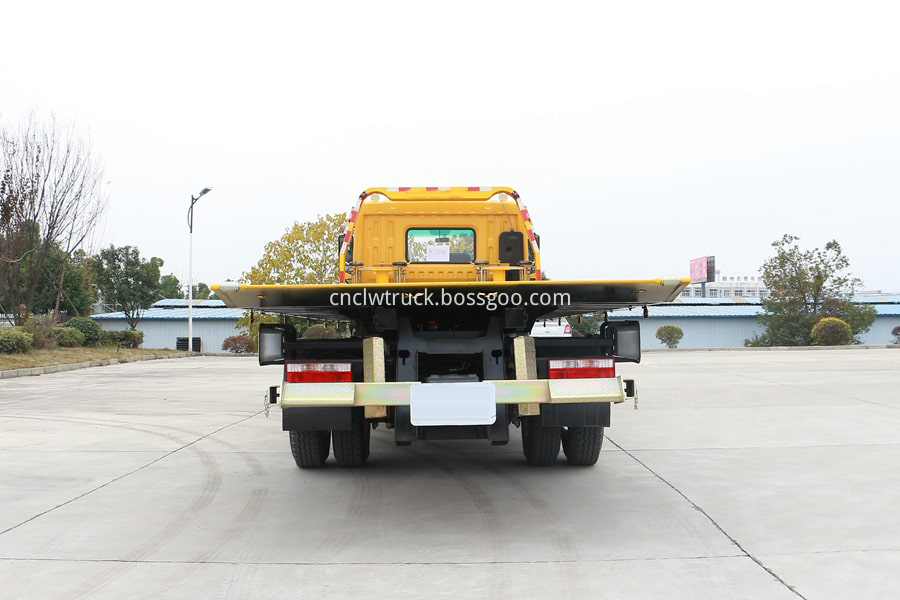

DONGFENG D9 7.4m Road Recovery Truck Picture 4

road recovery truck 4

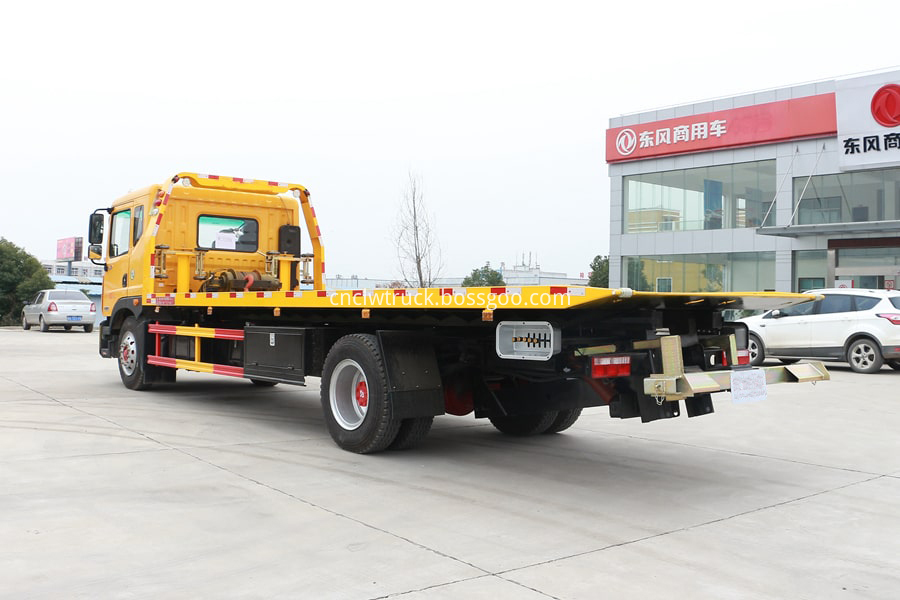

DONGFENG D9 7.4m Road Recovery Truck Picture 5

road recovery truck 5

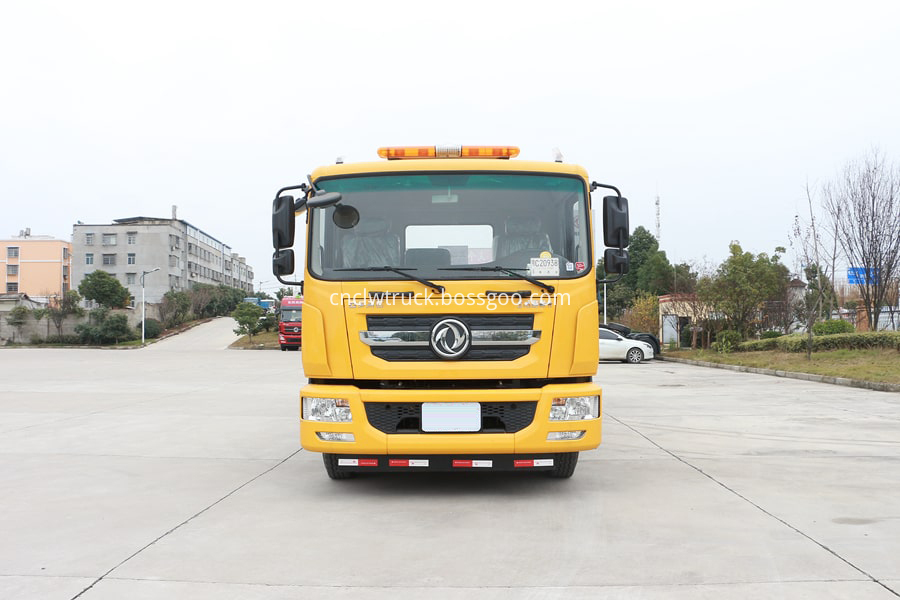

DONGFENG D9 7.4m Road Recovery Truck Picture 6


VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Vehicle Name

D9 Road Wrecker

Overall Size

(L*W*H/mm)

9500*2480*2760

GVW

15795kg

Curb Weight

8950kg

Flatbed Size

7.4m

Flatbed Thickness

6mm

Towing Capacity of Winch

6T

Top body weight

6T

CHASSIS  PARAMETERS

Chassis Brand

DONGFENG

Wheel Base

5200mm

Chassis Model

EQ1116LJ9

Drive Model

4X2, LHD/RHD

Axles Nos

2

Tire Spec.

10.00R20

Gearbox

6F,1R

Tire Nos.

6+1(spare)

Engine Model

YC4EG170-50

Engine Brand

YUCHAI

Displacement

4730ml

Engine Power

170HP

Fuel Type

Diesel

Brake Type

Air Brake

BODY CONFIGURATION

Stand Configuration

6T towing winch, 35m steel wire rope, one pair auxiliary wheel , L-type fork one pair, square sleeve one pair, bundling belt 8units, hook, working light 2units, yellow alarm lamp, tools and accessories

Optional Configuration

Imported parts, tire holder, hand washing device, LED burst flashing light,  full-floor flatbed


Chassis Configurations: DFAC D9 Chassis, Single-row Cab with one sleeper , YUCHAI Diesel 170HP Engine, 8 Speed Transmission, Wheelbase 5200mm, 9T Rear Axle, 10.00R20 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows


Top flatbed Configurations:

Towing one by three type, length of flatbed 7.4m


Flatbed Tow Truck Advantages :

1.  Diesel fuel type, super powerful engine, perfect driving performance, no overhaul  within 100,000km.

2. Wide and high-speed rotary, easy operation, strong load capacity.

3. Unique design, prolonged service life.

4. High quality hydraulic system.

5. Manufacturer directly sale, cheap price with promptly after-sales response.


CHENGLI SPECIAL AUTOMOBILE CO

Need more details of our Flatbed Tow Truck welcome to contact us at any time!
