Brand New DFAC BreakDown Lorry With Crane

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5404RWT

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 4

Condition: New

Chassis Brand: DONGFENG

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100%  New DFAC BreakDown Lorry With Crane for Sale

Breakdown lorry with crane is used to transport motor vehicles or tow the vehicles that are broken down, based on the type or size of vehicle to be towed, the road towing vehicles are usually designed into two types, ine is slidebed tow truck with wheel-lift function, another one is wheel-lift units mounted a combination boom with sling that can hauling all kinds of heavy duty equipments.


VEHICLE  DIAGRAM :

Road Wrecker Detailed Description logo

Operation Status of Road Wrecker logo


VEHICLE PICTURES :

break down lorry

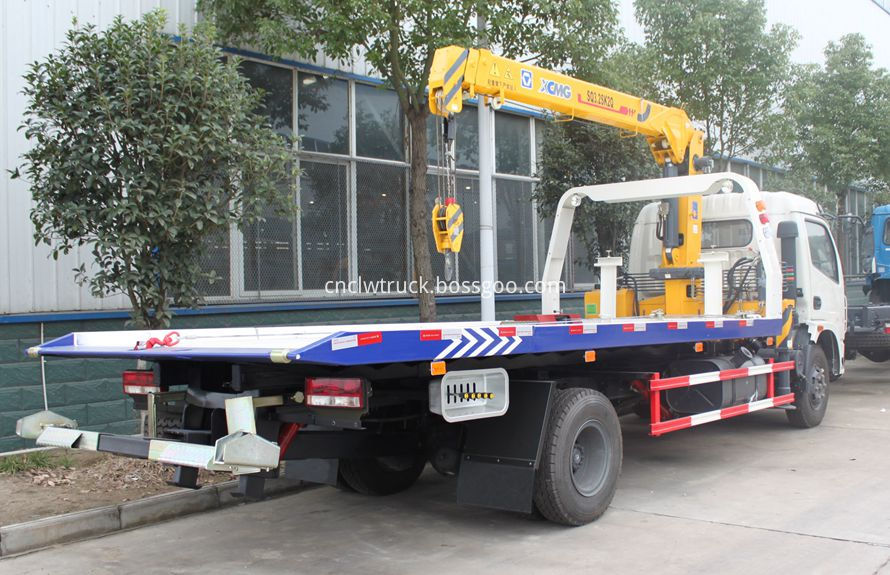

DFAC BreakDown Lorry With 2-4Tons Crane Picture 1

break down lorry 4

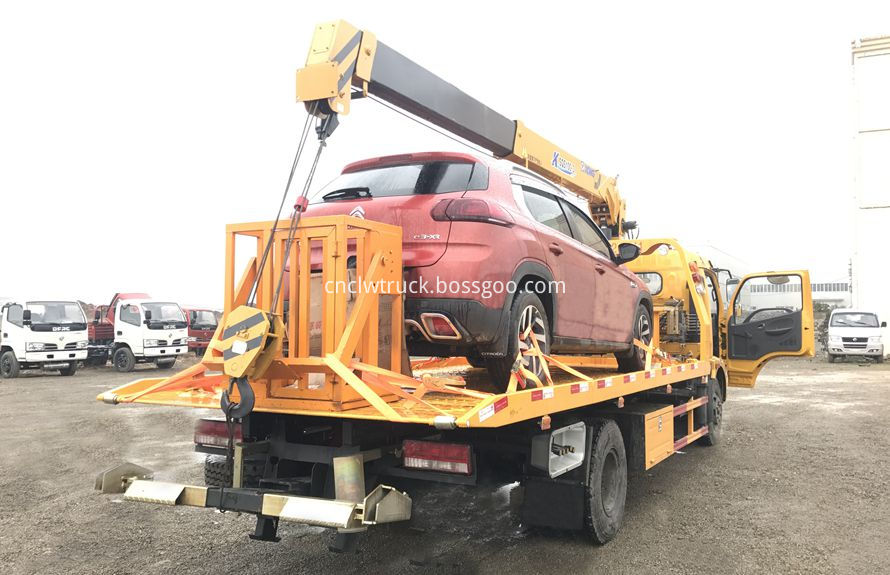

DFAC BreakDown Lorry With 2-4Tons Crane Picture 2

break down lorry 1

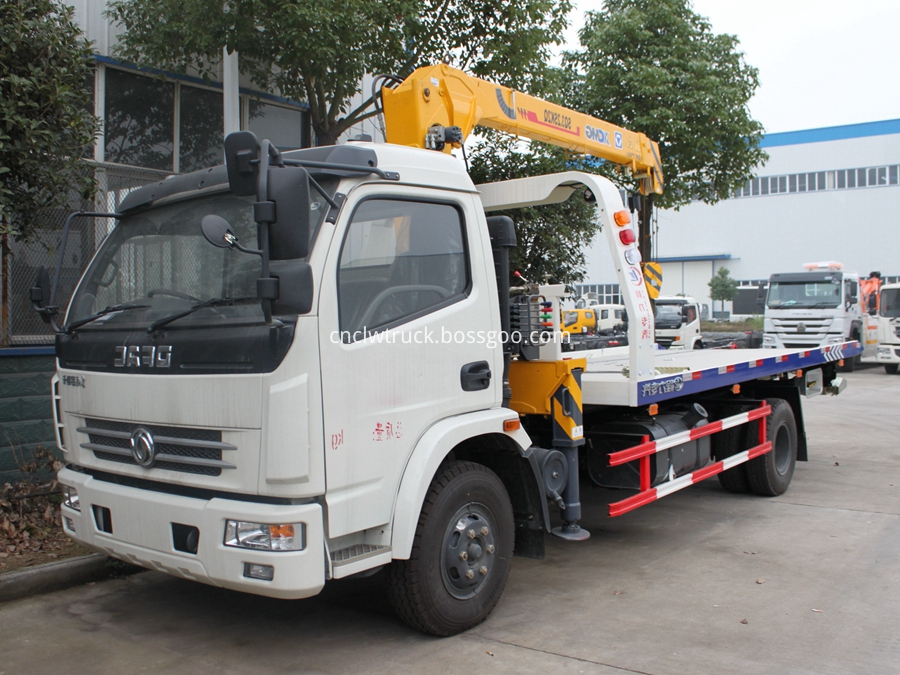

DFAC BreakDown Lorry With 2-4Tons Crane Picture 3

break down lorry 2

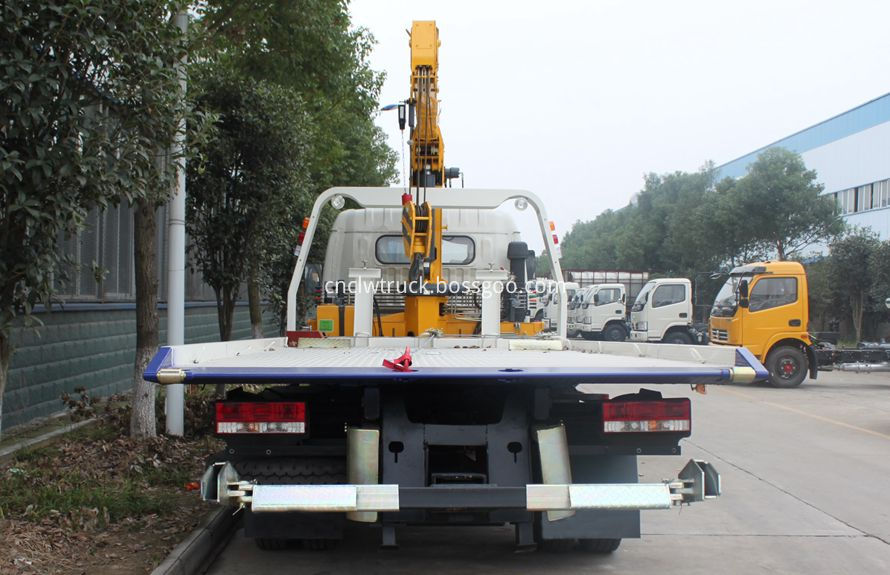

DFAC BreakDown Lorry With 2-4Tons Crane Picture 4

break down lorry 3

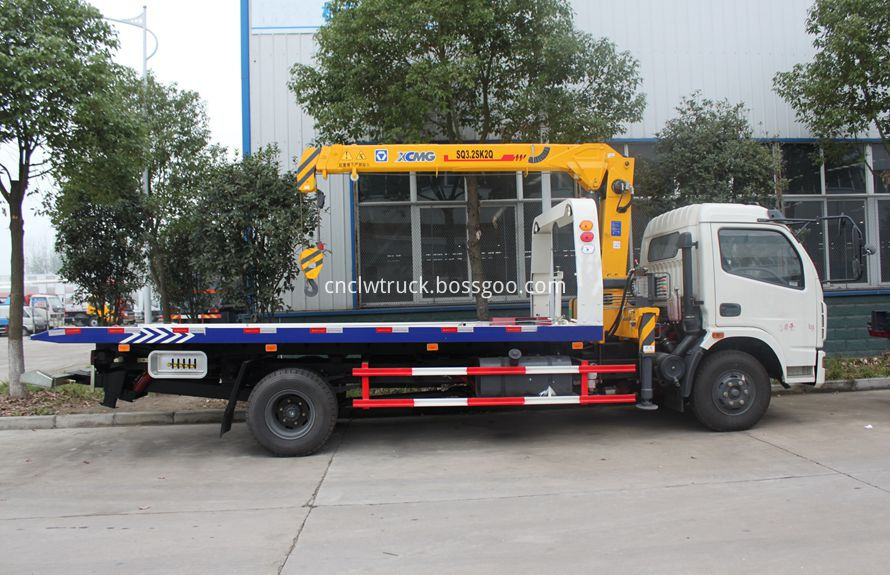

DFAC BreakDown Lorry With 2-4Tons Crane Picture 5



VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Vehicle Name

D7 Road Wrecker

Overall Size

(L*W*H/mm)

8150*2350*3300

GVW

9400kg

Curb Weight

6800kg

Flatbed Size

5.6*2.35m

Equipped Crane

2-4Tons

Towing Capacity of Winch

4T

Top body weight

4T

CHASSIS  PARAMETERS

Chassis Brand

DONGFENG

Wheel Base

4400mm

Chassis Model

EQ1090SJ

Drive Model

4X2, LHD/RHD

Axles Nos

2

Tire Spec.

8.25R16

Gearbox

5F,1R

Tire Nos.

6+1(spare)

Engine Model

YC4S150-50

Engine Brand

YUCHAI

Displacement

5900ml

Engine Power

150HP

Fuel Type

Diesel

Brake Type

Air Brake

BODY CONFIGURATION

Stand Configuration

4T towing winch, 25m steel wire rope, one pair auxiliary wheel , L-type fork one pair, square sleeve one pair, bundling belt 8units, hook, working light 2units, yellow alarm lamp, tools and accessories

Optional Configuration

Imported parts, tire holder, hand washing device, LED burst flashing light,  full-floor flatbed


Chassis Configurations: DFAC D7 Chassis, Single-row Cab with one sleeper ,YUCHAI Diesel 150HP Engine, 6 Speed Transmission, Wheelbase 4400mm, 6T Rear Axle, 8.25R16 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows


Top flatbed Configurations:

Towing one by two type, length of flatbed 5.6m, width of  flatbed 2.35m, mounted with 2tons -4tons crane.


Road  Wrecker Truck Advantages :

1.  Diesel fuel type, super powerful engine, perfect driving performance, no overhaul  within 100,000km.

2. Wide and high-speed rotary, easy operation, strong load capacity.

3. Unique design, prolonged service life.

4. High quality hydraulic system.

5. Manufacturer directly sale, cheap price with promptly after-sales response.


CHENGLI SPECIAL AUTOMOBILE CO

Need more details of our Breakdown Lorry welcome to contact us at any time!
