SINOTRUCK 23CBM Bitumen And Gravel Synchronous Seal Truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info

Model No.: CLW5714ADT

Fuel: Diesel

Certification: ISO9000, CCC, CE

Emission Standard: Euro 4

Condition: New

Chassis Brand: SINOTRUCK

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,ANY MAIN SEA PORT IN CHINA

Product Description

 VEHICLE PARAMETERS

Items

Parameters

Rated Tank Capacity

9m³ Asphalt/ 14m³ Gravel

Spray Width

3500mm

Spray Density

0.2-3.0 kg/㎡

Max Speed

90km/h

GVW

25000kg

Rated Load Weight

6670kg

Curb Weight

18200kg

Engine Power

SINOTRUCK 380HP

Gearbox

 10Speed

Fuel Type

Diesel

Emission Standard

Euro 5

Wheelbase

4700+1350mm

Tire Spec

12.00R20

Vehicle Size

11250*2550*3700/L*W*H/mm


Items

Domestic Brand

International Brand

Tank Structure

Three layers of insulation tank

Three layers of insulation tank

Asphalt Pump

Domestic brand, 950L/min

Belgium TGGP-185-125

Hydraulic Motor

05-130-BD31

Germany GM05-90-HBD40

Hydraulic Pump

50-20-16

Germany A11V060EP20D-10L

Proportional Valve

EFBG-03-160-HF

EFBG-03-160-HF

Reversing Valve

Domestic Brand

Domestic Brand

Overflow Valve

Domestic Brand

Domestic Brand

Control Type

Computer

Computer

Control System

Germany SIMENS

Germany SIMENS

Heating Model

Conduction Oil

Conduction Oil

Burner

Italy

Italy

Heat Oil Pump

40-25-160

40-25-160

Gasoline Generator

6KW

6KW

Spray Nozzles Qty.

32

32

Spray Medium

Hot asphalt, emulsified asphalt, rubber asphalt

Hot asphalt, emulsified asphalt, rubber asphalt

Spread Quality

0.2-3.5L/㎡

0.2-3.5L/㎡

Spray Width

4.2m

4.2m

Gravel Diameter

5-25mm

5-25mm

Spread Roller Motor

OMR-80 Danfoss

OMR-80 Danfoss

VSS

Germany STW

Germany STW

Temperature Controller

Domestic Brand

Japan Omron PT100

Spiral Agitator

Domestic Brand

America Eton ZK195


VEHICLE PICTURES

Bitumen And Gravel Synchronous Seal Truck

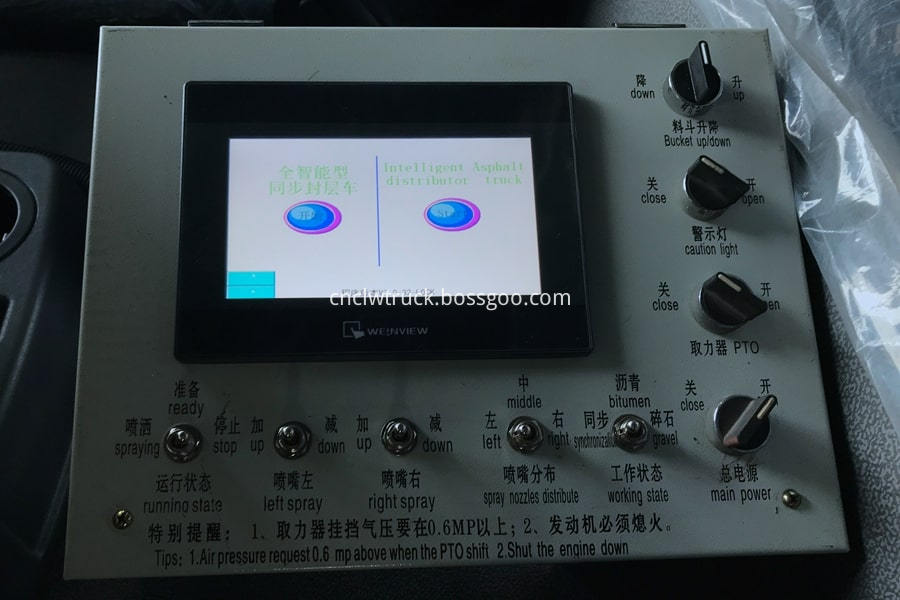

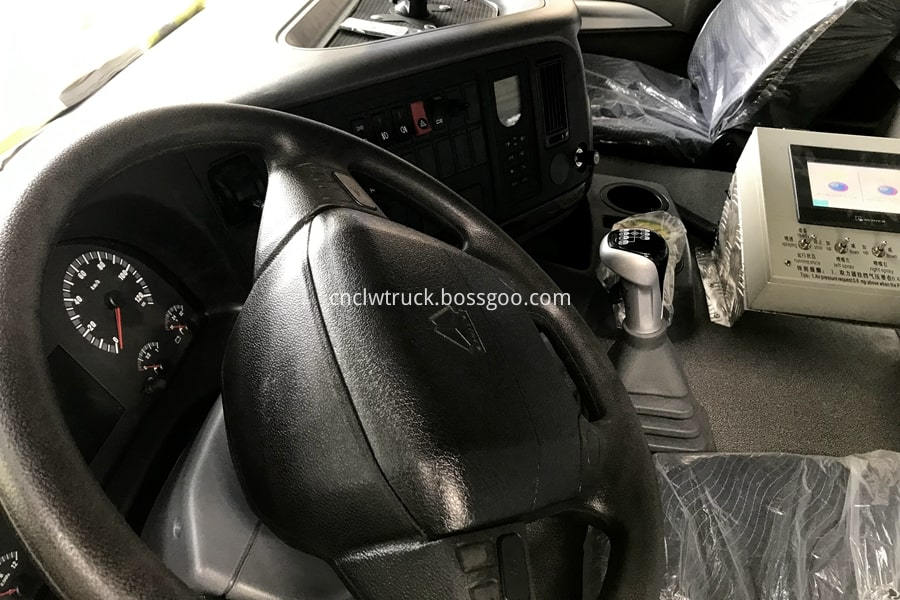

Bitumen And Gravel Synchronous Seal Truck Picture 1

Bitumen And Gravel Synchronous Seal Truck 1

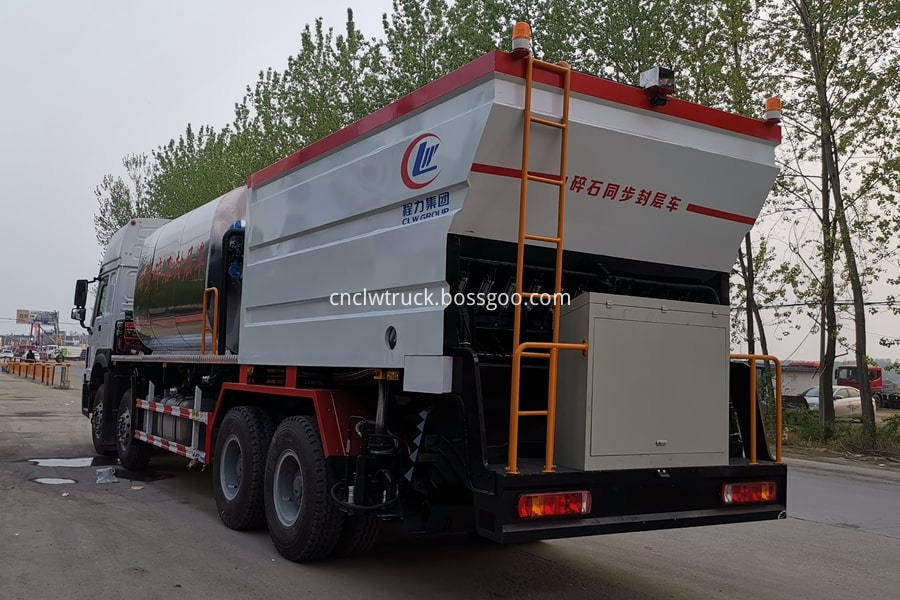

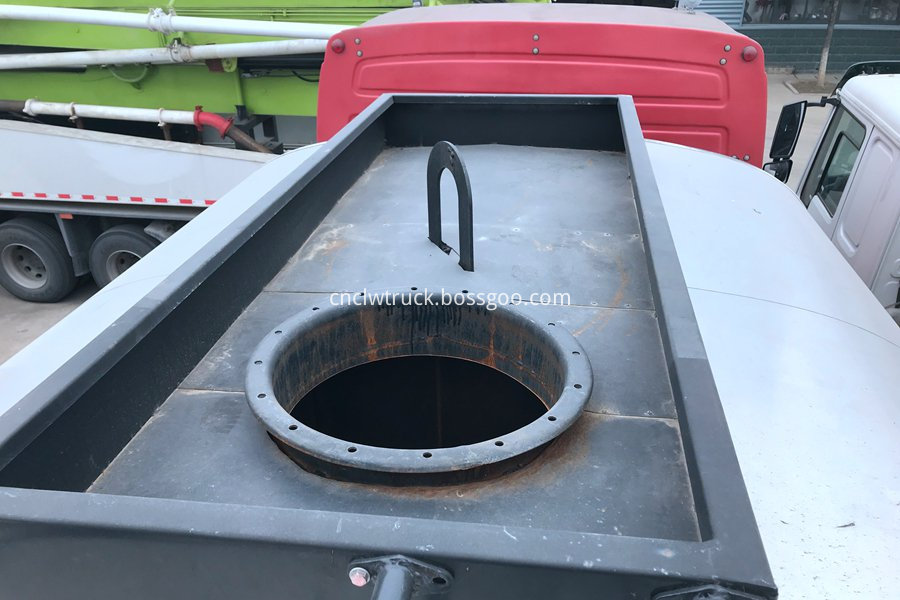

Bitumen And Gravel Synchronous Seal Truck Picture 2

Bitumen And Gravel Synchronous Seal Truck 2

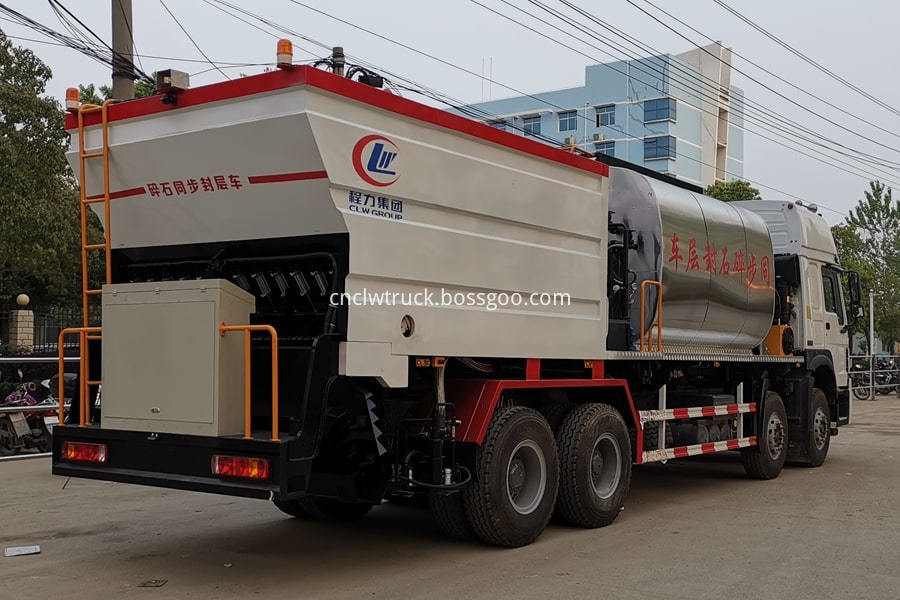

Bitumen And Gravel Synchronous Seal Truck Picture 3

Bitumen And Gravel Synchronous Seal Truck 3

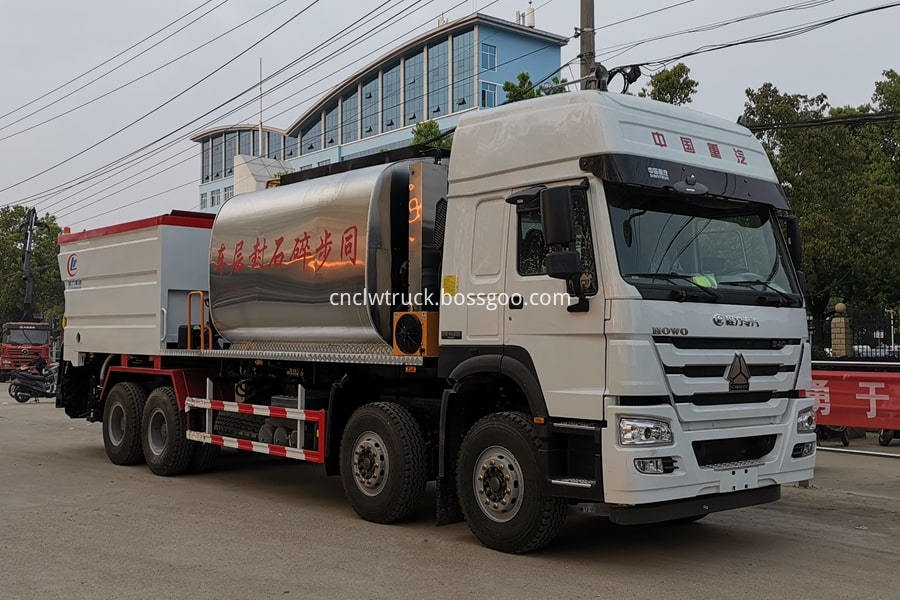

Bitumen And Gravel Synchronous Seal Truck Picture 4

Bitumen And Gravel Synchronous Seal Truck 4

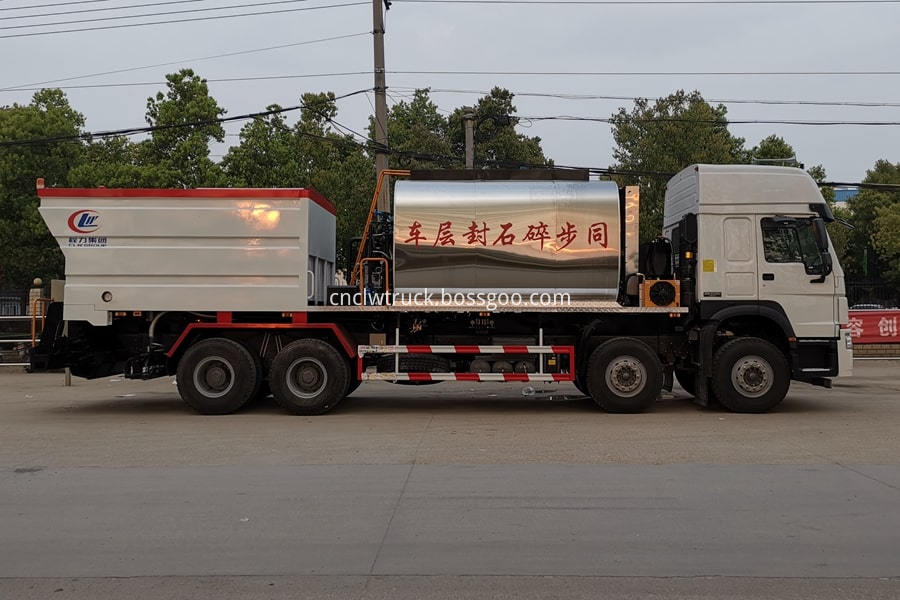

Bitumen And Gravel Synchronous Seal Truck Picture 5

Chip Sealing Tank Truck  5

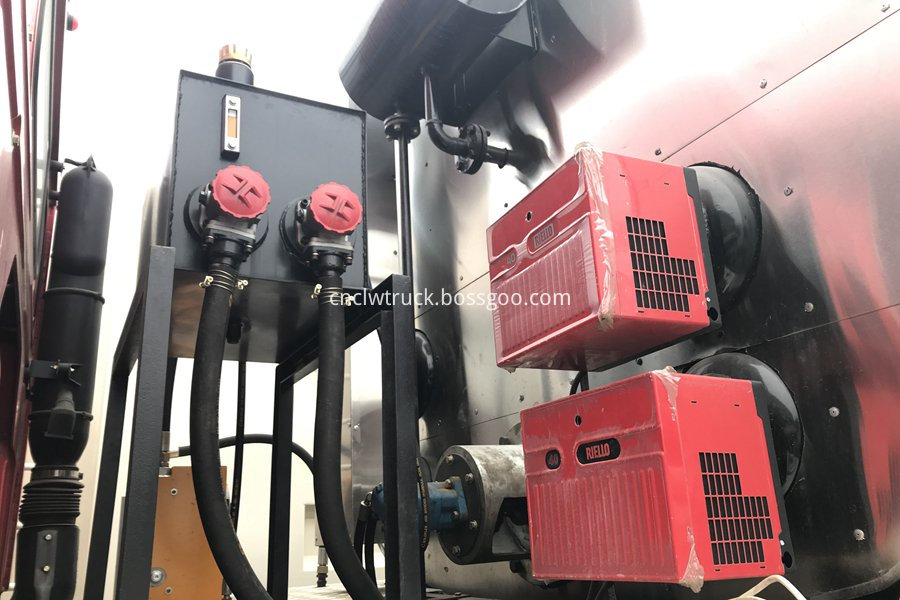

Bitumen And Gravel Synchronous Seal Truck Picture 6

Chip Sealing Tank Truck  6

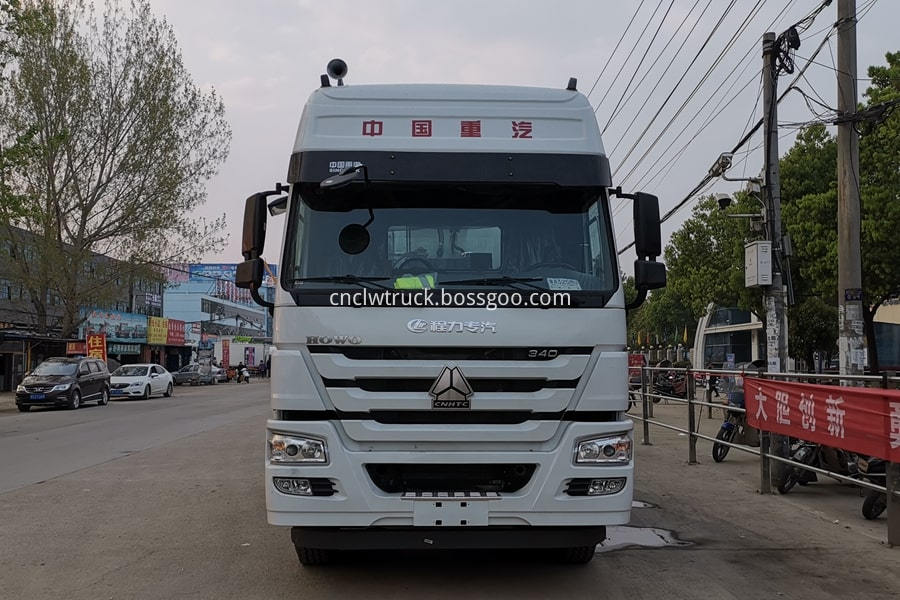

Bitumen And Gravel Synchronous Seal Truck Picture 7

Chip Sealing Tank Truck  7

Bitumen And Gravel Synchronous Seal Truck Picture 8

Chip Sealing Tank Truck  8

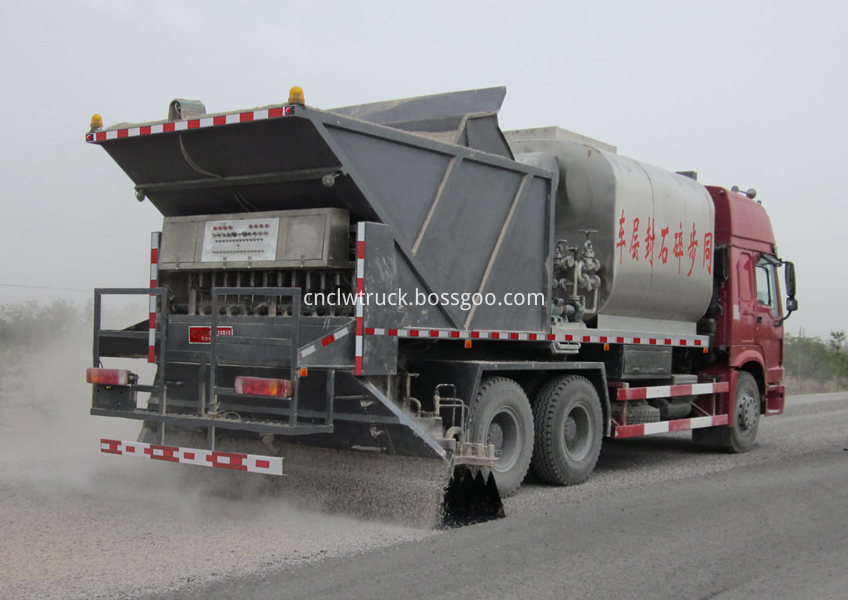

Bitumen And Gravel Synchronous Seal Truck Picture 9

Chip Sealing Tank Truck working

Bitumen And Gravel Synchronous Seal Truck At Work

VEHICLE FEATURES

1. Adopt of full hydraulic drive mode, do not need to add any auxiliary power to make the operation more simple and convenient.

2. Exclusive use of efficient heat conduction oil boiler heating, the temperature rise speed is greatly improved, breaking the traditional flue heating way.

3. Bitumen And Gravel Synchronous Seal Truck with an internal lift hopper can achieve stone dust distribution work, more convenient culvert construction, bridge construction, and bend construction;

4. Bitumen And Gravel Synchronous Seal Truck completely adopts electrical control, high degree of automation, can accurately calculate the equipment in the construction process of the amount of asphalt and the amount of stone dust spreading;

5. Angle meter is adopted for material door control to ensure the precision of cutting;

6. Reduce labor intensity of construction, save human resources, reduce construction cost, improve work efficiency and quality;

7. Stable operation of the whole machine, uniform spreading, free adjustment of spreading width of asphalt;

8. Good insulation layer to ensure that the insulation performance index ≤20℃/8h, and anticorrosive and durable;

9. Can spray various asphalt media, spreading stone materials from S3 ~ S15mm;

10. The equipment adopts nozzle with high machining accuracy to ensure the spraying consistency and effect of each nozzle;

11. The overall operation is more user-friendly, with remote control and on-site operation, which brings great convenience to the operator;

12. Zero start spraying is realized through perfect combination of electric control and constant pressure device of hydraulic system;

13. The whole machine after many engineering construction improvements, reliable performance, easy operation and maintenance, cost-effective.

Chengli Special Automobile Co

Need more details of our Bitumen And Gravel Synchronous Seal Truck welcome to contact us at any time & will respond in 24hours.
