Model No.: CLW5182TXSD5
Transmission Type: Manual
Engine Type: 4 Stroke
Emission Standard: Euro 3
Certification: CCC, ISO9000
Chassis Brand: DONGFENG
Packaging: Nude packing,Waxing before shipping
Place of Origin: CHINA
Supply Ability: 300sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,Any Other Port in China
HOT Sale Dongfeng D9 Truck Mounted Sweepers
Truck mounted sweepers is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.
Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
Chassis specifications: chassis model EQ1181LJ9BDE, FAST 8 speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 9.00R20, wheelbase 4500mm, with ABS, Cummins engine 180hp.
Body specifications: auxiliary engine Cummins 140hp, with four sweepers, SANYO motor, famous brand multifold solenoid valve, SIEMENS control switch, water pump, maintenance-free centrifugal fan, tail LED arrow light, manual pump emergency system, hydrualic lifting &dump garbage, automatically collision-avoiding function, max sweep width 3.5m, max suction particle diameter 140mm, stainless steel dustbin, capacity 10.5cbm(7cbm dustbin & 3.5cbm water tank), antiseptic treatment inside of dustbin, max sweep capacity: 50000㎡/h-100000㎡/h.
Files with vehicle: basic tool & accessories , english vesion manual book, operation vedio..
Road Sweeper Truck Dongfeng ( 7 CBM dustbin & 3.5 CBM water tank )
8580 * 2500 * 3120 mm
GVW / Kerb Weight
18000kg / 10650kg
3 persons allowed, with one sleeper
W/ air conditioner
180 Ps (136KW)
4X2, left or right hand drive
8speed gear box, no overhaul within 500,000km
Wheelbase/No. of axle
4500 mm / 2
6 tyres and 1 spare tyre
Water Tank Capacity
3,500 Litres (About 1050gallons)
Max Sweeping Width
2 sets at each side
140 HP (106 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual--
** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

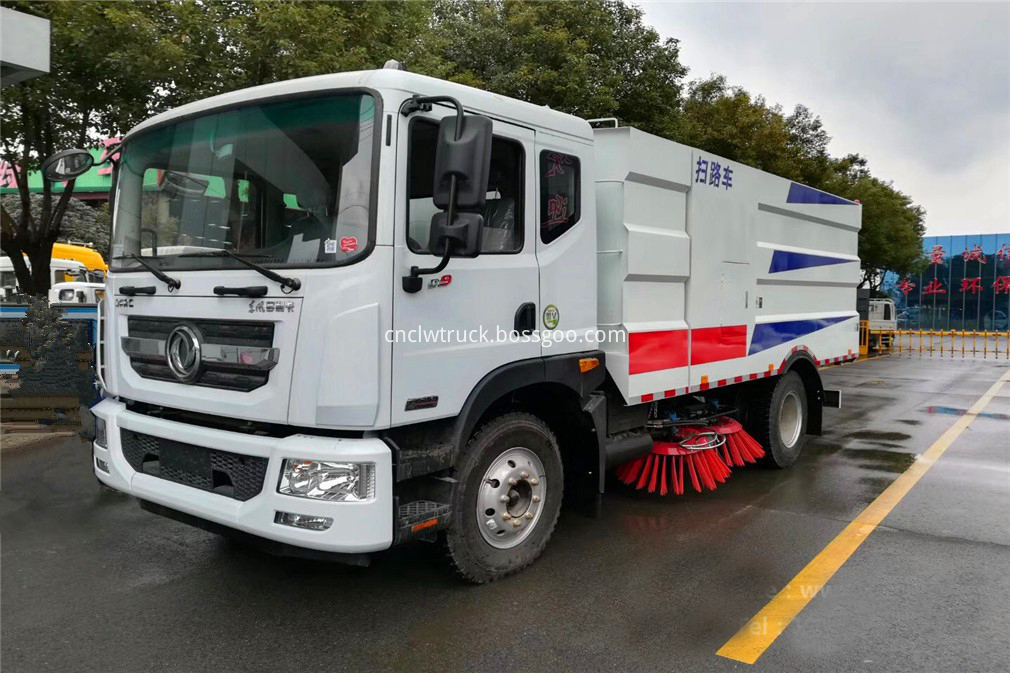

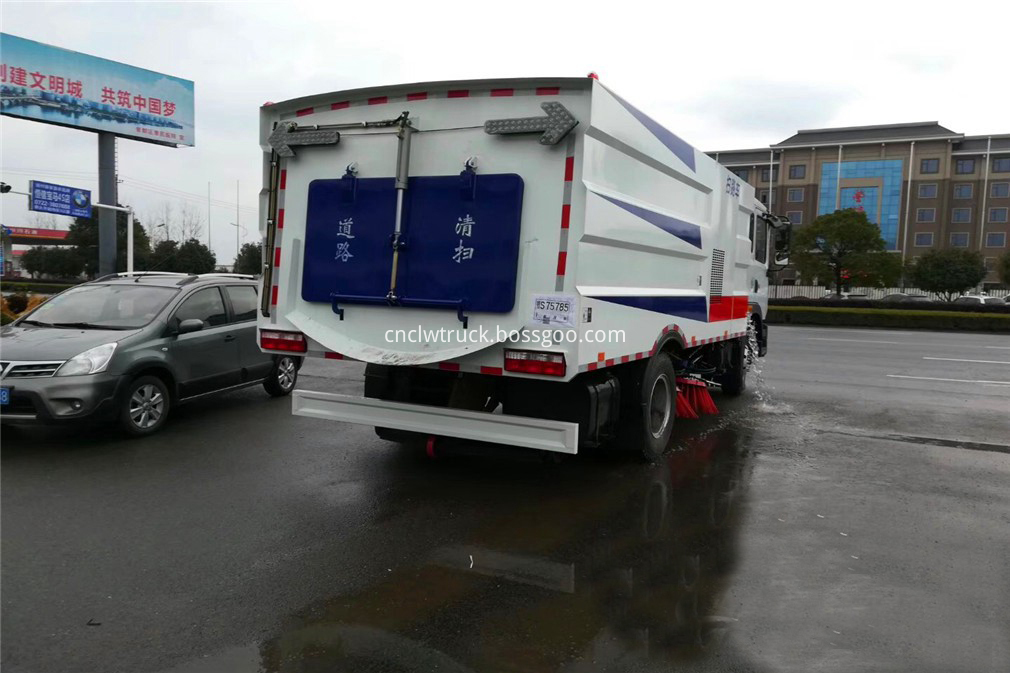

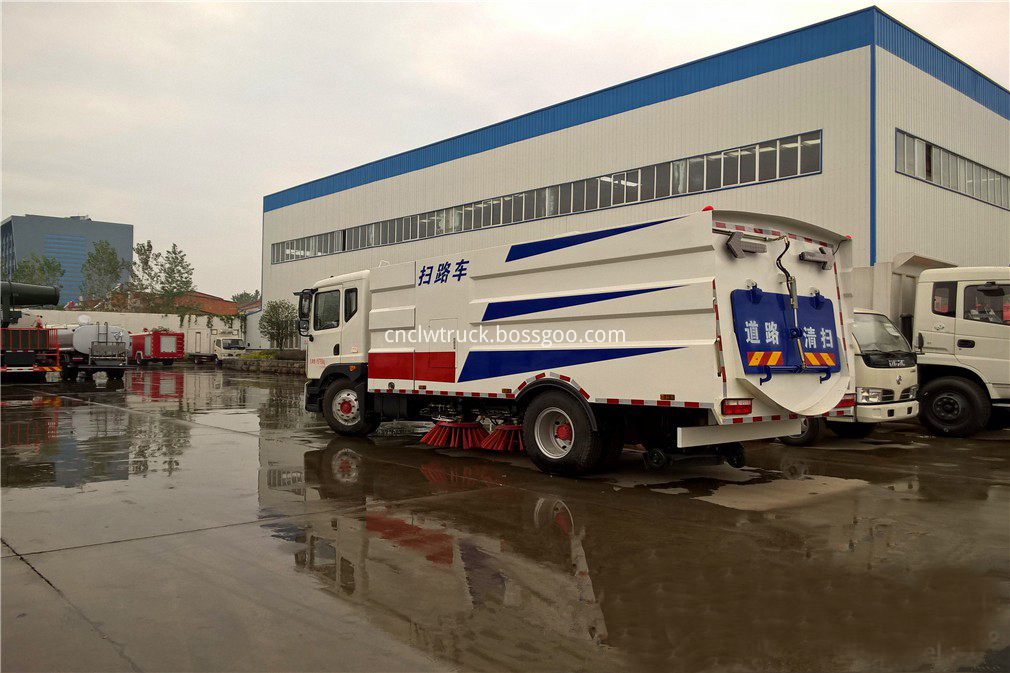

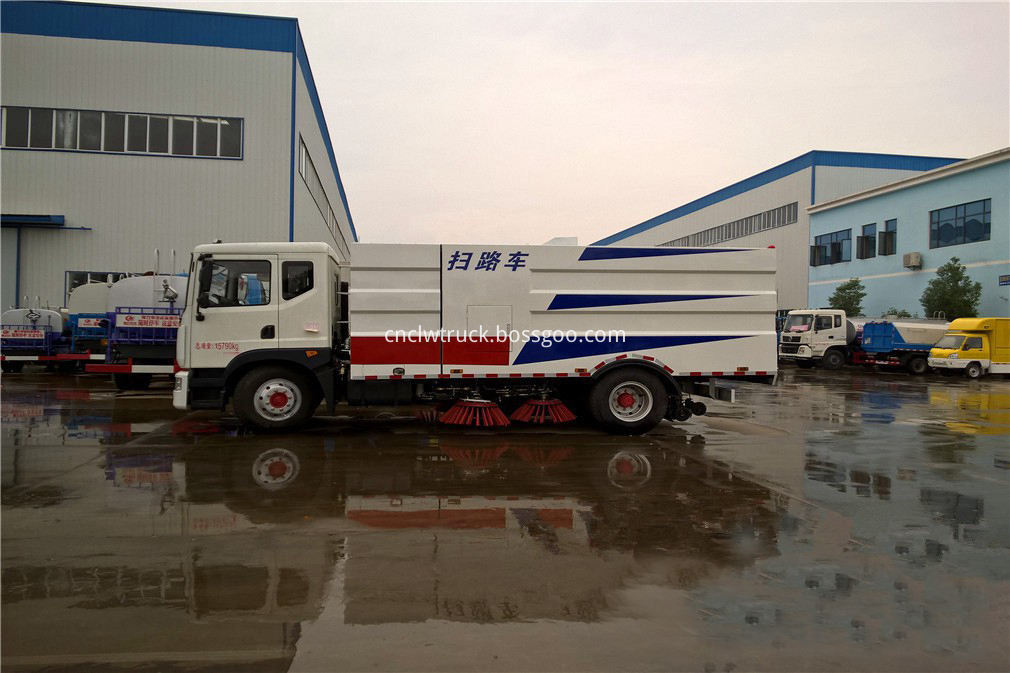

VEHICLE PICTURES :

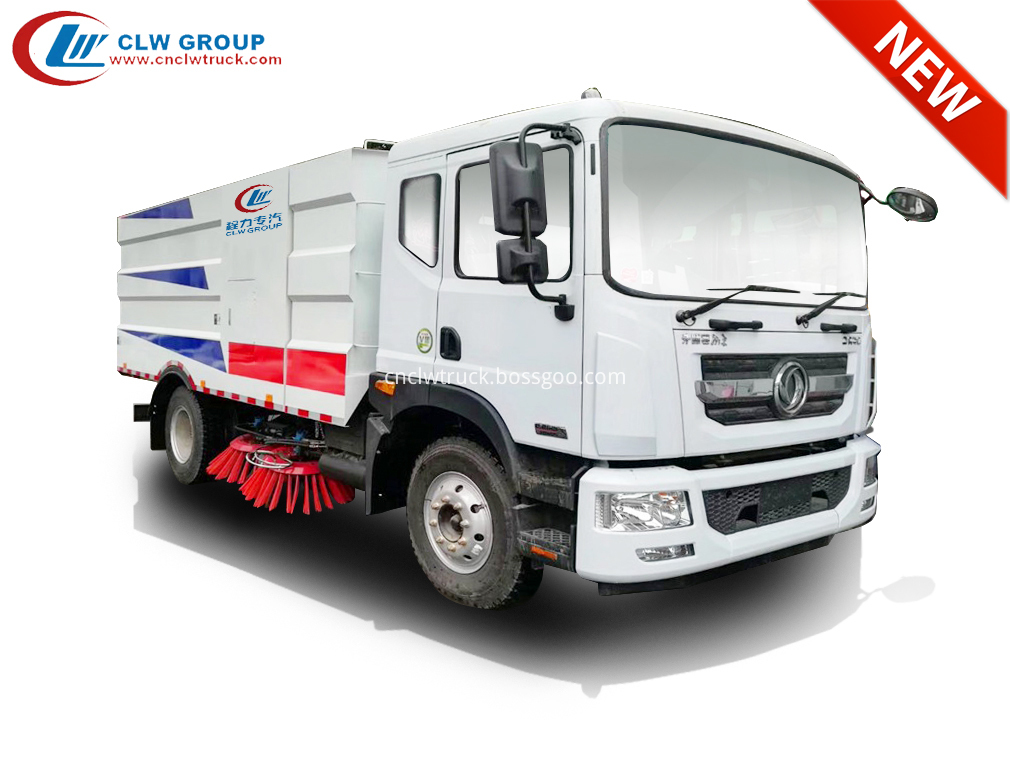

Dongfeng 10cbm Truck Mounted Sweepers
Advantages of Our Truck Mounted Sweepers
FACTORY SHOW :
Production Workshop of CLW Truck Mounted Sweepers
CUSTOMER VISIT :
Customer from Saudi Arabia to buy our truck mounted sweepers
Similar Keywords: street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle
What we can supply for you:
We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.
Welcome to visit us and looking forward to bulid a long win-win business cooperation.
