Hot Sale Brand New Dongfeng Street Cleaning Vehicle

Basic Info

Model No.: CLW5160GPSD5

Volume: 10001 - 15000L

Transmission Type: Manual

Engine Capacity: 4 - 6L

Sprinkling Area: ＞16m

Drive Wheel: 4×2

Certification: CCC, ISO9000

Engine Type: 4 Stroke

Fuel: Diesel

Payload: 30T

Condition: New

Chassis Brand: DONGFENG

Emission Standard: Euro 5

Drive Model: LHD ,RHD

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA

Product Description

Guaranteed 100%  2019 Hot Sale Brand New Dongfeng Street Cleaning Vehicle

The Dongfeng Street Cleaning Vehicle is also can be named water tank sprinkler truck, vehicle mounted water tank, stainless steel water bowser truck, water truck agricultural, water sprinkler for garden, vegetable garden sprinkler, off road water tank truck,304 stainless steel water tank truck, military tanker truck, 16CBM water tank sprinkler truck, china tanker truck etc...

Chassis of the street cleaning vehicle is Dongfeng brand, D9 series, Single-Row with one sleeper, wheelbase 3950mm, Engine model ISB180-50, YC4EG170-50, Dongfeng 6 Speeds Gearbox, with A/C, Power Steering, Air Brake, Center Control Electric Windows and ABS.

TOP BODY CONFIGURATION:

Material of the water tank is HQ carbon steel 4mm, tank capacity is 12000litres, with front flushing, rear sprinkling and side spraying functions. There is a working platform at the back of the tank, on which a green sprinkler gun is installed. The sprinkler gun can rotate in an all-round way and can be continuously adjusted into direct impact, heavy rain, light rain and drizzle, the working platform with safety fence.

With high quality and strong power water pump, the pump can be seff-suction and self-exhaust, install with strainer. With fire interface, water can be taken in trough the fire hydrant, with self-flow valve, with metallic paint.

The dongfeng street cleaning vehicle can be installed with a fire pump as a fire fighting truck , or installed with a pesticide sprayer used for agricultural spraing or industrial dust suppression.

SPECIFICATIONS :

Vehicle Model:CLW5160GPSD5

Chassis Model:EQ1165LJ9BDE

Engine Model: Cummins/ Yuchai

Tire Spec.: 9.00R20

Tank Capacity:12000litres-14000litres

Water Sprinkling Width:20m

Water Suction Height:8m

Water Shot Range: 35m

Side Sprinkling Area:＞80㎡

Rear Spraying Area:＞15㎡

Rotate Speed of Water Pump:1180r/min

Wheelbase:3950mm

Emission Standard: Euro 5

Overall Size: 7700*2500*3200/mm

MORE DETAILS :

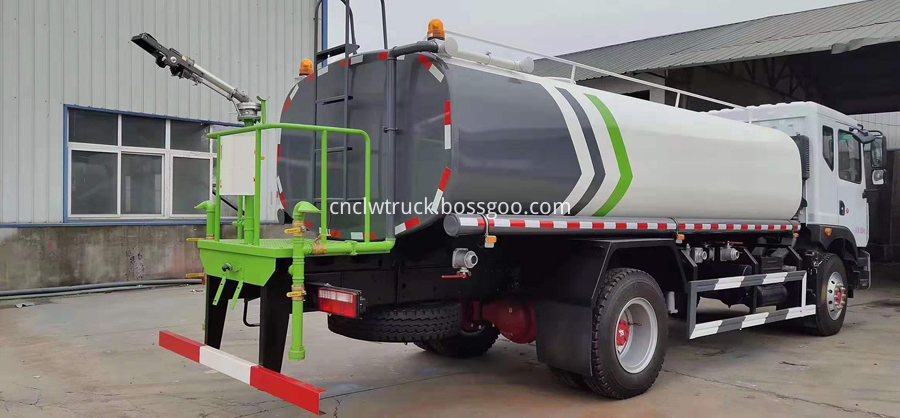

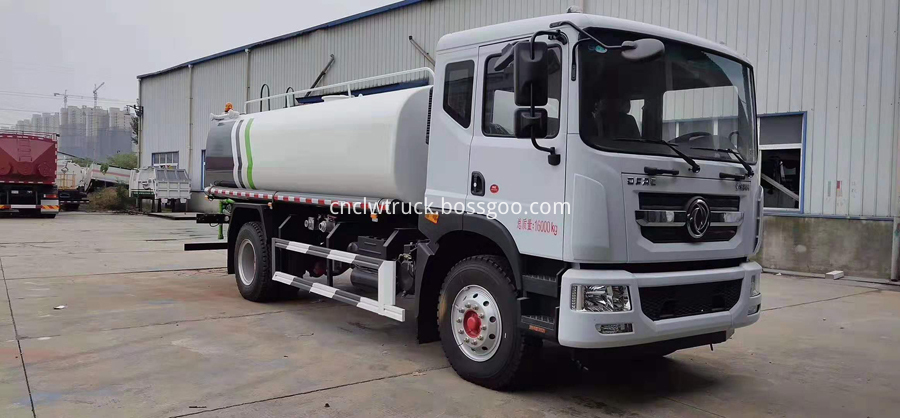

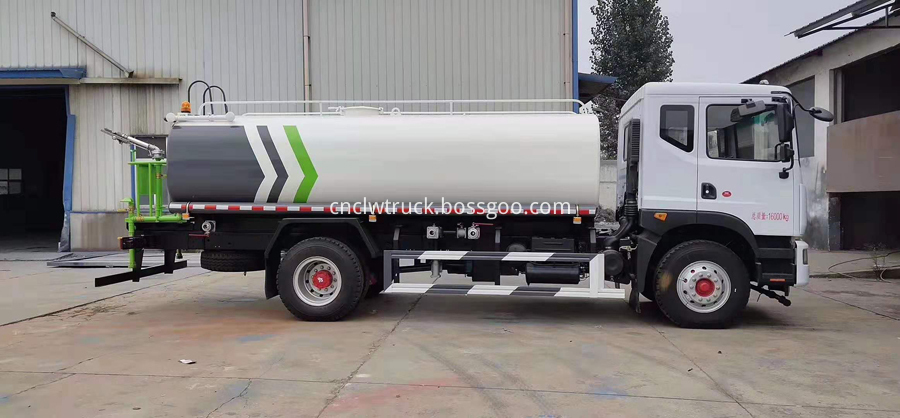

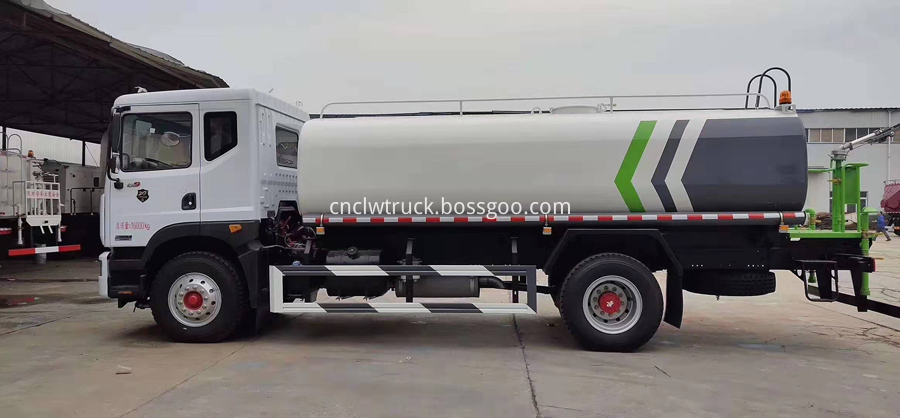

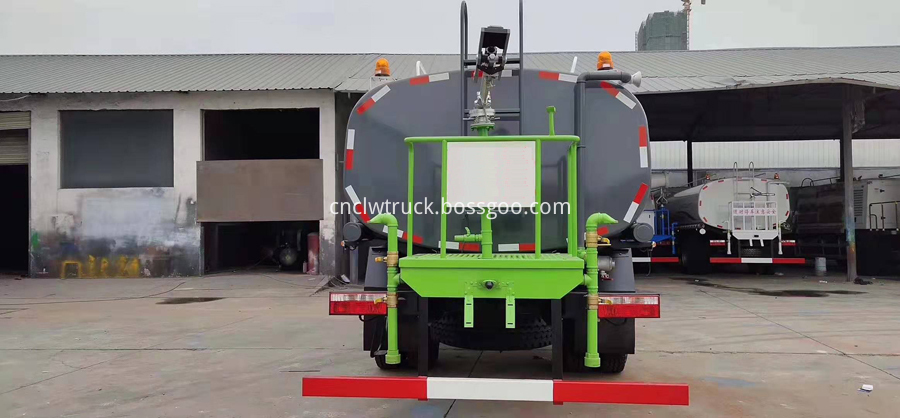

Dongfeng Street Cleaning Vehicle Pictures

The Dongfeng Street Cleaning Vehicle Can Be Equipped With Following Machines

The Dongfeng Street Cleaning Vehicle Structural  Composition

The Dongfeng Street Cleaning Vehicle Detailed Parts

What we can supply for you:

• Water truck
• Pesticide spraying truck
• Trash trucks
• Fuel tanker, Semi trailer, LPG tanker, Chemical liquid tanker, Milk tanker...
• Fire fighting trucks
• Aerial working platform trucks
• Road sweepers
• Road wreckers
• Crane trucks
• Concrete mixer trucks
• Refrigerated trucks
• Van trucks
• LED adversting trucks
• Sewage vacuum trucks
• All wheel drive trucks, 4X4 trucks, 6X6 trucks ....
• any other special purpose vehicles..

We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 80,000,000 dollars, 50000set/year.

Welcome to visit us and looking forward to bulid a long win-win business cooperation.
