HOT ISUZU100P 5cbm road sweeper truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info

Model No.: CLW5040TSLQ51

Type: Dry-type

Payload: 20T

Transmission Type: Manual

Engine Type: 4 Stroke

Fuel: Diesel

Emission Standard: Euro 4

Certification: CCC, ISO9000

Condition: New

Chassis Brand: ISUZU

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 300sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,Any Other Port in China

Product Description

HOT ISUZU100P 5cbm road sweeper truck


ISUZU road sweeper truck is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The isuzu road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.


SPECIFICATIONS :

Chassis specifications:  chassis model QL1040A6HAY , 5 speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 7.00R16, wheelbase 3360mm, with ABS, ISUZU engine 98hp.


Body specifications: auxiliary engine ISUZU 75hp, with four sweepers, SANYO motor, famous brand multifold solenoid valve, SIEMENS control switch, water pump, maintenance-free centrifugal fan,  tail LED arrow light, manual pump emergency system,  hydrualic lifting &dump garbage, automatically collision-avoiding function, max sweep width 3.5m, max suction particle diameter 140mm, stainless steel dustbin, capacity 5.5cbm(4cbm dustbin & 1.5cbm water tank), antiseptic treatment inside of dustbin, max sweep capacity: 50000㎡/h-100000㎡/h.


Files with vehicle:  basic tool & accessories , english vesion manual book, operation vedio..


VEHICLE  PARAMETERS  :

Road sweeper truck ISUZU ( 4CBM dustbin & 1.5 CBM water tank )
General Vehicle Brand CLW
Chassis Brand ISUZU
Overall Dimension 5950 * 1900 * 2420 mm
GVW / Kerb Weight 4495kg / 4155kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU
Power 98Ps (72KW)
Displacement 2999 ml
Emission Standard Euro V
Chassis Drive Type 4X2, left or right hand drive
Transmission 5speed  gear box, no overhaul within 500,000km
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 99 km/h
Paint Metallic paint
Superstructure Water Tank Stainless Steel
Dustbin Capacity 4CBM
Dustbin Material Stainless Steel
Water Tank Capacity 1500 Litres (About 450gallons)
Sweeping Capacity 50,000 m³/h-100,000m³/h
Sweeping Speed 3-15 km/h
Max Sweeping Width 3500mm
Brooms 2 sets at each side
Auxiliary Engine ISUZU engine
75 HP (50 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual--
Optional ** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

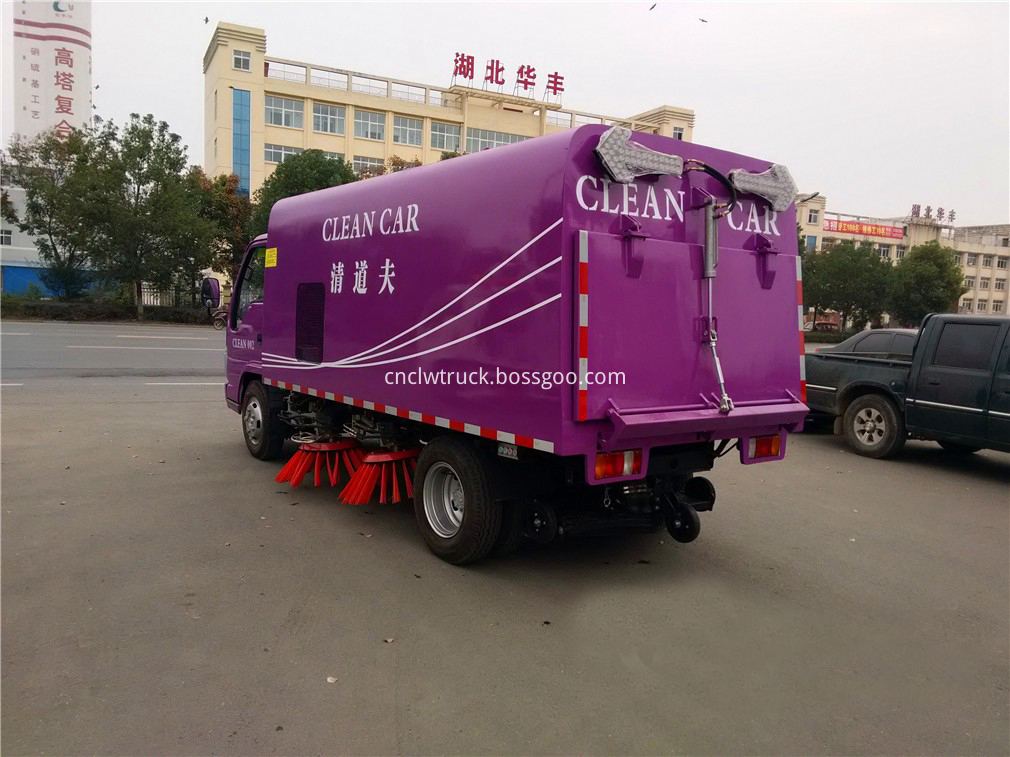

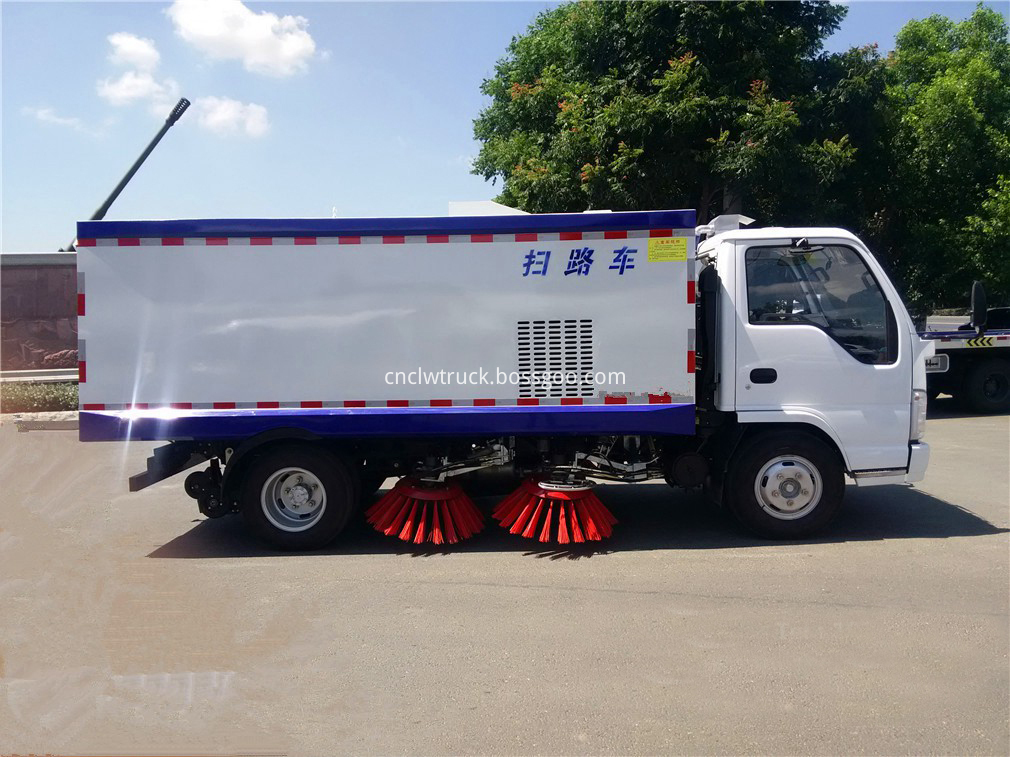

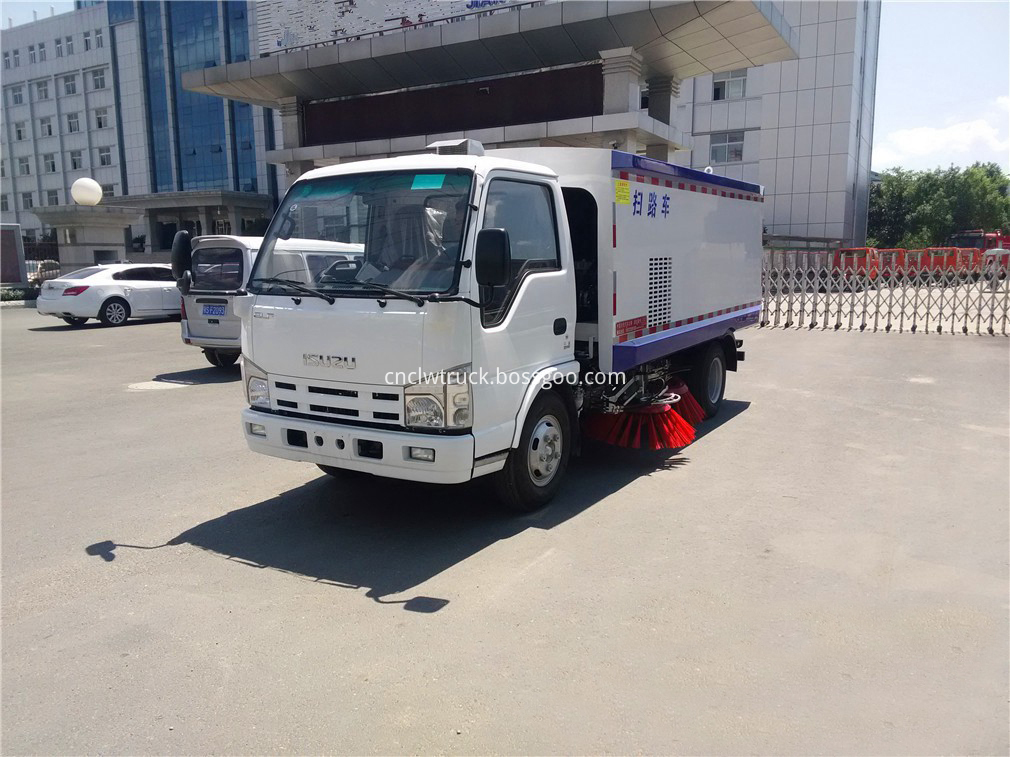

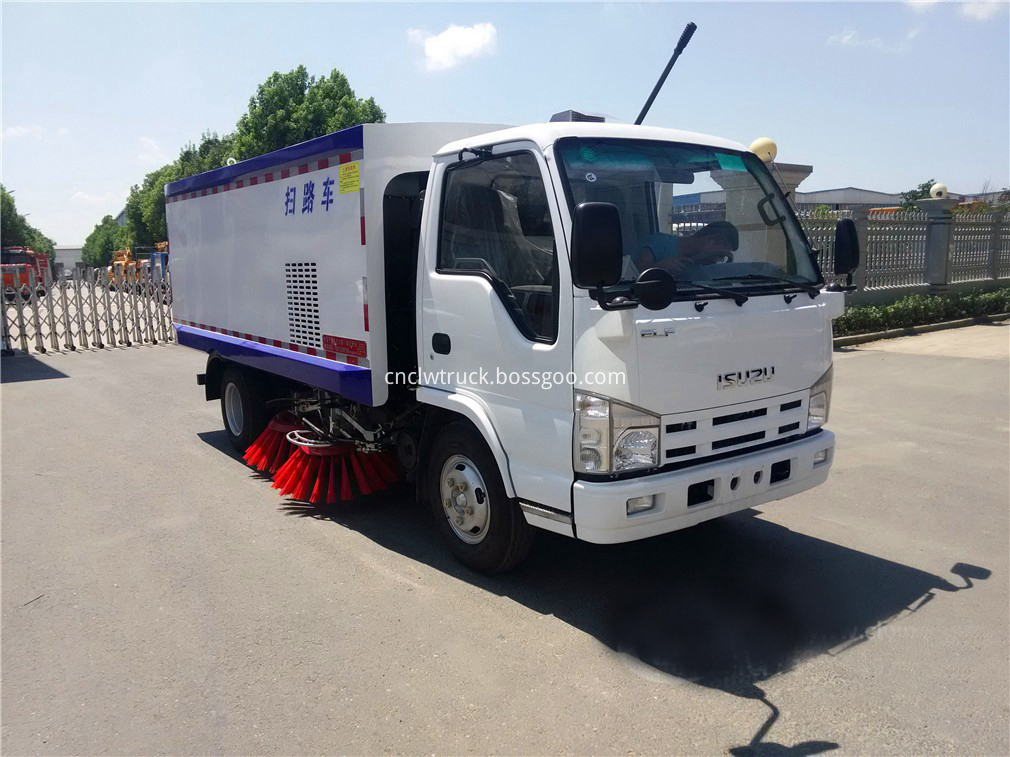

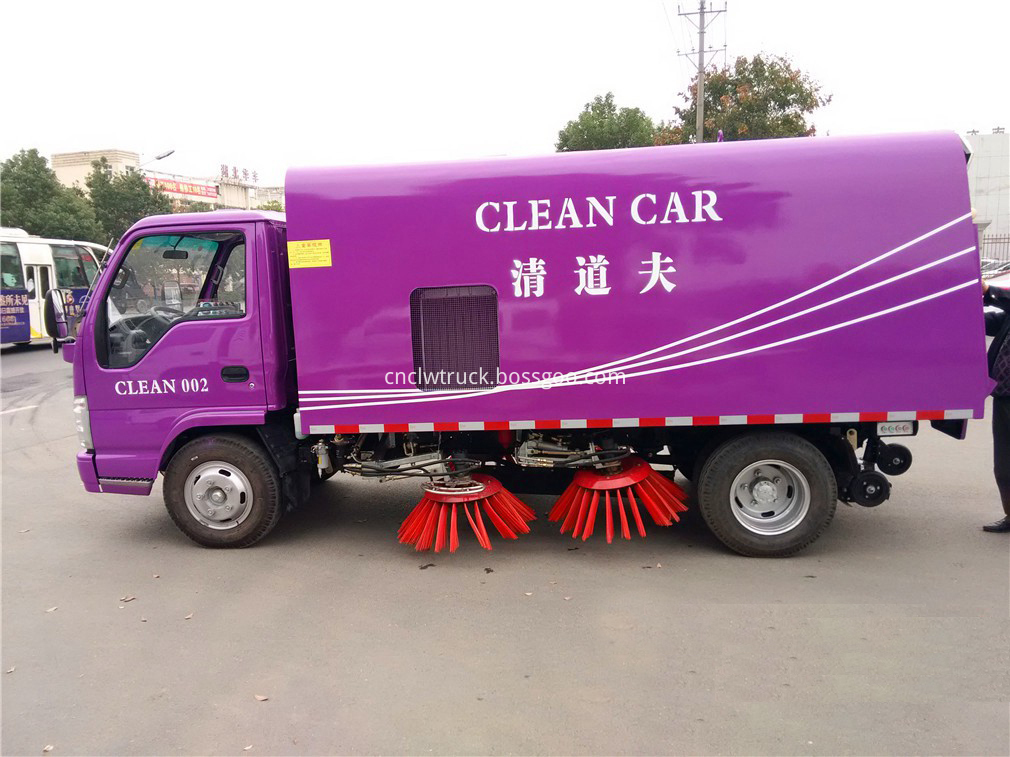

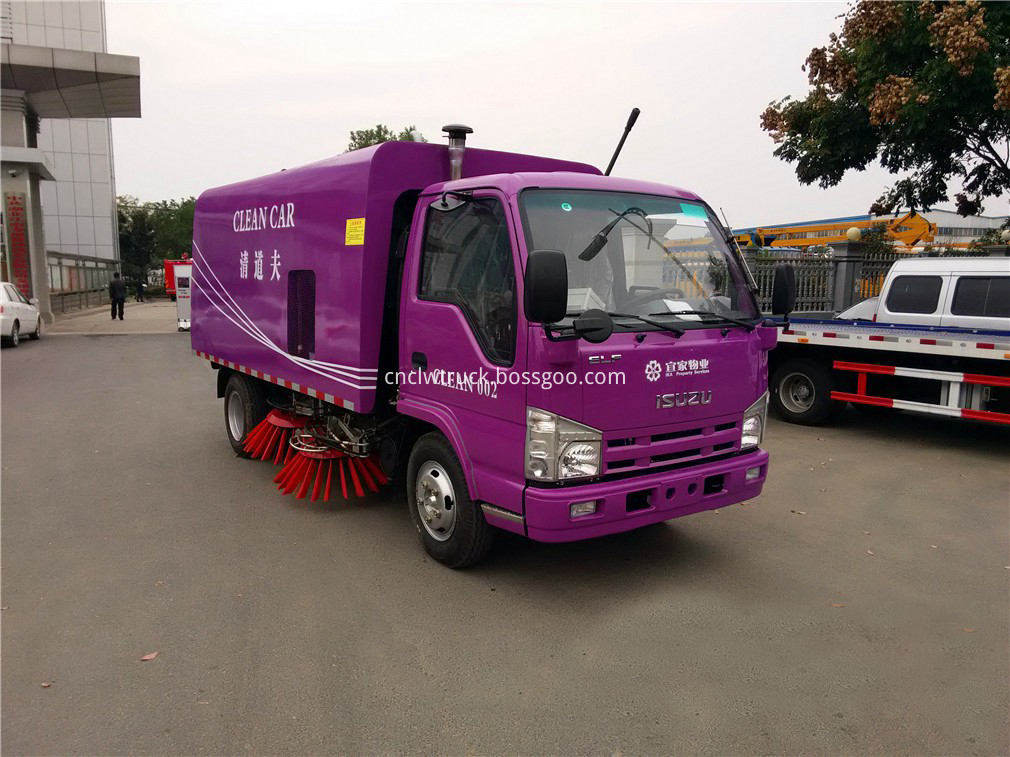

VEHICLE PICTURES  :

Isuzu Road Sweeper Truck 5cbm

isuzu road sweeper truck 5

isuzu road sweeper truck 4

isuzu road sweeper truck 6

isuzu road sweeper truck 1

isuzu road sweeper truck 2

isuzu road sweeper truck 3


DETAILS :

Advantages of  Our Isuzu Road Sweeper Truckstreet sweepers features logo


FACTORY SHOW :

  Production Workshop of CLW  Isuzu Road Sweeper Truck




CUSTOMER VISIT :

Customer from Saudi Arabia to buy our Isuzu Road Sweeper Truck

road sweep truck customer visit 2

street sweep truck customer visit 2

road sweep truck customer visit 3

street sweep truck customer visit 4



Similar Keywords: street sweeper, municipal vehicle, sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle


What we can supply for you:

  • Road sweeper trucks
  • Pesticide spraying truck
  • Trash trucks
  • Fuel tanker, Semi trailer, LPG tanker, Chemical liquid tanker, Milk tanker...
  • Fire fighting trucks
  • Aerial working platform trucks
  • Water trucks
  • Road wreckers
  • Crane trucks
  • Concrete mixer trucks
  • Refrigerated trucks
  • Van trucks
  • LED adversting trucks
  • Sewage vacuum trucks
  • All wheel drive trucks, 4X4 trucks, 6X6 trucks ....
  • any other special purpose vehicles..


We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.

Welcome to visit us and looking forward to bulid a long win-win business cooperation.
