Guranteed 100% Dongfeng 12cbm vacuum street sweeper truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5160TXSL5

Type: Sweep and Suck Type

Payload: 30T

Transmission Type: Manual

Engine Type: 4 Stroke

Fuel: Diesel

Emission Standard: Euro 4

Certification: CCC, ISO9000

Condition: New

Chassis Brand: DONGFENG

Vehicle Color: White, Blue, Yellow, Red Or Any Color Ia Available If Customer Request

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,Any Main Port China

Product Description

Guranteed 100% Dongfeng 12cbm vacuum street sweeper truck

Vacuum Street Sweeper Truck is used for washing, cleaning and vacuum collecting of surface dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city, municipal roads and areas. Meantime, it has high pressure jetting function - washing and flushing the road, able to remove the stubborn stuff on the road. It is widely used in the municipal sanitation field because of convenient operation and high efficiency.

The Dongfeng road washing truck is equipped with auxiliary engine, air blower, imported high pressure plunge pump, water tank, stainless steel dustbin, sweeping brooms, suction nozzles, sprayers, etc.

Street washing truck has self cleaning system which could tip garbage and washing the dustbin automatically.


SPECIFICATIONS :

Chassis specifications:  chassis model LZ165, 8 speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 9.00R20, wheelbase 5100mm, with ABS, YUCHAI engine 180hp .

Body specifications:

1. Body material: stainless steel 304, dustbin capacity 5cbm, water tank capacity 7cbm;

2. Auxiliary diesel engine cummins brand 140hp, SANYO motor; auxiliary engine tachometer, auxiliary engine water-thermometer, oil alarm device;

3. Sweeping width 2800-3200mm, working speed 15-20km/h, max cleaning capacity 48000㎡/h, max suction diameter ≥100mm;

4. High pressure pump (imported from Germany) with front flushing, side sprinkling, rear spraying, high pressure washing and dustbin self-cleaning function; with water filter, pipe system, high pressure sprinkler, four sweepers with one dust suction plate;

5. PLC one-key control, LPC electric control, tail LED arrow light, monitor and camera, 18m hight pressure washing pipe, cleaning pressure 10MPa;

Files with vehicle:  basic tool & accessories , english vesion manual book, operation vedio..


VEHICLE  PARAMETERS  :

 Vacuum Street Sweeper Truck DONGFENG

(5 CBM Dustbin and 7 CBM Water Tank)

General Vehicle Brand CLW
Chassis Brand DONGFENG
Overall Dimension 7880 * 2500 *3050 mm
GVW / Kerb Weight 15800 kg / 11905 kg
Cab Cab Capacity 3 persons allowed, with one sleeper
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand YUCHAI  engine
Power 180 Ps (132 KW)
Displacement 5900ml
Emission Standard Euro III, IV
Chassis Drive Type 4X2, left hand or right hand drive
Transmission 8-speed forward, 1 reverse
No. of axle 2
Tyre Specification 9.00R20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 110 km/h
Paint Metallic paint
Superstructure Water Tank 7 CBM  (About 2,500 gallons)
Dustbin Material 5 CBM , Stainless Steel
High Pressure Pump Imported Germany high pressure water pump
Working Speed 3-25 km/h
Working Width 2800 mm
Sweeping Capacity 40,000 m³/h
Brooms 2 sets
Suction Plate Big diameter 180mm, Hydraulic controll
Auxiliary Engine Cummins (Americal Technology),
140 HP (102 KW), super powerful
All standard accessories: hose, high pressure hose reel, high pressure water gun, ground hydrant wrench, basic tool kit, English manual--
Optional ** Stainless steel water tank.
** Front snow plow.
** Elevating Platform.
** High cannon.

VEHICLE PICTURES  :

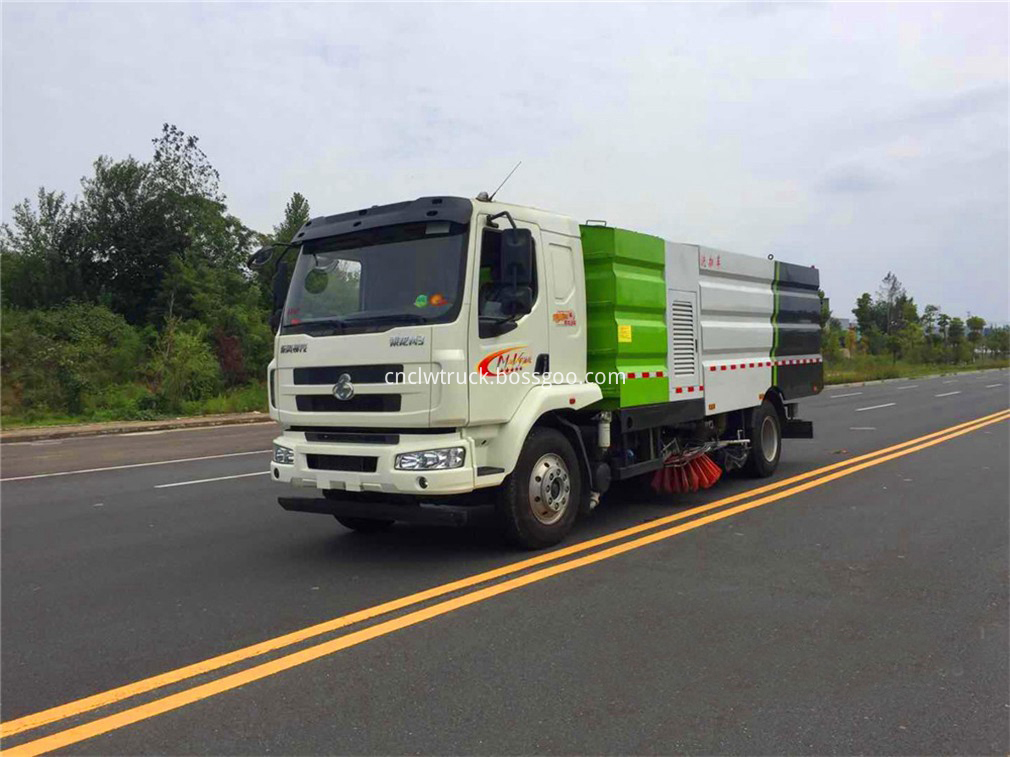

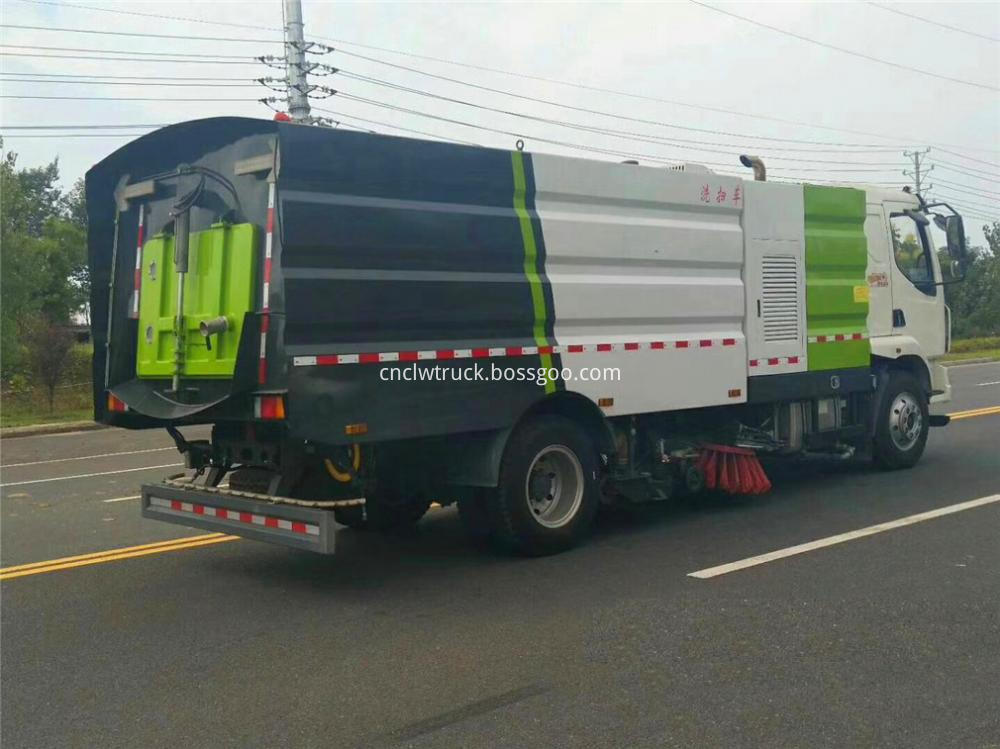

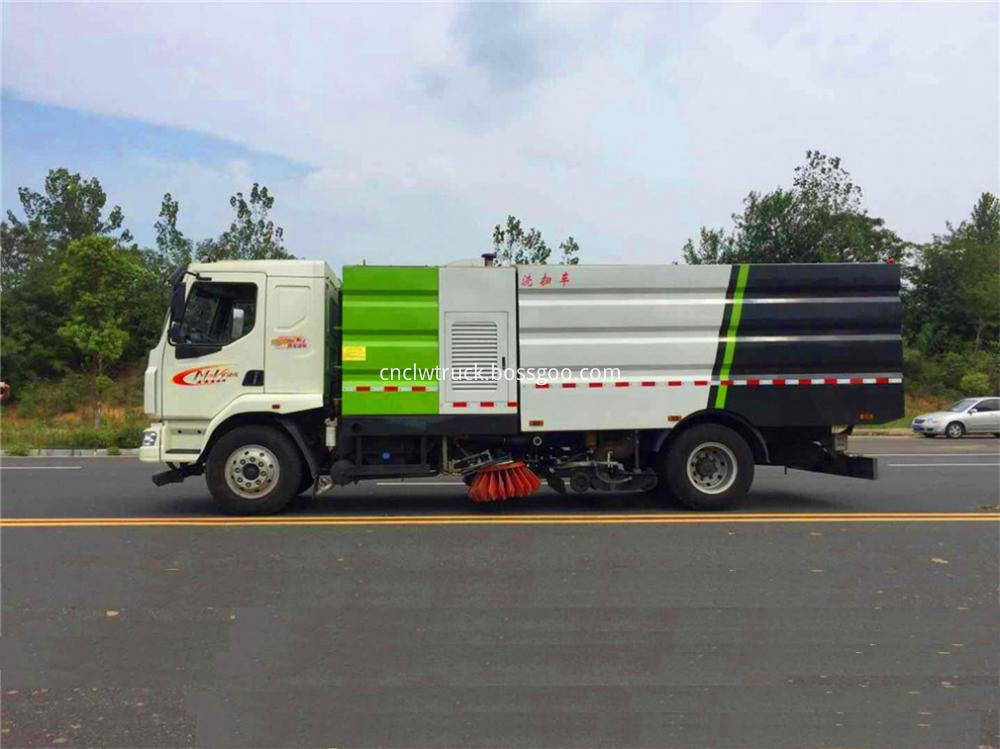

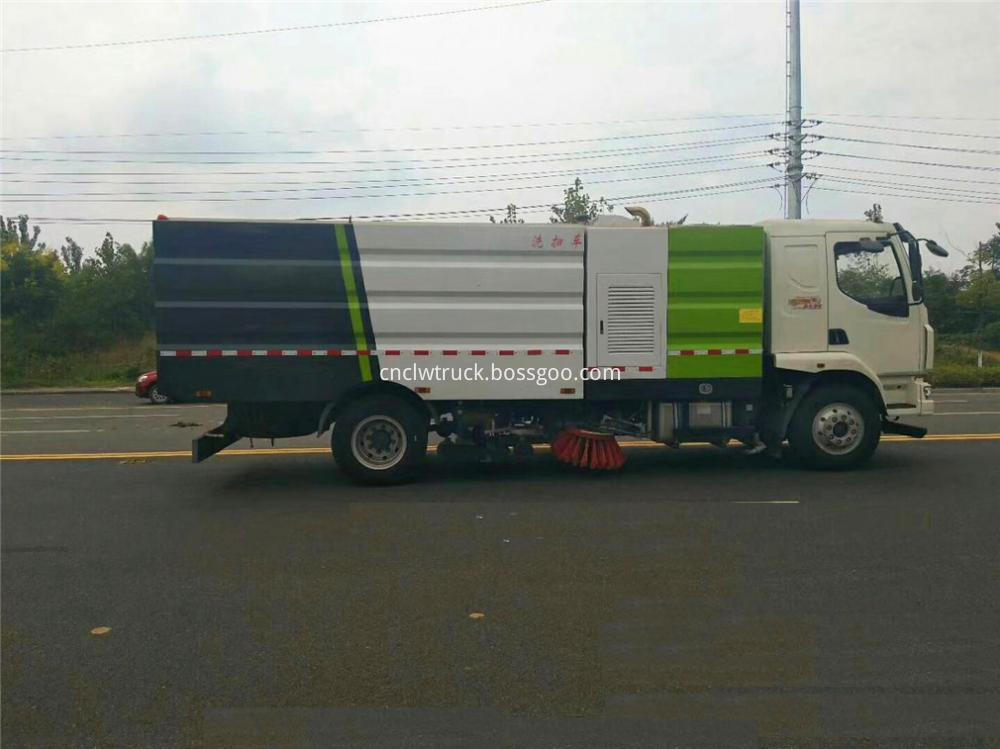

Pictures of  DONGFENG  Vacuum Street Sweeper Truck

road sweeper structure-logo

Vacuum Street Sweeper Truck 1Vacuum Street Sweeper Truck 4Vacuum Street Sweeper Truck 2Vacuum Street Sweeper Truck 3Vacuum Road Sweeper Truck 8


Advantages of  Our  Vacuum Street Sweeper Truck

multifuction road sweeperfeatures


Vacuum Street Sweeper truck--high pressure wahsing function :

street sweeping truck front flushing


(Road  washing truck in action---front flushing)

street sweeping truck high pressure washing

(Road  washing truck in action---high pressure whasing gun)

street sweeping truck rear spraying

(Road  washing truck in action---rear sprinkling)

street sweeping truck side spraying

(Road  washing truck in action---side spraying)


Need more details of our trucks welcome to contact us at any time, thanks!


Similar keywords:  road cleaning truck, street washing truck, street cleaning truck, road sweeper truck, road washing and cleaning truck, road sweeper truck, street sweeper truck, truck mounted sweeper


We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.

Welcome to visit us and looking forward to bulid a long win-win business cooperation with u!
