FOTON Aumark ETX 14Tons Remote Control Crane Truck

Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5317TMC

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 4

Condition: New

CRANE BRAND: XCMG, SANY, Palfinger,Unic,Tadano Etc...

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100%  New FOTON AumarkETX 14Tons Remote Control Crane Truck for Sale

A Remote Control Crane Truck is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Heavy Duty Crane:50Ton, 80Ton, 120Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.


VEHICLE PICTURES :

remote control crane truck

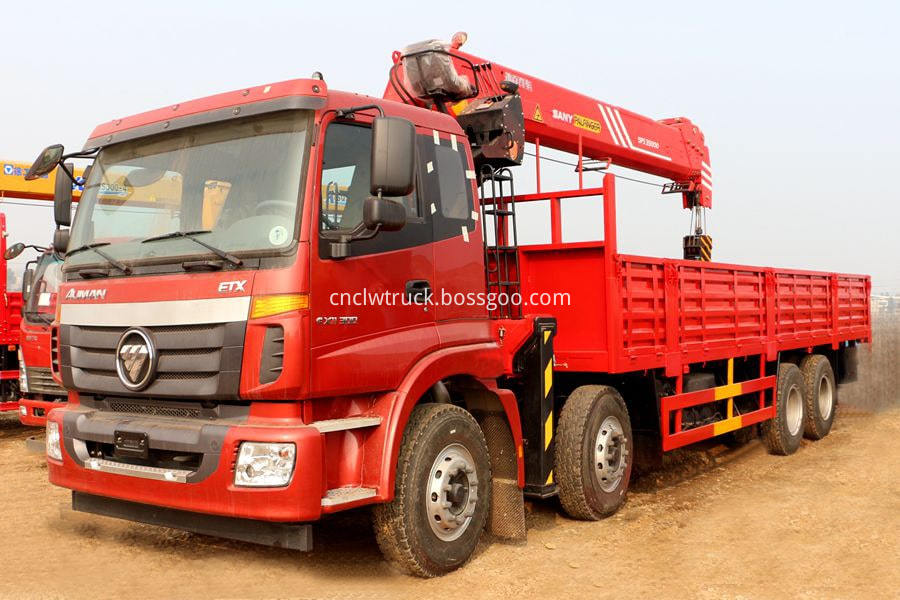

FOTON AumarkETX 14Tons Remote Control Crane Truck Picture 1

remote control crane truck 1

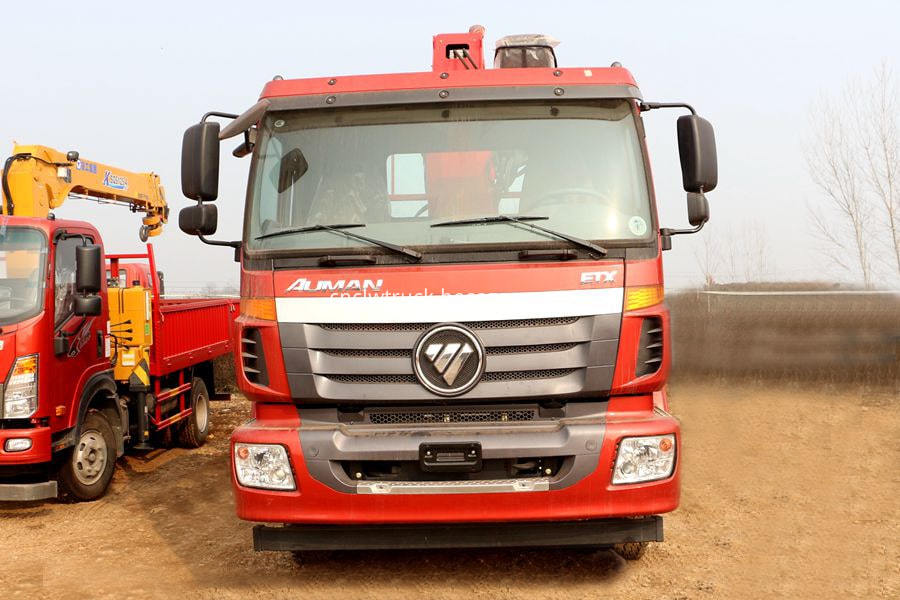

FOTON AumarkETX 14Tons Remote Control Crane Truck Picture 2

remote control crane truck 2

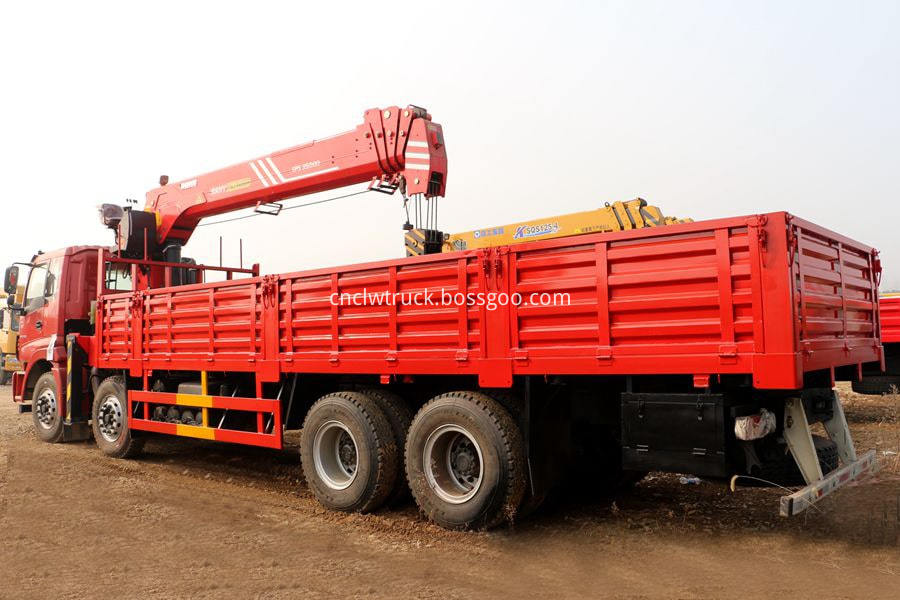

FOTON AumarkETX 14Tons Remote Control Crane Truck Picture 3

VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Chassis Brand

FOTON

Condition

Brand New

Crane Capacity

12T/14T

Crane Brand

XCMG/SANY

Remote Control

Arm Type

Folding/Telescopic

Cab

ETX

Engine Power/displacement

300HP/10500ml

Gearbox

9 Speed

Overall Size

12X2.5X3.86/m

GVW

31000kg

Cargo Size

8.5X2.4X0.8/m

Curb Weight

19085kg

Vehicle Frame

300mm crossbeam

Tire Spec.

11.00R20

Rear Axle Load

13T

Brake System

Air Brake

Wheelbase

2100+4500+1350mm

Allow Passengers

3

Max Speed

90km/h

Drive Model

8X4, LHD/RHD

CRANE  PARAMETERS

SNAY 12T Telescopic Arms

SANY 14T Telescopic Arms

Max Lifting Capacity(kg)

12000

14000

Min Lifting Capacity(kg)

1700

1600

Working Radius(m)

14.8

15.4

Lifting Height(m)

16.8

17.4

Crane Weight(kg)

4200

4550

Outriggers Span(mm)

6000

6000

Rotation Angle

360 Degree

360 Degree

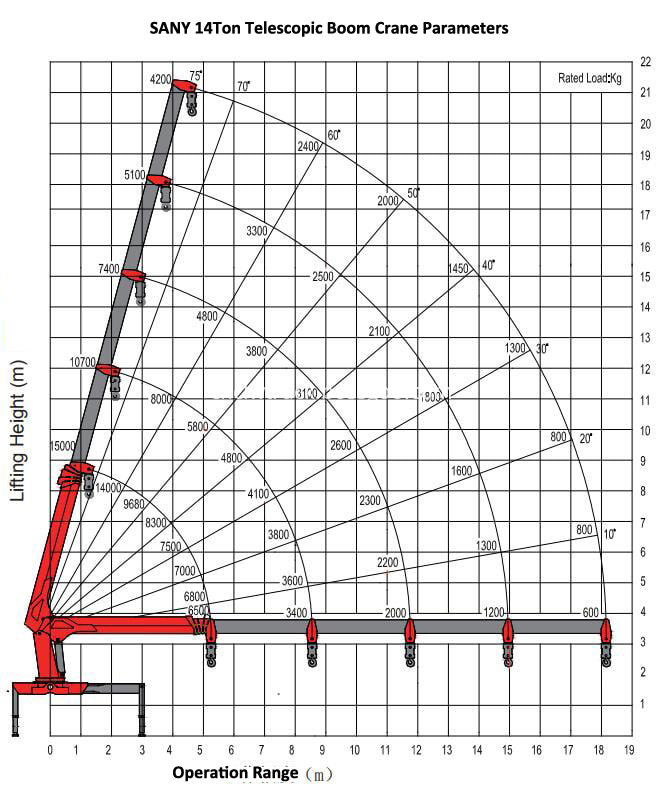

CRANE DIAGRAM :


SANY 14T Crane  Diagram


Chassis Configurations: FOTON Aumark ETX Chassis, Single-row Cab with one sleeper,Cummins Diesel 300HP Engine, 9 Speed Transmission, 5.5T Rront Axle, 11.5T double Rear Axle, 300mm Crossbeam, 11.00R20 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows


Crane Configurations:

Telescopic boom type, simplex pump or double pump optional,  lifting capacity 14000kg, length of arm5.5m(not extend)-15.4m(full extend), four outriggers ,360 degree rotation; Working radius 15.4m,  lifting height 17.4m.


Cargo Configurations:

Cargo Size:8500*2400*800/L*W*H/mm, cargo bottom thickness is 5mm/4mm, side thickness is 3mm.


Remote Control Crane Truck Advantages :

1.  Diesel fuel type, power engine,perfect driving performance

2. Wide and high-speed rotary, easy operation, strong load capacity.

3. Unique design, prolonged service life.

4. Wide application range, suitable for landscaping,electric power, petro-chemical industry, advertisement installation, construction site, narrow road, underground garage, service station, 4S shop, field rescue, factory workshop transportation, etc.

customer visit
