Dongfeng Truck Cargo With 7Tons Loader Crane

Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5314TMC

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 4

Condition: New

CRANE BRAND: XCMG, SANY, Palfinger,Unic,Tadano Etc...

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% Dongfeng Truck Cargo With 7Tons Loader Crane for Sale

A Truck With Loading Crane is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Heavy Duty Crane:50Ton, 80Ton, 120Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.


VEHICLE PICTURES :

truck cargo with loader crane

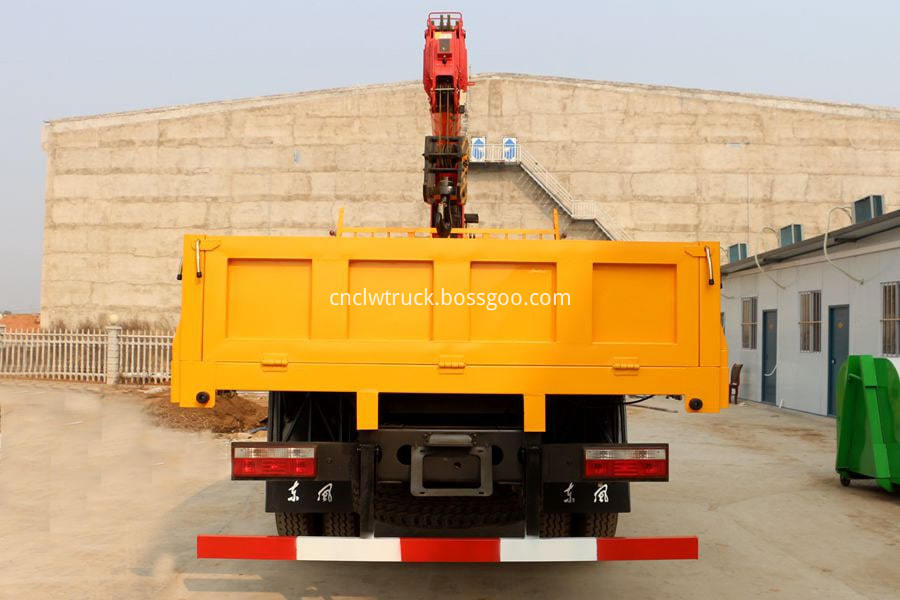

 Dongfeng Truck Cargo With 7Tons Loader Crane Picture 1

truck cargo with loader crane 1

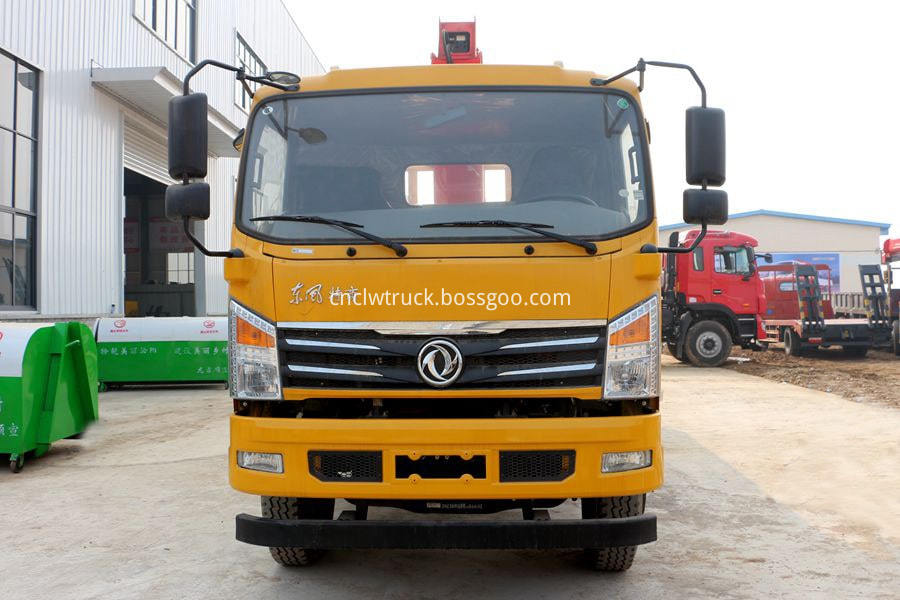

 Dongfeng Truck Cargo With 7Tons Loader Crane Picture 2

truck cargo with loader crane 2

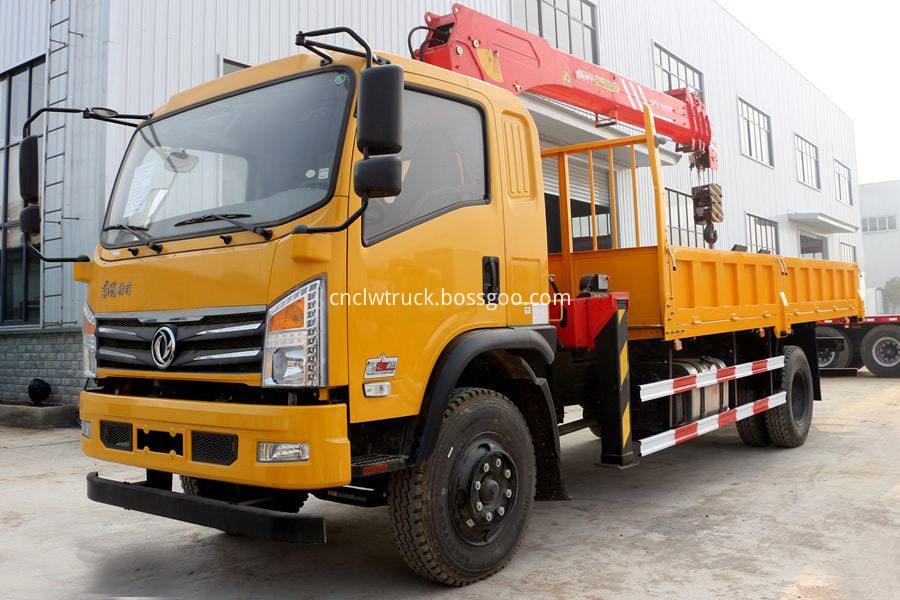

 Dongfeng Truck Cargo With 7Tons Loader Crane Picture 3

truck cargo with loader crane 3

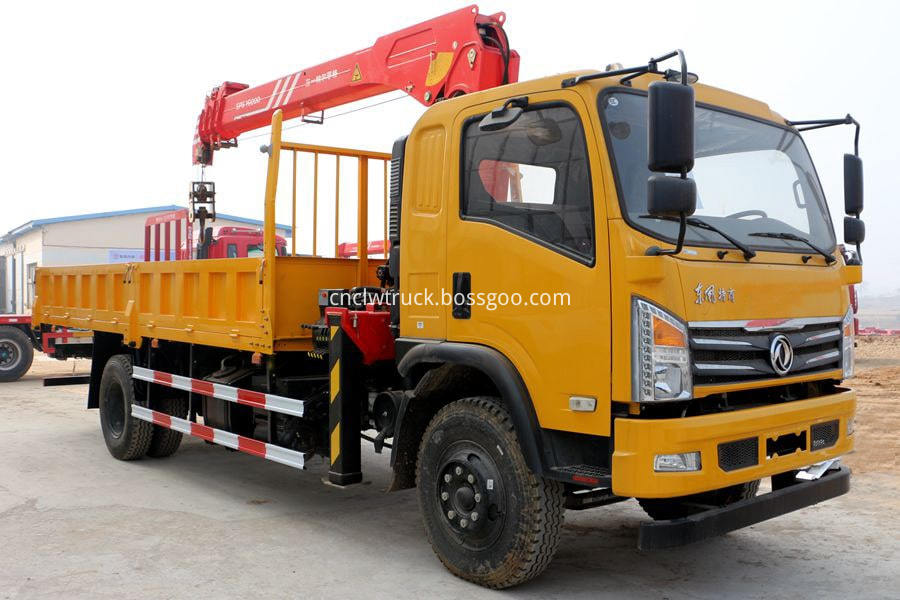

 Dongfeng Truck Cargo With 7Tons Loader Crane Picture 4

truck cargo with loader crane 5

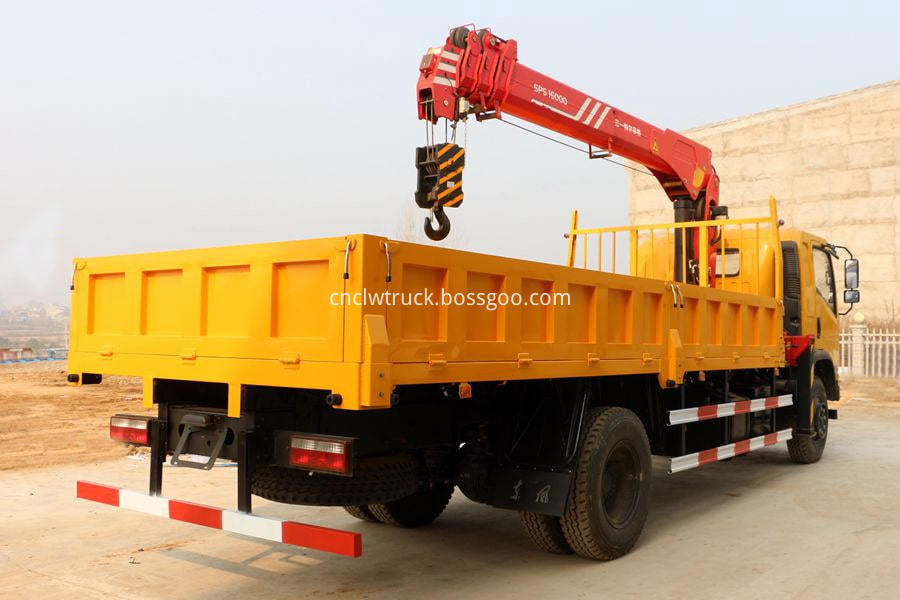

 Dongfeng Truck Cargo With 7Tons Loader Crane Picture 5


VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Chassis Brand

DFAC

Condition

Brand New

Crane Capacity

6.3T/7T/8T

Crane Brand

XCMG/SANY

Remote Control

Arm Type

Folding/Telescopic

Cab

D912

Engine Power/displacement

160HP/4260ml

Gearbox

8 Speed

Overall Size

9X2.48X3.65/m

GVW

13580kg

Cargo Size

5.7X2.25X0.55/m

Curb Weight

8300kg

Vehicle Frame

280mm crossbeam

Tire Spec.

9.00R20

Rear Axle Load

9T

Brake System

Air Brake

Wheelbase

5100mm

Allow Passengers

3

Max Speed

90km/h

Drive Model

4X2, LHD/RHD

CRANE  PARAMETERS

SANY 7T Telescopic Arms

SANY 8T Telescopic Arms

Max Lifting Capacity(kg)

7000

8000

Min Lifting Capacity(kg)

690

800

Working Radius(m)

12

14

Lifting Height(m)

14.6

16.1

Crane Weight(kg)

2650

3820

Outriggers Span(mm)

2280-5200

2280-5600

Rotation Angle

360 Degree

360 Degree

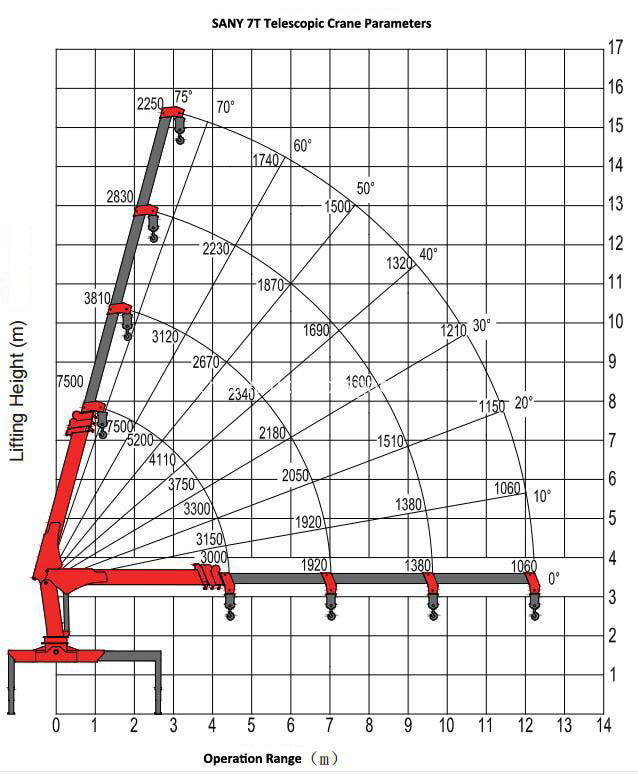

CRANE DIAGRAM :


SANY 7T Crane Parameters


Chassis Configurations: DFAC T5 Chassis, Single-row Cab with one sleeper, Yuchai Diesel 140HP Engine, 8 Speed Transmission, 2.8T Rront Axle, 7T double Rear Axle, 250mm Crossbeam, 8.25R20 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows


Crane Configurations:

Telescopic boom type, simplex pump or double pump optional,  lifting capacity 7000kg, length of arm4.9m(not extend)-12.5m(full extend), front outriggers ,360 degree rotation; Working radius 12m,  lifting height 14.6m.


Cargo Configurations:

Cargo Size:5700*2250*550/L*W*H/mm, cargo bottom thickness is 5mm/4mm, side thickness is 2mm.


Truck Cargo with Loader Crane Advantages :

1.  Diesel fuel type, power engine,perfect driving performance

2. Wide and high-speed rotary, easy operation, strong load capacity.

3. Unique design, prolonged service life.

4. Wide application range, suitable for landscaping,electric power, petro-chemical industry, advertisement installation, construction site, narrow road, underground garage, service station, 4S shop, field rescue, factory workshop transportation, etc.

customer visit


FAQ

CHENGLI SPECIAL AUTOMOBILE CO

Need more details of our Truck Cargo with Loader Crane welcome to contact us at any time!
