Brand New XCMG 1Ton Samll Crane Truck

Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5301TMC

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% Brand New XCMG 1Ton Samll Crane Truck for Sale

A Truck Loader Crane is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Heavy Duty Crane:50Ton, 80Ton, 120Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.


VEHICLE PICTURES :

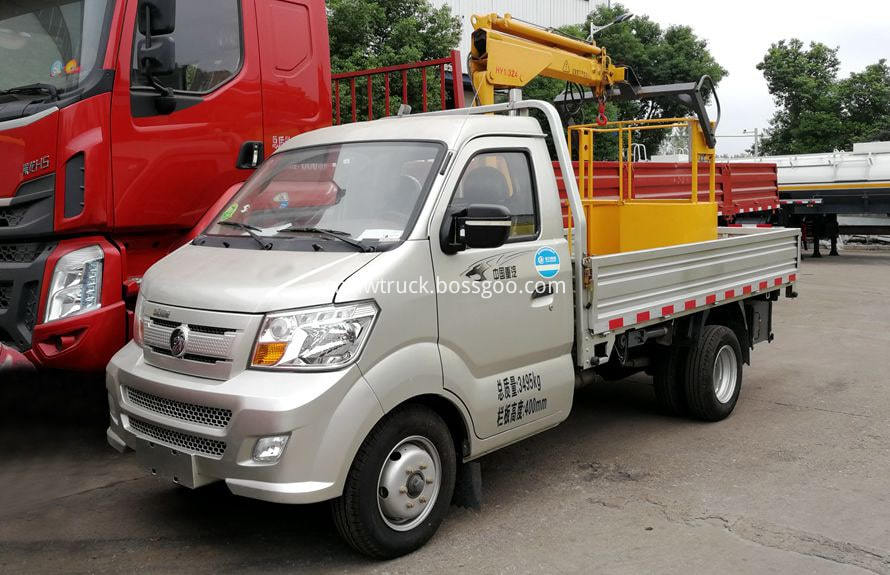

small crane truck for sale

XCMG 1Ton Knuckle Boom Remote Controlled Small Crane Truck Picture 1

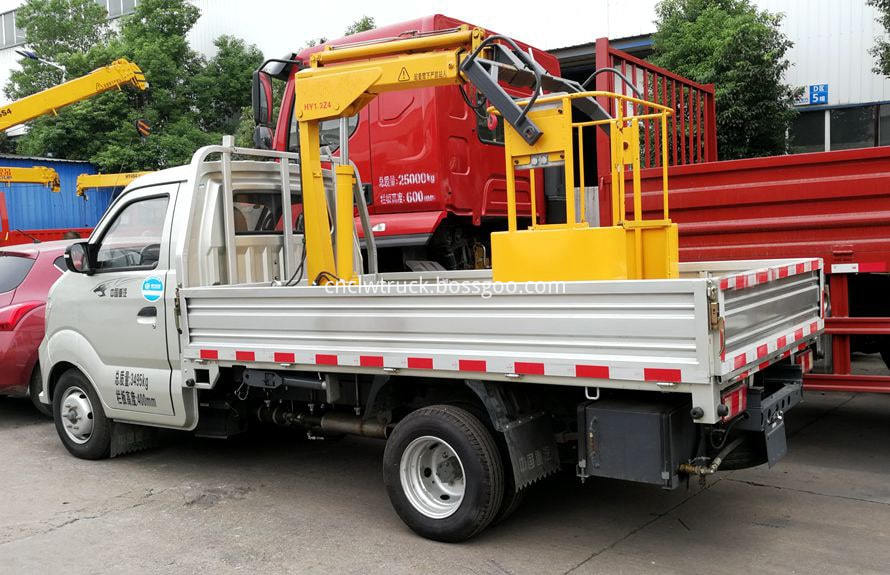

small crane truck

XCMG 1Ton Knuckle Boom Remote Controlled Small Crane Truck Picture 2

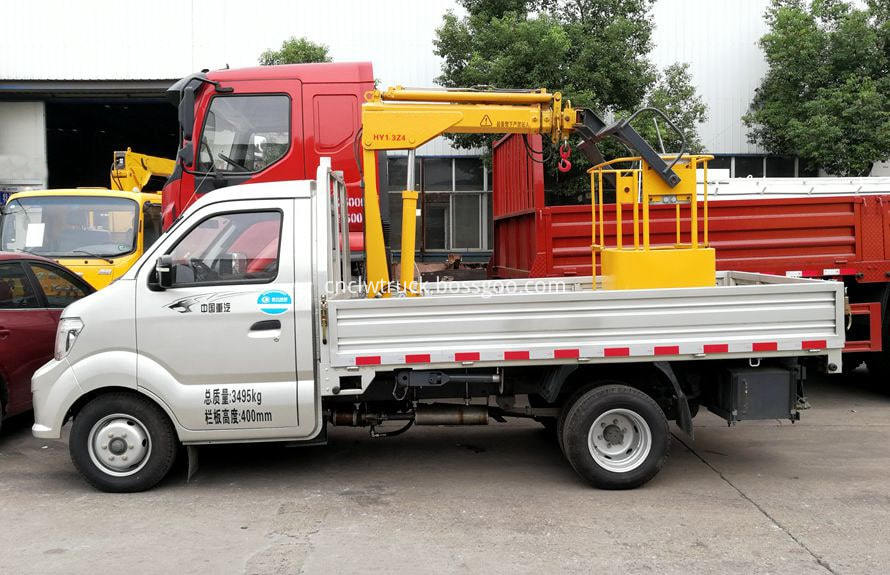

small crane truck 1

XCMG 1Ton Knuckle Boom Remote Controlled Small Crane Truck Picture 3


VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Chassis Brand

SINO

Condition

Brand New

Crane Capacity

1T

Crane Brand

XCMG/

Remote Control

Arm Type

Folding

Cab Width

1650mm

Engine Power/displacement

102HP/1495ml

Gearbox

5 Speed

Overall Size

5.2X1.76X2.65/m

GVW

3495kg

Cargo Size

3.2X1.65X0.4/m

Curb Weight

1920kg

Vehicle Frame

140mm crossbeam

Tire Spec.

185R16

Rear Axle Load

3T

Brake System

Front Disk & Rear Drum

Wheelbase

3050mm

Allow Passengers

2

Max Speed

100km/h

Drive Model

4X2, LHD/RHD

CRANE  PARAMETERS

1T  4 Folding Arms

XCMG 2T 2 Folding Arms

Max Lifting Capacity(kg)

1320

2000

Min Lifting Capacity(kg)

380

750

Working Radius(m)

4.2

4.9

Lifting Height(m)

5.6

7.2

Crane Weight(kg)

150

608

Outriggers Span(mm)

900

1874

Rear Axle Load

3T

Brake System

Rotation Angle

330 Degree

360 Degree

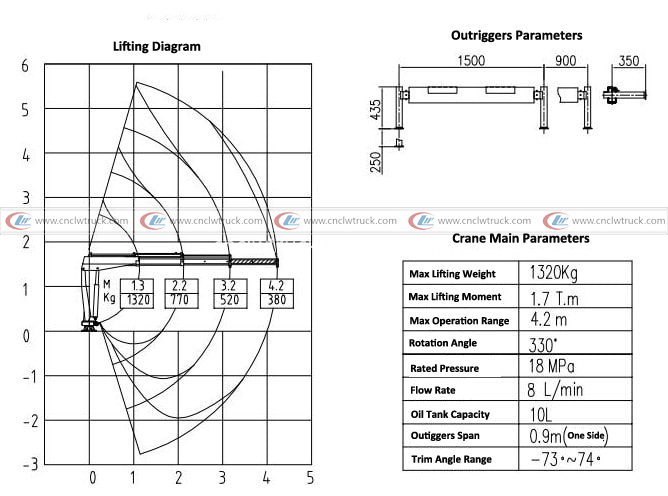

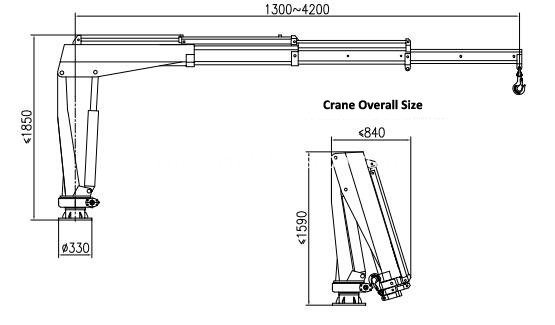

CRANE DIAGRAM :


small crane truck diagram 1

small crane truck diagram 2 logo


Chassis Configurations: SINO mini Chassis, 1650mm Single-row Cab, Gasoline 102HP Engine, 5 Speed Transmission, 3t Rear Axle, 140mm Crossbeam, 185R14 Tire, with EPS, ABS, Vacuum Clutch Booster, Front Disk Rear Drum, OBD.


Crane Configurations:

Articulated boom type, length of arm 1.3m(not extend)-4.2m(full extend), front outriggers, span 900mm, luffing angle -73 degree to 74 degree, rotation angle 330 degree, remote control operation within a diameter of 200meters.

Working radius 4.2m,  lifting height 5.6m, horizontal lifting parameters:lifting 380kg in 4.2m, 520kg in 3.2m, 770kg in 2.2m, 1320kg in 1.3m.


Small Crane Truck Advantages :


1. Gasoline fuel type, low use cost.

2. Wide and high-speed rotary, easy operation.

3. Unique design, small volume, low noise.

4. Wide application range, suitable for landscaping,electric power, petro-chemical industry, advertisement installation, construction site, narrow road, underground garage, service station, 4S shop, field rescue, factory workshop transportation, etc.
