Brand New XCMG 10T Telescopic Crane Truck

Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5409TMC

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 4

Condition: New

CRANE BRAND: XCMG, SANY, Palfinger,Unic,Tadano Etc...

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% Brand New XCMG 10T Telescopic Crane Truck for Sale

A XCMG Crane Truck is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Heavy Duty Crane:50Ton, 80Ton, 120Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.

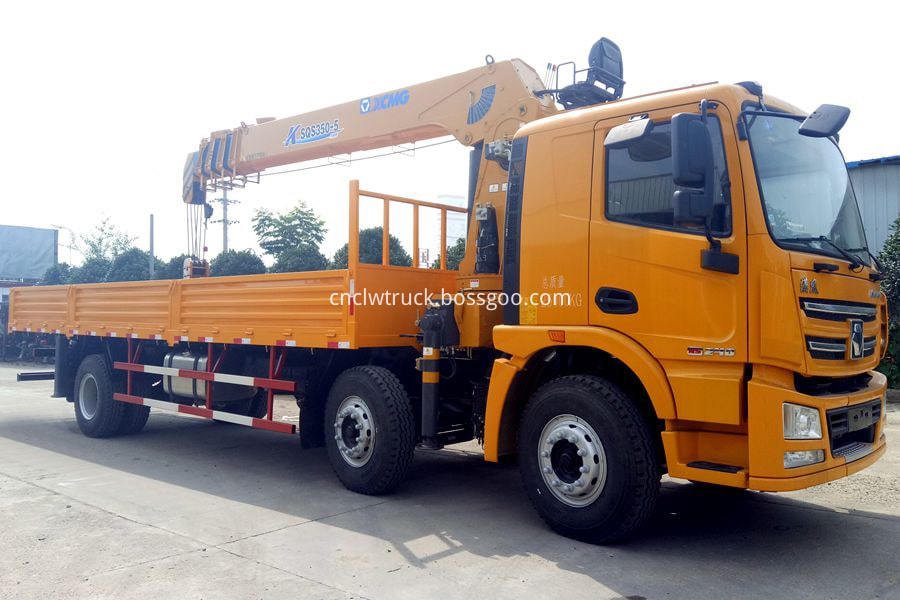

VEHICLE PICTURES :

10T Crane Truck

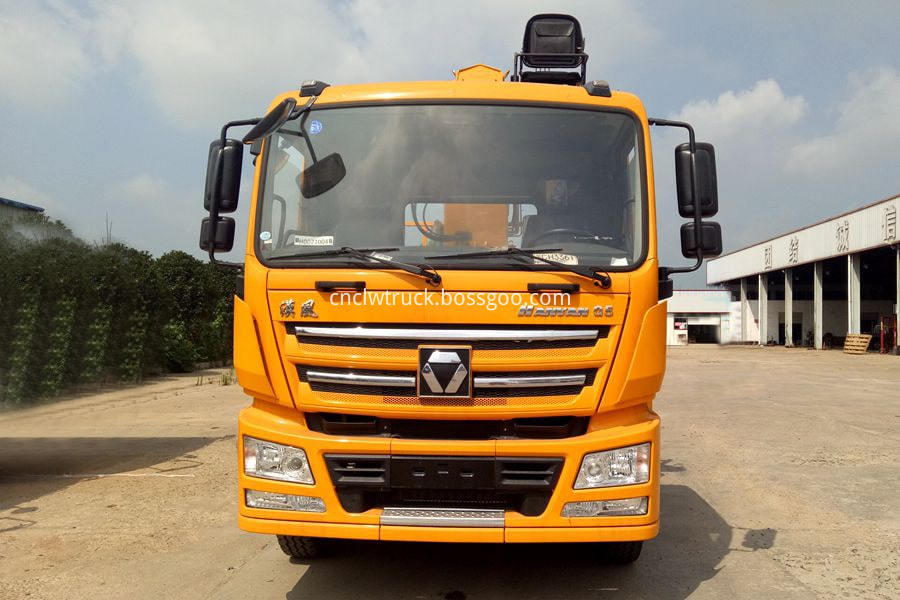

 XCMG 10T Telescopic Crane Truck Picture 1

10T Crane Truck pictures

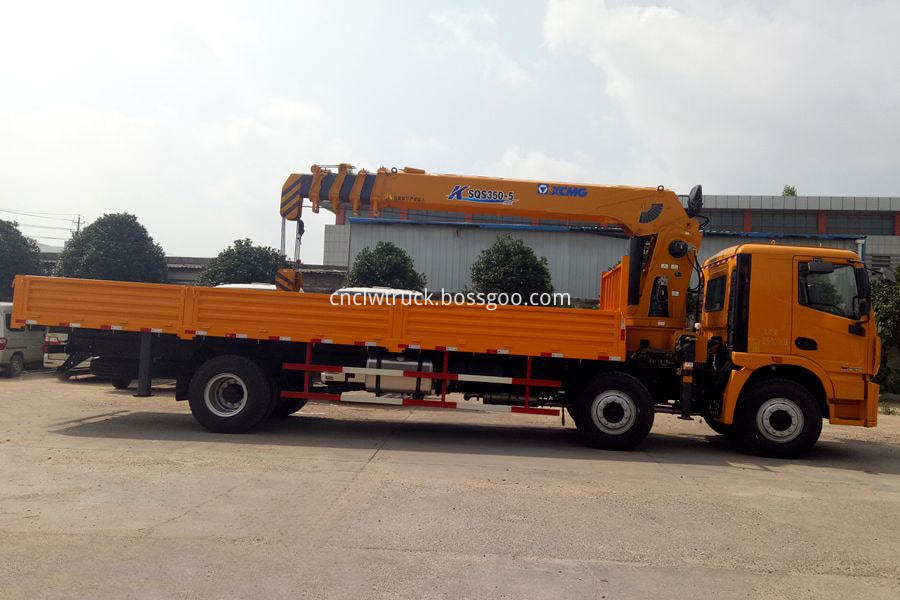

 XCMG 10T Telescopic Crane Truck  Picture 2

10T Crane Truck 1

 XCMG 10T Telescopic Crane Truck  Picture 3

10T Crane Truck 2

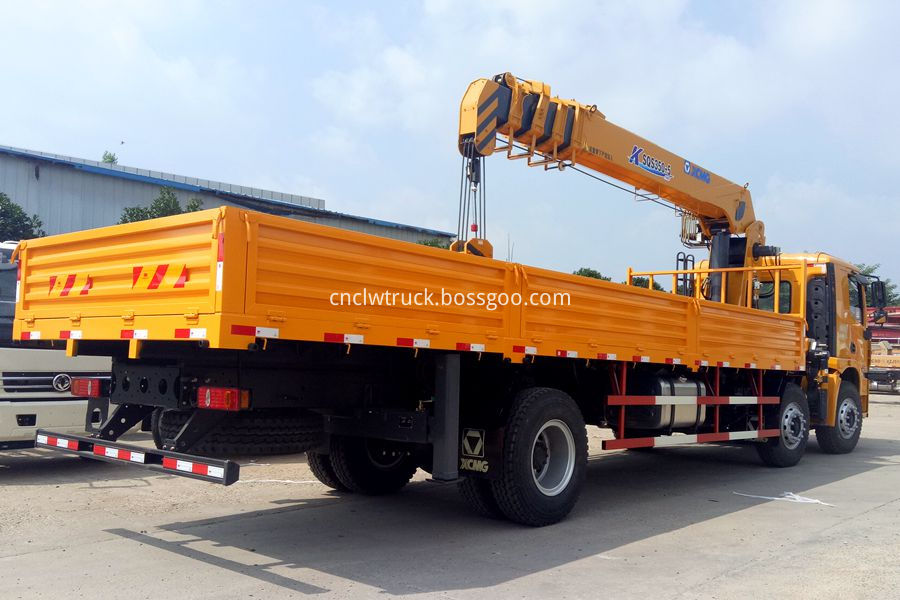

 XCMG 10T Telescopic Crane Truck  Picture 4

10T Crane Truck for sale

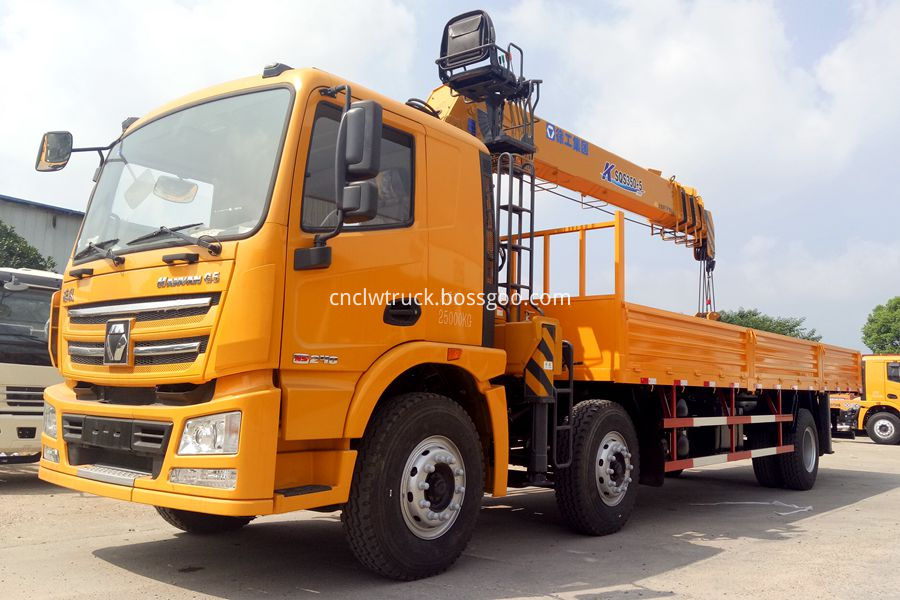

 XCMG 10T Telescopic Crane Truck  Picture 5



VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Chassis Brand

XCMG

Condition

Brand New

Crane Capacity

10T/12T

Crane Brand

XCMG/SANY

Remote Control

Arm Type

Folding/Telescopic

Cab

G5

Engine Power/displacement

340HP/6870ml

Gearbox

8 Speed

Overall Size

12X2.5X3.88/m

GVW

25000kg

Cargo Size

8.55X2.45X0.55/m

Curb Weight

13480kg

Vehicle Frame

280mm crossbeam

Tire Spec.

11.00R20

Rear Axle Load

13T

Brake System

Air Brake

Wheelbase

2200+5300mm

Allow Passengers

3

Max Speed

90km/h

Drive Model

6X2, LHD/RHD

CRANE  PARAMETERS

XCMG 10T Telescopic Arms

XCMG 12T Telescopic Arms

Max Lifting Capacity(kg)

10000

12000

Min Lifting Capacity(kg)

1500

1800

Working Radius(m)

12

12.5

Lifting Height(m)

14

14.5

Crane Weight(kg)

3765

4316

Outriggers Span(mm)

2280-5580

2270-5270

Rotation Angle

360 Degree

360 Degree

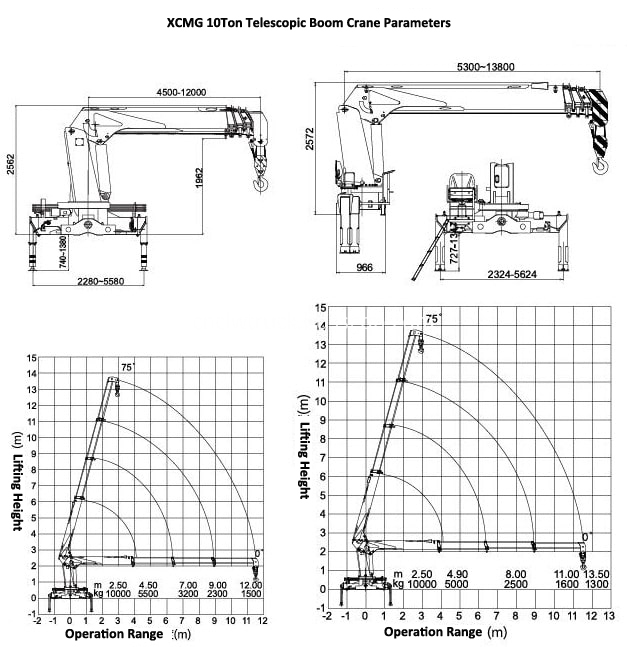

CRANE DIAGRAM :


XCMG 10T Crane Parameters


Chassis Configurations:XCMG G5 Chassis, Single-row Cab with one sleeper,Yuchai Diesel 240HP Engine, 8 Speed Transmission, 5.5T Rront Axle, 13T Rear Axle, 280mm Crossbeam, 11.00R20 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows


Crane Configurations:

Telescopic boom type, simplex pump or double pump optional,  lifting capacity 10000kg, length of arm4.5m(not extend)-12m(full extend), four outriggers ,360 degree rotation; Working radius 12m,  lifting height 14m.


Cargo Configurations:

Cargo Size:8550*2450*550/L*W*H/mm, cargo bottom thickness is 5mm/4mm, side thickness is 2mm.


XCMG 10T Crane Truck Advantages :

1.  Diesel fuel type, power engine,perfect driving performance

2. Wide and high-speed rotary, easy operation, strong load capacity.

3. Unique design, prolonged service life.

4. Wide application range, suitable for landscaping,electric power, petro-chemical industry, advertisement installation, construction site, narrow road, underground garage, service station, 4S shop, field rescue, factory workshop transportation, etc.

customer visit


FAQ

CHENGLI SPECIAL AUTOMOBILE CO

Need more details of our XCMG 10T Crane Truck welcome to contact us at any time!
