Brand New SINOTRUCK 24000litres fire fighting truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 35 Days

Basic Info

Model No.: CLW5437

Type: Rescue

Certification: ISO9000, CCC

Volume: 7001-10000L, >10000L

Emission Standard: Euro 3, Euro 5

Transmission Type: Manual

Engine Type: 4 Stroke

Payload: 30T, 40T

Fuel: Diesel

Drive Wheel: 4×2, 8X4

Horsepower: <150hp

Condition: New

Vehicle Color: Red, Yellow, Blue Optional

Chassis Brand: SINOTRUCK

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,Any Main Port in China

Product Description

Brand New SINOTRUCK 24000litres fire fighting truck

SINOTRUCK fire fighting truck (also be named fire truck, fire apparatus, fire engine, fire appliance truck, fire rescue truck) with high efficiency foam extinguishing, emergency rescue, incident light, water pumping functions.

We are professional fire trucks manufacturer in china with best quality, cheap price and depandable after-sale services. Our fire trucks have been exported to Southeast Asia, Vietnam, Laos, Myanmar, South Africa, Iran, Sri Lanka and more than 20 countries.

We can provide our customers:

1. 4X2 fire truck, 6X4 fire truck, 8X4 fire truck, 4X4/ 6X6 all wheel drive fire truck;

2. Water fire truck, foam fire truck, water dry-powder combined fire truck, CAFS foam truck;

3. ISUZU fire truck, SINOTRUCK fire truck, IVECO fire truck, DONGFENG fire truck, Mercedes Benz fire truck, FAW fire truck, FOTON fire truck, JMC fire truck, MAN fire trucks...


fire fighting truck (24,000 Litres)
General Vehicle Brand CLW
Chassis Brand SINOTRUCK
Overall Dimension 11900 * 2500 * 3635 mm
GVW / Kerb Weight 41000kg / 17300kg
Cab Cab Capacity 2+4 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand SINOTRUCK
Power 380 Ps (276 KW)
Displacement 9726 ml
Emission Standard Euro V
Chassis Drive Type 8X4, LHD /RHD
Transmission 10-speed front, 1 reverse
Wheelbase/No. of axle 1800+4600+1350mm / 4
Tyre Specification 12.00R20
Tyre Number 12 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Water Capacity 22,000 Litres (About 6500 gallons)
Foam Capacity 2,000Litres(About 600 gallons)
Tank Material Stainless Steel
Fire Pump Flow speed 80L/s
Pressure 1.0MPa
Fire Cannon Flow speed Water 48 L/s
Foam 48 L/s
Shot Water 60 m
Foam 65 m
Suction Head 7 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include  shovel, pike poles, axes and cutting equipment, halligan bars.-
Optional Ladders, floodlights...


SINOTRUCK HOWO 24000litres Water Foam Fire Fighting Truck Pictures

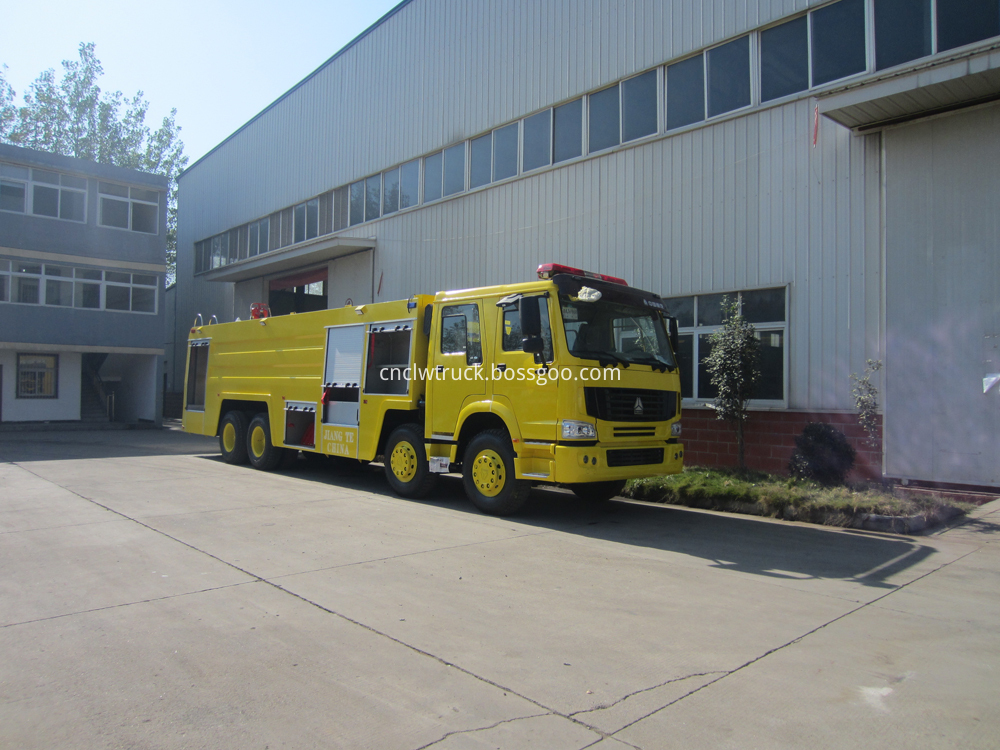

fire fighting truck

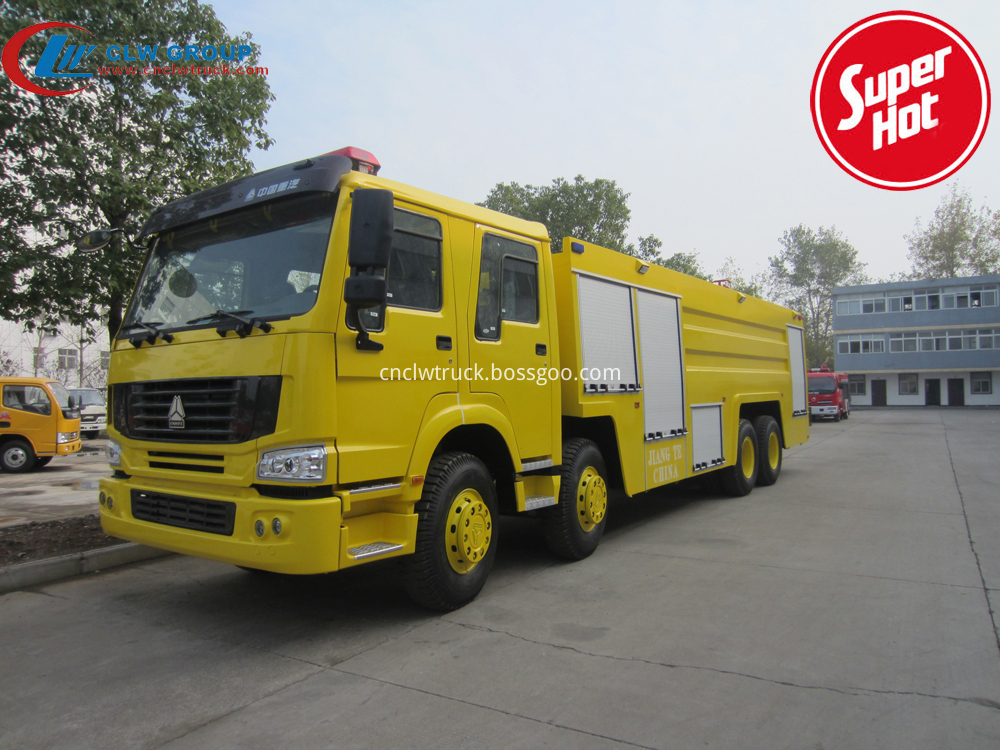

fire fighting truck 1

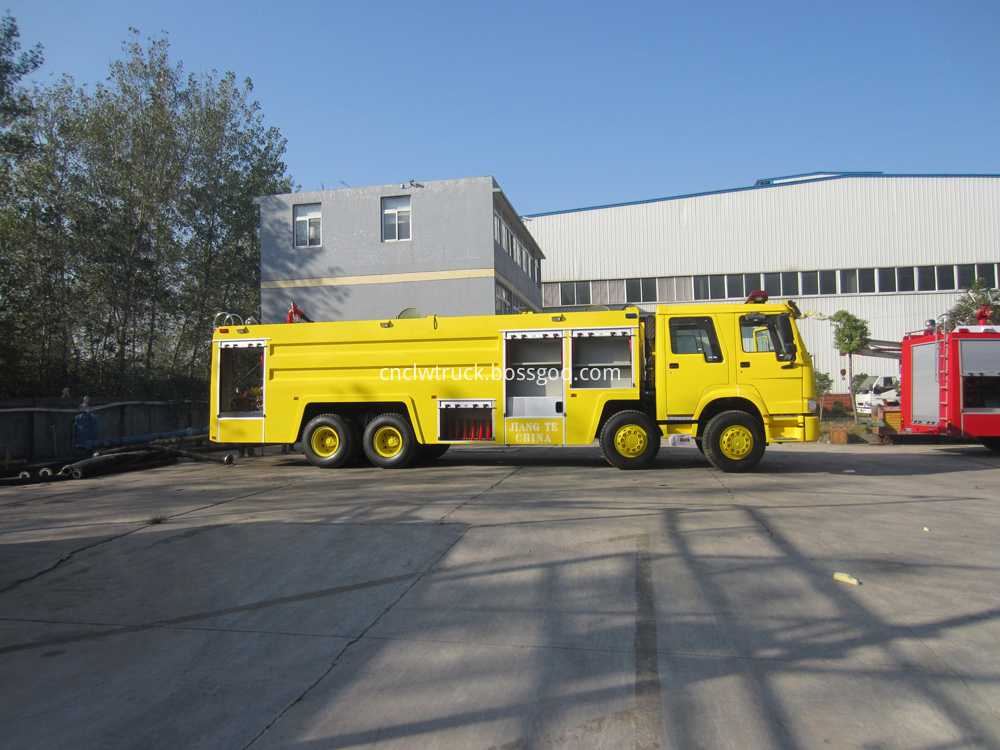

fire fighting truck 2

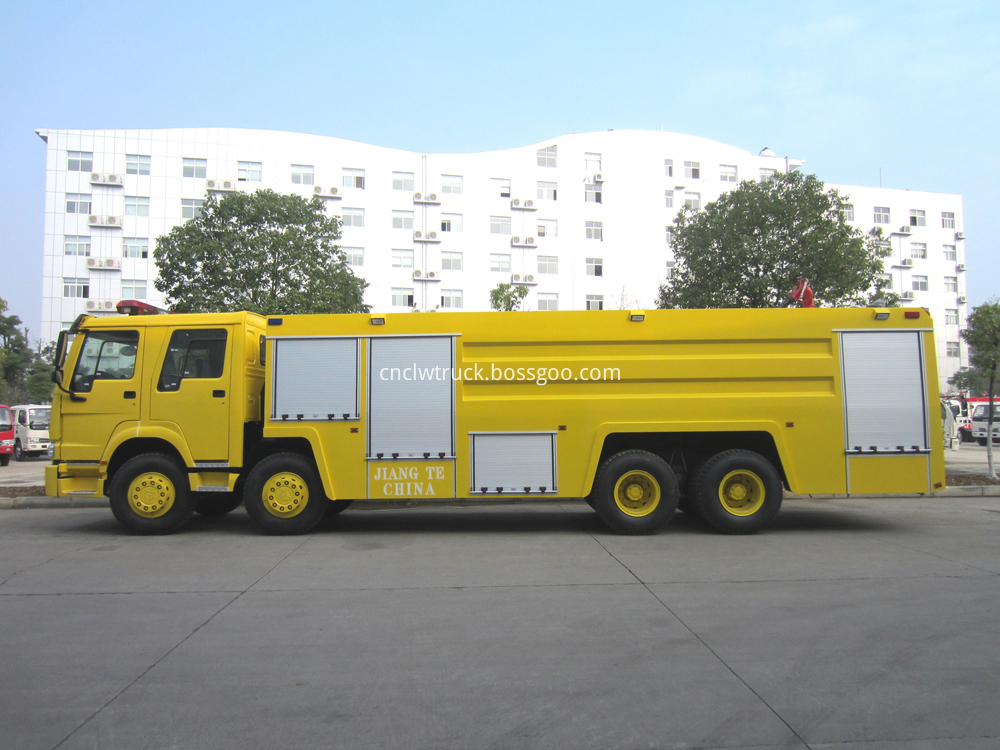

fire fighting truck 3

fire fighting truck 4

fire pump operation direction

fire pump operation instruction

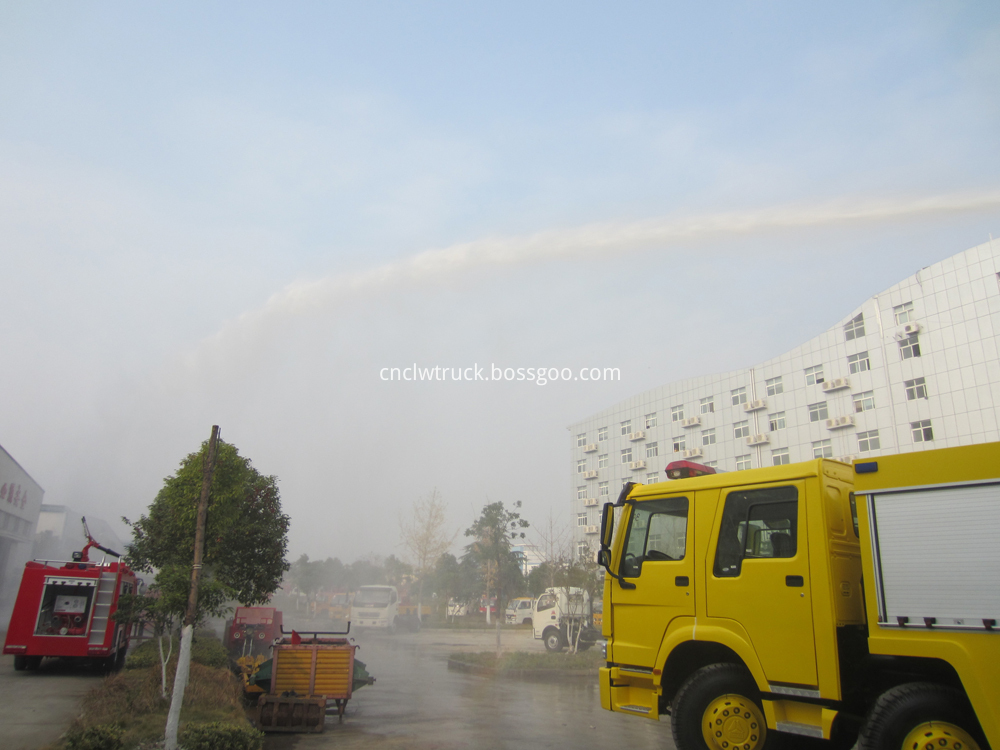

fire pump testing 1

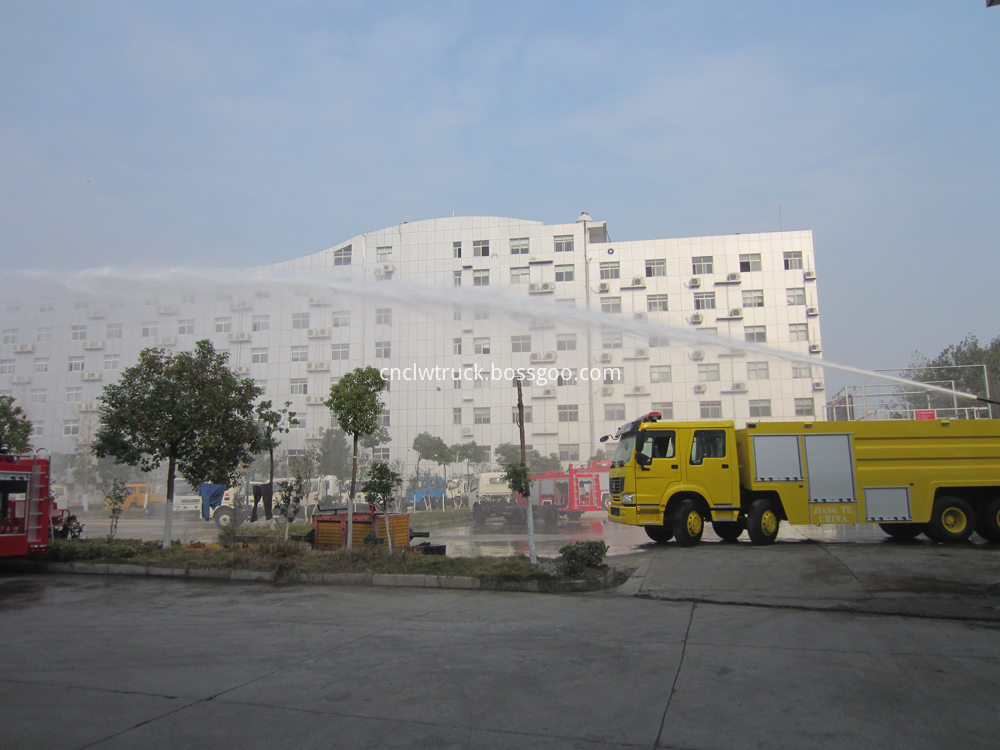

fire truck water shot testing 2

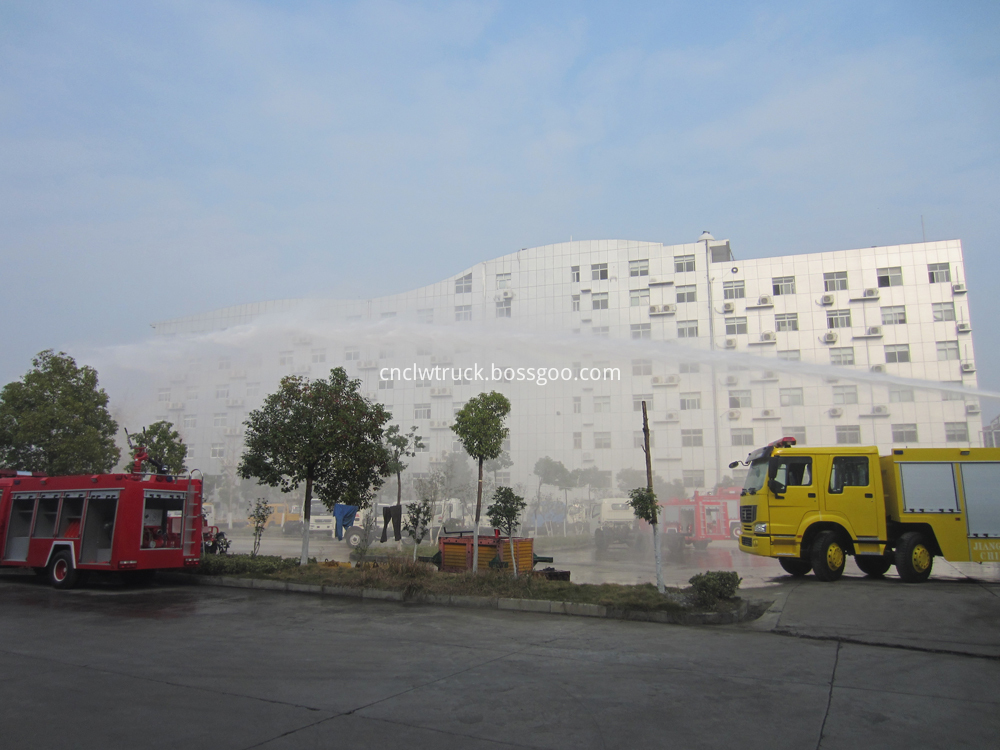

fire truck water testing 3


1. Fire Fighting Truck Accessories

Fire Fighting Truck Accessories

fire truck accessories

details of fire truck body

2. Fire Pump English Vesion Operation Instruction

fire pump operation instruction board

3. Our Fire Trucks Ready for Delivery

fire truck in stock

Need more details of our SINOTRUCK HOWO FIRE SERVICE TRUCK welcome to contact us at any time!
