| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: CLW5417RWT
Fuel: Diesel
Certification: ISO9000, CCC
Emission Standard: Euro 4
Condition: New
Chassis Brand: JMC
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA
Product Description
Guaranteed 100% Brand New JMC 5.6m flatbed wheel-lift wrecker for Sale
Wheel Lift Wrecker is used to transport motor vehicles or tow the vehicles that are broken down, based on the type or size of vehicle to be towed, the road towing vehicles are usually designed into two types, ine is slidebed tow truck with wheel-lift function, another one is wheel-lift units mounted a combination boom with sling that can hauling all kinds of heavy duty equipments.
VEHICLE DIAGRAM :
VEHICLE PICTURES :

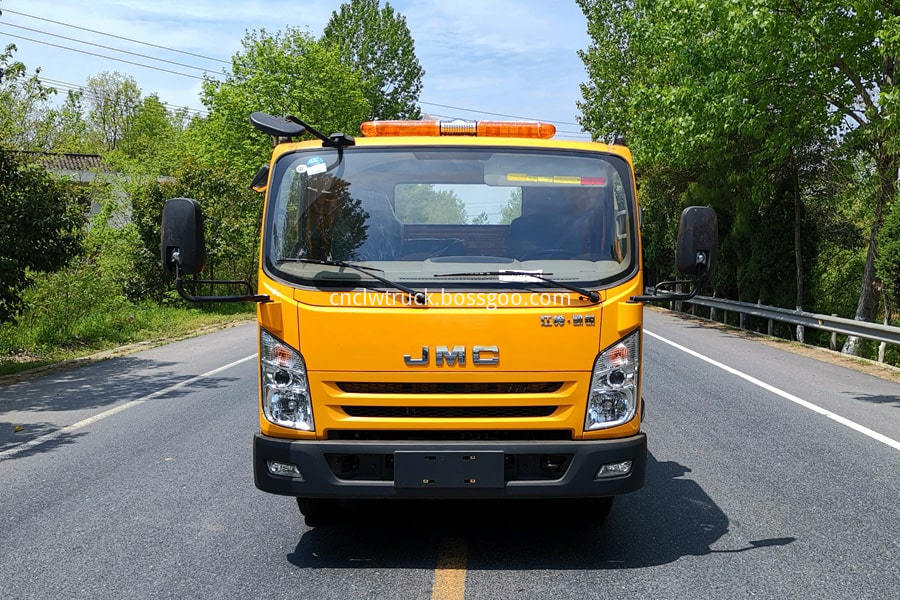

JMC 5.6m flatbed wheel-lift wrecker Picture 1

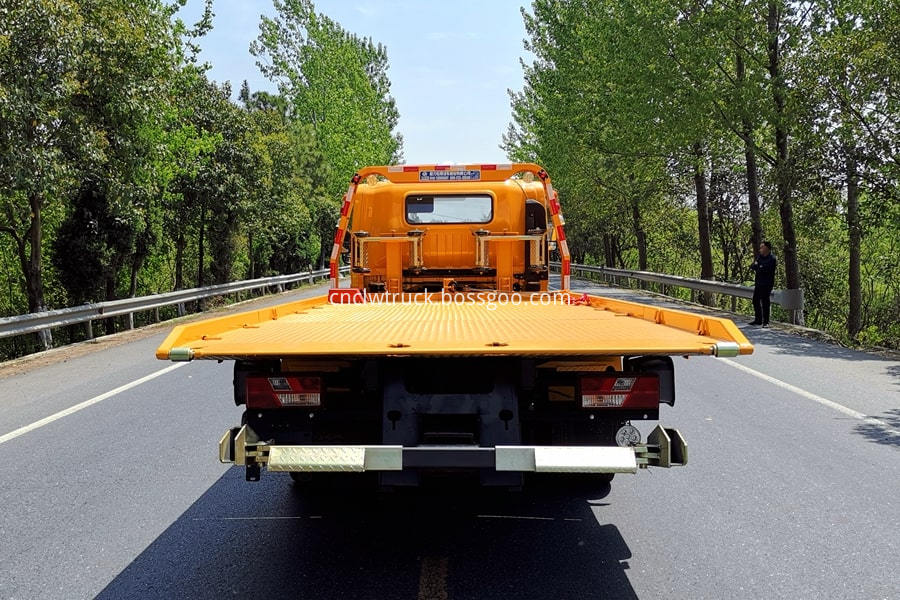

JMC 5.6m flatbed wheel-lift wrecker Picture 2

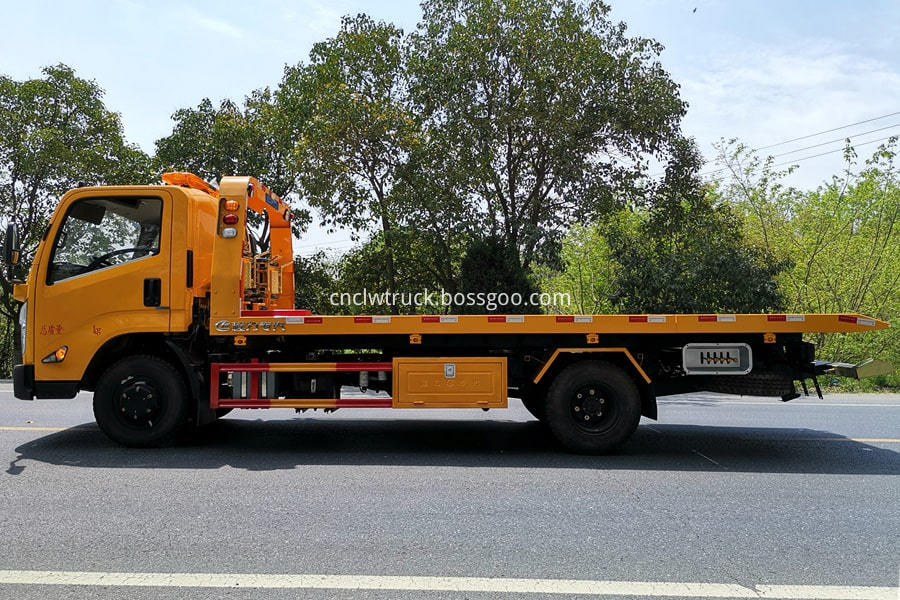

JMC 5.6m flatbed wheel-lift wrecker Picture 3

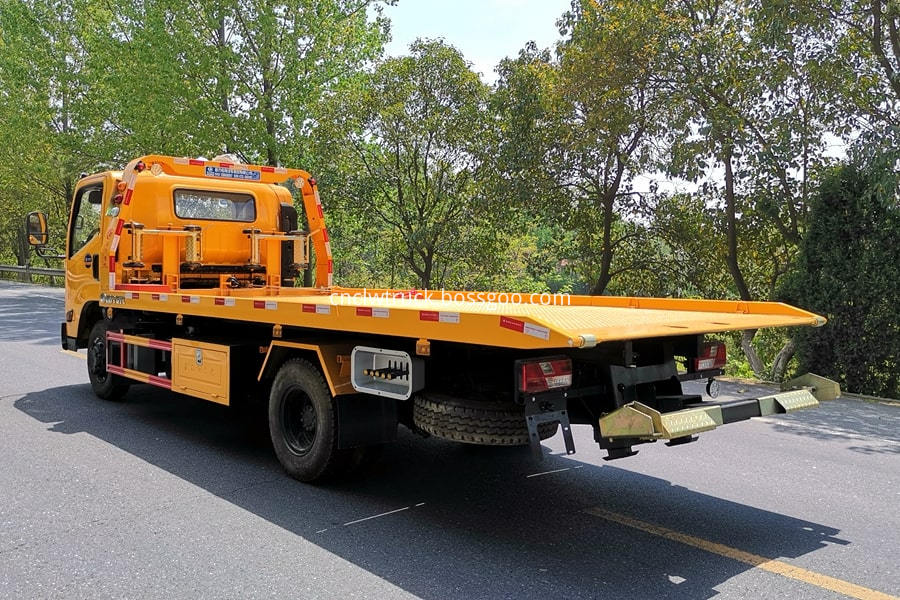

JMC 5.6m flatbed wheel-lift wrecker Picture 4

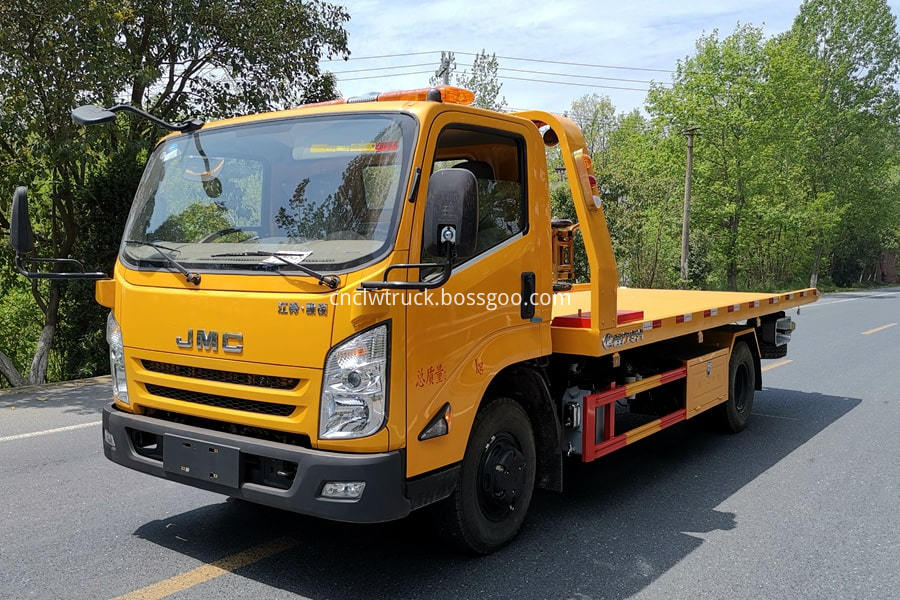

JMC 5.6m flatbed wheel-lift wrecker Picture 5
JMC 5.6m flatbed wheel-lift wrecker working Picture

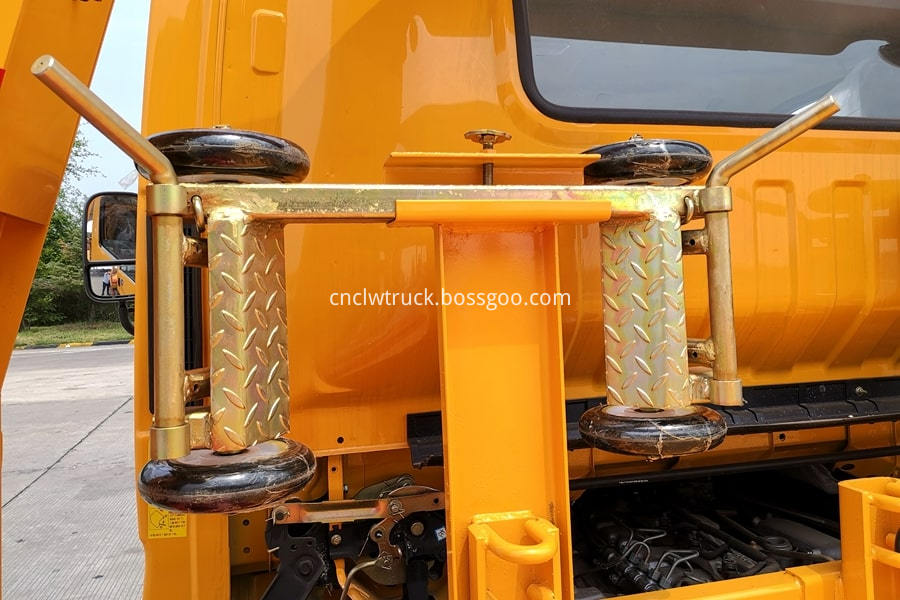

JMC 5.6m flatbed wheel-lift wrecker Details Picture 1

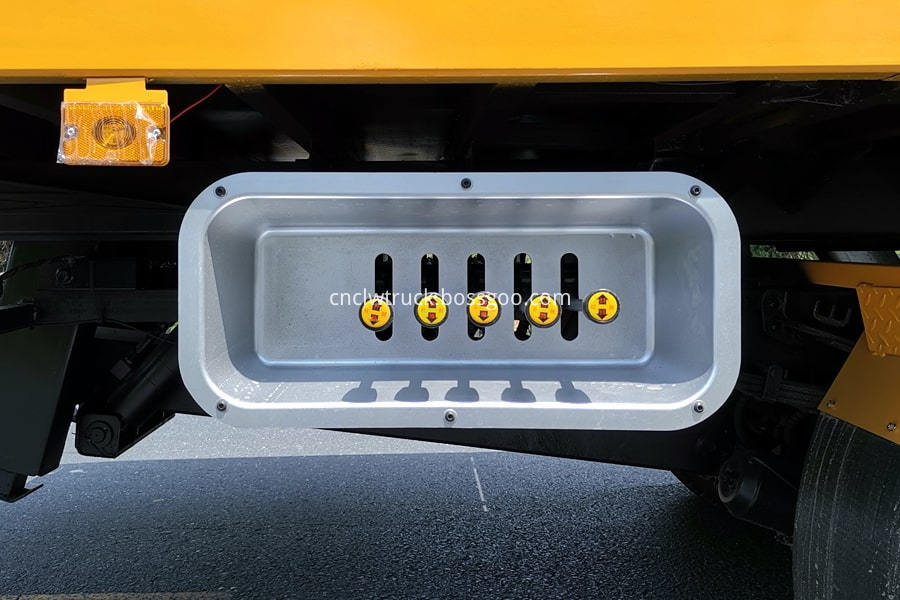

JMC 5.6m flatbed wheel-lift wrecker Details Picture 2
VEHICLE PARAMETERS :
VEHICLE PARAMETERS
Vehicle
Name
JMC
Road Wrecker
Overall
Size
(L*W*H/mm)
7430*2350*2370
GVW
8210kg
Curb
Weight
5030kg
Flatbed
Size
5.6*2.33m
Hydraulic Pressure Tail Plank Length
1.2m
Towing
Capacity of Winch
4T
Lifting Capacity
4T
CHASSIS PARAMETERS
Chassis
Brand
JMC
Wheel
Base
3815mm
Chassis
Model
Drive
Model
4X2,
LHD/RHD
Axles
Nos
2
Tire
Spec.
7.50R16
Gearbox
6F,1R
Tire
Nos.
6+1(spare)
Engine
Model
JX4D30A5H
Engine
Brand
JMC
Displacement
2892ml
Engine
Power
152HP
Fuel
Type
Diesel
Brake
Type
Air
Brake
BODY
CONFIGURATION
Stand
Configuration
4T towing winch, 25m steel wire rope, one pair auxiliary wheel ,
L-type fork one pair, square sleeve one pair, bundling belt 8units, hook,
working light 2units, yellow alarm lamp, tools and accessories
Optional
Configuration
Imported
parts, tire holder, hand washing device, LED burst flashing light, full-floor flatbed
JX1083TK25
Chassis Configurations: JMC Chassis, New Type Single Row Cabin , Diesel 152HP Engine, 6 Speed Transmission, Wheelbase 3815mm, 5.2T Rear Axle, 7.50R16 Tire, ABS, Air Brake, Power Steering , A/C,Electric Windows, Cruise Control System
Top flatbed Configurations:
Towing one by two type, length of flatbed 5.6m, width of flatbed 2.33m, with 1.2m length hydraulic pressure tailboard.
Files with vehicles:
Chassis Certificate, Vehicle Certificate, Proforma Invoice, English Vesion User Manual( any language version avaiable), Quality Warranty Certificate, Country of Original, Or Any other certificates can provide if contract need.
Wheel Lift Towing Vehicles Advantages :
1. Diesel fuel type, super powerful engine, perfect driving performance, no overhaul within 100,000km.
2. Wide and high-speed rotary, easy operation, strong load capacity.
3. Unique design, prolonged service life.
4. High quality hydraulic system.
5. Manufacturer directly sale, cheap price with promptly after-sales response.
Need more details of our Wheel-lift Wrecker welcome to contact us at any time!
