Brand New JMC 2Tons Telescopic Crane Truck

Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5314TMC

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 3, Euro 4

Condition: New

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% Brand New JMC 2Tons Telescopic Crane Truck for Sale

A JMC Crane Truck is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Heavy Duty Crane:50Ton, 80Ton, 120Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.


VEHICLE PICTURES :

crane truck JMC

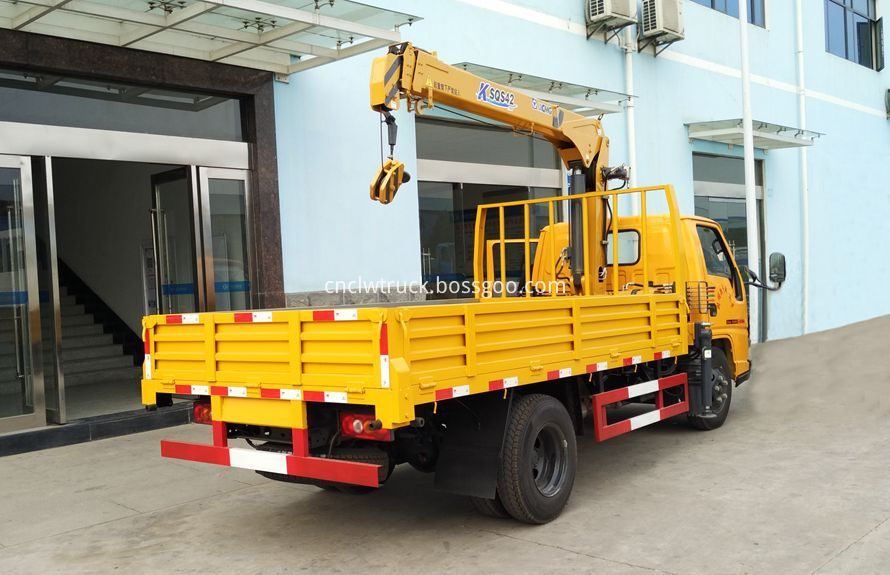

JMC 2Tons Telescopic Crane Truck Picture 1

crane truck JMC 2

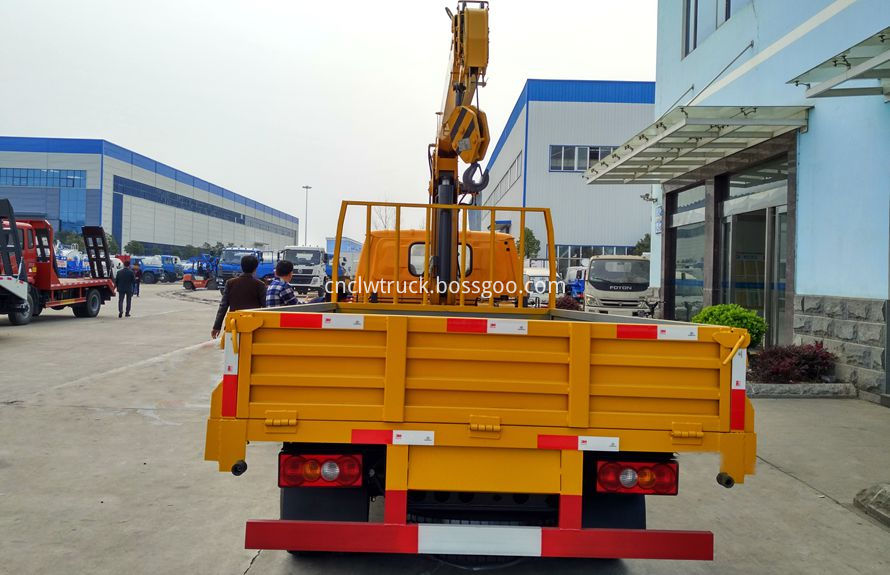

JMC 2Tons Telescopic Crane Truck Picture 2


crane truck JMC 3

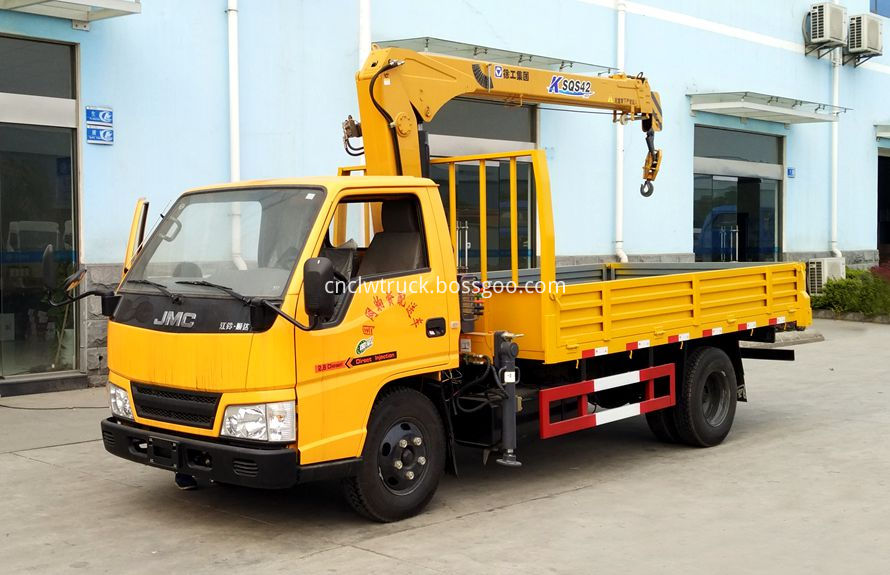

JMC 2Tons Telescopic Crane Truck Picture 3

crane truck JMC 1

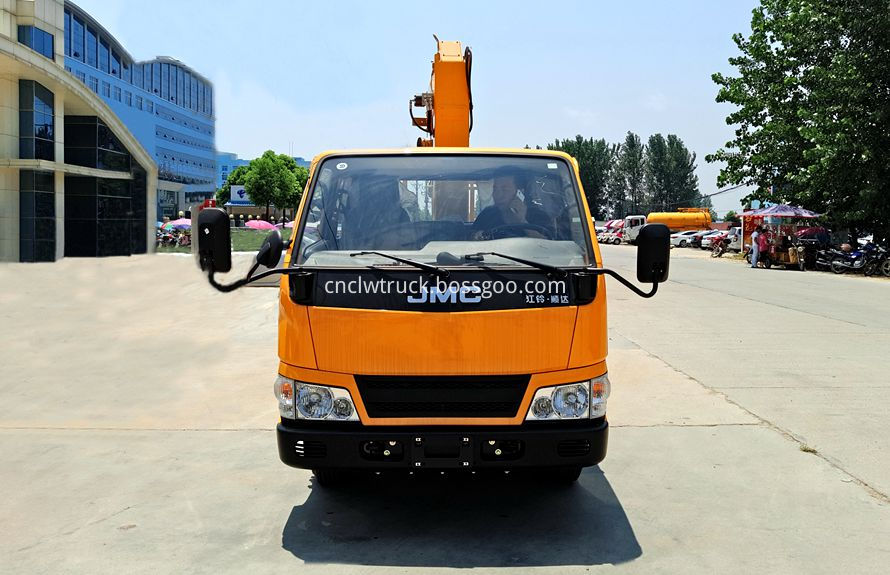

JMC 2Tons Telescopic Crane Truck Picture 4

crane truck JMC 4

JMC 2Tons Telescopic Crane Truck Picture 5



VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Chassis Brand

JMC

Condition

Brand New

Crane Capacity

2T/3.2T

Crane Brand

XCMG/

Remote Control

Arm Type

Folding/Telescopic

Cab

Single Row

Engine Power/displacement

116HP/2771ml

Gearbox

5 Speed

Overall Size

5.995X2.065X2.9/m

GVW

4495kg

Cargo Size

3.59X1.85X0.38/m

Curb Weight

3140kg

Vehicle Frame

180mm crossbeam

Tire Spec.

7.00R16

Rear Axle Load

3T

Brake System

Oil Brake

Wheelbase

3360mm

Allow Passengers

2

Max Speed

100km/h

Drive Model

4X2, LHD/RHD

CRANE  PARAMETERS

XCMG 2T Telescopic Arms

XCMG 3.2T Telescopic Arms

Max Lifting Capacity(kg)

2000

3200

Min Lifting Capacity(kg)

400

950

Working Radius(m)

5.8

5.5

Lifting Height(m)

6.8

6.8

Crane Weight(kg)

875

1105

Outriggers Span(mm)

1874-3024

1989-3329

Rotation Angle

360 Degree

360 Degree



CRANE DIAGRAM :


lorry mounted crane xcmg 2ton diagram


Chassis Configurations: JMC Chassis, Single-row Cab, ISUZU Diesel 116HP Engine, 5 Speed Transmission, 3t Rear Axle, 180mm Crossbeam, 7.00R16 Tire, ABS, Oil Brake, Power Steering , A/C


Crane Configurations:

Telescopic boom type, lifting capacity 2000kg, length of arm3.36m(not extend)-7.73m(full extend), front outriggers ,360 degree rotation;

Working radius 5.8m,  lifting height 6.8m, horizontal lifting parameters:lifting 255kg in 7.73m, 400kg in 5.4m, 1000kg in 3.07m, 2100kg in 2.1m.



Cargo Configurations:

Cargo Size:3590*2010*400/L*W*H/mm, cargo bottom thickness is 5mm/4mm, side thickness is 2mm.


Articulated Crane Truck Advantages :

1.  ISUZU Diesel fuel type, power engine, low noise, low failure rate, low maintenance cost.

2. Wide and high-speed rotary, easy operation.

3. Unique design, small volume.

4. Wide application range, suitable for landscaping,electric power, petro-chemical industry, advertisement installation, construction site, narrow road, underground garage, service station, 4S shop, field rescue, factory workshop transportation, etc.
