Brand New JMC 2Ton Folding Crane Truck

Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5305TMC

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% Brand New JMC 2Ton Folding Crane Truck  for Sale

A Folding Crane Truck is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Heavy Duty Crane:50Ton, 80Ton, 120Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.


VEHICLE PICTURES :

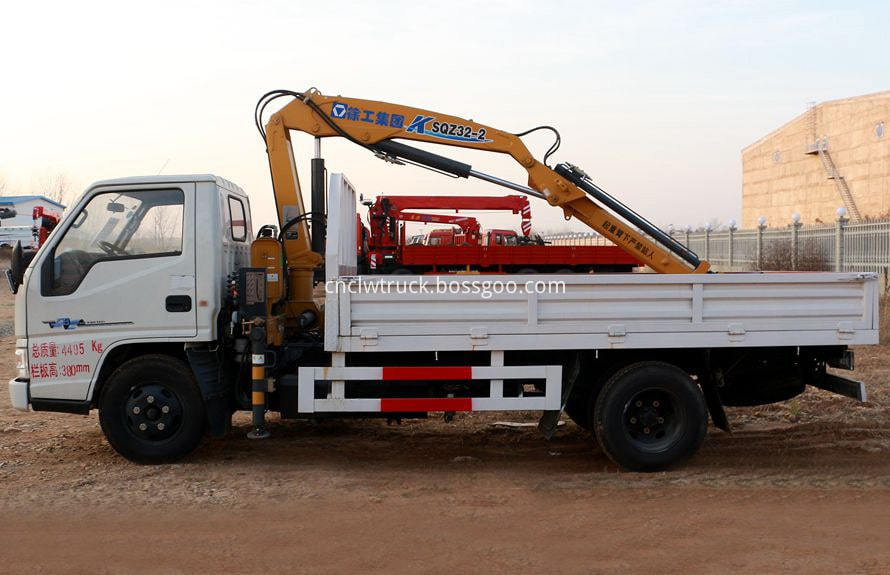

Floding Crane Truck 2T

 JMC 2Ton Folding Crane Truck Picture 1

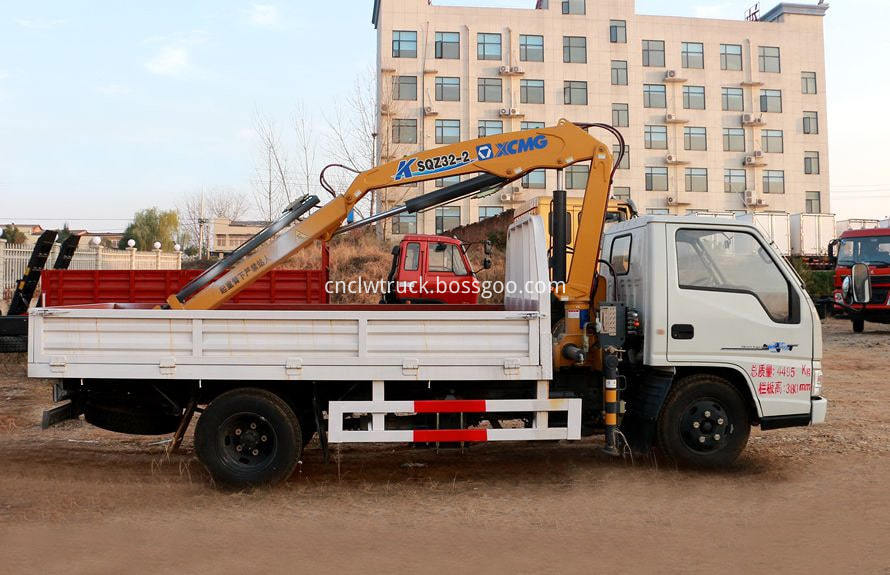

Floding Crane Truck 5

 JMC 2Ton Folding Crane Truck Picture 2

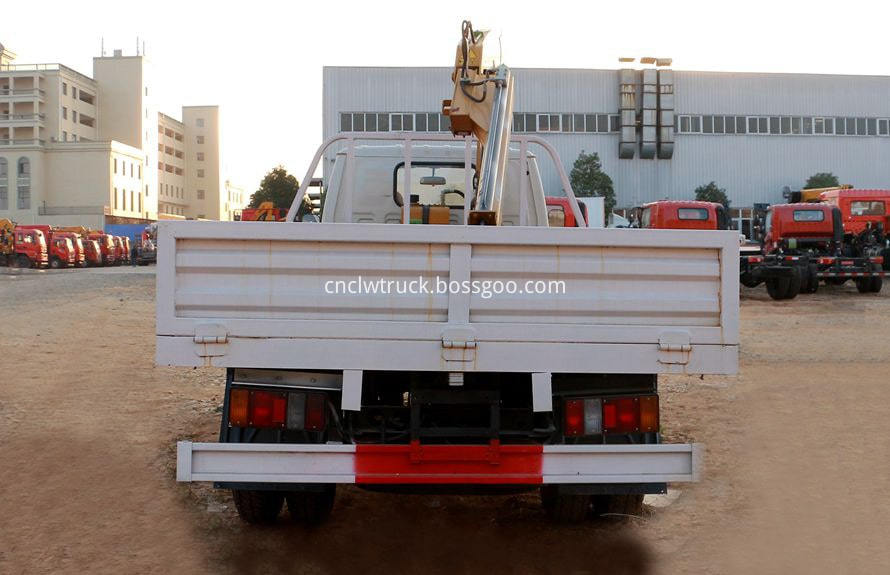

Floding Crane Truck  1


 JMC 2Ton Folding Crane Truck Picture 3

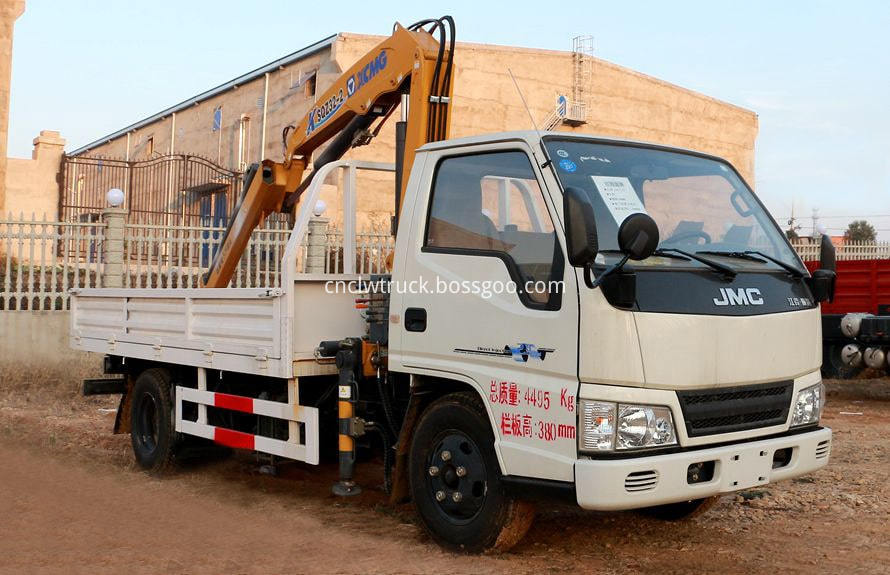

Floding Crane Truck  2

 JMC 2Ton Folding Crane Truck Picture 4

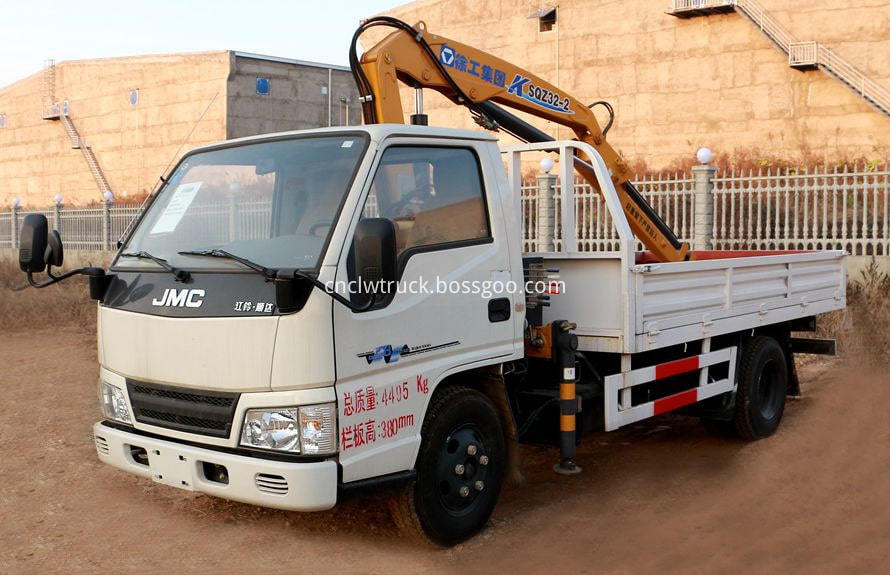

Floding Crane Truck  3

 JMC 2Ton Folding Crane Truck Picture 5

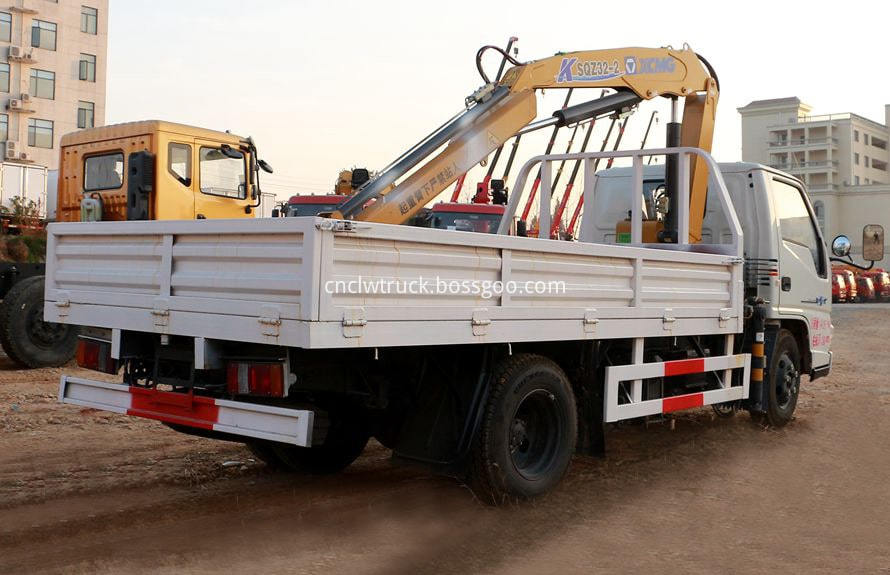

Floding Crane Truck  4

 JMC 2Ton Folding Crane Truck Picture 6


VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Chassis Brand

JMC

Condition

Brand New

Crane Capacity

2T/3.2T

Crane Brand

XCMG/

Remote Control

Arm Type

Folding/Telescopic

Cab

Single Row

Engine Power/displacement

116HP/2771ml

Gearbox

5 Speed

Overall Size

5.995X2.065X2.9/m

GVW

4495kg

Cargo Size

3.59X1.85X0.38/m

Curb Weight

3140kg

Vehicle Frame

180mm crossbeam

Tire Spec.

7.00R16

Rear Axle Load

7T

Brake System

Oil Brake

Wheelbase

3360mm

Allow Passengers

2

Max Speed

100km/h

Drive Model

4X2, LHD

CRANE  PARAMETERS

XCMG 2T Folding Arms

XCMG 3.2T Folding Arms

Max Lifting Capacity(kg)

2000

3200

Min Lifting Capacity(kg)

750

1000

Working Radius(m)

4.9

5.9

Lifting Height(m)

7.2

8.8

Crane Weight(kg)

608

1160

Outriggers Span(mm)

1750-2800

2188-3462

Rotation Angle

Rack-cylinder / 360 Degree

Rack-cylinder/ 360 Degree

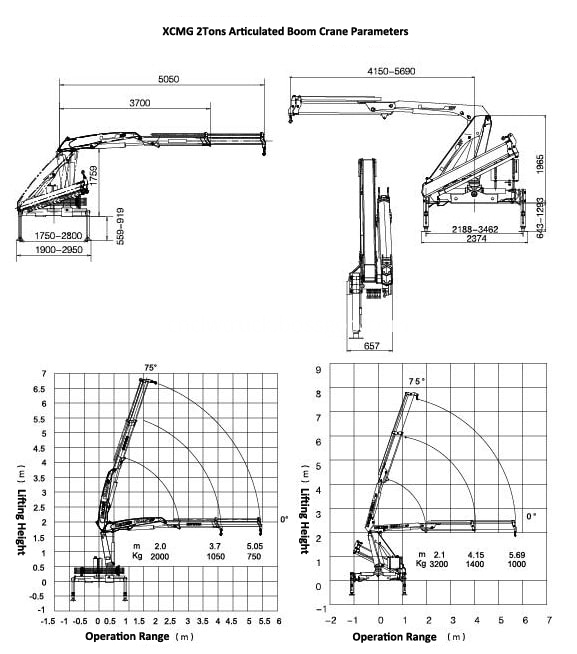

CRANE DIAGRAM


2tons Floding Crane diagram


Chassis Configurations: JMC Chassis, Single-row or double-row Cab, ISUZU Diesel 116HP Engine, 5 Speed Transmission, 5t Rear Axle, 180mm Crossbeam, 7.00R16 Tire, with EPS, ABS, Vacuum Clutch Booster, Oil Brake, Adjustable Headlamp, with Fender


Crane Configurations:

Articulated boom type, lifting capacity 2000kg, length of arm 2m(not extend)-5.05m(full extend), front outriggers, span 2800mm;

Working radius 4.9m,  lifting height 7.2m, horizontal lifting parameters:lifting 750kg in 5.05m, 1050kg in 3.7m, 770kg in 2.2m, 2000kg in 2.8m.


Cargo Configurations:

Cargo Size:3590*1850*380/L*W*H/mm(single-row cabin);2770*1850*380/L*W*H/mm(double-row cabin) , cargo bottom thickness is 5mm/4mm/3mm, side thickness is 2mm.



Folding Crane Truck Advantages :

1. ISUZU Diesel fuel type, power engine, low noise, low failure rate, low maintenance cost.

2. Wide and high-speed rotary, easy operation.

3. Unique design, small volume.

4. Wide application range, suitable for landscaping,electric power, petro-chemical industry, advertisement installation, construction site, narrow road, underground garage, service station, 4S shop, field rescue, factory workshop transportation, etc.
