Brand New JAC V5 4.2m Flatbed Towing Vehicle

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5415RWT

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 4

Condition: New

Chassis Brand: JAC

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100%  New JAC V5 4.2m Flatbed Towing vehicle for Sale

Flatbed Towing Vehicle is used to transport motor vehicles or tow the vehicles that are broken down, based on the type or size of vehicle to be towed, the road towing vehicles are usually designed into two types, ine is slidebed tow truck with wheel-lift function, another one is wheel-lift units mounted a combination boom with sling that can hauling all kinds of heavy duty equipments.


VEHICLE  DIAGRAM :

Road Wrecker Detailed Description logo

Operation Status of Road Wrecker logo


VEHICLE PICTURES :

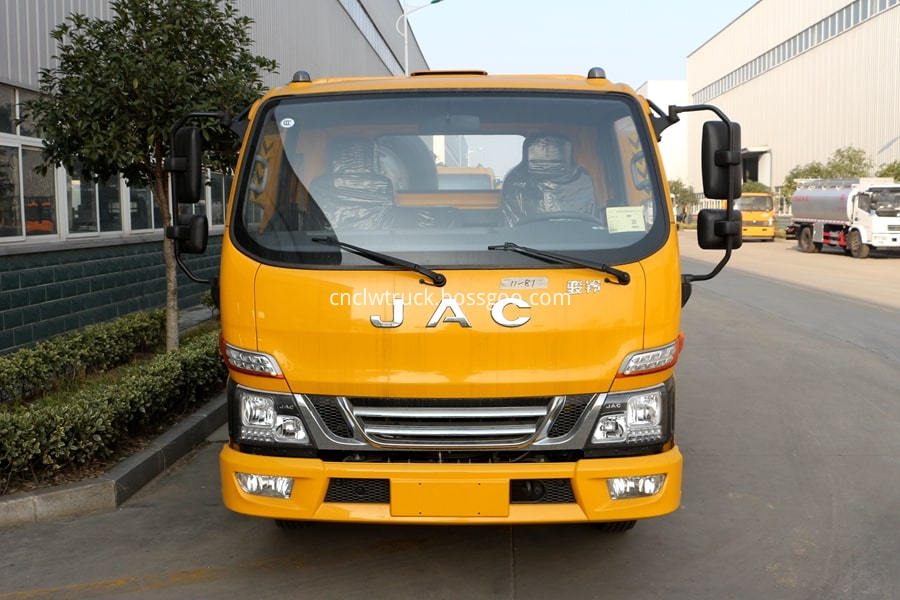

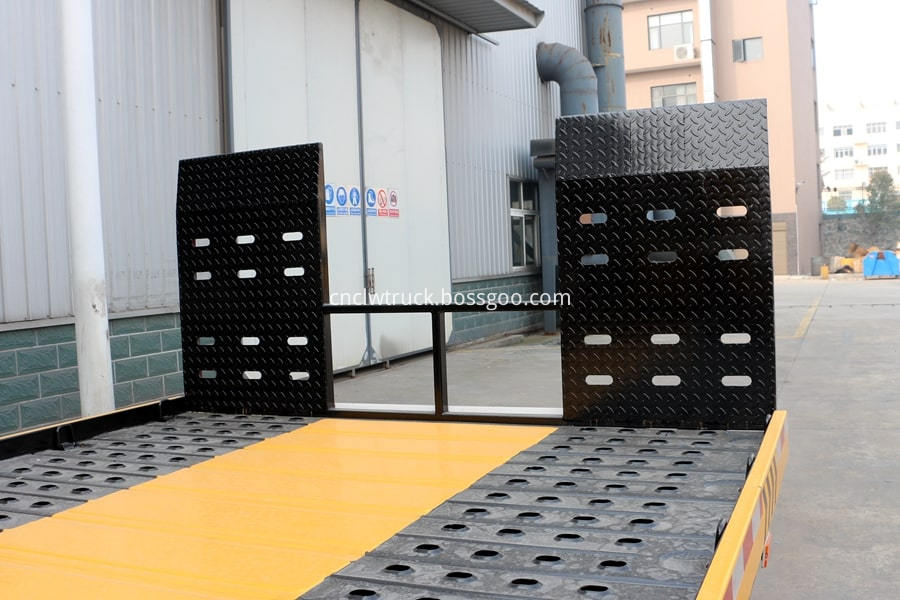

Flatbed Towing vehicle

JAC V5 4.2m Flatbed Towing Vehicle Picture 1

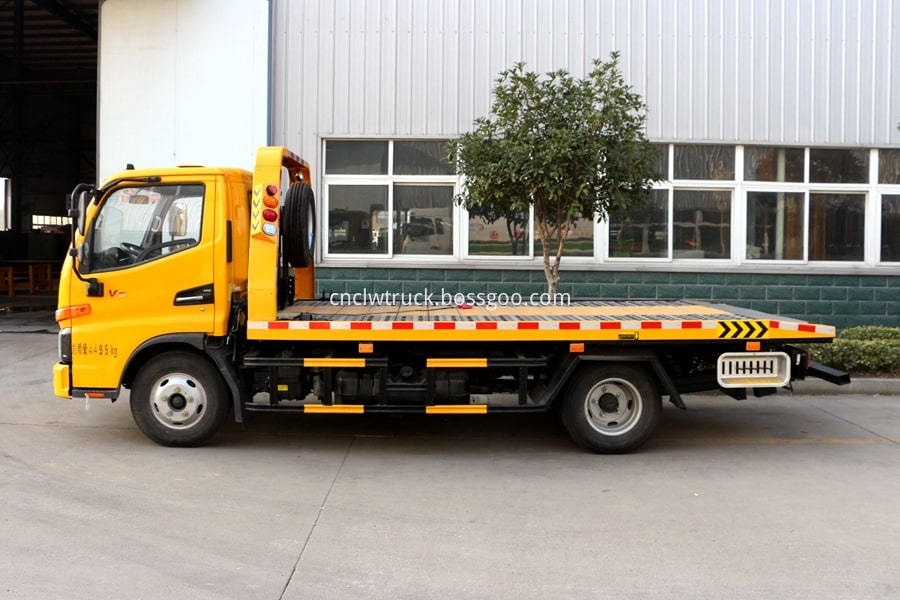

Flatbed Towing vehicle 1

JAC V5 4.2m Flatbed Towing Vehicle Picture 2

Flatbed Towing vehicle 2

JAC V5 4.2m Flatbed Towing Vehicle Picture 3

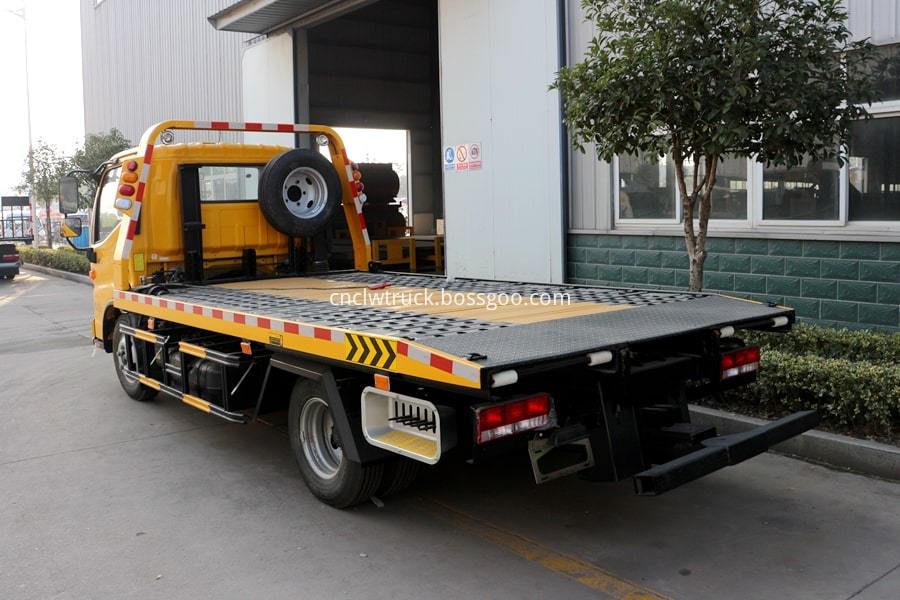

Flatbed Towing vehicle 3

JAC V5 4.2m Flatbed Towing Vehicle Picture 4

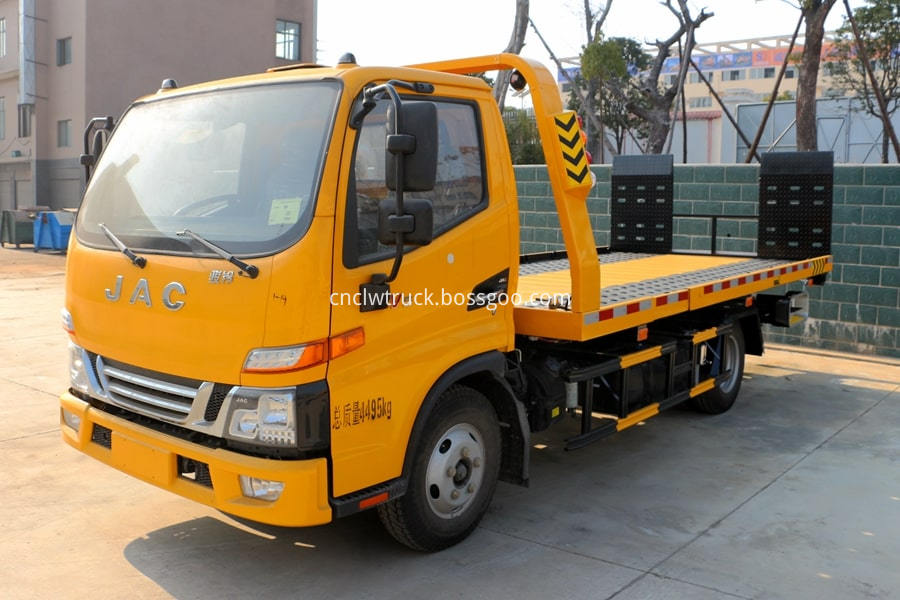

Flatbed Towing vehicle 4

JAC V5 4.2m Flatbed Towing Vehicle Picture 5

Flatbed Towing vehicle 5

JAC V5 4.2m Flatbed Towing Vehicle Picture 6

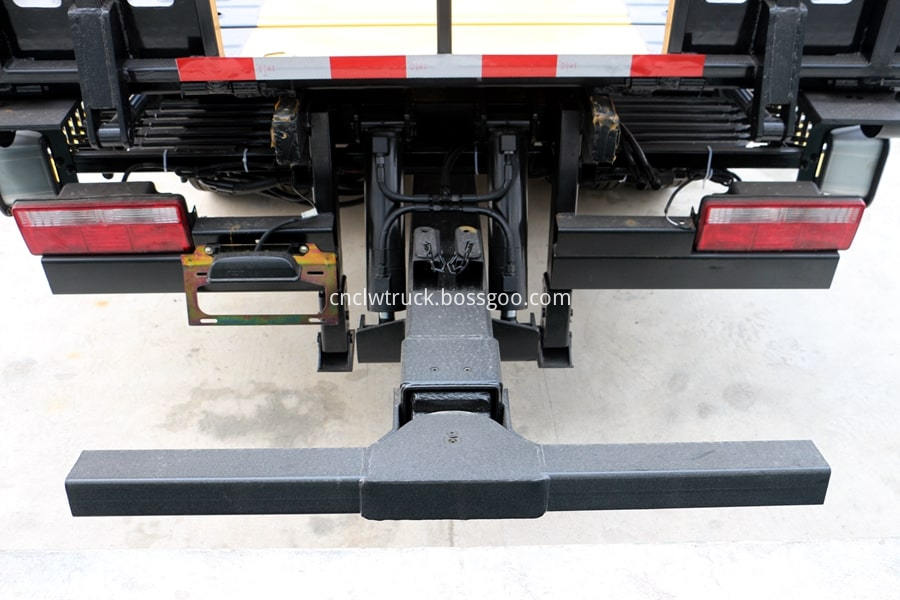

Flatbed Towing vehicle details 4

JAC V5 4.2m Flatbed Towing Vehicle Picture 7

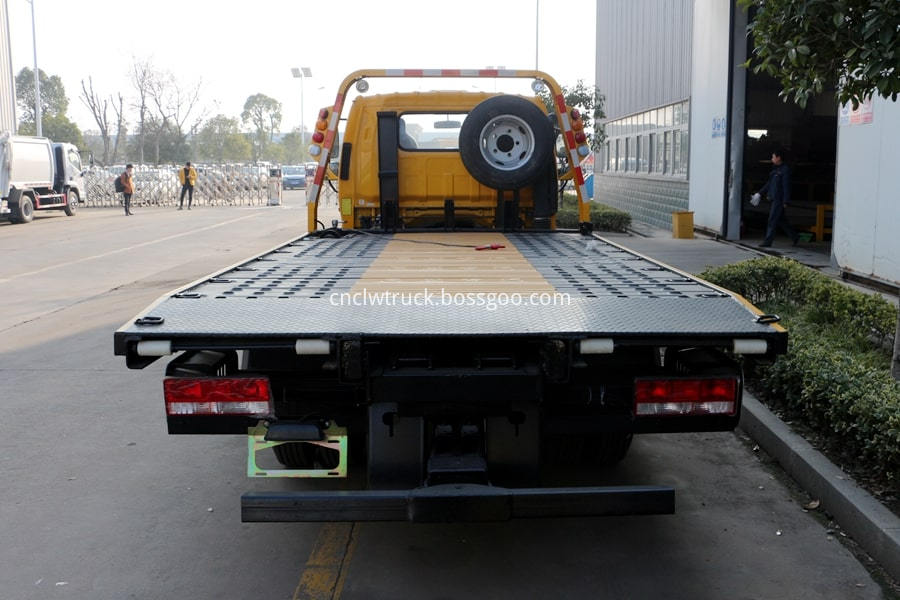

Flatbed Towing vehicle details 2

JAC V5 4.2m Flatbed Towing Vehicle Picture 8

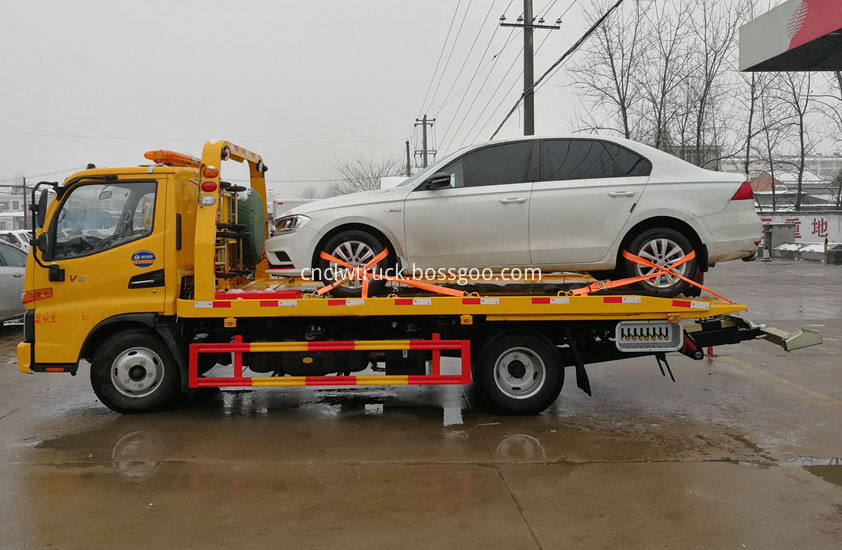

Flatbed Towing vehicle details 3

JAC V5 4.2m Flatbed Towing Vehicle Picture 9


VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Vehicle Name

JAC V5

Road Wrecker

Overall Size

(L*W*H/mm)

5995*2300*2550

GVW

4495kg

Curb Weight

3800kg

Flatbed Size

4.2*2.32m

Hydraulic Pressure Tail Plank Length

1.2m

Towing Capacity of Winch

4T

Lifting Capacity

4T

CHASSIS  PARAMETERS

Chassis Brand

JAC

Wheel Base

3308mm

Chassis Model

HFC1045

Drive Model

4X2, LHD/RHD

Axles Nos

2

Tire Spec.

7.00R16

Gearbox

5F,1R

Tire Nos.

6+1(spare)

Engine Model

HFC4DF1-2D

Engine Brand

JAC ISUZU

Displacement

2771ml

Engine Power

120HP

Fuel Type

Diesel

Brake Type

Air Brake

BODY CONFIGURATION

Stand Configuration

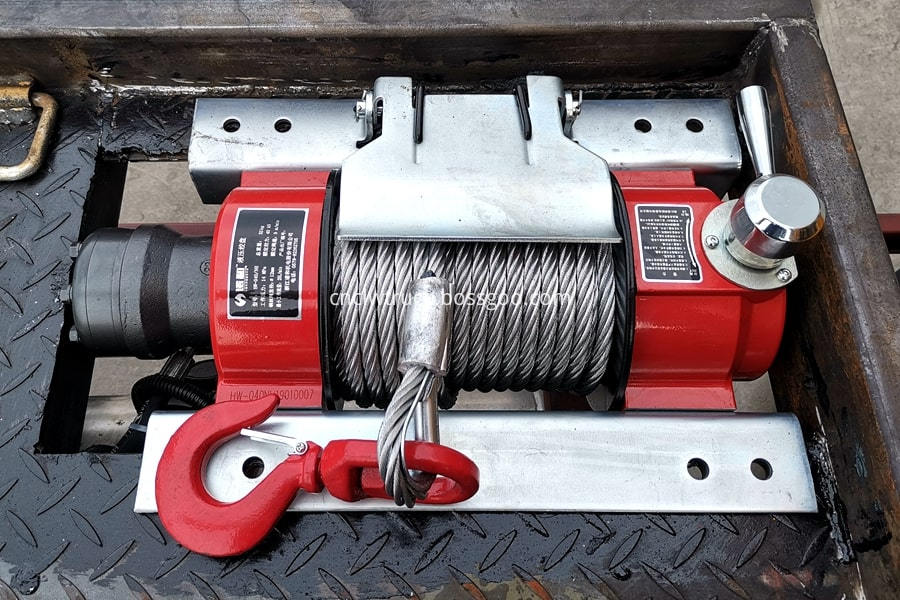

4T towing winch, 25m steel wire rope, one pair auxiliary wheel , L-type fork one pair, square sleeve one pair, bundling belt 8units, hook, working light 2units, yellow alarm lamp, tools and accessories

Optional Configuration

Imported parts, tire holder, hand washing device, LED burst flashing light,  full-floor flatbed


Chassis Configurations: JAC V5 Chassis, New Type Single Row Cabin , ISUZU Diesel 120HP Engine, 6 Speed Transmission, Wheelbase 3308mm, 5T Rear Axle, 7.50R16 Tire, ABS, Air Brake, Power Steering , A/C,Electric Windows, Cruise Control System


Top flatbed Configurations:

Towing one by two type, length of flatbed 4.2m, width of flatbed 2.32m, with 1.2m length hydraulic pressure tailboard.


Files with vehicles:

Chassis Certificate, Vehicle Certificate, Proforma Invoice, English Vesion User Manual( any language version avaiable), Quality Warranty Certificate, Country of Original, Or Any other certificates can provide if  contract need.


Flatbed Towing Vehicle Advantages :

1.  Diesel fuel type, super powerful engine, perfect driving performance, no overhaul  within 100,000km.

2. Wide and high-speed rotary, easy operation, strong load capacity.

3. Unique design, prolonged service life.

4. High quality hydraulic system.

5. Manufacturer directly sale, cheap price with promptly after-sales response.


CHENGLI SPECIAL AUTOMOBILE CO

Need more details of our Flatbed Towing Vehicle welcome to contact us at any time!
