Brand New JAC medium sweeper truck for sale

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Basic Info

Model No.: CLW5161TXCHF5

Type: Wet-type

Payload: 20T, 30T

Transmission Type: Manual

Engine Type: 4 Stroke

Fuel: Diesel

Emission Standard: Euro 4

Certification: CCC, ISO9000

Condition: New

Chassis Brand: JAC

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 300sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,Any Other Port in China

Product Description

Brand New JAC medium sweeper truck for sale

Medium sweeper truck for sale is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The JAC dust suction truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.


SPECIFICATIONS :

Chassis specifications:  chassis model HFC1161P3K2A45S1V, 8 speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 9.00R20, wheelbase 4500mm, with ABS,  YUCHAI engine 220hp .

Body specifications: Square body, aluminium alloy water tank capacity 4cbm,  aluminium alloy dustbin capacity 8cbm, auxiliary  diesel engine Cummins brand 140hp, maintenance-free fan, disconnect-type clutch,  with four sweepers,  Schneider control switch,  tail LED arrow light, manual pump emergency system, famous brand pulse gauge & pulse valve.

Optional configurations:

1. Cambered body

2. Snow shovel

3. Dustbin self-cleaning function

4. Water cannon

Files with vehicle:  basic tool & accessories , english vesion manual book, operation vedio..


VEHICLE  PARAMETERS  :

Medium Sweeper Truck for sale JAC

( 8CBM dustbin & 4 CBM water tank )

General Vehicle Brand CLW
Chassis Brand JAC
Overall Dimension 9050 * 2500 * 3100 mm
GVW / Kerb Weight 16000kg / 11055kg
Cab Cab Capacity 3 persons allowed, with one sleeper
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand YUCHAI
Power 220Ps (162KW)
Displacement 68700 ml
Emission Standard Euro V
Chassis Drive Type 4X2, left or right hand drive
Transmission 8 speed  gear box, no overhaul within 500,000km
Wheelbase/No. of axle 4500 mm / 2
Tyre Specification 9.00R20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 99 km/h
Paint Metallic paint
Superstructure Water Tank Aluminium alloy
Dustbin Capacity 8CBM
Dustbin Material Aluminium alloy
Water Tank Capacity 4000 Litres (About 1200gallons)
Sweeping Capacity 50,000 m³/h-100,000m³/h
Sweeping Speed 3-15 km/h
Max Sweeping Width 3500mm
Brooms 2 sets at each side
Rear water sprinklers 12pcs
Auxiliary Engine Cummins  engine
140HP (102KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual--
Optional ** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.


VEHICLE PICTURES  :

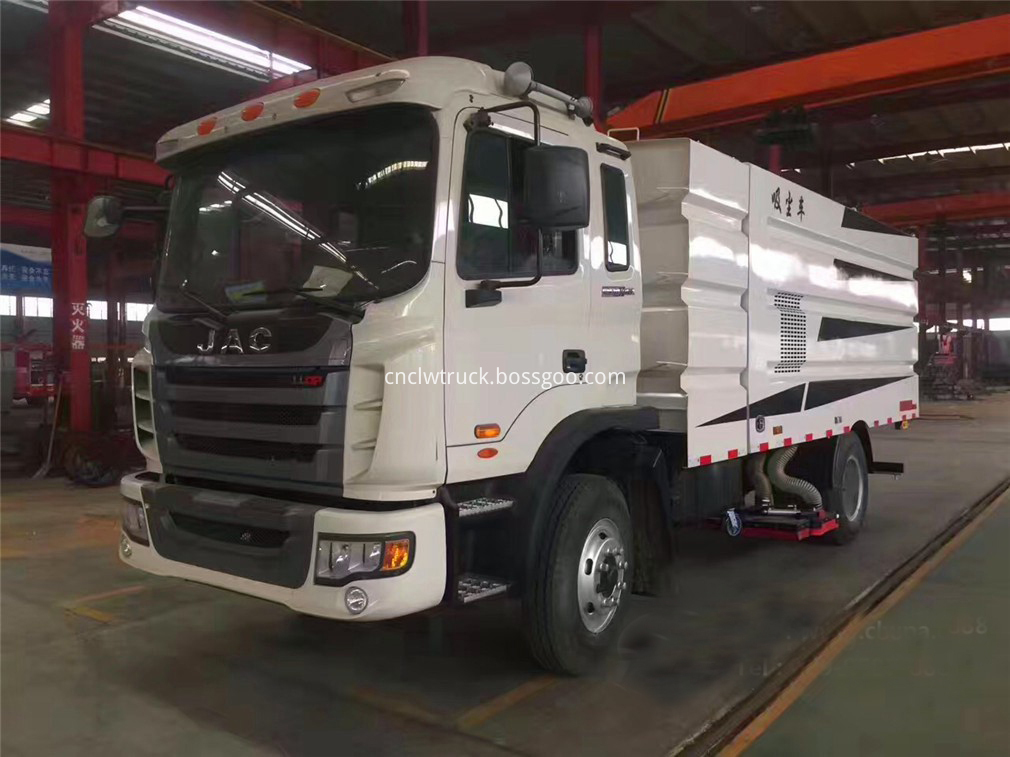

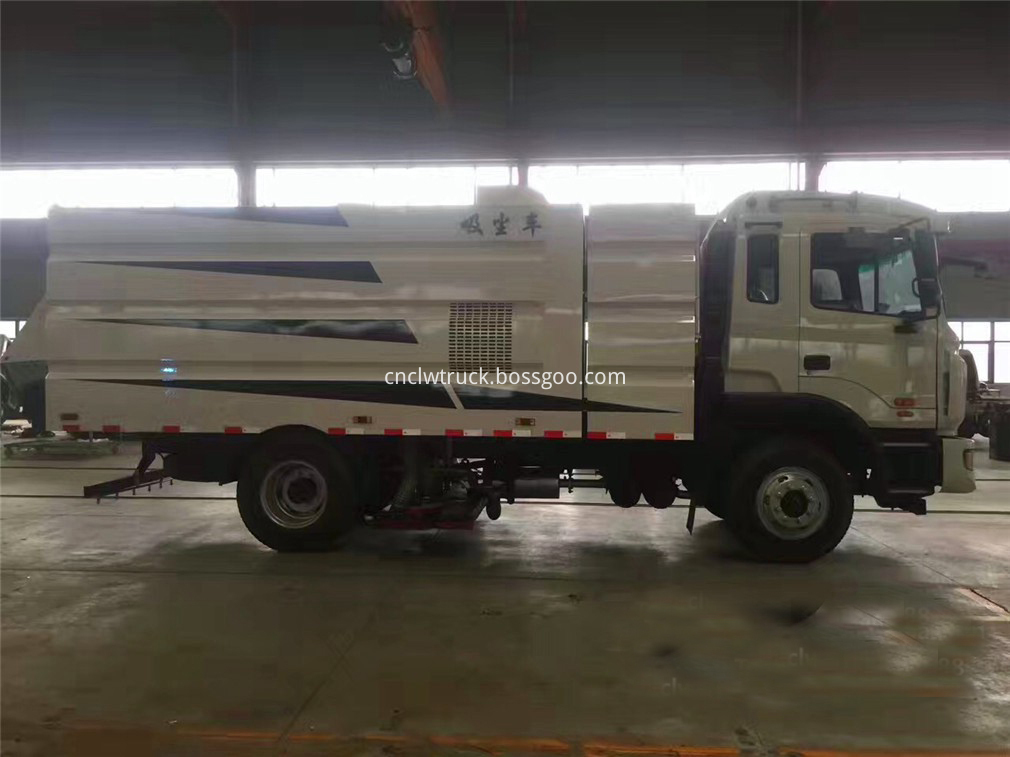

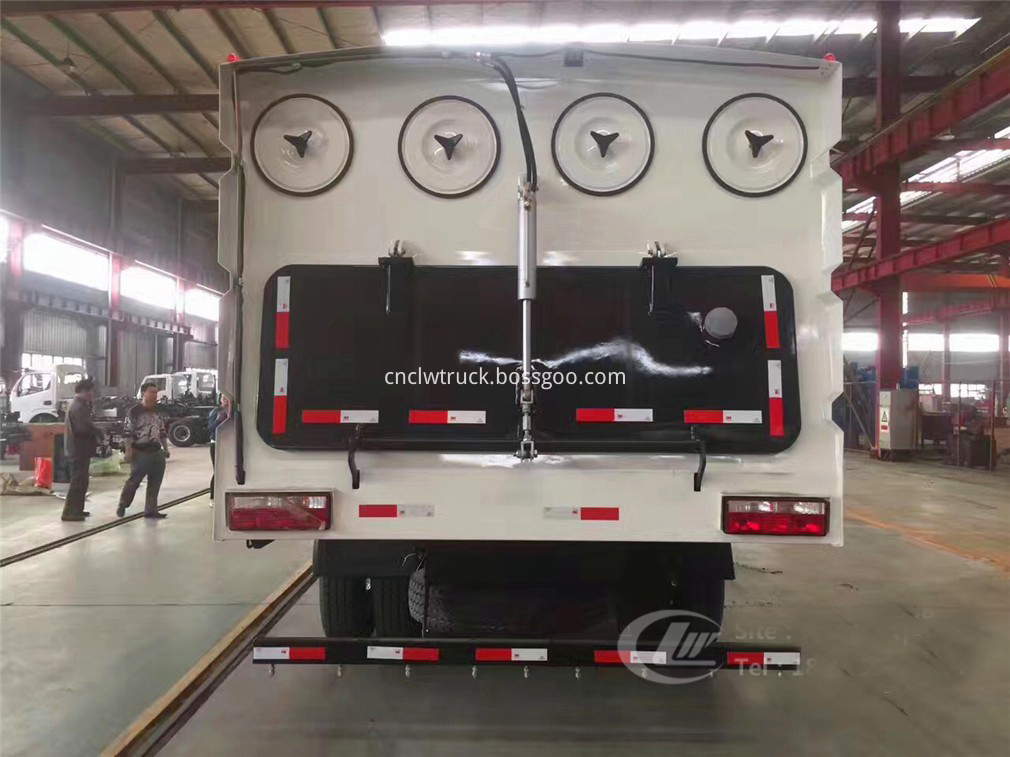

Pictures of  JAC medium sweeper truck

medium sweeper truck for sale 1

medium sweeper truck for sale 2

medium sweeper truck for sale 4

medium sweeper truck for sale 6

DETAILS :

Advantages of  Our Commercial road sweeper truck

road sweeper features LOGO


Street sweeper truck in action :


road sweep truck clean leaves 2

(Commercial road sweeper truck clean leaves 1)

Road Sweep Truck Clean Leaves

(Commercial road sweeper truck clean leaves 2)

road sweep truck suction water

(road sweeper trucks suction water)

road sweep truck suction coal cinder

(road sweeper trucks suction coal  cinder)

road sweep truck works on road

(road sweeper trucks works on road)

road sweep truck works in construction site

(road sweeper trucks work in construction site)

road sweep truck works in coal yard

(road sweeper trucks  work in coal yard)

We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.

Welcome to visit us and looking forward to bulid a long win-win business cooperation with u!
