Brand new IVECO RHD 1800gallons water sprinkler truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 35 Days

Basic Info

Model No.: CLW5240IVECO3

Volume: 15001 - 30000L

Transmission Type: Manual

Engine Capacity: 4 - 6L

Emission Standard: Euro 4

Sprinkling Area: >16m

Drive Wheel: 4×2

Certification: CCC, ISO9000

Engine Type: 4 Stroke

Fuel: Diesel

Payload: 30T

Condition: New

Chassis Brand: IVECO

Drive Model: Right Hand Drive

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA

Product Description

Brand new IVECO RHD 1800gallons water sprinkler truck

RHD water sprinkler truck  are designed to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc,  with non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, agua potavelsafe to human body.


RHD water truck  can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck,
with rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.


IVECO RHD Water Truck can be also equipped with pesticide spraying machine or fire pump, to be used to spray pesticide in agriculture pest control field or fire fighting in emergency rescue.


.What the right IVECO RHD Water Truck can do for your business:

  • IVECO chassis, perfect performance
  • Chinese top engine, super powerful; reliable performance, no overhaul within 100,000km
  • High quality , nice shape, rational structure
  • Extremely reliable with reduced running cost
  • Full spare parts backup and after sales support

SPECIFICATIONS :

water bowser truck IVECO (20,000 litres)
General Vehicle Brand CLW
Chassis Brand IVECO
Overall Dimension 9900 * 2500 * 3400 mm
GVW / Kerb Weight 25,000 kg / 13,030 kg
Cab Cab Capacity 2 persons allowed with 1 sleeper
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand IVECO Cursor engine
Power 380 Hp (280 KW)
Displacement 8709 ml
Emission Standard Euro III
Chassis Drive Type 6X4, left hand drive or right hand drive
Transmission 12-speed forward, 2 reverse
No. of axle 3
Tyre Specification 12.00R20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 80 km/h
Paint Metallic paint
Superstructure Tank Capacity 20,000 Litres ( About 5,300gallons)
Tank Material & Structure Carbon steel, Inner baffles inside tank for prevention of longitudinal surge during moving.
Water Pump A separate HONDA gasoline engine pump equipped for overhead delivery, flow capacity 35m3/hour, delivery head 21m.
Tank Interior Treatment Anti-corrosion treatment
Hose High quality strengthened hoses, 6 m X 2 pcs, with aluminum coupling.
Optional ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

DETAILS :

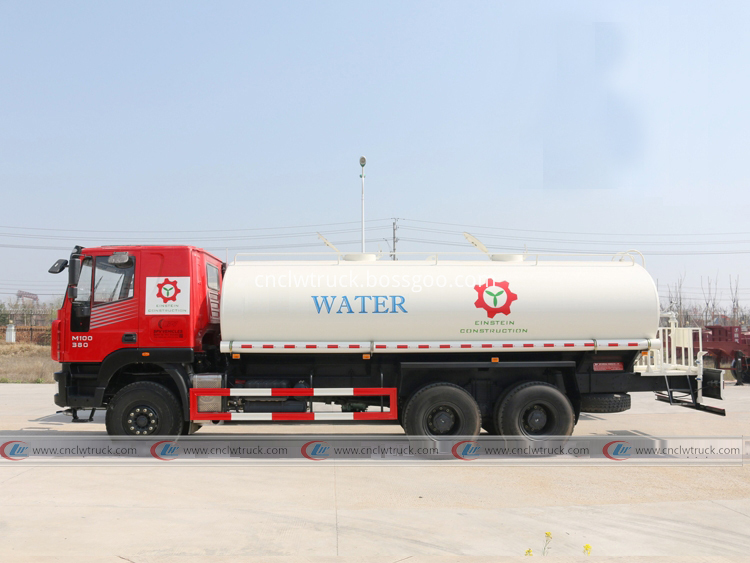

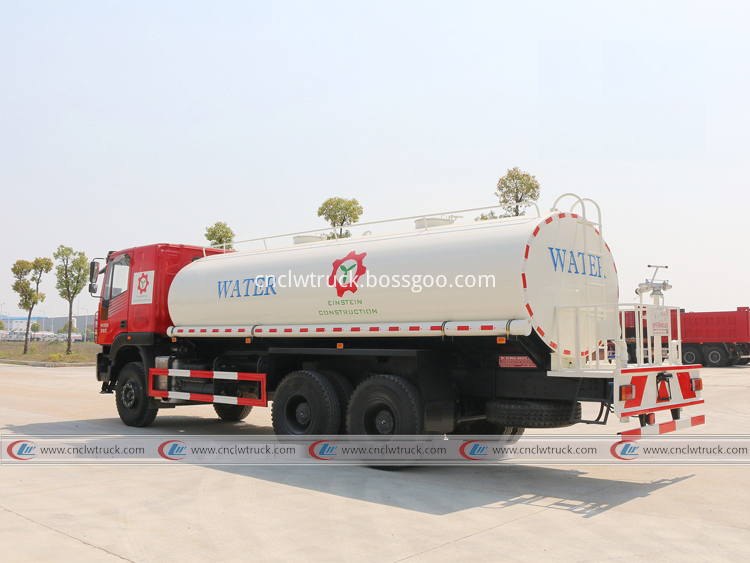

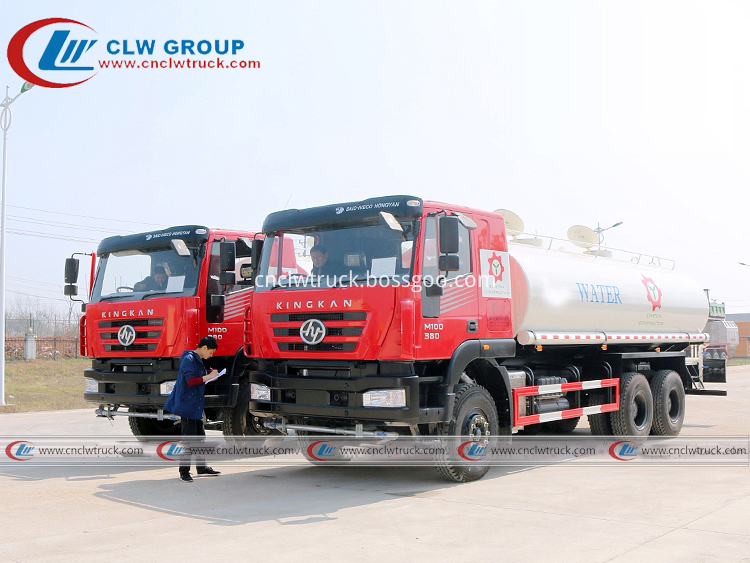

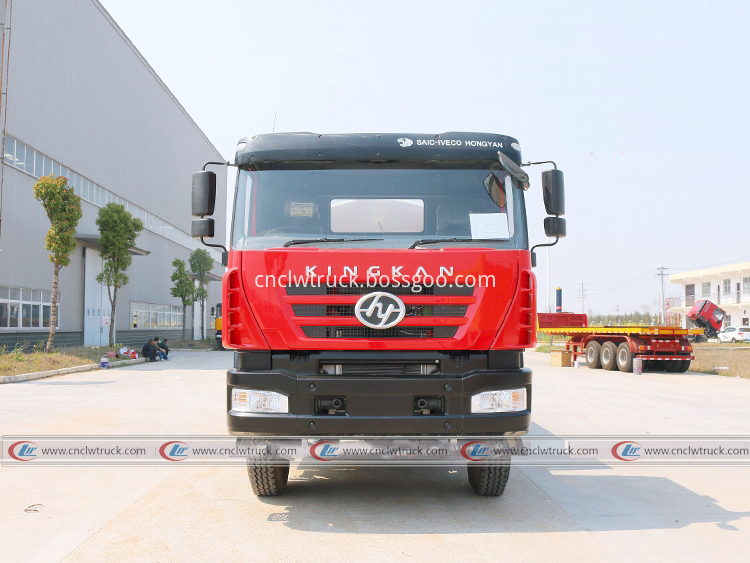

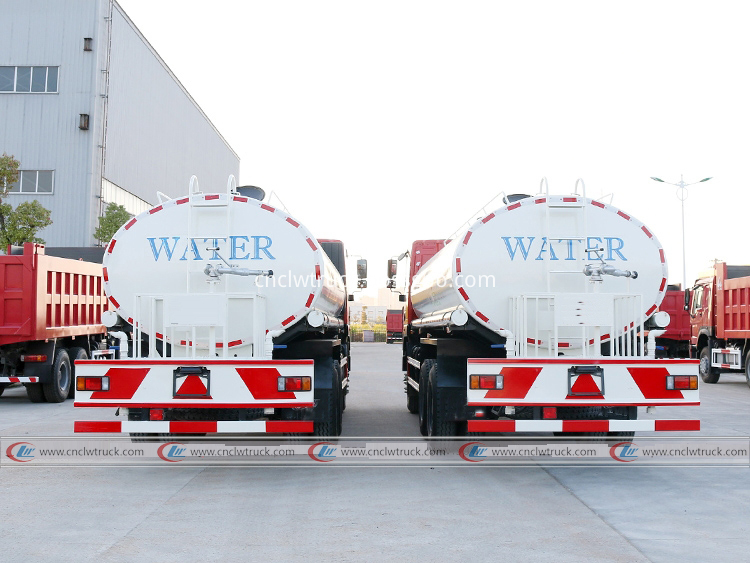

IVECO LHD/RHD water sprinkler truck pictures

water sprinkler truck

water sprinkler truck 2

water sprinkler truck 3

water sprinkler truck 4

water sprinkler truck 1


IVECO LHD/RHD water sprinkler truck can be equipped with following options

optional equipments


IVECO LHD/RHD water sprinkler truck structural composition

Water Truck Structure

IVECO LHD/RHD water sprinkler truck parts' details

Water Truck Body Spec

What we can supply for you:

  • Off-road Water truck
  • Pesticide spraying truck
  • Trash trucks
  • Fuel tanker, Semi trailer, LPG tanker, Chemical liquid tanker, Milk tanker...
  • Fire fighting trucks
  • Aerial working platform trucks
  • Road sweepers
  • Road wreckers
  • Crane trucks
  • Concrete mixer trucks
  • Refrigerated trucks
  • Van trucks
  • LED adversting trucks
  • Sewage vacuum trucks
  • All wheel drive trucks, 4X4 trucks, 6X6 trucks ....
  • any other special purpose vehicles..


We are chinese top one brand new special purpose trucks manufacturer, we have over 15 years production experiences and more than 8000 employees, export volume per year 60,000,000 dollars, 3000set/year.

Welcome to visit us and looking forward to bulid a long win-win business cooperation.
