Brand New ISUZU truck mounted vacuum sweeper

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5100TXSQ5

Type: Sweep and Suck Type

Payload: 30T

Transmission Type: Manual

Engine Type: 4 Stroke

Fuel: Diesel

Emission Standard: Euro 3

Certification: CCC, ISO9000

Condition: New

Vehicle Color: White, Blue, Yellow, Red Or Any Color Ia Available If Customer Request

Chassis Brand: ISUZU

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,Any Main Port China

Product Description

Guaranteed 100% Brand New ISUZU truck mounted vacuum sweeper

Truck mounted vacuum sweeper is used for washing, cleaning and vacuum collecting of surface dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city, municipal roads and areas. Meantime, it has high pressure jetting function - washing and flushing the road, able to remove the stubborn stuff on the road. It is widely used in the municipal sanitation field because of convenient operation and high efficiency.

The ISUZU road washing truck is equipped with auxiliary engine, air blower, imported high pressure plunge pump, water tank, stainless steel dustbin, sweeping brooms, suction nozzles, sprayers, etc.

Street washing truck has self cleaning system which could tip garbage and washing the dustbin automatically.


Chassis specifications:  chassis model QL1100A, 6 speeds gearbox, with power steering, A/C, automatically air-cut brake, tire spec 7.00R16, wheelbase 4175mm, with ABS, ISUZU engine 190hp .

Body specifications:

1. Body material: stainless steel 304, dustbin capacity 5cbm, water tank capacity 6.5cbm;

2. Auxiliary diesel engine cummins brand 140hp, SANYO motor; auxiliary engine tachometer, auxiliary engine water-thermometer, oil alarm device;

3. Sweeping width 2800-3200mm, working speed 15-20km/h, max cleaning capacity 48000㎡/h, max suction diameter ≥100mm;

4. High pressure pump (imported from Germany) with front flushing, side sprinkling, rear spraying, high pressure washing and dustbin self-cleaning function; with water filter, pipe system, high pressure sprinkler, four sweepers with one dust suction plate;

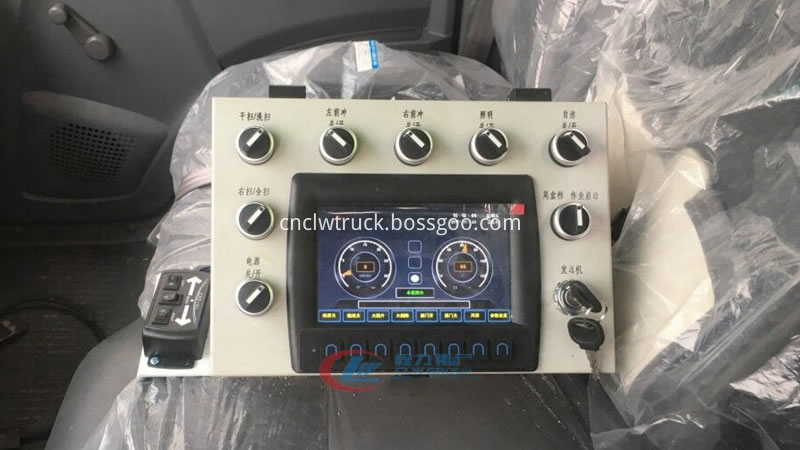

5. PLC one-key control, LPC electric control, tail LED arrow light, monitor and camera, 18m hight pressure washing pipe, cleaning pressure 10MPa;

Files with vehicle:  basic tool & accessories , english vesion manual book, operation vedio..


Truck Mounted Vacuum Sweeper ISUZU

(5 CBM Dustbin and 6.5 CBM Water Tank)

General Vehicle Brand CLW
Chassis Brand ISUZU
Overall Dimension 7600 * 2300 *2700 mm
GVW / Kerb Weight 10055 kg / 7420 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 190 Ps (151 KW)
Displacement 5193 ml
Emission Standard Euro  IV
Chassis Drive Type 4X2, left hand or right hand drive
Transmission 6-speed forward, 1 reverse
No. of axle 2
Tyre Specification 235/75R17.5
Tyre Number 6 tyres and 1 spare tyre
Max Speed 110 km/h
Paint Metallic paint
Superstructure Water Tank 5.3 CBM  (About 1,700 gallons)
Dustbin Material 2.8 CBM , Stainless Steel
High Pressure Pump Imported Germany high pressure water pump
Working Speed 3-25 km/h
Working Width 2800 mm
Sweeping Capacity 40,000 m³/h
Brooms 2 sets
Suction Plate Big diameter 180mm, Hydraulic controll
Auxiliary Engine Cummins (Americal Technology),
140 HP (102 KW), super powerful
All standard accessories: hose, high pressure hose reel, high pressure water gun, ground hydrant wrench, basic tool kit, English manual--
Optional ** Stainless steel water tank.
** Front snow plow.
** Elevating Platform.
** High cannon.

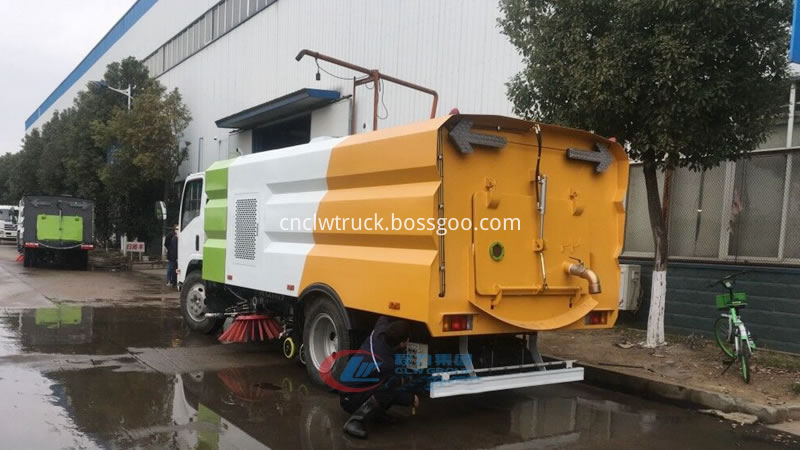

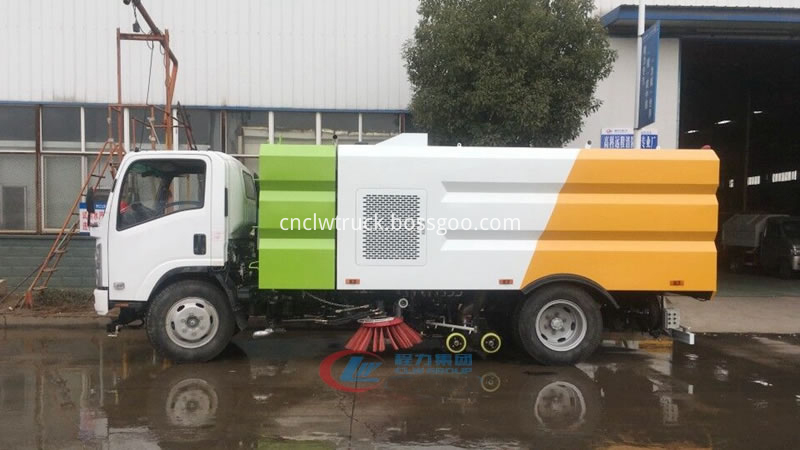

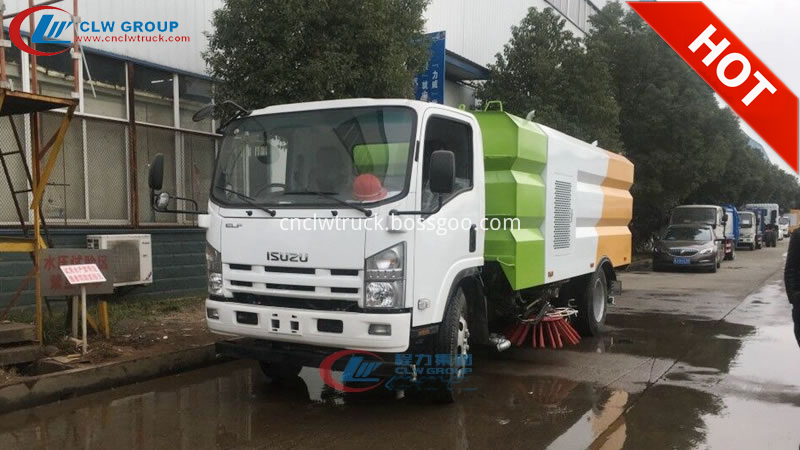

Pictures of  ISUZU Truck Mounted Vacuum Sweeper

road sweeper structure-logo

truck mounted vacuum sweeper

truck mounted vacuum sweeper 1

truck mounted vacuum sweeper 3

truck mounted vacuum sweeper 2

Advantages of  Our Truck Mounted Vacuum Sweeper

multifuction road sweeperfeatures

Parking lot clenaing truck--high pressure wahsing function :

street sweeping truck front flushing

(Road  washing truck in action---front flushing)

street sweeping truck high pressure washing

(Road  washing truck in action---high pressure whasing gun)

street sweeping truck rear spraying

(Road  washing truck in action---rear sprinkling)

street sweeping truck side spraying

(Road  washing truck in action---side spraying)

Need more details of our trucks welcome to contact us at any time, thanks!
