Brand New ISUZU 4000litres foam sprayer truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 35 Days

Basic Info

Model No.: CLW5100F

Type: Rescue

Certification: ISO9000, CCC

Volume: 3001-5000L

Emission Standard: Euro 3, Euro 5

Transmission Type: Manual

Engine Type: 4 Stroke

Payload: 30T

Fuel: Diesel

Drive Wheel: 4×2, 4X2

Horsepower: 150-250hp

Condition: New

Vehicle Color: Red, Yellow, Blue Optional

Chassis Brand: ISUZU

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,Any Main Port in China

Product Description

Brand New ISUZU 4000litres foam sprayer truck

Foam sprayer truck (also be named fire truck, fire apparatus, fire engine, fire appliance truck, fire rescue truck) with high efficiency foam extinguishing, emergency rescue, incident light, water pumping functions.


We are professional fire trucks manufacturer in china with best quality, cheap price and depandable after-sale services. Our fire trucks have been exported to Southeast Asia, Vietnam, Laos, Myanmar, South Africa, Iran, Sri Lanka and more than 20 countries.


We can provide our customers:

1. 4X2 fire truck, 6X4 fire truck, 8X4 fire truck, 4X4/ 6X6 all wheel drive fire truck;

2. Water fire truck, foam fire truck, water dry-powder combined fire truck, CAFS foam truck;

3. ISUZU fire truck, SINOTRUCK fire truck, IVECO fire truck, DONGFENG fire truck, Mercedes Benz fire truck, FAW fire truck, FOTON fire truck, JMC fire truck, MAN fire trucks...


SPECIFICATIONS :

Foam Fire Truck (4,000 Litres)
General Vehicle Brand CLW
Chassis Brand ISUZU
Overall Dimension 7690 * 2250 * 3000 mm
GVW / Kerb Weight 9700kg / 6225kg
Cab Cab Capacity 2+4 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand ISUZU( Japanese Technology)
Power 191 Ps ( 141KW)
Displacement 5193 ml
Emission Standard Euro V
Chassis Drive Type 4X2, LHD /RHD
Transmission 6-speed front, 1 reverse
Wheelbase/No. of axle 4475mm / 2
Tyre Specification 8.25R20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Water Capacity 3,000 Litres (About 900 gallons)
Foam Capacity 1,000Litres(About 300 gallons)
Tank Material Stainless Steel
Fire Pump Flow speed 30L/s
Pressure 1.0MPa
Fire Cannon Flow speed Water 48 L/s
Foam 48 L/s
Shot Water 60 m
Foam 65 m
Suction Head 7 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include  shovel, pike poles, axes and cutting equipment, halligan bars.-
Optional Ladders, floodlights...

 VEHICLE PICTURES:

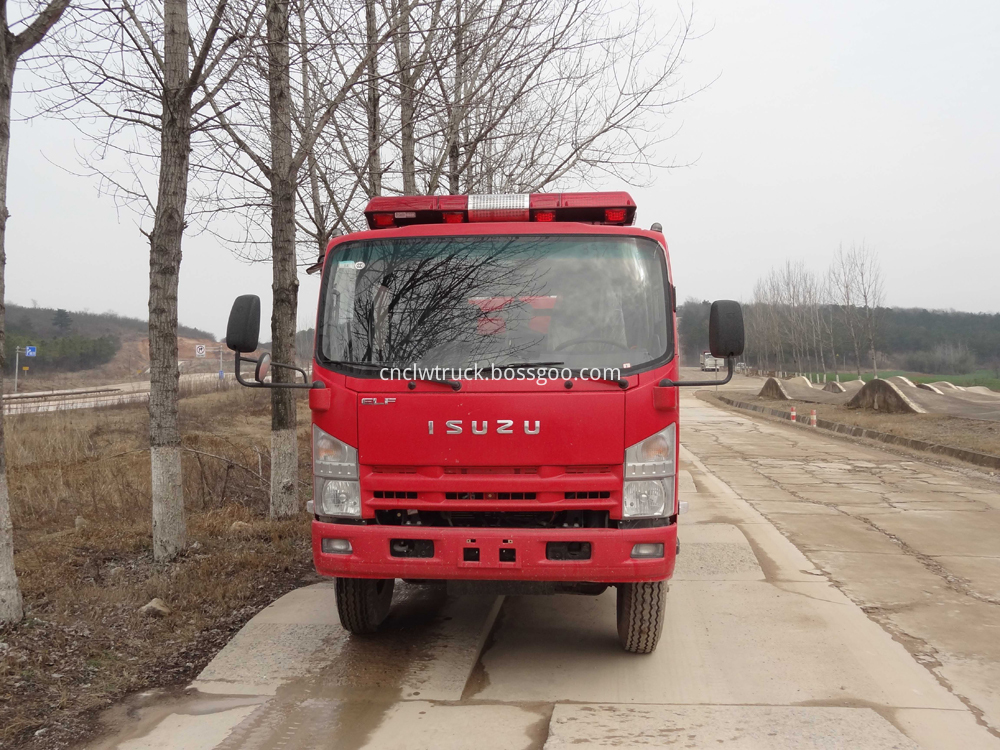

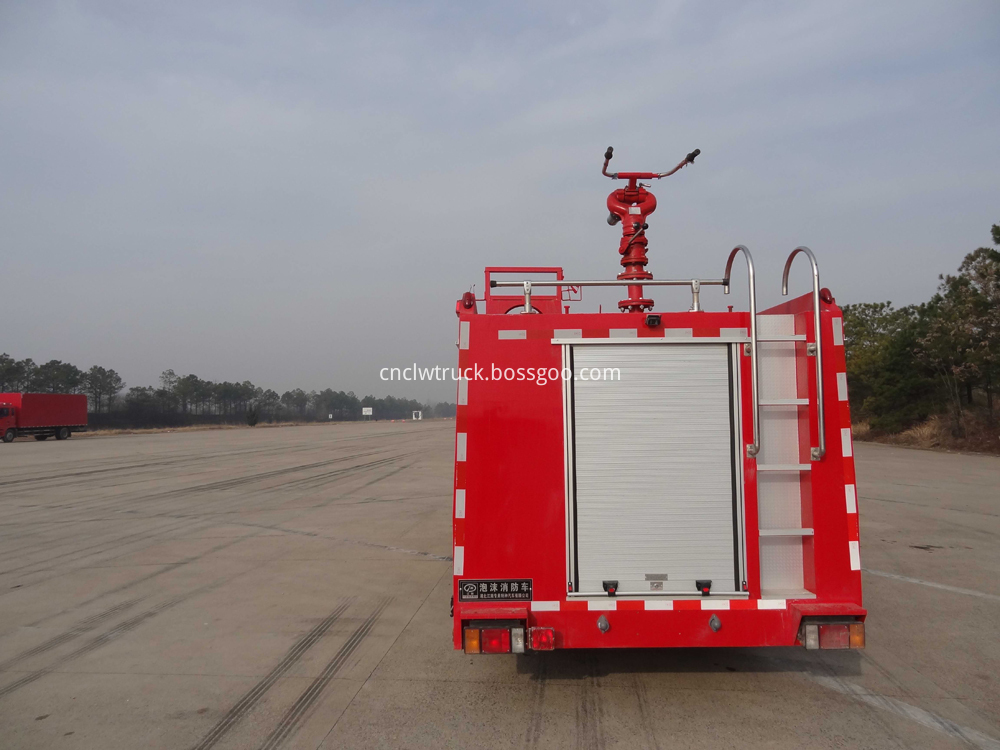

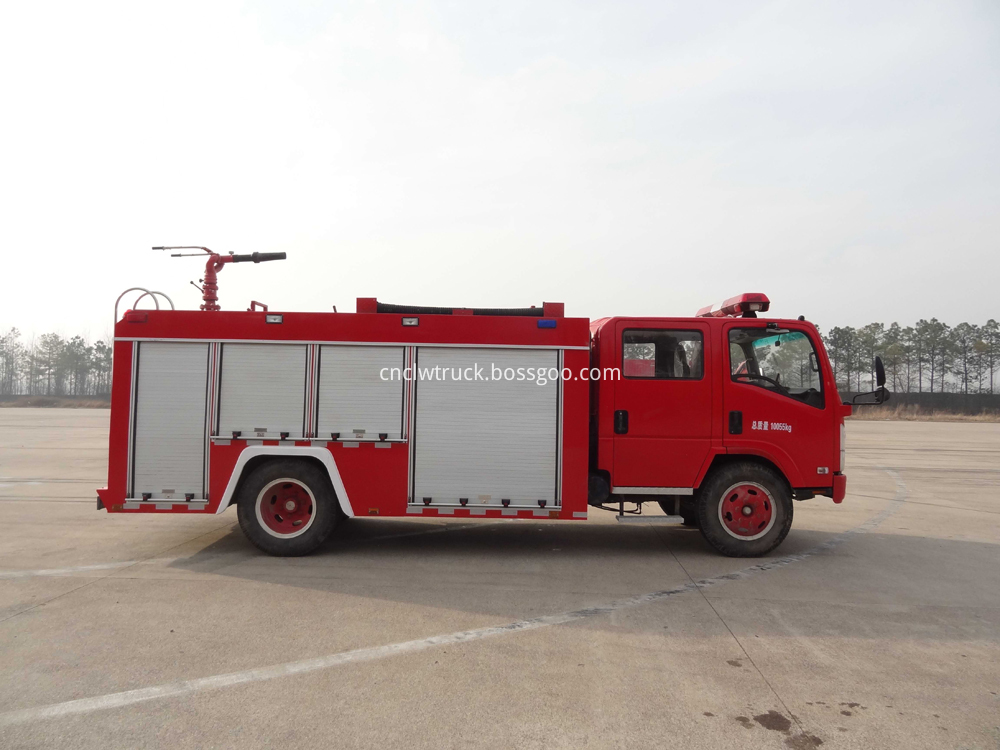

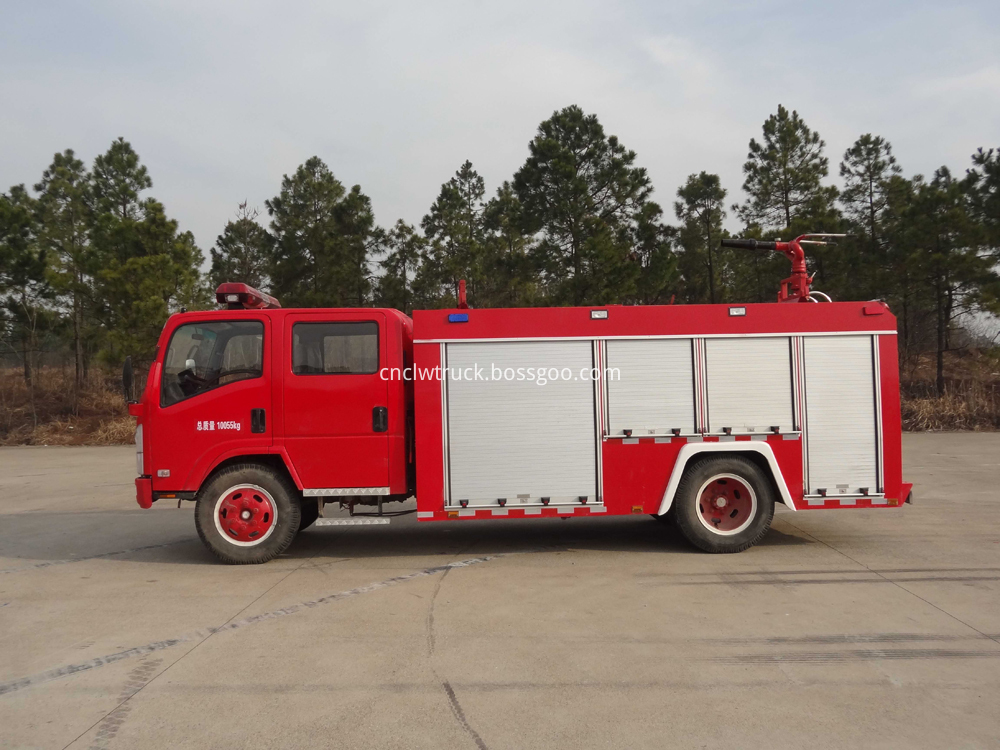

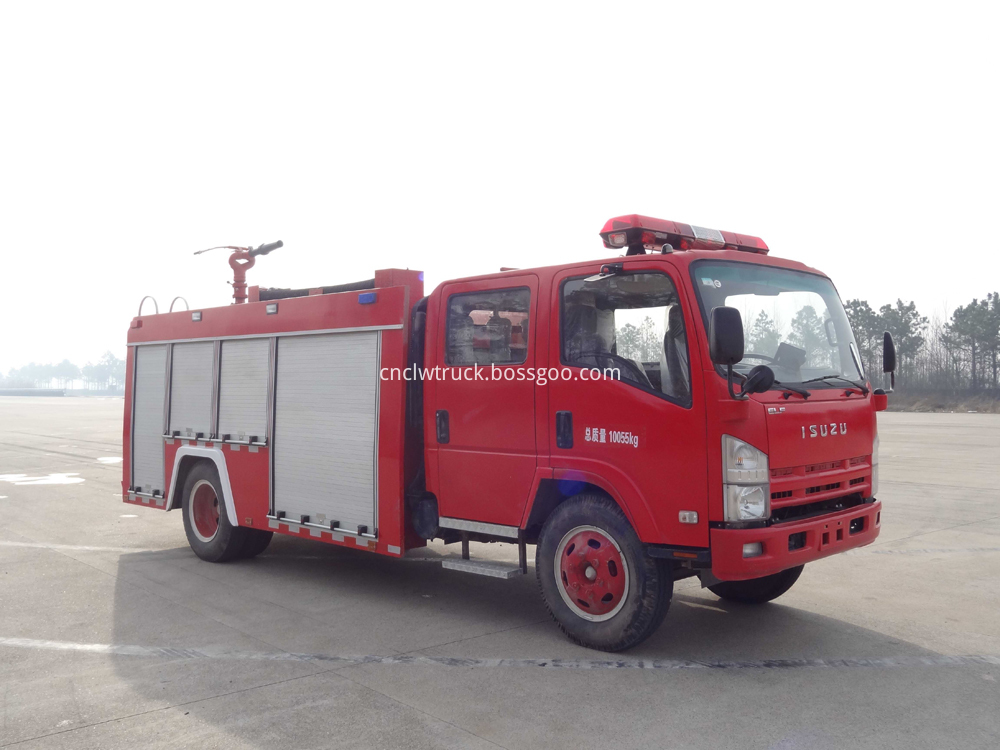

ISUZU 4000litres Foam Fire Truck Pictures

fire fighting foam truck 2

fire fighting foam truck 1

fire fighting foam truck 4

fire fighting foam truck 5

fire fighting foam truck 3


Foam Fire Fighting Truck Under Testing

foam fire fighitng truck under testing



MORE DETAILS:

1. Fire Fighting Truck Accessories


Fire Fighting Truck Accessories

fire truck accessories


details of fire truck body


2. Fire Pump English Vesion Operation Instruction

fire pump operation instruction board


3. Our Fire Trucks Ready for Delivery

fire truck in stock


Need more details of our ISUZU FOAM SPRAYER FIRE TRUCK welcome to contact us at any time!
