| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB,CIF,EXW |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 20 Days |
Basic Info
Model No.: CLW5070SJ
Emission Standard: Euro 3
Drive Wheel: 4x2
Transmission Type: Manual
horsepower: 150-250hp
Certification: CCC, ISO9000
Payload: 20T
Fuel: Diesel
Engine Type: 4 Stroke
Condition: New
Tank Volume: 6000L
Chassis Brand: DONGFENG
Additional Info
Packaging: Nude packing,Waxing before shipping
Productivity: 30000sets/year
Brand: CLW
Transportation: Ocean,Land
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,ANY OTHER MAIN PORT IN CHINA
Product Description
Guaranteed 100% Brand New HOT DFAC 3cbm Road Guardrail Cleaning Truck
Road Guardrail Cleaning Truck is special designed for washing highway or city street isolation guardrail , or the truck also could be used to clean industrail drainage pipes, wall surfaces, municipal road isolation guardrails, and the walls on both sides of roads.
SPECIFICATIONS:
|
VEHICLE PARAMETERS |
|||
|
Tank Capacity |
3m³ |
Clean Speed |
2-8km/h |
|
Clean Height |
0.3-1.3m |
Clean Width |
0-260mm |
|
Roll Brushes Rotate Speed |
400-800r/min |
Water Spraying Types |
High Pressure |
|
GVW |
7360kg |
Rated Weight |
2380kg |
|
Curb Weight |
4850kg |
Allowed Passengers |
2, with A/C |
|
Brushes Material |
Soft Brush |
Overall Size (L*W*H/mm) |
5980*2200*2600 |
|
CHASSIS PARAMETERS |
|||
|
Chassis Brand |
DONGFENG |
Wheel Base |
3308mm |
|
Chassis Model |
EQ1070SJ |
Drive Model |
4X2, LHD/RHD |
|
Axles Nos |
2 |
Tire Spec. |
7.00R16 |
|
Gearbox |
5F,1R |
Tire Nos. |
6+1(spare) |
|
Engine Model |
CY4BK5 |
Engine Brand |
CHAOCHAI |
|
Displacement |
3707ml |
Engine Power |
102HP |
|
Fuel Type |
Diesel |
Brake Type |
Air Brake |
|
BODY CONFIGURATION |
|||
|
Stand Configuration |
Water Tank, Washing Machine, Hydraulic System, PTO, Hydraulic Oil Tank, High Pressure Water Pump, High Pressure Oil Pump, Vertical Bracket. Washing machine is composed of columniform cleaning barrel, sprinkler, brushes, cylinders, balances, oil motor and hydraulic four-shaft gearbox. |
||
|
Optional Configuration |
Water Spraying Mechanism, Video Monitoring System, High Pressure Water Gun, Remote Control Spraying System. |
||

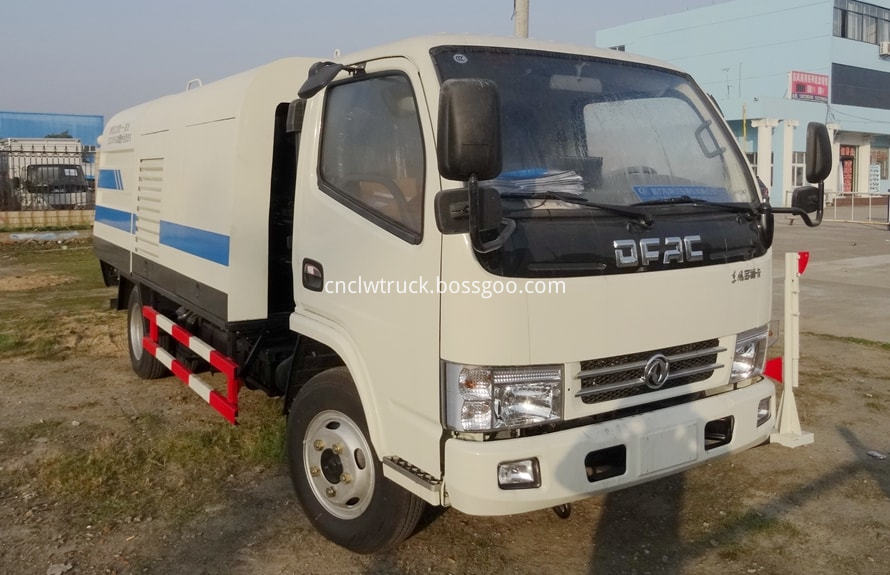

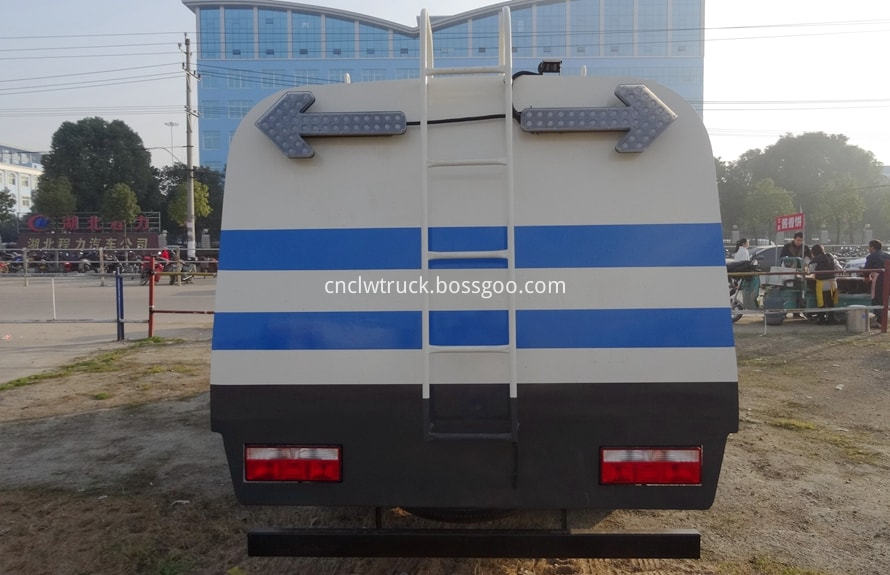

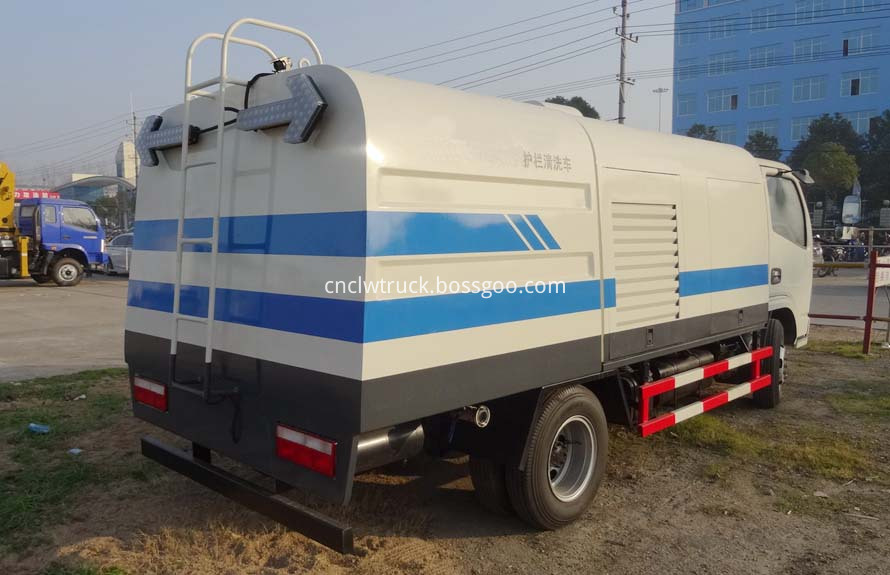

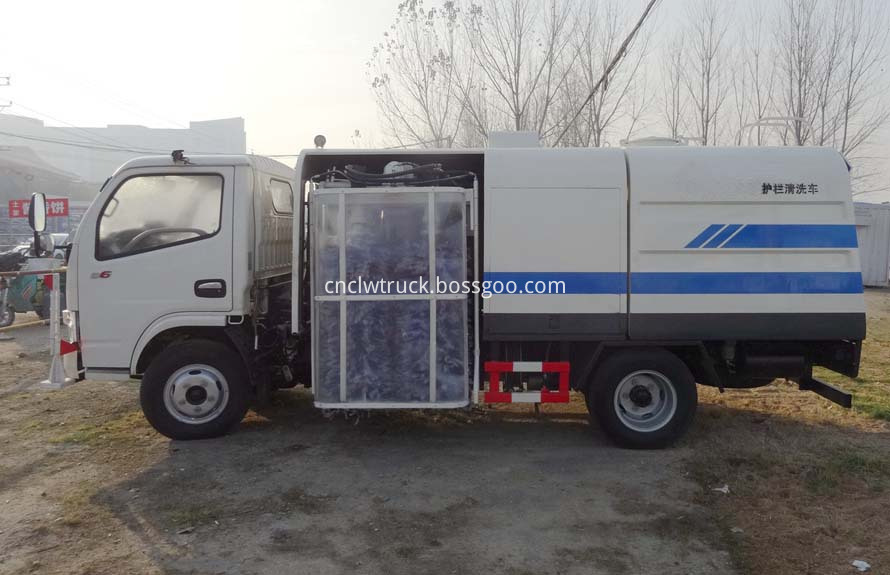

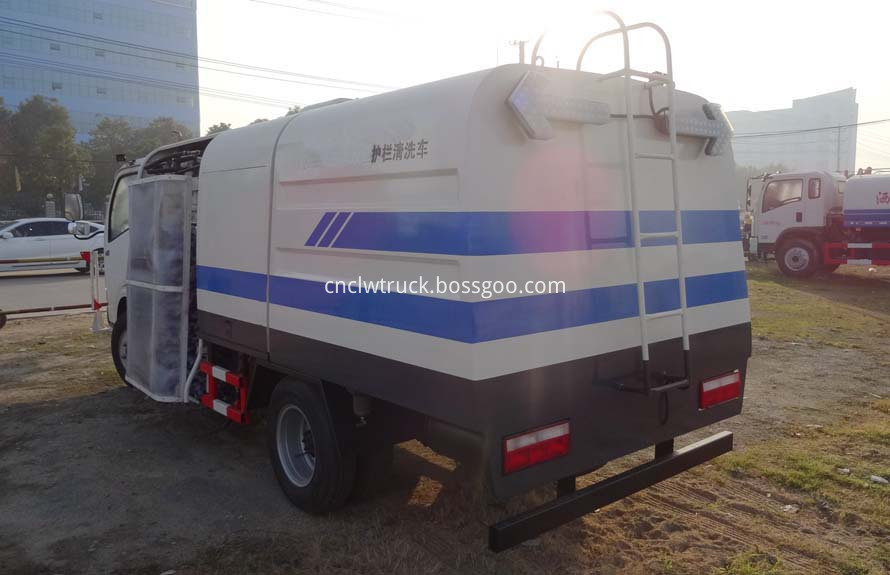

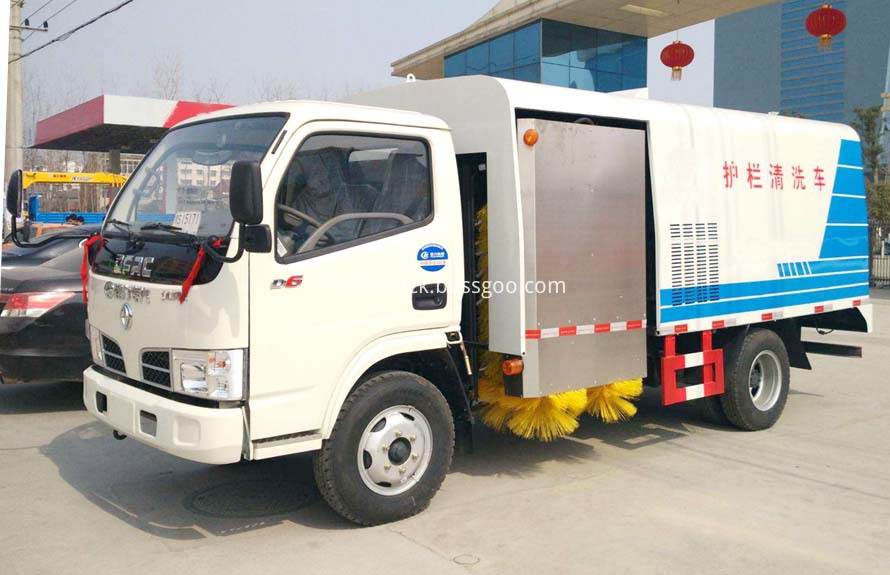

VEHICLE PICTURES:

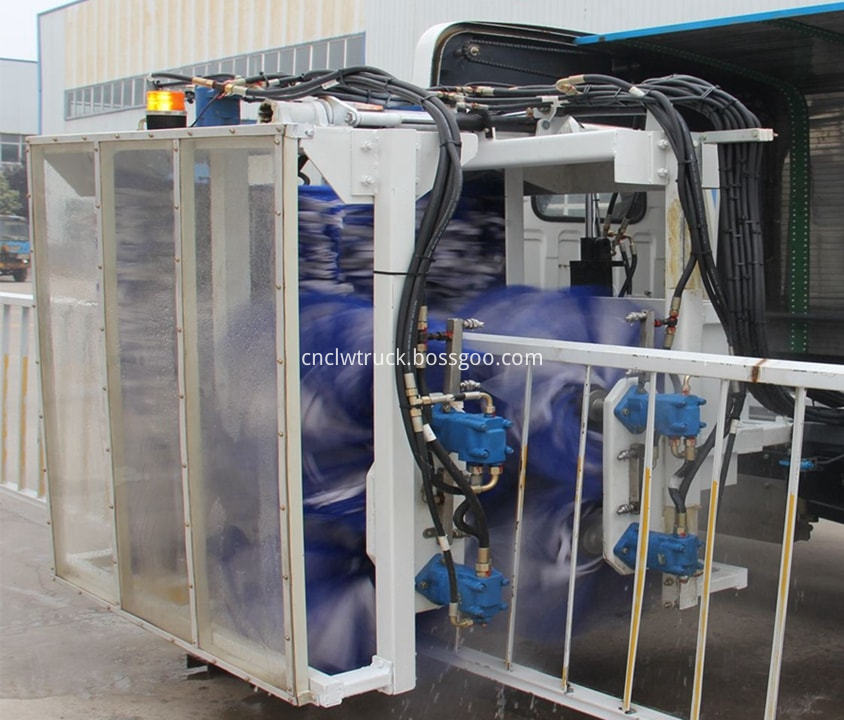

Working Situation Of Road Guardrail Cleaning Truck

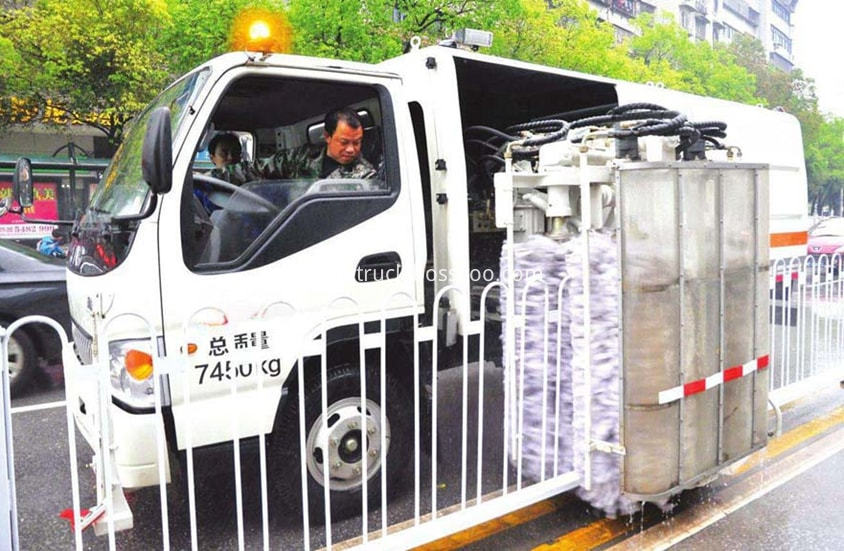

Dongfeng DLK 3000litres Road Guardrail Cleaning Truck is in action: Washing Street Isolation Guardrail
Need more details of our Road Guardrail Cleaning Truck welcome to contact us at any time!
