Brand New FOTON T3 Small Refrigerated Van

Basic Info

Model No.: CLW5031XLC2

Transmission Type: Manual

Emission Standard: Euro 5

Power: Gas/Petrol

Load Capacity: 1-10t

Drive Wheel: 4×2

Shape: Single Bridge

Seats: ≤5

Horsepower: ＜150hp

Engine Capacity: ＜4L

Heat Preservation Type: Steel Corrugated Plate

Tire Type: Solid Tire

Tire Certification: ISO, GCC

Tire Design: Tubeless

Condition: New

Chassis Brand: FOTON

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% Brand New FOTON T3  -0℃-15℃ Small Refrigerated Van

Small Refrigerated Van is used to carry perishable stuff such as meat, fishes, chicken, ice cream,beef, mutton etc. at specific temperatures.
The cooling device could be of famous brand such as Carrier, Thermoking..
There are two types of power driving ways: one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit.
According to the transport stuff category (fresh or frozen), there are two main lowest temperature unit (-5°and -16°) for your option.
We use high quality van body for temperature reservation. The box surface material could be fiberglass,aluminum or stainless steel. The padding material is polyurethane foam that has super temperature preservation ability with varieties of thickness options.

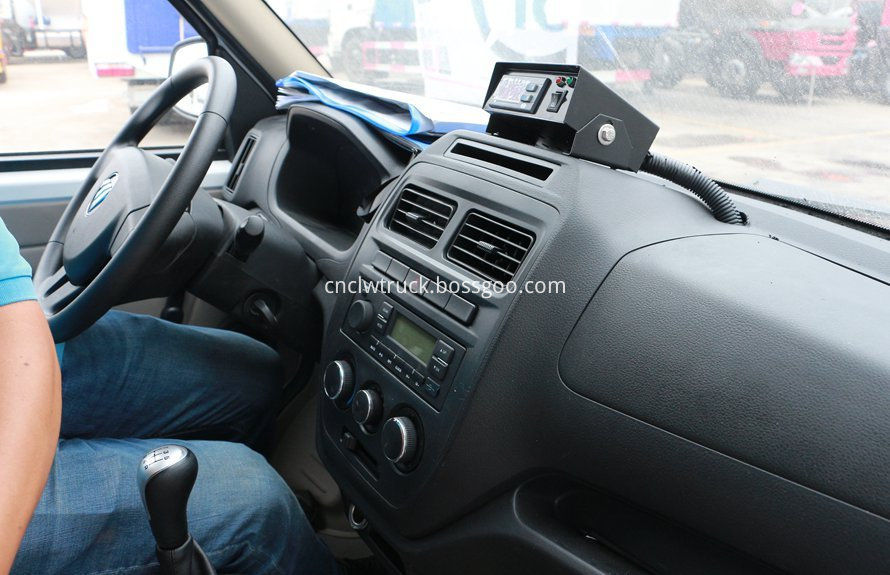

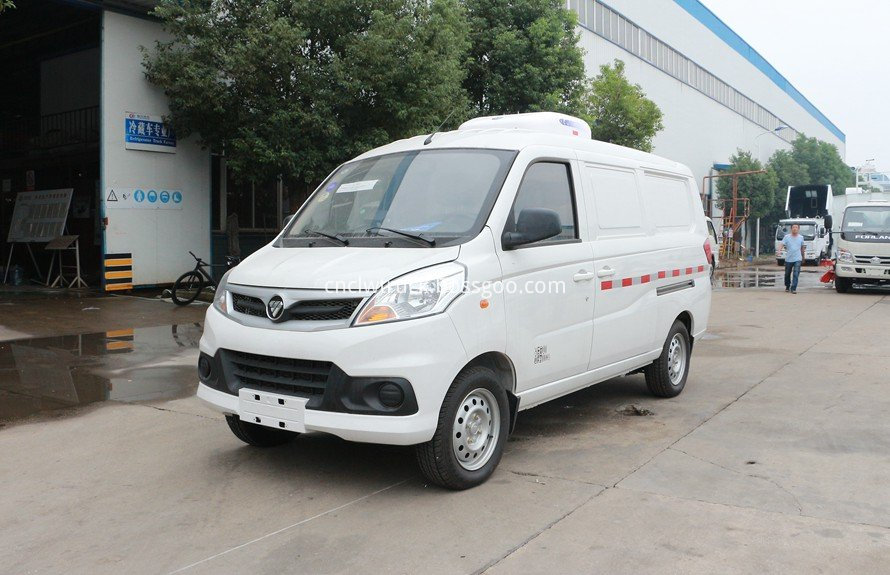

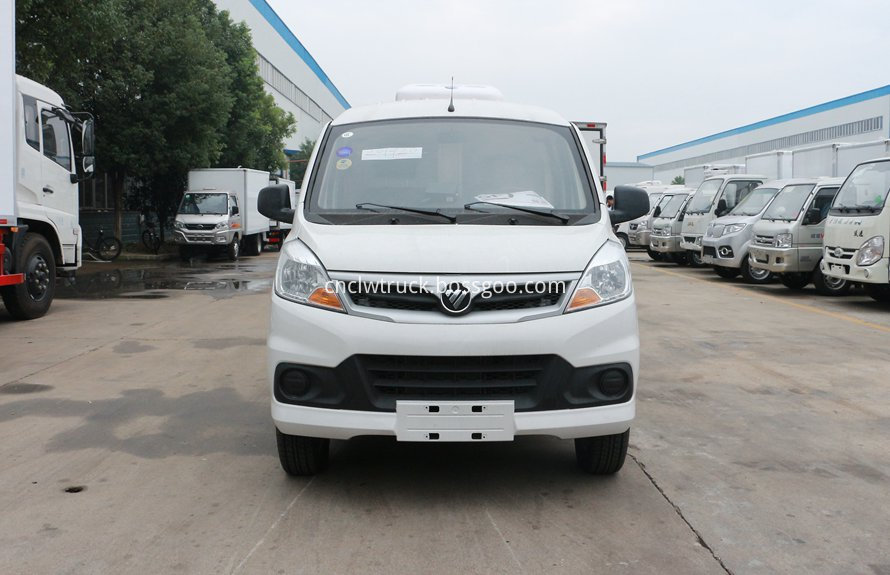

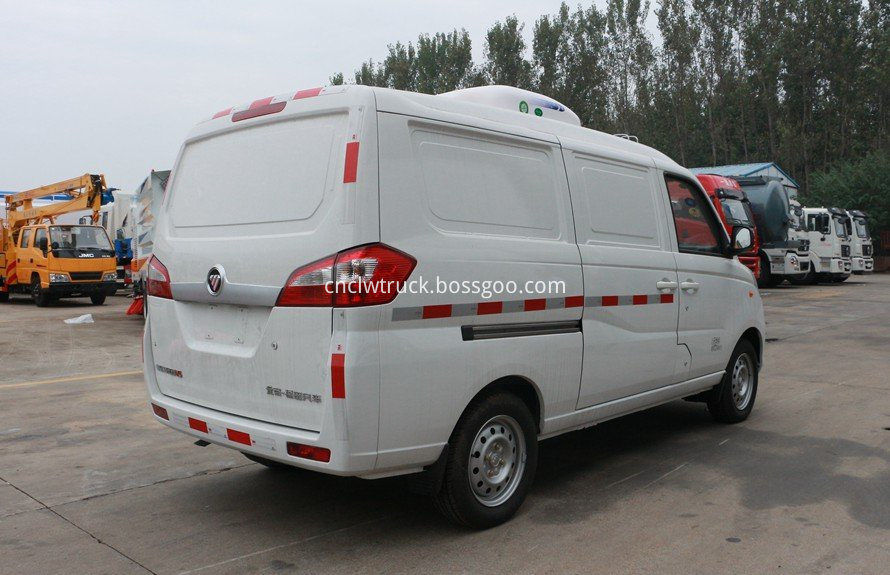

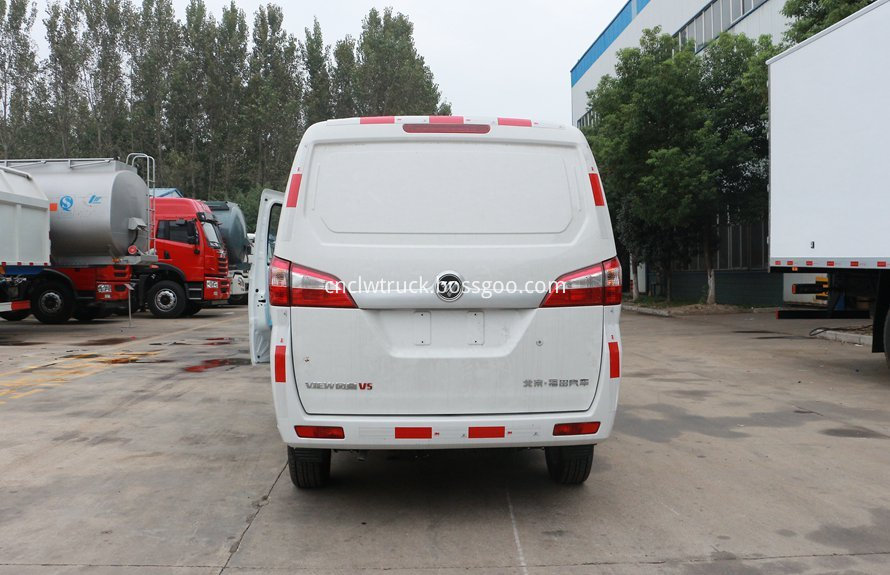

VEHICLE PICTURES :

 CHASSIS PARAMETERS

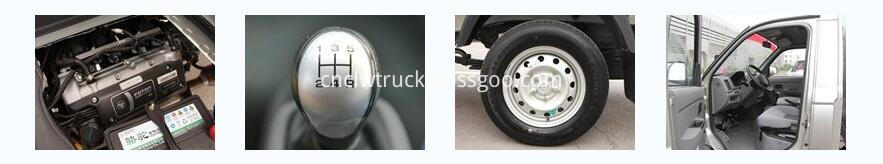

               87HP Gasoline/Petrol Engine                                       5 Speed Gear Box                              175R14LT 8PR Tire                                    CAB

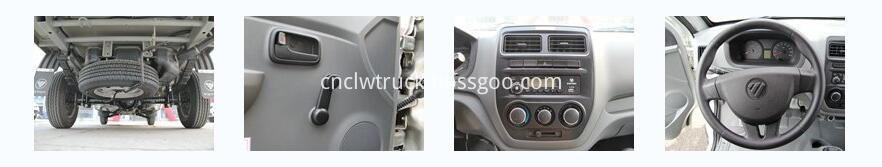

                Rear Axle                                           Windows & Door                                Center Control & A/C                               Steering Wheel

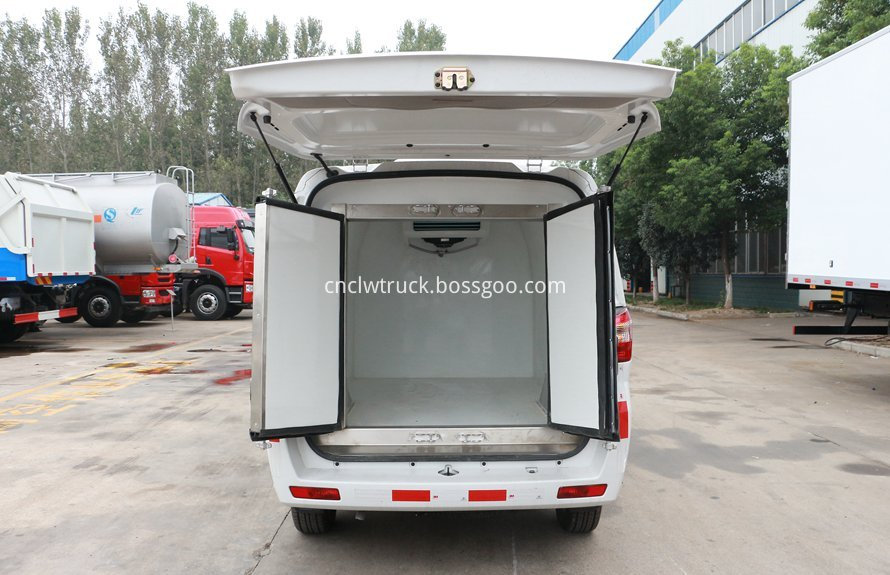

REFRIGERATED BOX PARAMETERS:

1. The refrigerated box adopts polyester wet process board technology and strengthen glass fiber whole wood frame structure, fully enclosed polyurethane plate bonding method.

2. Material of box: inner & outer surface adopt of  2.2mm high quality glass fiber reinforced plastics, the intermediate insulation material adopts imported polyurethane. Thichness of box body 80mm, door thickness is 80mm.

3. Accessories: 2.5mm aluminum alloy adge around the box body, stainless steel angle, stainless steel door lock, anti-collision rubber 4 pieces, stainless steel door frame, stainless steel hinge, energy-saving lighting inside the box.

4.Vehicle Size: 4200mmX1680mmX2035mm(LXWXH).

OPTIONAL CONFIGURATIONS

 Need more details of Small Refrigerated Van welcome to contact us at any time!
