Brand New FOTON 12000litres mobile fuel refueling trucks

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 25 Days

Basic Info

Model No.: CLW5163GYYD

Transmission Type: Manual

Power: Diesel

Load Capacity: 11-20t

Emission Standard: Euro 5

Drive Wheel: 4×2

Seats: ≤5

Horsepower: 150-250hp

Engine Capacity: 4-6L

Storage: Oil

Tire Type: Solid Tire

Tire Certification: ISO, GCC

Condition: New

Tank Volume: 10001-15000L

Chassis Brand: FOTON

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% Brand New FOTON 12000litres mobile fuel refueling trucks

Mobile Fuel Refueling Trucks (also called fuel tank truck, fuel bowser, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, diesel dispensing truck) is used to transport oil, diesel, gasoline, kerosene, etc.

It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol--Oil pump equipped, with pump in pump out function.


PARAMETERS:

FOTON Mobile Fuel Refueling Trucks (12,000 Litres)
General Vehicle Brand CLW
Chassis Brand FOTON
Overall Dimension 8350 * 2440 * 3380 mm
GVW / Kerb Weight 16,000 kg / 6,700 kg
Cab Cab Capacity 3 persons allowed, with one sleeper
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand Cummins engine
Power 190 Ps (140 KW)
Displacement 5900 ml
Emission Standard Euro V
Chassis Drive Type 4X2, left or rear hand drive
Transmission 6 speed forward, 1 reverse
Wheelbase/No. of axle 4700 mm / 2
Tyre Specification 10.00R20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 98 km/h
Paint Metallic paint
Superstructure Tank Capacity 12,000 Litres (About 3600 gallons)
Tank Material Carbon steel
Pump Fuel pump equipped for overhead delivery
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers--..
Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)--
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge--
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.


PICTURES:

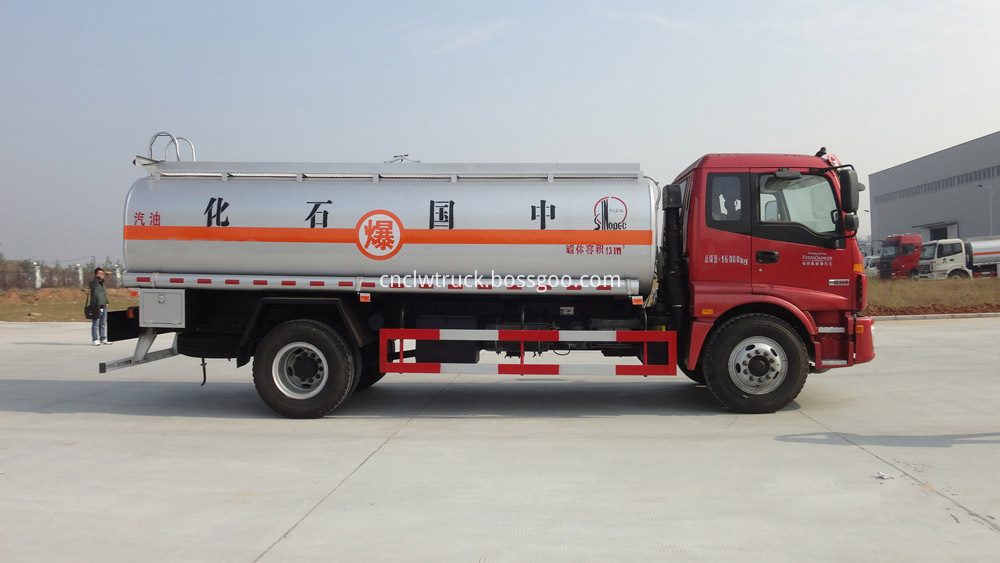

mobile fuel refueling trucks

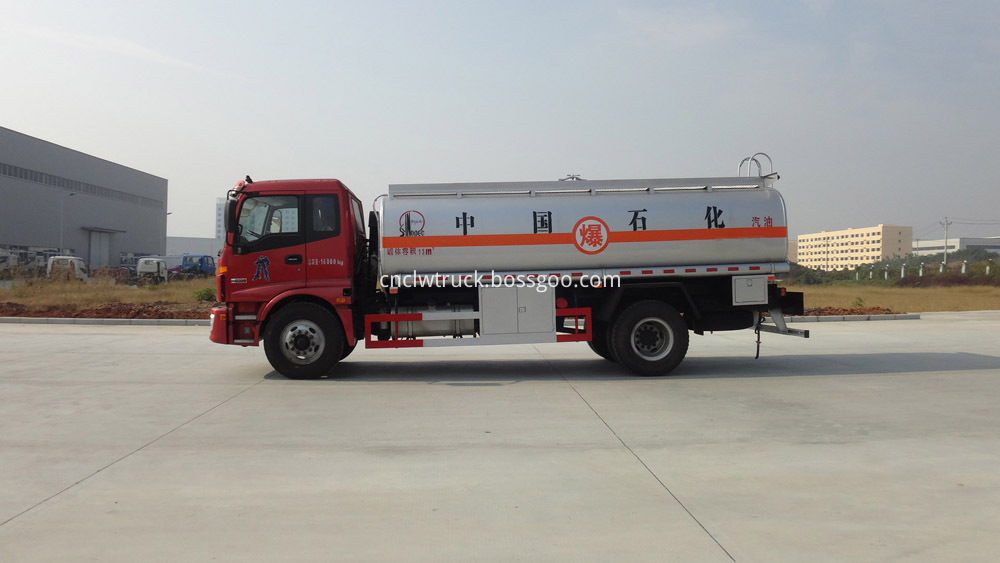

mobile fuel refueling trucks 6

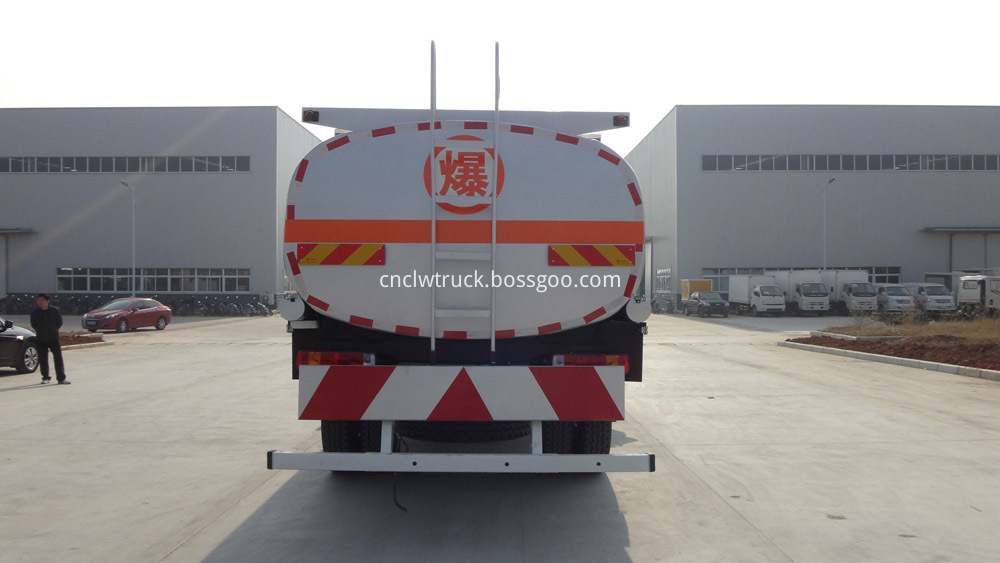

mobile fuel refueling trucks 4

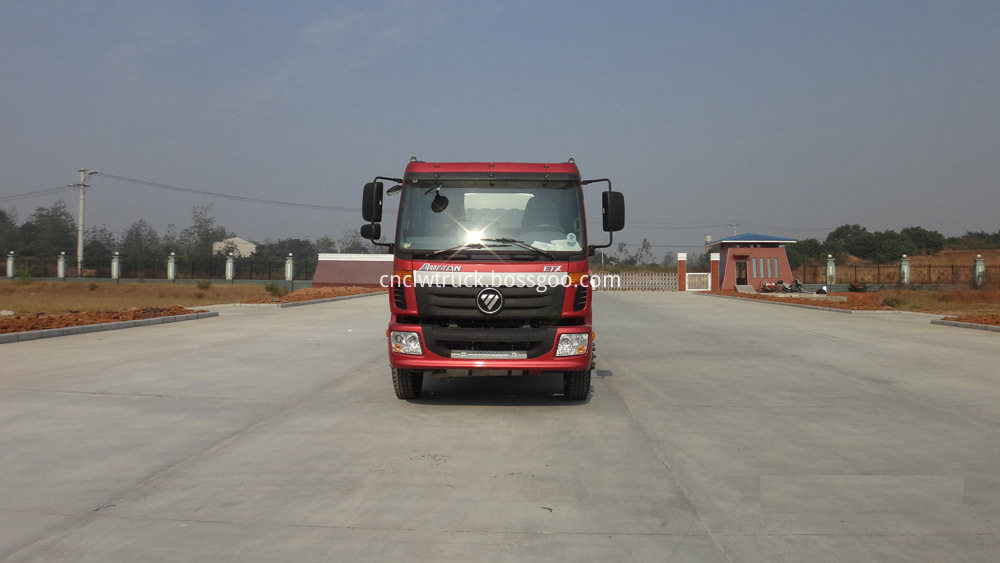

mobile fuel refueling trucks 3

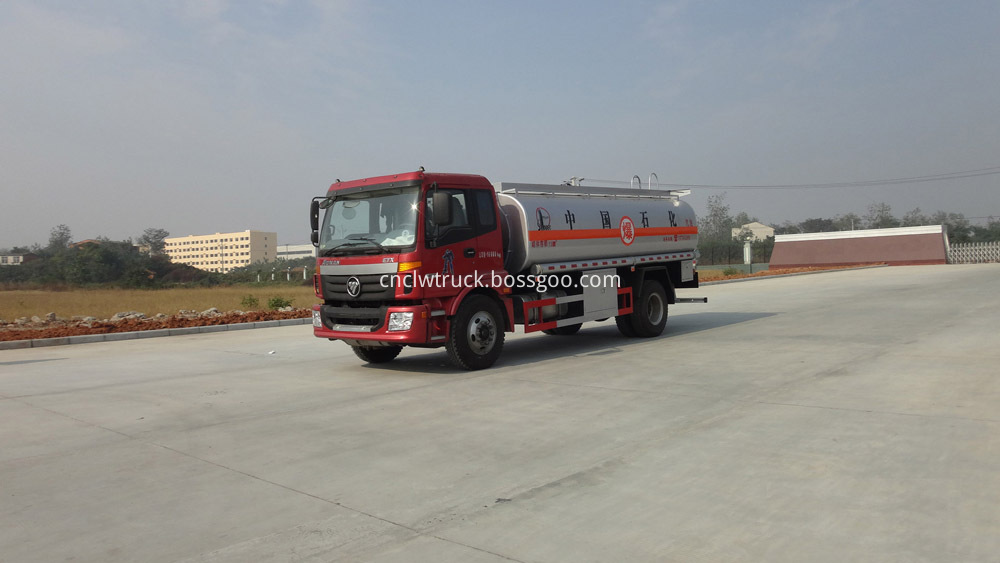

mobile fuel refueling trucks 2

MORE RELATED:

                                                                                    1. Mobile Fuel Refueling Trucks CONFIGURATION

petrol transport truck configuration logo


2. Mobile Fuel Refueling Trucks MANUFACTURING TECHNOLOGY

fuel delivery truck technology

3. Mobile Fuel Refueling Trucks CUSTOMIZED LOGO

fuel tank truck customized logo

4. Mobile Fuel Refueling Trucks FLOWMETER, EURO-TYPE MANHOLE, OIL PUMP SYSTEM

fuel tank truck flow meter

fuel tank manhole cover and overfill level sensor

Need more details of our  Mobile Fuel Refueling Trucks welcome to contact us at any time!
