Brand New FAW J6 10000litres sludge suction truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 25 Days

Basic Info

Model No.: CLW5160GXWC4

Emission Standard: Euro 3

Drive Wheel: 4x2

Tank Volume: 9000L

Transmission Type: Manual

horsepower: 150-250hp

Certification: CCC, ISO9000

Payload: 20T

Fuel: Diesel

Engine Type: 4 Stroke

Condition: New

Chassis Brand: DONGFENG

Vehicle Color: Red, Yellow, Blue Optional

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,Any Main Port in China

Product Description

Guaranteed 100% Brand New FAW J6 10000litres sludge suction truck

Sludge suction truck(also called septic suction truck, sewage vacuum tank truck, sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

The tank of a sewer vacuum truck could be hydraulic lifted and the rear door of tank could be hydraulic opened for completely tipping sewage and solid stuff.


We are professional liquid waste truck manufacturer in china with best quality, cheap price and depandable after-sale services. Our waste disposal truck have been exported to Southeast Asia, Vietnam, Laos, Myanmar, South Africa, South America, Paraguay, Tansania and more than 40 countries.


SPECIFICATIONS :

Sewage Suction Truck (10,000 Litres)
General Vehicle Brand CLW
Chassis Brand FAW
Overall Dimension 8200 * 2480 *3200 mm
GVW / Kerb Weight 16,000 kg / 8,305 kg
Cab Cab Capacity 3 persons allowed, with one sleeper
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand FAW
Power 220 Ps (165 KW)
Displacement 6060 ml
Emission Standard Euro V
Chassis Drive Type 4X2, LHD
Transmission 6speed gear box, no overhaul within 500,000km
Wheelbase/No. of axle 4700 mm / 2
Tyre Specification 10.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Tank Capacity 10,000 Litres
Tank Material Carbon steel
Suction Head 7m
Vacuum Pump Highly efficient, vacuum rate 93%,
quick suction and discharge, suction lift 6m.
Hose High quality, wire strengthened hose
Rear door can be hydraulic opened for complete discharge of solid stuff.
All standard accessories: inlet, discharge, antifill valve--..
Optional ** Tank material could be carbon steel, stainless steel..-..
** Vacuum pump could be imported brand--



VEHICLE DETAILS :


1. Parts Instruction of  Vacuum Sewage Suction Truck

vacuum suction truck part

2. Working Situation of Vacuum Sewage Suction Truck

vacuum suction truck working situation


VEHICLE PICTURES :

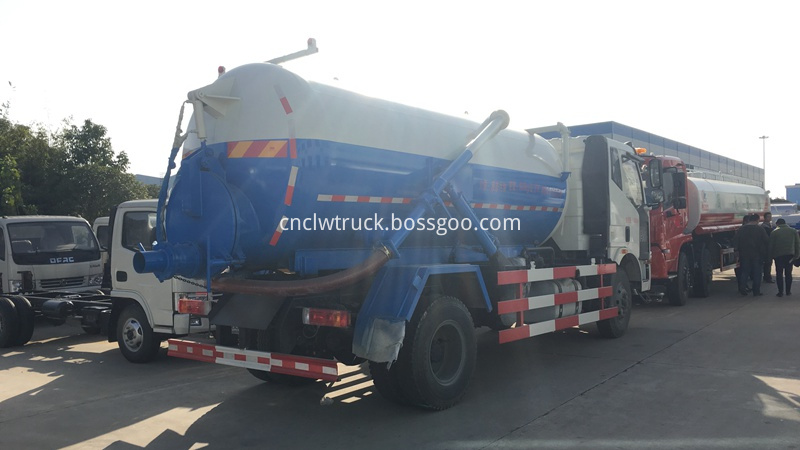

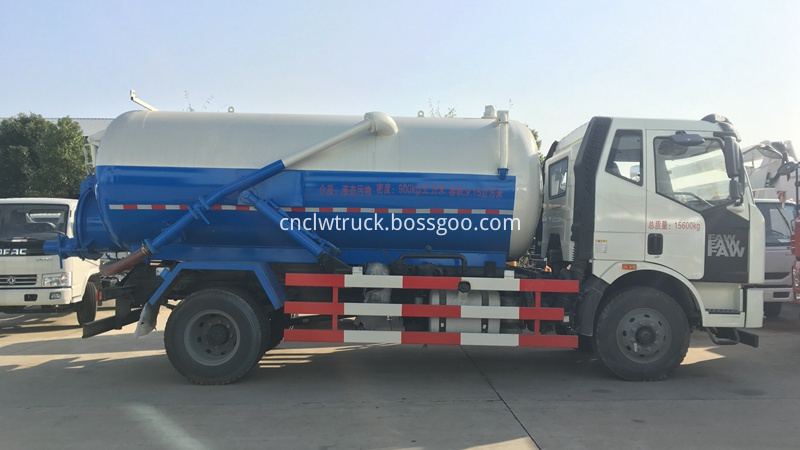

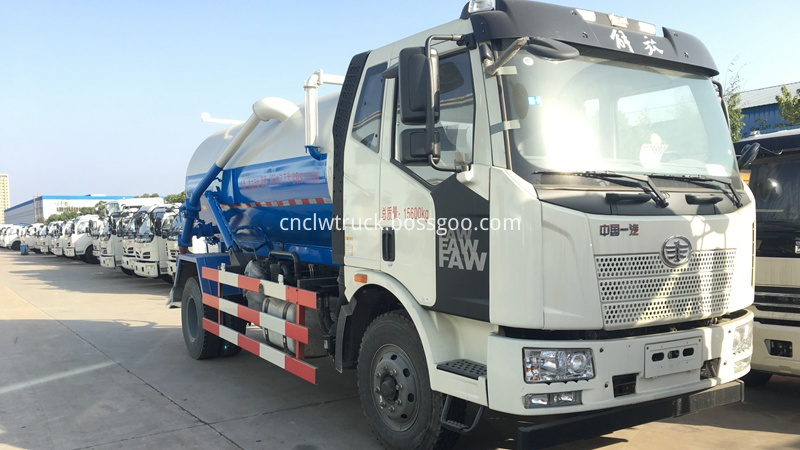

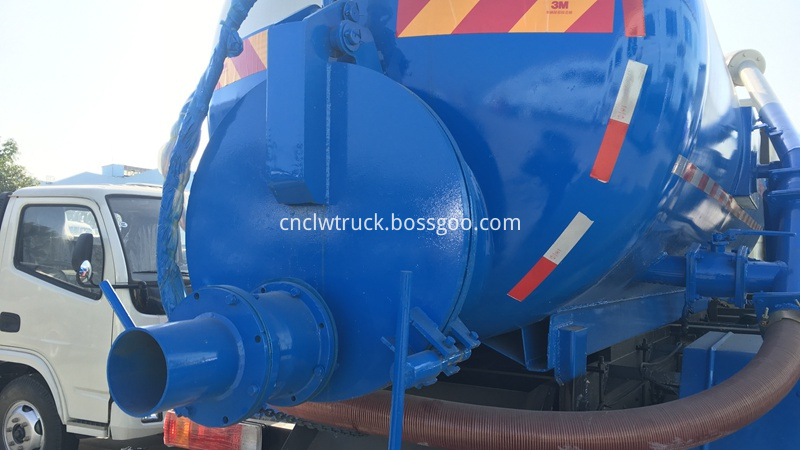

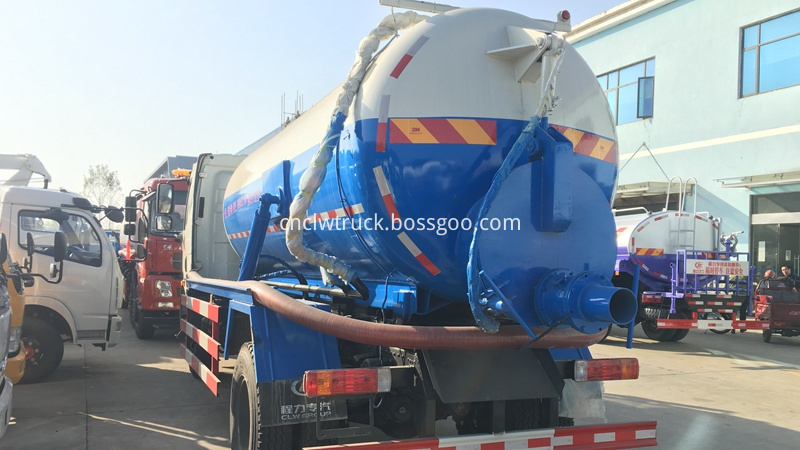

3. Pictures of  Sludge Suction Truck


sludge suction truck


sludge suction truck 1

sludge suction truck 2


sludge suction truck 3


sludge suction truck 4



Need more details of our SLUDGE SUCTION TRUCK welcome to contact us at any time!
