|Min. Order:||1 Set/Sets|
|Delivery Time:||15 Days|
Model No.: CLW5250ZYSE3
Emission Standard: Euro 3
Drive Wheel: 4x2
Transmission Type: Manual
Certification: CCC, ISO9000
Engine Type: 4 Stroke
Chassis Brand: DONGFENG
Vehicle Color: Red, Yellow, Blue Optional
Packaging: Nude packing,Waxing before shipping
Place of Origin: CHINA
Supply Ability: 5000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,Any Main Port in China
Guaranteed 100% Factory Supply Brand New Dongfeng 10m³ Waste Tanker Truck For Sale
Waste Tanker Truck also called septic suction truck, sewage vacuum tank truck, sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
The tank of a Waste Tanker Truck could be hydraulic lifted and the rear door of tank could be hydraulic opened for completely tipping sewage and solid stuff.
We are professional Waste Tanker Truck manufacturer in china with best quality, cheap price and depandable after-sale services. Our waste disposal truck have been exported to Southeast Asia, Vietnam, Laos, Myanmar, South Africa, South America, Paraguay, Tansania and more than 40 countries.
BRIEFLY PARAMETERS :
Chassis: Dongfeng D9 chassis, white row half-tilting cab, Yuchai 170HP National Five engine, 6-gear transmission, wheelbase 3950mm, 9-ton rear axle, 9.00R20 original steel wire tire, original ABS, electric glass, original air conditioner, with direction booster, clutch booster, air brake.
Tank: The tank of waste tanker truck is cylindrical in shape and adopts Wisco 6mm thick high-quality carbon steel plate. The front of the tank is equipped with a sewage suction window, hand-washing device, lifting device, and a sewage suction pipe of 5 meters each. The tank body is of various colors and the rest are made according to the standard configuration in the factory.Equipped with high-power vacuum sewage suction pump and high quality hydraulic system, the tank head is die-cast for the first time, the tank body can be opened back, double top self-discharging.The dirt in the tank can be directly dumped through the back cover, with high vacuum degree, large tonnage, high efficiency, more widely used characteristics.(vertical suction range: ≥8 m, working pressure: 8500Pa, theoretical pumping speed: 52L/S, axial power: ≤5kw, intake and exhaust diameter: 50mm, filling time: < 5 min, filling time: < 4min).The waste tanker truck is equipped with high-power vacuum pump, a die-casting head -, a thickened pressure-resistant tank body, and a double-top hydraulic system, which is more powerful than the fecal suction truck.
VEHICLE PICTURES :
|Dongfeng Waste Tanker Truck (11,000 Litres)|
|Overall Dimension||7860* 2500 *3150 mm|
|GVW / Kerb Weight||15995 kg / 7060 kg|
|Cab||Cab Capacity||3 persons allowed|
|Air Conditioner||W/ air conditioner|
|Emission Standard||Euro 3|
|Chassis||Drive Type||4X2, LHD/RHD|
|Transmission||6 speed gear box, no overhaul within 500,000km|
|Wheelbase/No. of axle||3950 mm / 2|
|Tyre Number||6 tyres and 1 spare tyre|
|Max Speed||95 km/h|
|Superstructure||Tank Capacity||11,000 Litres|
|Tank Material||Carbon steel|
Highly efficient, vacuum rate 93%,
quick suction and discharge, suction lift 6m.
|Hose||High quality, wire strengthened hose|
|Rear door can be hydraulic opened for complete discharge of solid stuff.|
|All standard accessories: inlet, discharge, antifill valve--..|
** Tank material could be carbon steel, stainless steel..-..
** Vacuum pump could be imported brand--

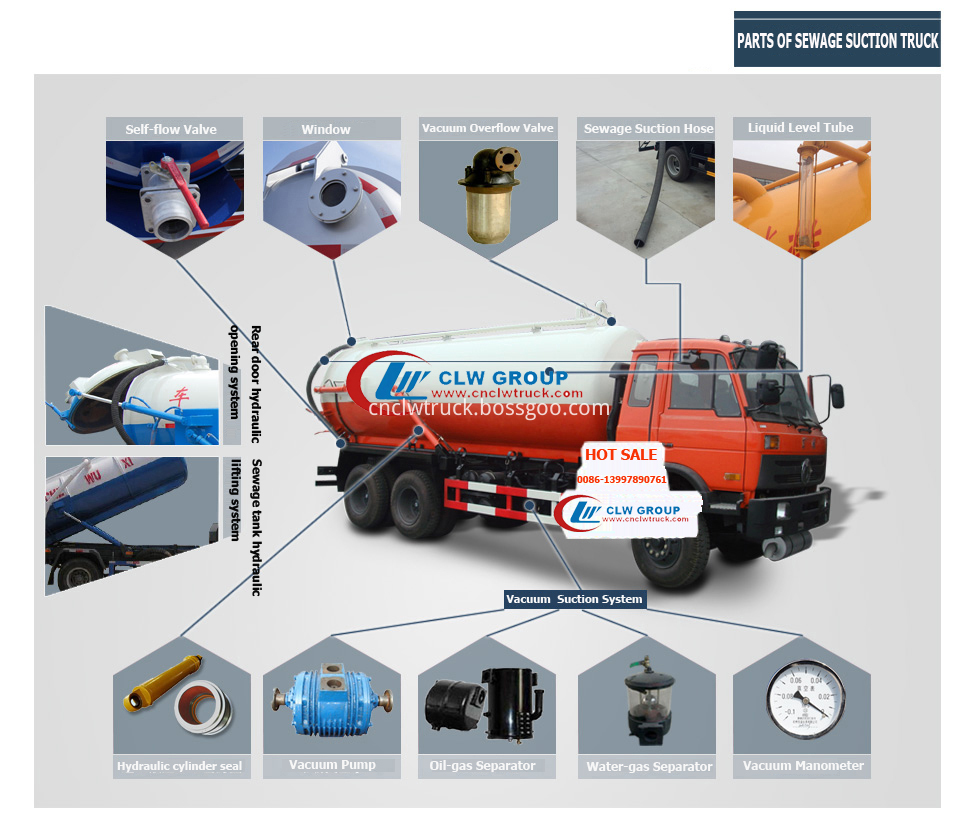

1. Parts Instruction of Waste Tanker Truck

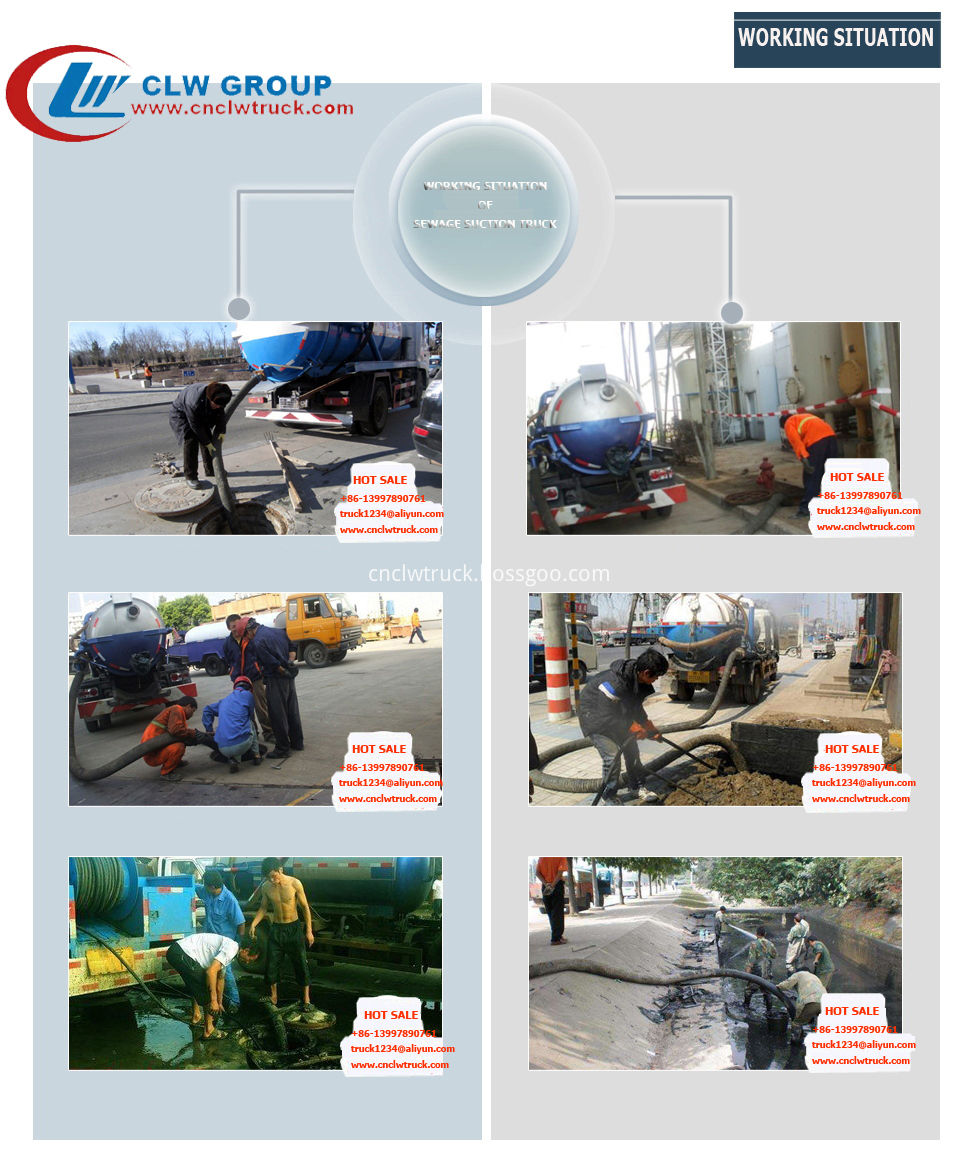

2. Working Situation of Waste Tanker Truck
Need more details of our Waste Tanker Truck welcome to contact us at any time!
