Brand New Dongfeng Commercial Truck Mounted 12Tons Crane

Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5313TMC

Fuel: Diesel

Certification: ISO9000, CCC

Condition: New

Emission Standard: Euro 3

CRANE BRAND: XCMG, SANY, Palfinger,Unic,Tadano Etc...

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% Brand New Dongfeng Commercial Truck Mounted  12Tons Crane for Sale

A Commercial Truck Mounted Crane is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Heavy Duty Crane:50Ton, 80Ton, 120Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.


VEHICLE PICTURES :

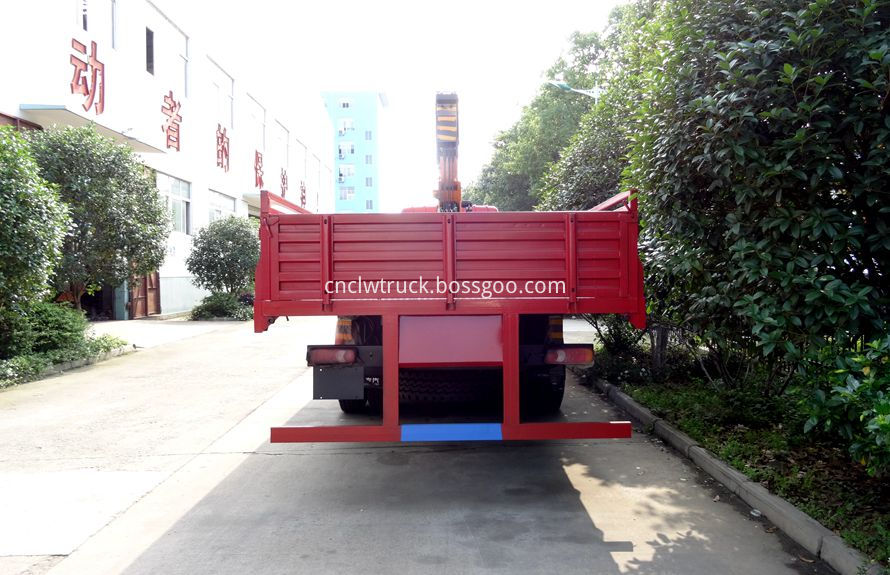

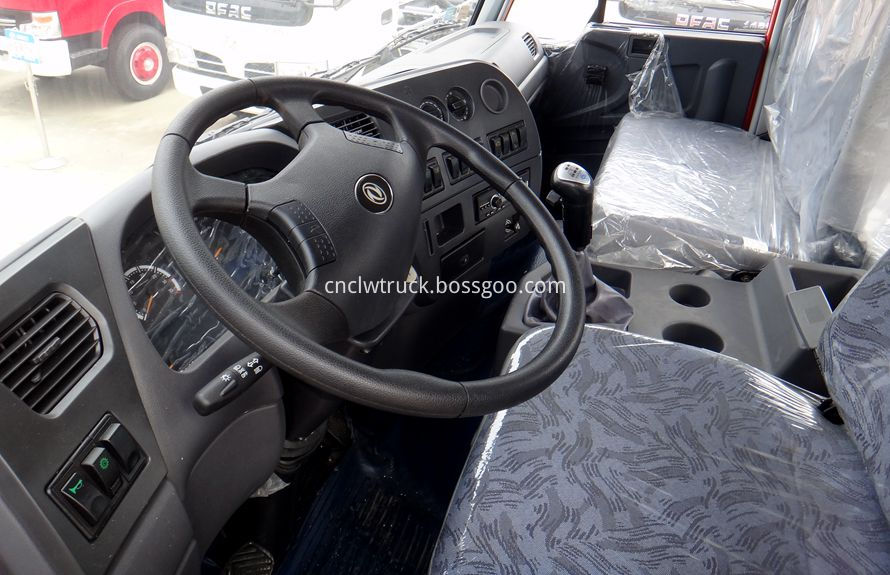

commercial truck mounted crane

Dongfeng Commercial Truck Mounted 12Tons Crane Picture 1

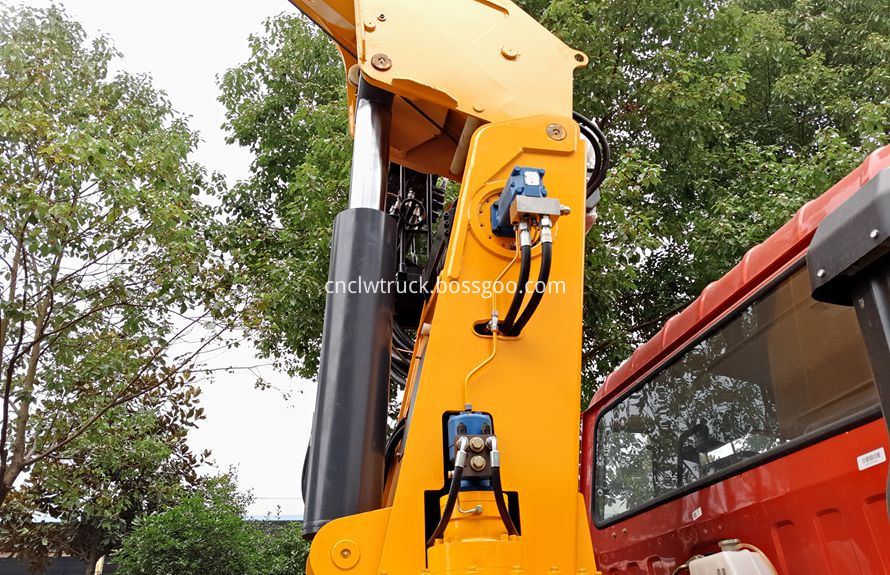

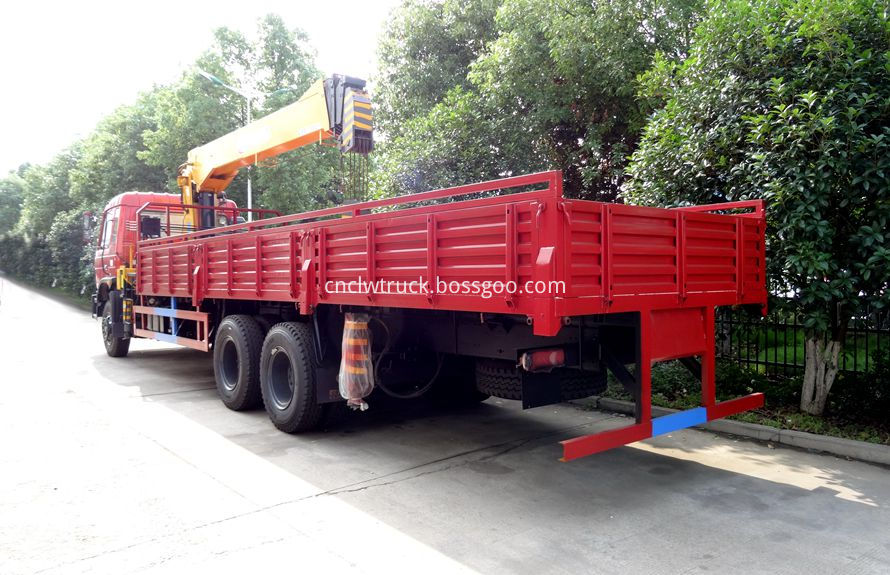

commercial truck mounted crane 1

Dongfeng Commercial Truck Mounted 12Tons Crane Picture 2

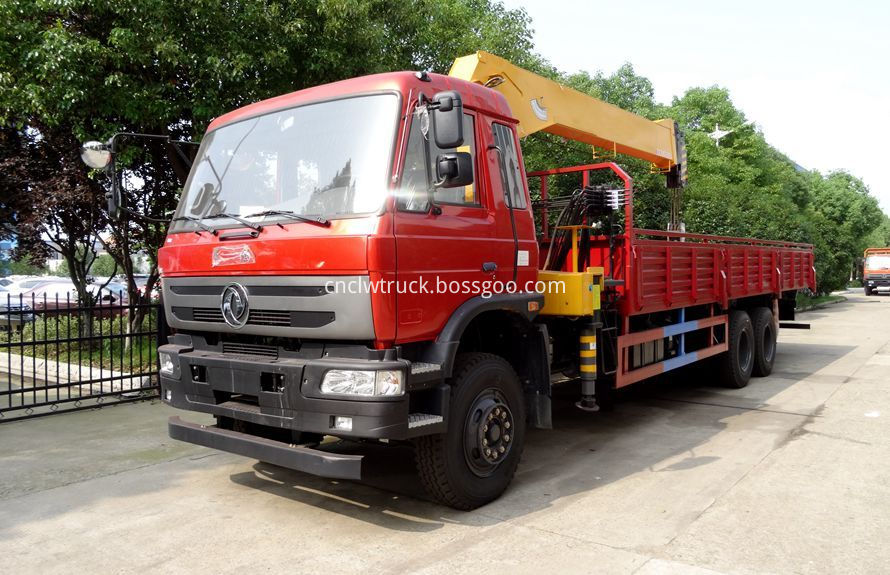

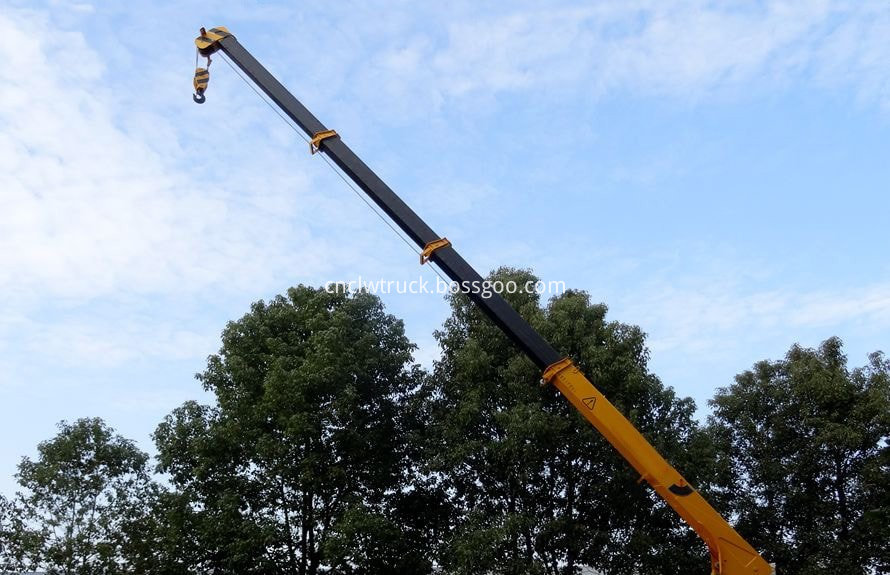

commercial truck mounted crane 3

Dongfeng Commercial Truck Mounted 12Tons Crane Picture 3

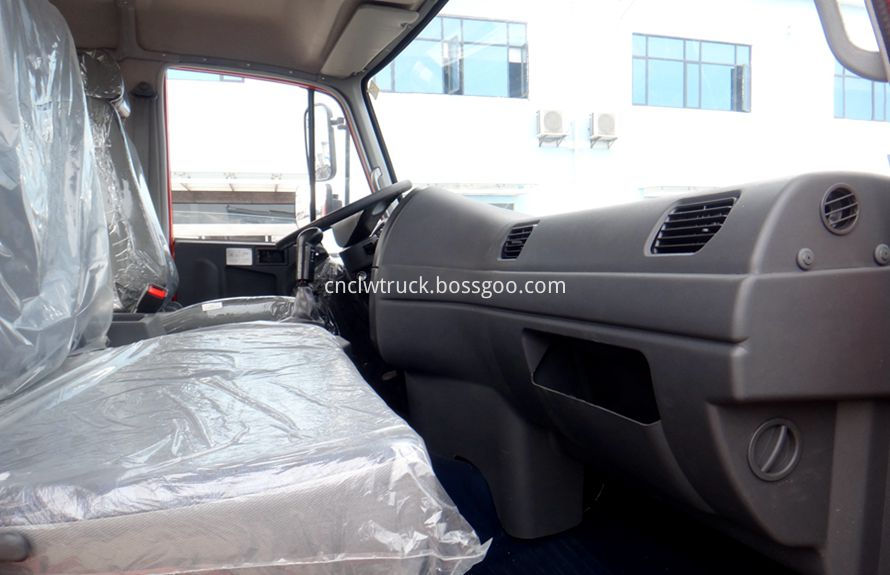

commercial truck mounted crane 4

Dongfeng Commercial Truck Mounted 12Tons Crane Picture 4

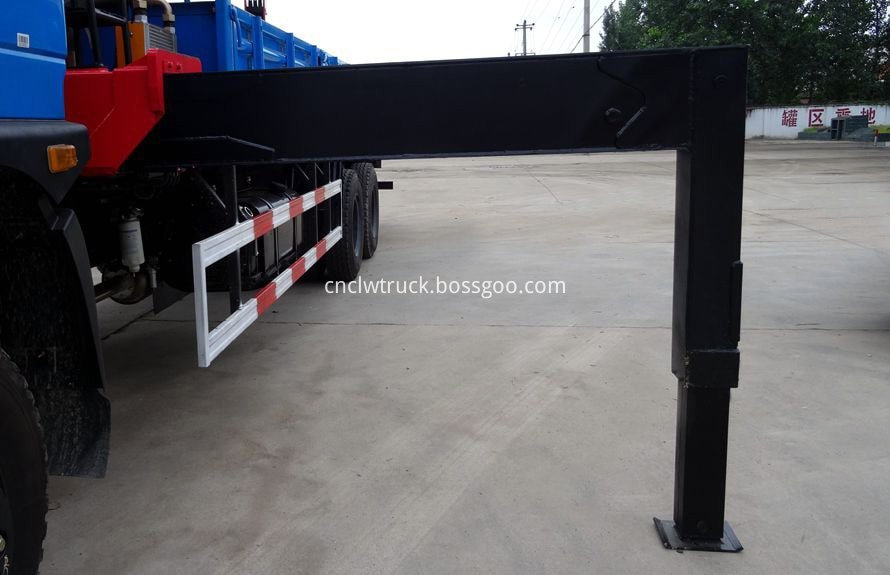

commercial truck mounted crane 2

Dongfeng Commercial Truck Mounted 12Tons Crane Picture 5

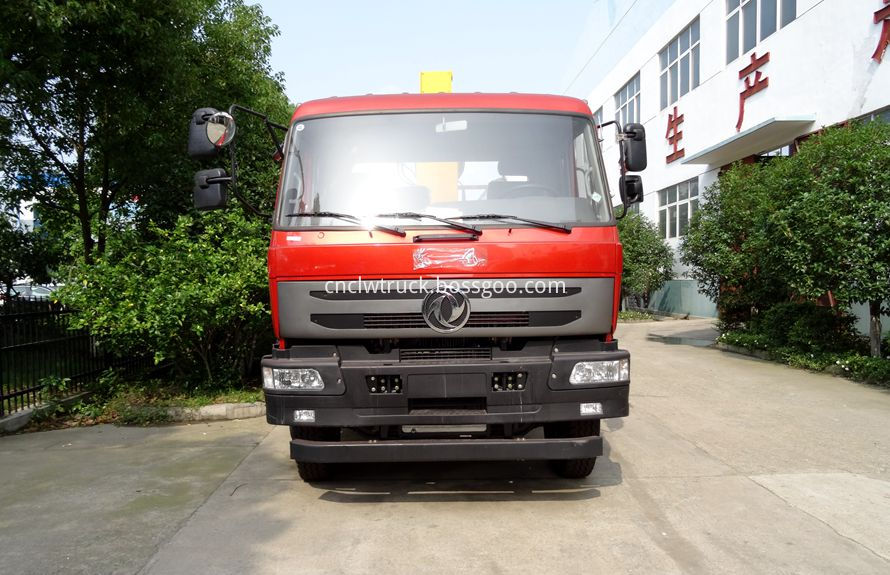

commercial truck mounted crane 5

Dongfeng Commercial Truck Mounted 12Tons Crane  Picture 6

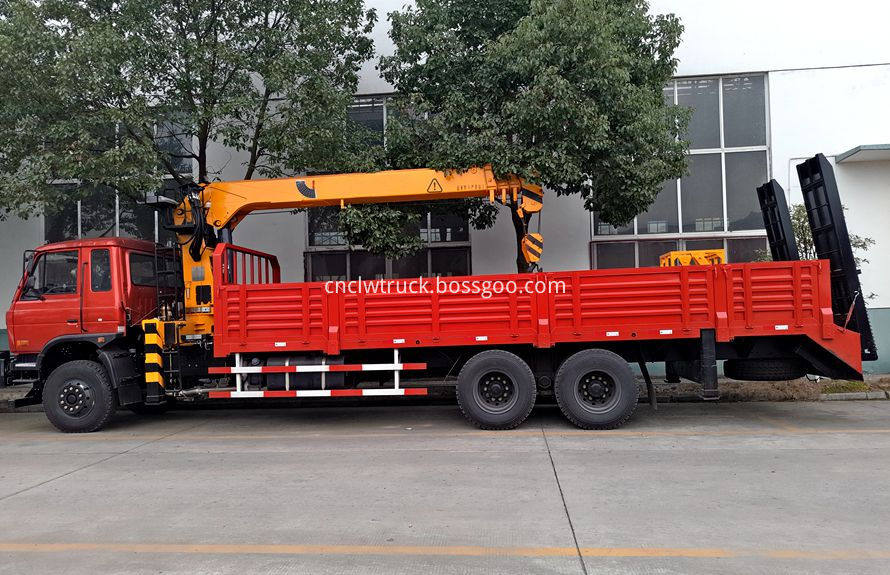

commercial truck mounted crane 9

Dongfeng Commercial Truck Mounted 12Tons Crane Picture 7

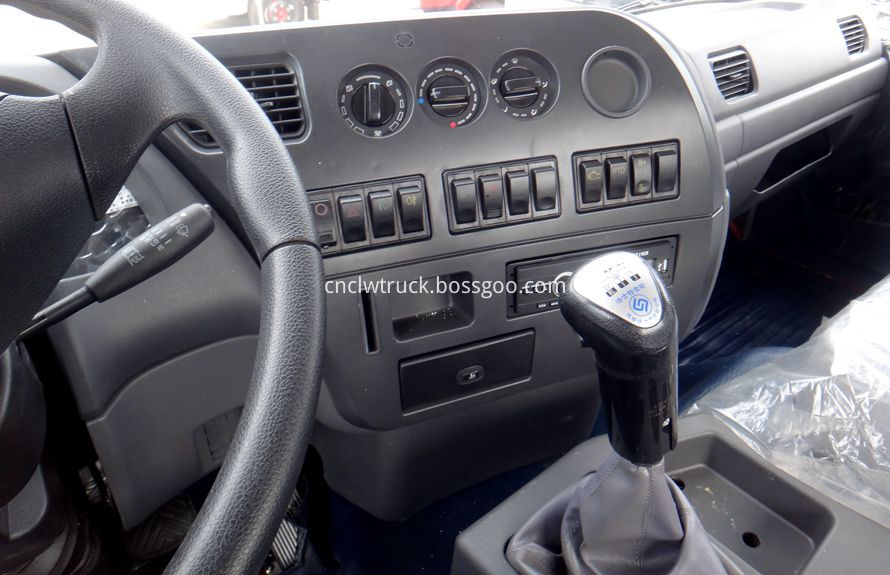

commercial truck mounted crane 10

Dongfeng Commercial Truck Mounted 12Tons Crane Picture 8

commercial truck mounted crane 6

Dongfeng Commercial Truck Mounted 12Tons Crane Picture 9

commercial truck mounted crane 7

Dongfeng Commercial Truck Mounted 12Tons Crane Picture 10

commercial truck mounted crane 8

Dongfeng Commercial Truck Mounted 12Tons Crane  Picture 11


VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Chassis Brand

DFAC

Condition

Brand New

Crane Capacity

10T/12T

Crane Brand

XCMG/SANY

Remote Control

Arm Type

Folding/Telescopic

Cab

5208

Engine Power/displacement

240HP/7255ml

Gearbox

8 Speed

Overall Size

12X2.49X3.85/m

GVW

24900kg

Cargo Size

8.5X2.3X0.55/m

Curb Weight

15600kg

Vehicle Frame

300mm crossbeam

Tire Spec.

10.00R20

Rear Axle Load

11.5T

Brake System

Air Brake

Wheelbase

5900mm+1300mm

Allow Passengers

3

Max Speed

90km/h

Drive Model

6X4, LHD/RHD

CRANE  PARAMETERS

XCMG 10T Telescopic Arms

XCMG 12T Telescopic Arms

Max Lifting Capacity(kg)

10000

12000

Min Lifting Capacity(kg)

1500

1800

Working Radius(m)

12

12.5

Lifting Height(m)

14

14.5

Crane Weight(kg)

3765

4316

Outriggers Span(mm)

2280-5580

2270-5270

Rotation Angle

360 Degree

360 Degree



CRANE DIAGRAM :


XCMG 10T 12T Crane Parameters


Chassis Configurations: DFAC 5208 Chassis, Single-row Cab with one sleeper, Yuchai Diesel 240HP Engine, 8 Speed Transmission, 5.5T Front Axle, 11.5T double Rear Axle, 300mm Crossbeam, 11.00R20 Tire, ABS, Air Brake, Power Steering , A/C, Electric Windows


Crane Configurations:

Telescopic boom type, simplex pump or double pump optional,  lifting capacity 12000kg, length of arm5.4m(not extend)-14.8m(full extend), front outriggers ,360 degree rotation; Working radius 14.8m,  lifting height 16.8m.


Cargo Configurations:

Cargo Size:8500*2300*550/L*W*H/mm, cargo bottom thickness is 5mm/4mm, side thickness is 2mm.


Commercial Truck Mounted Crane Advantages :

1.  Diesel fuel type, power engine,perfect driving performance

2. Wide and high-speed rotary, easy operation, strong load capacity.

3. Unique design, prolonged service life.

4. Wide application range, suitable for landscaping,electric power, petro-chemical industry, advertisement installation, construction site, narrow road, underground garage, service station, 4S shop, field rescue, factory workshop transportation, etc.

customer visit


FAQ

CHENGLI SPECIAL AUTOMOBILE CO

Need more details of our Commercial Truck Mounted Crane welcome to contact us at any time!
