|Min. Order:||1 Set/Sets|
|Delivery Time:||25 Days|
Model No.: CLW5161GXWD5
Emission Standard: Euro 3
Drive Wheel: 4x2
Tank Volume: 9000L
Transmission Type: Manual
Certification: CCC, ISO9000
Engine Type: 4 Stroke
Chassis Brand: DONGFENG
Vehicle Color: Red, Yellow, Blue Optional
Packaging: Nude packing,Waxing before shipping
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,Any Main Port in China
Guaranteed 100% Brand New Dongfeng 4X2 10000litres Sewage drainage truck
Sewage drainage truck(also called septic suction truck, sewage vacuum tank truck, sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.
The tank of a sewer vacuum truck could be hydraulic lifted and the rear door of tank could be hydraulic opened for completely tipping sewage and solid stuff.
We are professional liquid waste truck manufacturer in china with best quality, cheap price and depandable after-sale services. Our waste disposal truck have been exported to Southeast Asia, Vietnam, Laos, Myanmar, South Africa, South America, Paraguay, Tansania and more than 40 countries.
|Sewage Suction Truck (10,000 Litres)|
|Overall Dimension||8300 * 2490 *3380 mm|
|GVW / Kerb Weight||15,800 kg / 8,805 kg|
|Cab||Cab Capacity||3 persons allowed, with one sleeper|
|Air Conditioner||W/ air conditioner|
|Power||190 Ps (144 KW)|
|Emission Standard||Euro III|
|Chassis||Drive Type||4X2, LHD/RHD|
|Transmission||6speed gear box, no overhaul within 500,000km|
|Wheelbase/No. of axle||4500 mm / 2|
|Tyre Number||6 tyres and 1 spare tyre|
|Max Speed||95 km/h|
|Superstructure||Tank Capacity||10,000 Litres|
|Tank Material||Carbon steel|
Highly efficient, vacuum rate 93%,
quick suction and discharge, suction lift 6m.
|Hose||High quality, wire strengthened hose|
|Rear door can be hydraulic opened for complete discharge of solid stuff.|
|All standard accessories: inlet, discharge, antifill valve--..|
** Tank material could be carbon steel, stainless steel..-..
** Vacuum pump could be imported brand--
1. Parts Instruction of Vacuum Sewage Suction Truck
2. Working Situation of Vacuum Sewage Suction Truck
VEHICLE PICTURES :

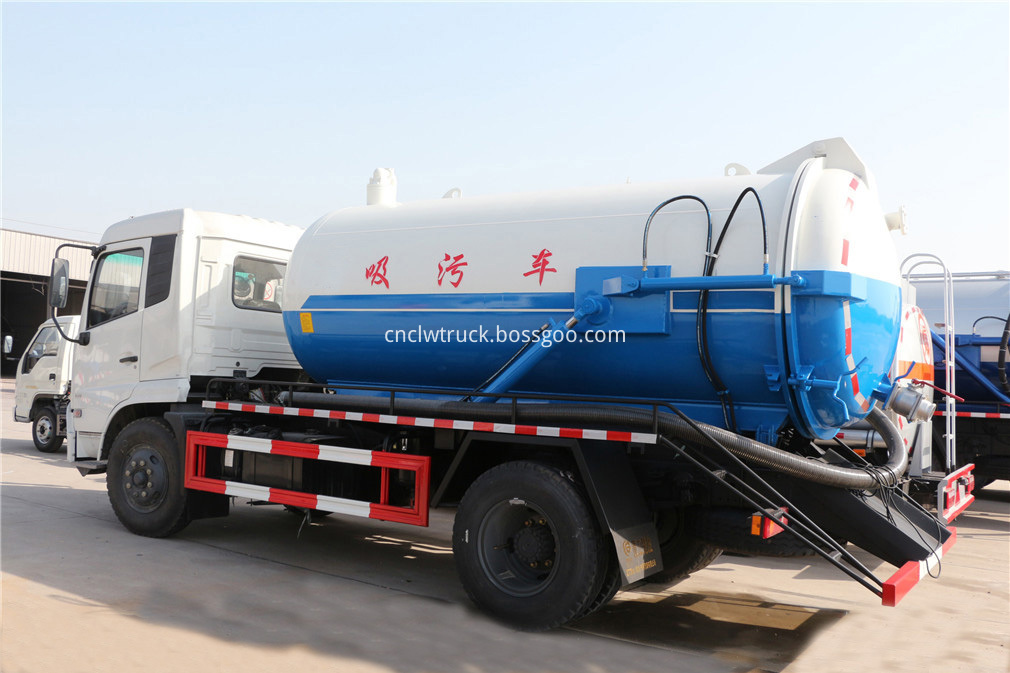

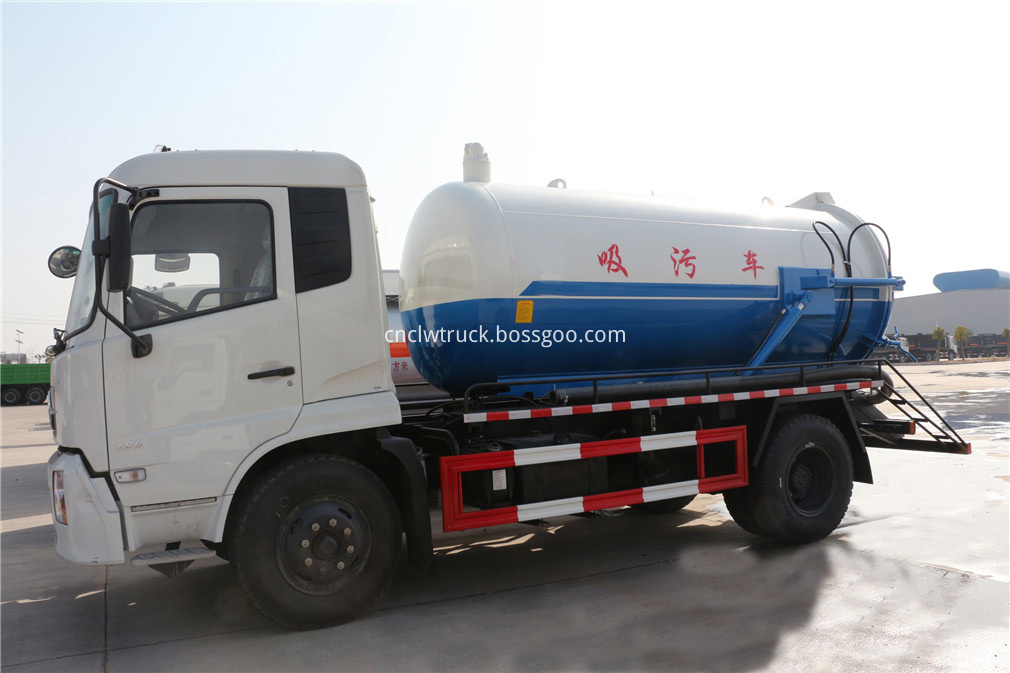

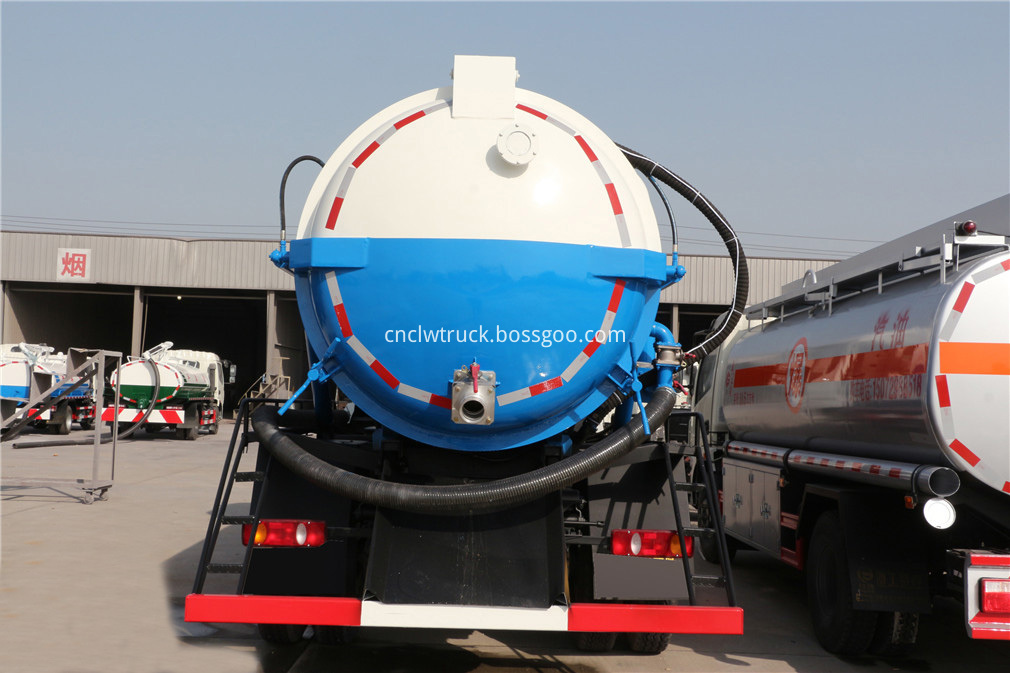

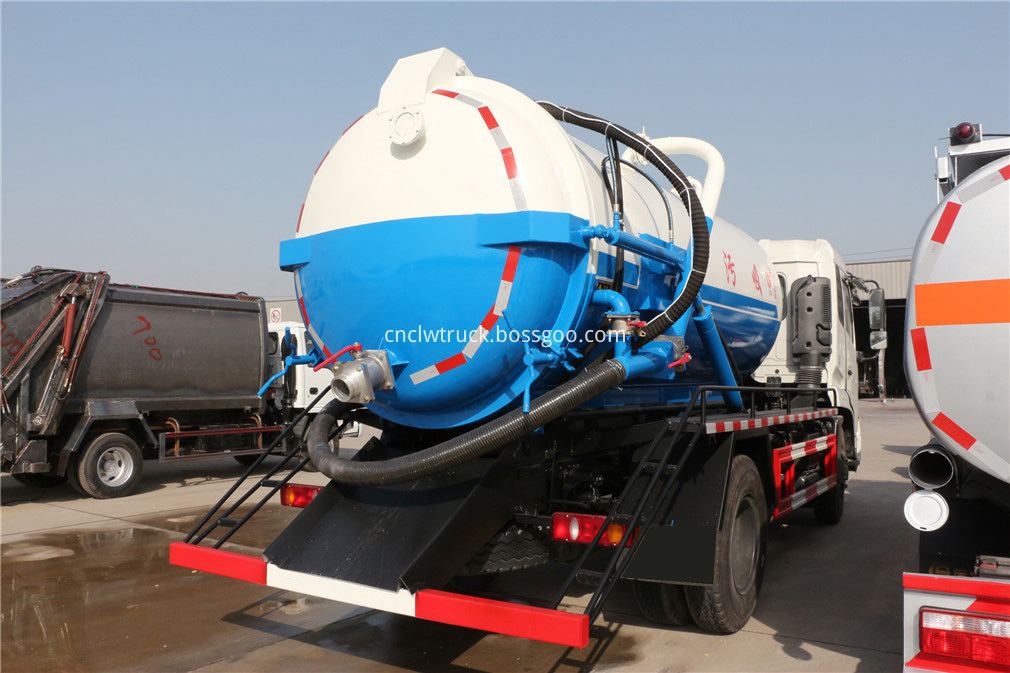

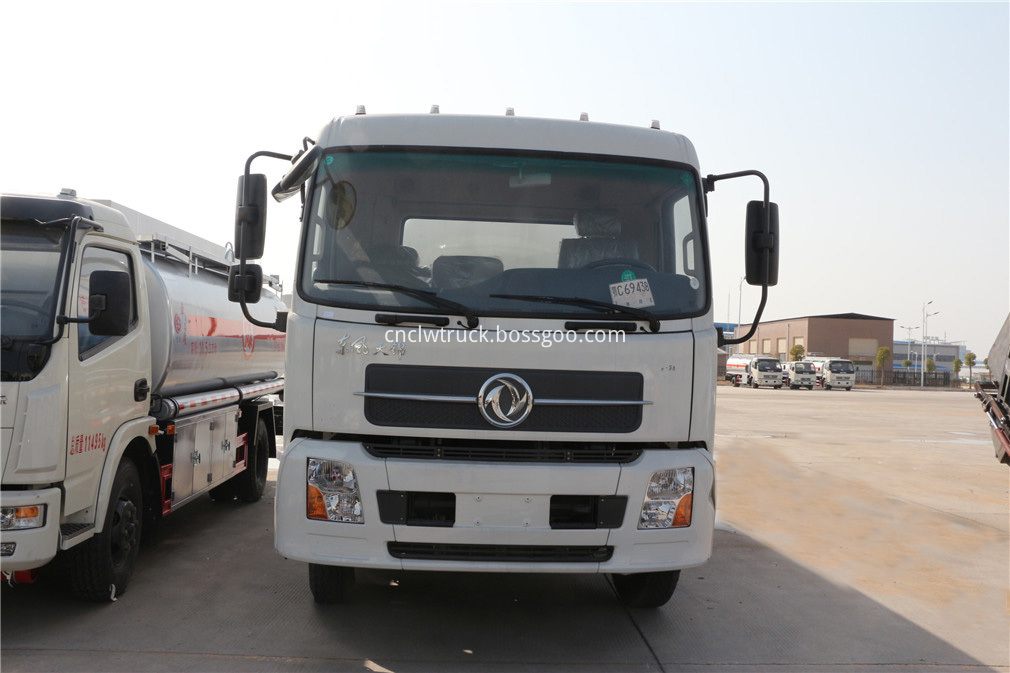

3. Pictures of Sewage Drainage Truck
Need more details of our SEWAGE DRAINAGE TRUCK welcome to contact us at any time!
