Brand New Dongfeng 4tons Asphalt Distribution Truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Basic Info

Model No.: CLW5702ADT

Fuel: Diesel

Certification: ISO9000, CCC, CE

Emission Standard: Euro 3

Condition: New

Chassis Brand: DONGFENG

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990

Port: SHANGHAI PORT,CHINA,ANY MAIN SEA PORT IN CHINA

Product Description

Guaranteed 100% Brand New Dongfeng 4tons Asphalt Distribution Truck for Sale

Asphalt distribution truck is an high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil.


Asphalt distribution truck is basically made up of chassis, asphalt tank, asphalt pump, spray system, heat conduction oil heating system, hydraulic system, electric control system, distribution control system and rinsing series. And the distribution system has two main types: hand-controlled and computer-controlled.

VEHICLE PICTURES :

Asphalt distribution truck

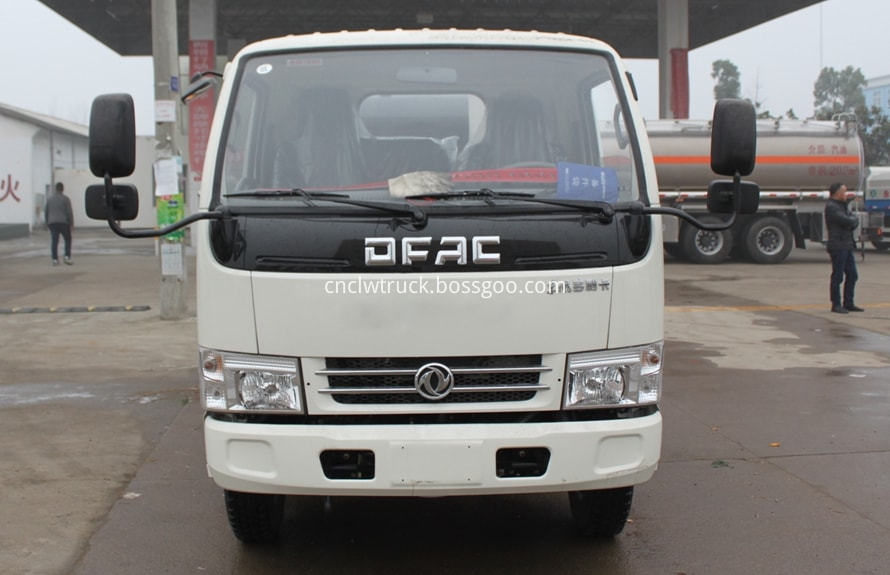

Dongfeng 4tons Asphalt Distribution Truck Picture 1

Asphalt distribution truck 1

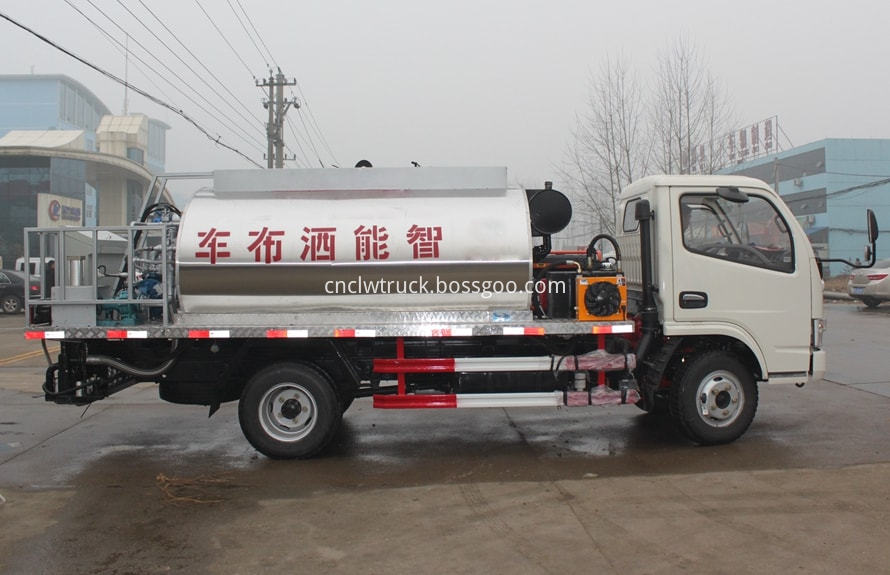

Dongfeng 4tons Asphalt Distribution Truck Picture 2

Asphalt distribution truck 2

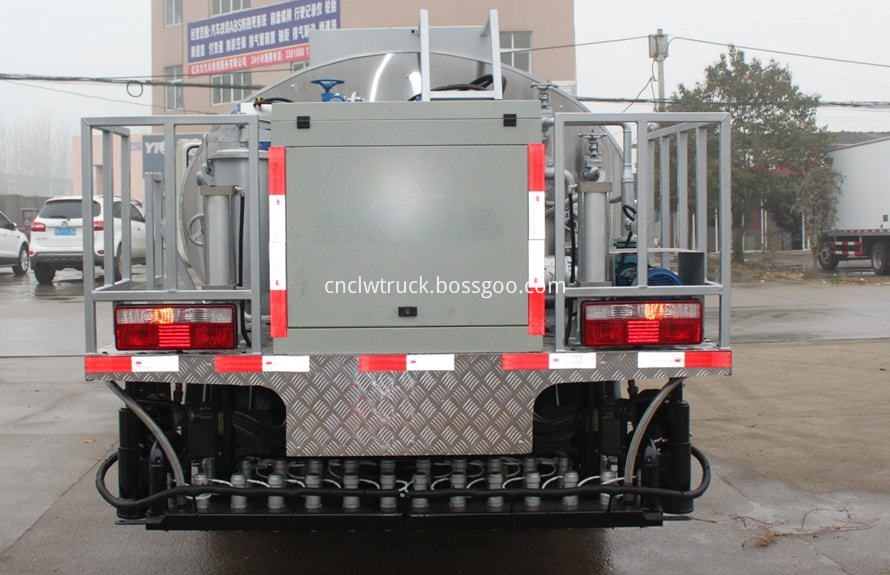

Dongfeng 4tons Asphalt Distribution Truck  Picture 3

Asphalt distribution truck 3

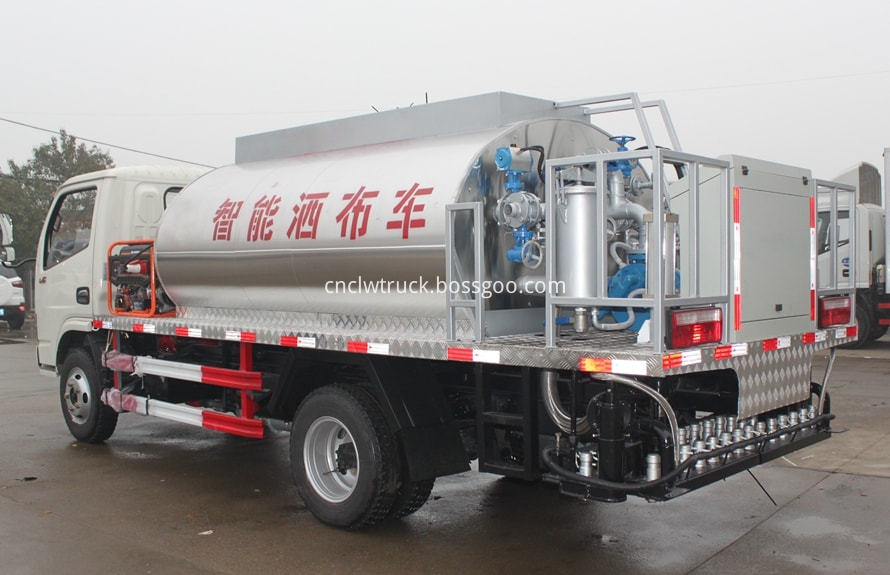

Dongfeng 4tons Asphalt Distribution Truck Picture 4

Asphalt distribution truck 4

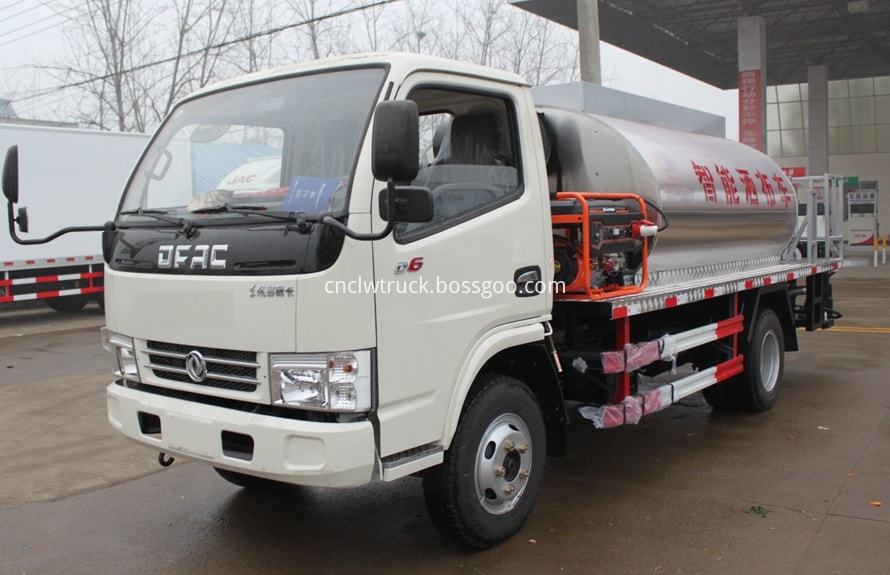

Dongfeng 4tons Asphalt Distribution Truck Picture 5

Asphalt distribution truck 6

Dongfeng 4tons Asphalt Distribution Truck Picture 6

bitumen sprayer engine  working

Dongfeng 4tons Asphalt Distribution Truck At Work

VEHICLE PARAMETERS:

Items

Unit

Reference Value

Rated Tank Capacity

L

4000

Spray Width

mm

4000

Spray Density

Kg/㎡

0.2-3.0

Max Speed

Km/h

90

GVW

kg

7360

Rated Load Weight

kg

2195

Curb Weight

kg

4970

Engine Power

kw

75

Gearbox

/

5F 1R

Fuel Type

/

Diesel

Emission Standard

/

Euro 5

Wheelbase

mm

3308

Tire Spec

/

7.00R16

Vehicle Size

mm

6300*2080*2400


Items

Parameters

Chassis Brand

DONGFENG

Chassis Model

EQ1070

Bitumen Tank Material

Carbon steel covered with stainless steel

Spray Medium

Hot asphalt, emulsified asphalt, rubber asphalt(need customized)

Asphalt Pump

QGB680 (International Brand Optional)

Spray Pipe

4.5m(or 6m)

Hand Held Spray Gun

Manual, with 5m pipe

Heat-transfer Oil Pump

RY65-40 (International Brand Optional)

Generator

5.5kw

Variable Pump

CBQ550-L

Hydraulic Motor Of Asphalt Pump

05-110-BD31

Heat-transfer Oil Pump

40-25-160

Burner

G10

Proportional Valve

EFBG-03-160-HF

Reversing Valve

Chinese Brand

Overflow Valve

Chinese Brand

Gas Cylinders

40L

Air Cylinder

100*250

Operation in Cab

Automatic Computer-Controlled,

Germany WST System

Operation at Rear

Manual,

Germany WST System

Temperature Control System

Omron(Japanese Brand)

Multifold Solenoid Valve

4 units

Features of Bitumen Sprayer Engine:

----- Can spread all kinds of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt

-----Asphalt spreading quantity (kg/m2) : 0.2-3

-----The spraying width can be freely adjusted, and each nozzle can be controlled separately, with the maximum spraying width up to 6000mm

-----Asphalt evenly spread, unique nozzle design can be used for three overlapping spraying

-----High spraying precision, the whole spraying process is controlled by computer in real time, and the spraying amount is not affected by the change of speed

-----Safe and reliable thermal oil automatic heating system

----- Heat conduction oil on the asphalt pump and nozzle to carry out comprehensive insulation, after spraying, asphalt pump and nozzle do not need diesel cleaning.Purge with high pressure air or circulate with a full range of heat-conducting oil; Insulation, ensure the pipe and nozzle unimpeded

-----The control system adopts modular design.Low failure rate, quick and easy maintenance

-----The standby system is set in the control program and drive device of the whole machine to ensure that automatic spraying can still be carried out when the standby system is started when the main control fails

----- All kinds of spraying requirements can be completed in the cab

-----Flexible hand-held spray gun, can fill the corner of asphalt

-----Excellent insulation performance, average temperature drop ≤20℃/8h

-----Convenient loading and unloading function. In addition to adding asphalt from the tank mouth, hot asphalt can be inhaled and pumped out by itself, and external asphalt can also be pumped and transferred



Similar Keywords:

The bitumen sprayer engine also can be named asphalt distribution truck , asphalt road maintainer, bitumen spray truck, bitumen pressure distributor, asphalt road maintenance vehicle, asphalt distribution tank truck, asphalt distribution tank truck pictures, videos, pictures, asphalt distribution truck manufacturers etc..

CHENGLI SPECIAL AUTOMOBILE CO

Need more details of our  Asphalt Distribution Truck welcome to contact us at any time & will respond in 24hours.
