Brand New DFAC 8000litres Combination Vacuum Jetting Truck

Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5163GQWD4

Emission Standard: Euro 3

Drive Wheel: 4x2

Transmission Type: Manual

horsepower: 150-250hp

Certification: CCC, ISO9000

Payload: 20T

Fuel: Diesel

Engine Type: 4 Stroke

Condition: New

Tank Volume: 9000L

Chassis Brand: DONGFENG

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8705909990


Product Description

Guaranteed 100% Brand New DFAC 8000litres Combination Vacuum Jetting Truck

Combined jet suction truck  is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipes under high pressure, and clear sewerage lines by means of a powerful vacuum suction to suck all water plus mud from sewer main hole. The truck is widely used in environment and sanitation field.


Combination Vacuum Jetting Truck (8,000 litres)
General Vehicle Brand CLW
Chassis Brand DONGFENG
Overall Dimension 8700 * 2420 * 3680 mm
GVW / Kerb Weight 16,000 kg / 9,800 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand CUMMINS ENGINE(American Brand)
Power 190 Hp (140 KW)
Displacement 6900 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission 6-speed front, 1 reverse
Wheelbase 4700 mm
Number of axle 2
Tyre Specification 9.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Water Tank Tank Capacity 4,000 Litres (about 1,000 gals)
Tank Material Carbon steel
High Pressure Pump Italy Imported brand / 16Mpa
Flow Speed 125 L/min
High Pressure Hose 60m
Suction Head 6 m
Nozzles A cluster of nozzles included
Sewer Tank Tank Capacity 4,000 Litres (about 1,000 gals)
Tank Material Carbon steel
Vacuum Pump Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m.
Rear door can be hydraulic opened for complete discharge of solid stuff.
All standard accessories: manhole, tool kit, English manual--..
Optional ** Tank material could be stainless steel.
** High pressure hose length could be customized.

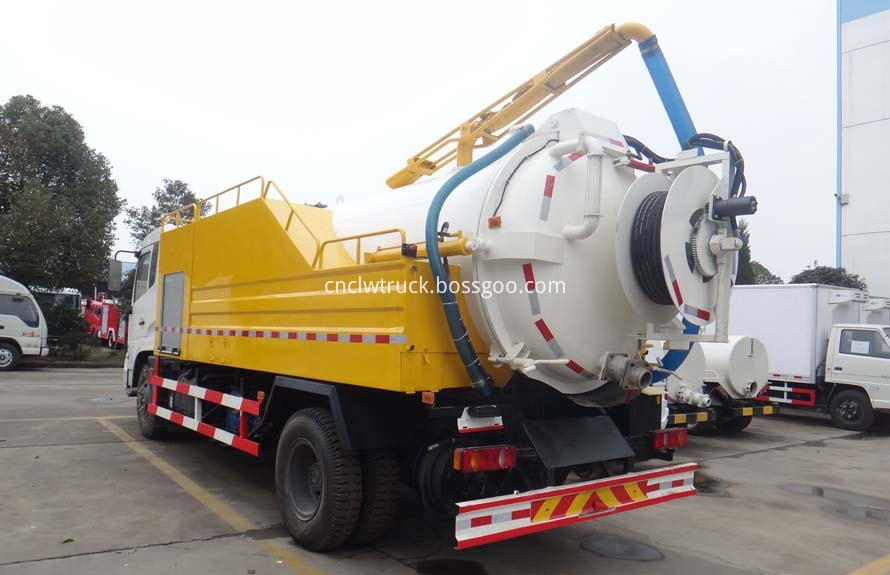

combination vacuum jetting truck 4

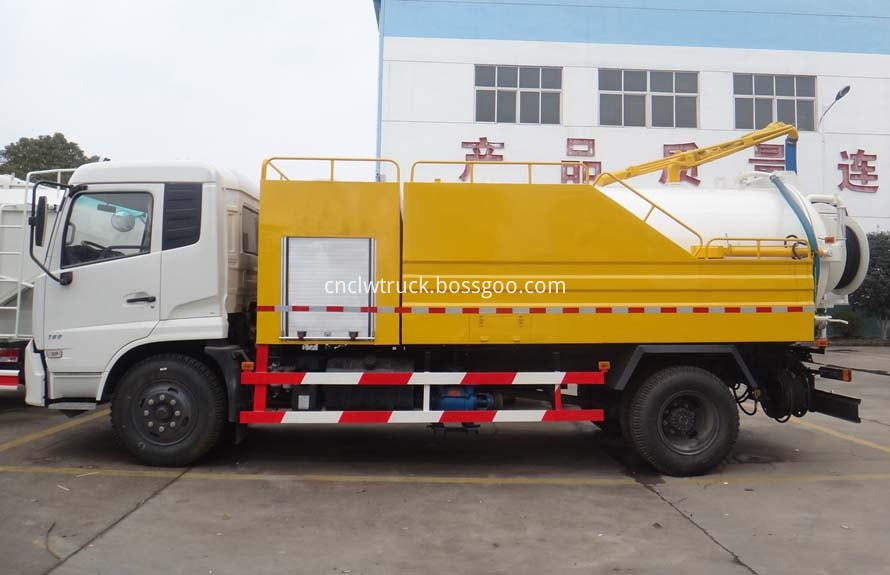

combination vacuum jetting truck

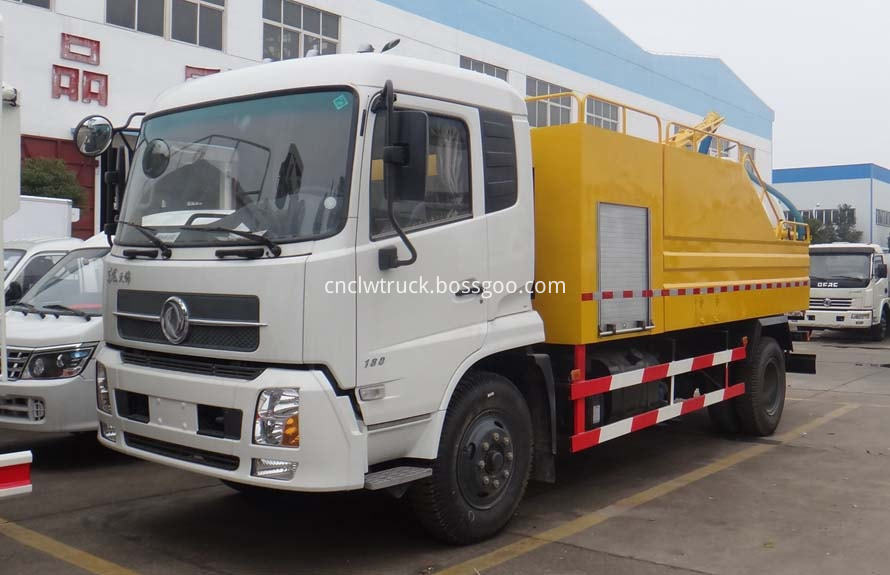

combination vacuum jetting truck 1

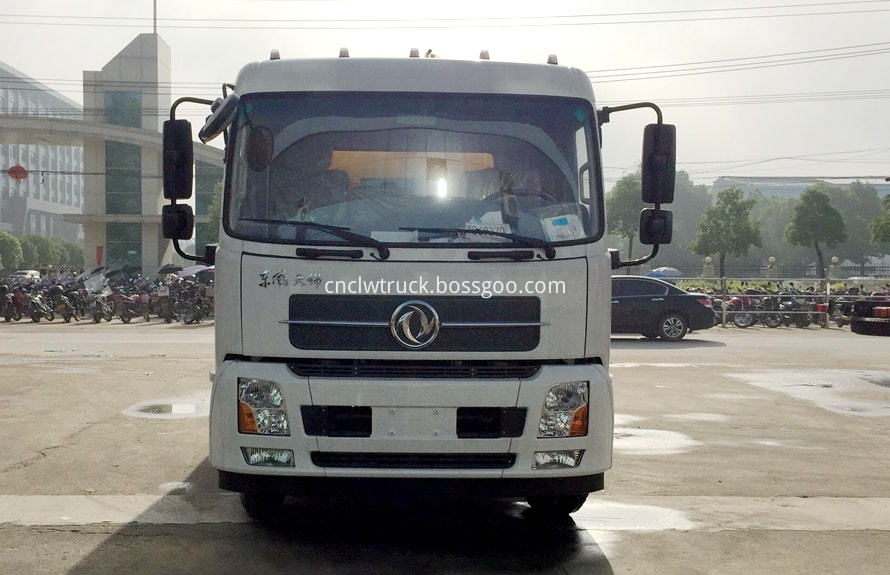

combination vacuum jetting truck 2

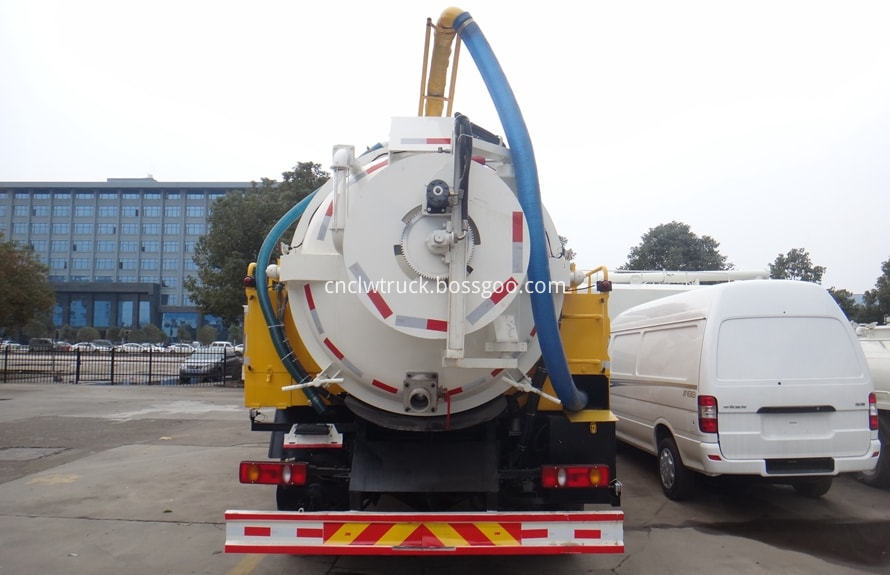

combination vacuum jetting truck 3

Detailed Configuration Of Combination Vacuum Jetting Truck

details of high pressure washing truck

Working Situation Of Combination Vacuum Jetting Truck

combination vacuum jetting truck working situation

Need more details of our Combination Vacuum Jetting Truck welcome to contact us at any time!


1. We are manufacturer supply the cheapest price, guaranteed quality & best after sale services.

2. Accept site training if client project is needed.

3. All operate directions in English version(standard), any other languages are available.

4. Professional export experiences over 15years, we supply one-stop services include production, payment, delivery, customs clearance & shipping..
