|Min. Order:||1 Set/Sets|
|Delivery Time:||25 Days|
Model No.: CLW9405GYYA
Transmission Type: Manual
Load Capacity: 21-30t
Emission Standard: Euro 5
Tank Volume: 15001-30000L
Drive Wheel: 6×4
Engine Capacity: 6-8L
Tire Type: Solid Tire
Tire Certification: ISO, GCC
Packaging: Nude packing,Waxing before shipping
Place of Origin: CHINA
Supply Ability: 3000sets/month
Certificate: SGS,ISO9001, CNAS,CCC
HS Code: 8705909990
Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

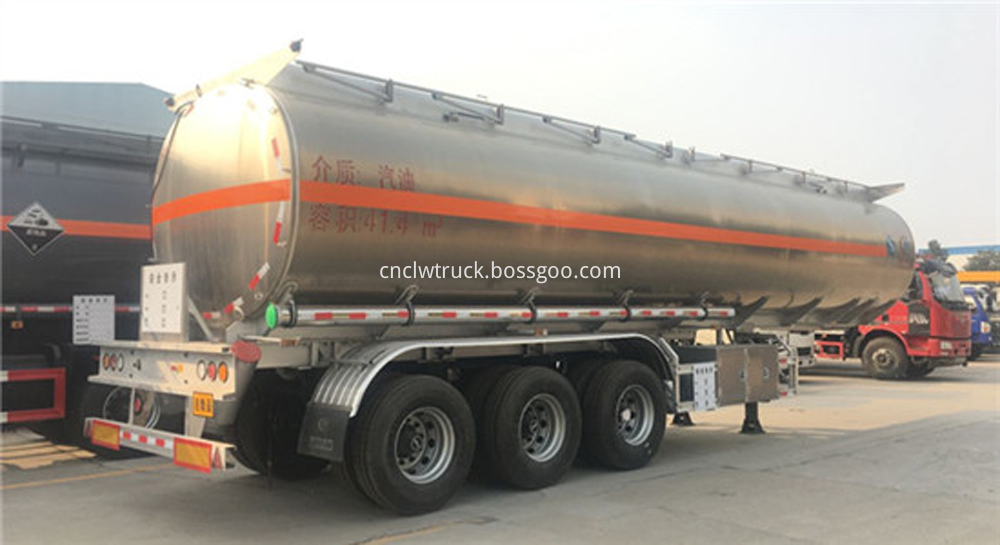

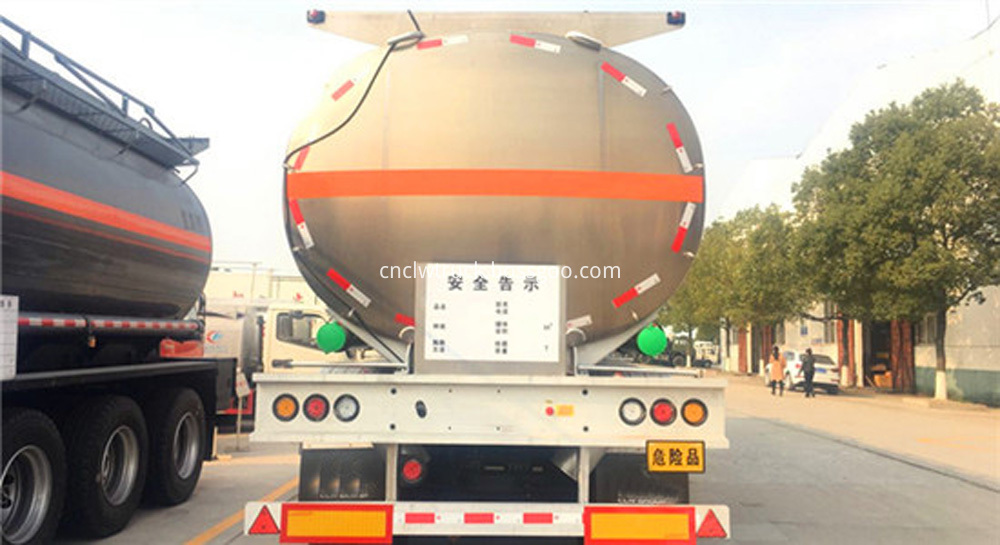

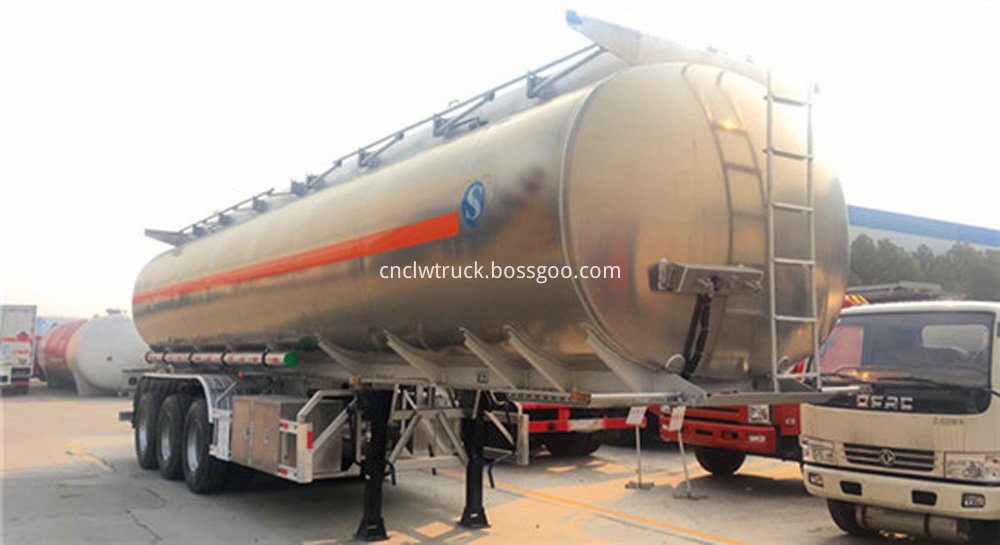

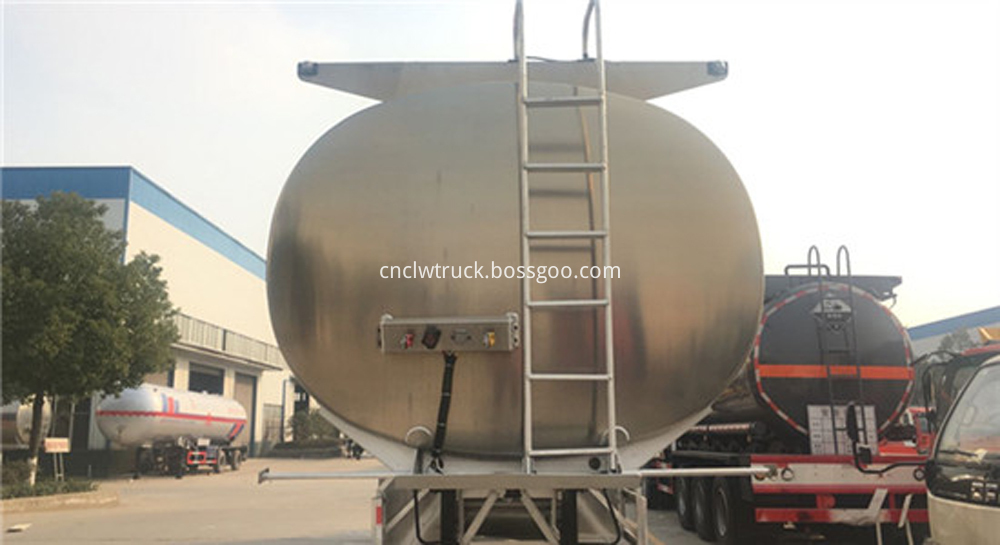

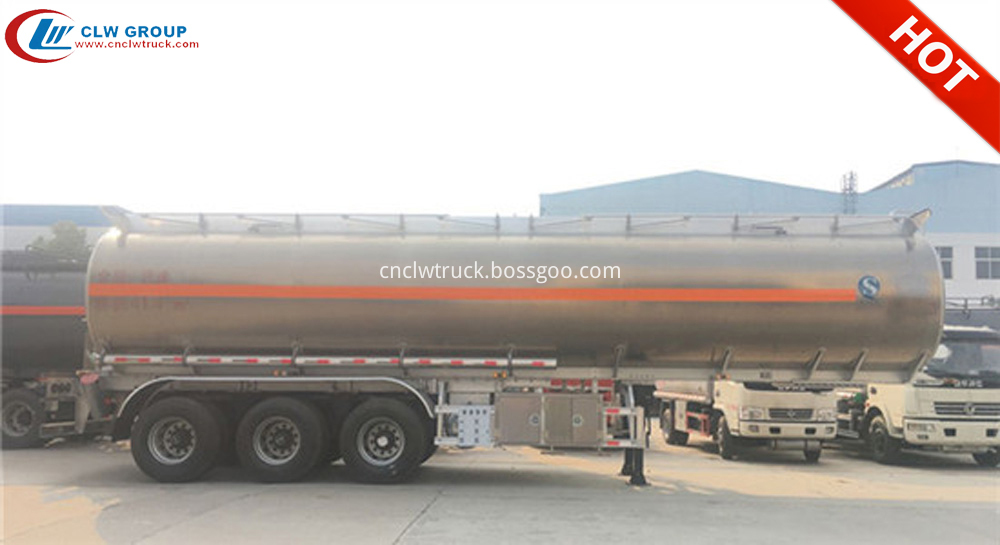

Guaranteed 100% Brand New 50000litres Aluminum Alloy Tank Semi trailer
Aluminium alloy fuel tank semi trailer (also called oil tank semi-trailer, fuel tanker semitrailer, fuel semi-trailer, oil semitrailer, fuel trailer tanker, fuel tankers, fuel tank trailer, oil trailer, semi tanker trailer, stainless steel oil tanker trailer, carbon steel trailer tank fuel) is used to transport oil, diesel, gasoline, kerosene, etc.
Fuel tank can be divided into many compartments to load and transport different types of fuels, lubricant, crude oil, alcohol--.
---- High quality tank material has options of carbon steel, stainless steel, aluminum alloy.
---- JOST kingpin, JOST / FUWA landing gears
---- Axles are of top Chinese brand FUWA or German brand BPW
---- Main fuel components available of international brands (ADR standard) - Civacon of OPW (America), EMCO Wheaton (America), DIXON (Europe)....
---- Bottom loading system including vapor recovery and overfill detection system can be equipped.
|Aluminium Fuel Tank Semi Trailer (50,000 Litres)|
|Overall Dimension||12000 x 2500 x 3750 mm|
|GVW / Kerb Weight||40,000kg / 6,700 kg|
|Superstructure||Tank Capacity||42,000 Litres (11,000 gallons)|
|Tank||Aluminium alloy material, aluminium fuel tank with inner baffles to prevent fuel surge during moving.|
|Kingpin||2" or 3.5"|
|Landing Gear||28 Ton capacity|
|Axles||3 axles, 13Ton, FUWA or BPW brand|
|Tyre||11.00-20, 11.00R20, 315/80R22.5|
|Paint||Automotive metallic paint|
|All standard accessories: manhole, ladder, inlet, discharge, anti-slip walkway, hose, reflective strips--..|
1. Tank material could be aluminum alloy, carbon steel, stainless steel--
2. It can be divided into many compartments to load different types of fuels.
3. BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
4. Heat preservation of rock cotton or polyurethane foaming, Heating system.

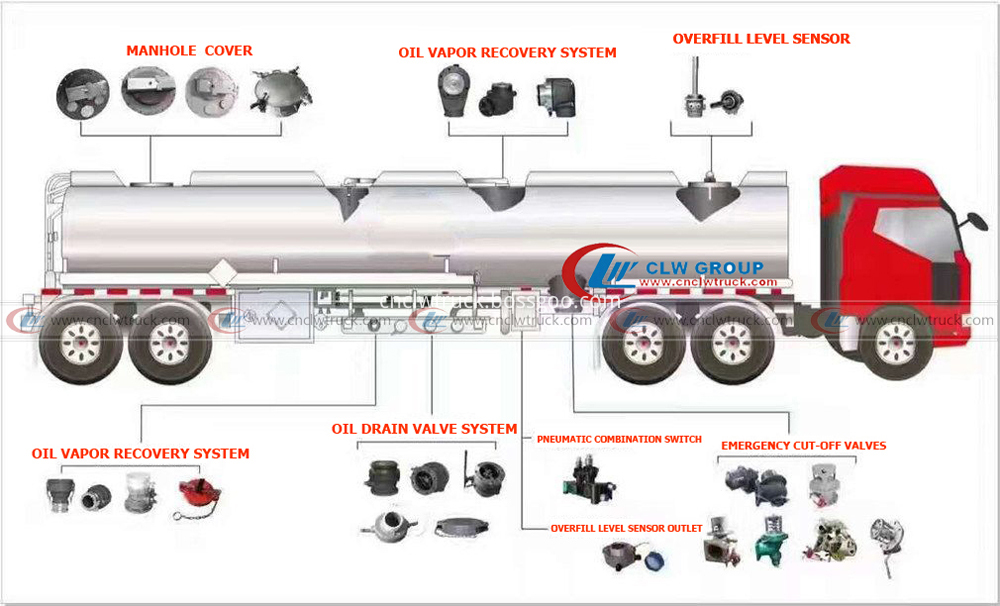

5. OPW (Civacon) bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve--
6. Tube or tubeless tyres, off-road single tyre for bad roads.
1. Aluminum Alloy Tank Semi Trailer CONFIGURATION
2. Aluminum Alloy Tank Semi Trailer MANUFACTURING TECHNOLOGY
3. CUSTOMER VISIT & SUCCESFUL CASE
Need more details of our Aluminum Alloy Tank Semi Trailerwelcome to contact us at any time!
WHY CHOOSE US:
