2019 New DFAC Lorry Mounted Crane 2Tons

Incoterm: FOB,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: CLW5312TMC

Fuel: Diesel

Certification: ISO9000, CCC

Emission Standard: Euro 3

Condition: New

Additional Info

Packaging: Nude packing,Waxing before shipping

Productivity: 30000sets/year

Brand: CLW

Transportation: Ocean,Land

Place of Origin: CHINA

Supply Ability: 3000sets/month

Certificate: SGS,ISO9001, CNAS,CCC

HS Code: 8704223000

Port: SHANGHAI PORT,CHINA,ANY MAIN PORT IN CHINA

Product Description

Guaranteed 100% 2019 New DFAC Lorry Mounted Crane 2Tons for Sale

A Lorry Mounted Crane is a hydraulic crane mounted on a truck which can do loading & unloading work without need of any external crane and manpower. It is an integrated solution for loading, transportation and unloading of the goods.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

Heavy Duty Crane:50Ton, 80Ton, 120Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, Sany, etc.

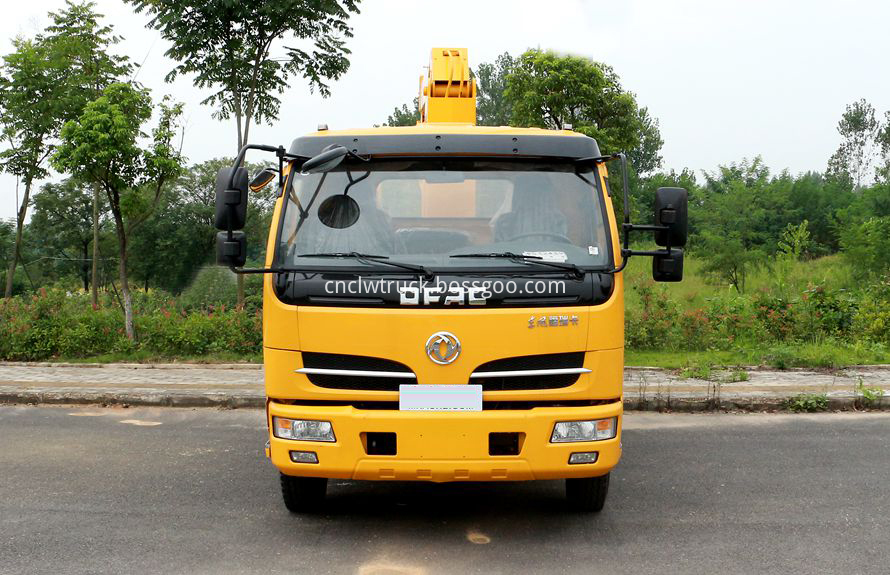

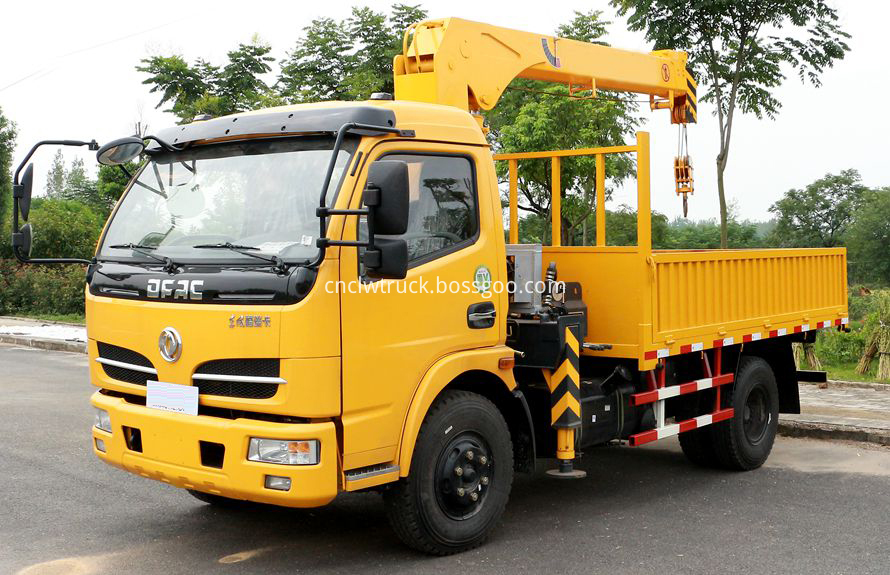

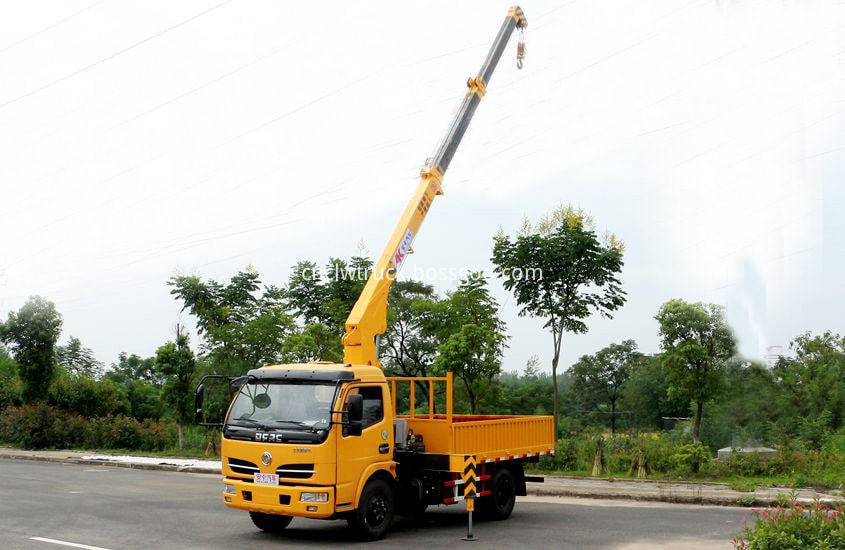

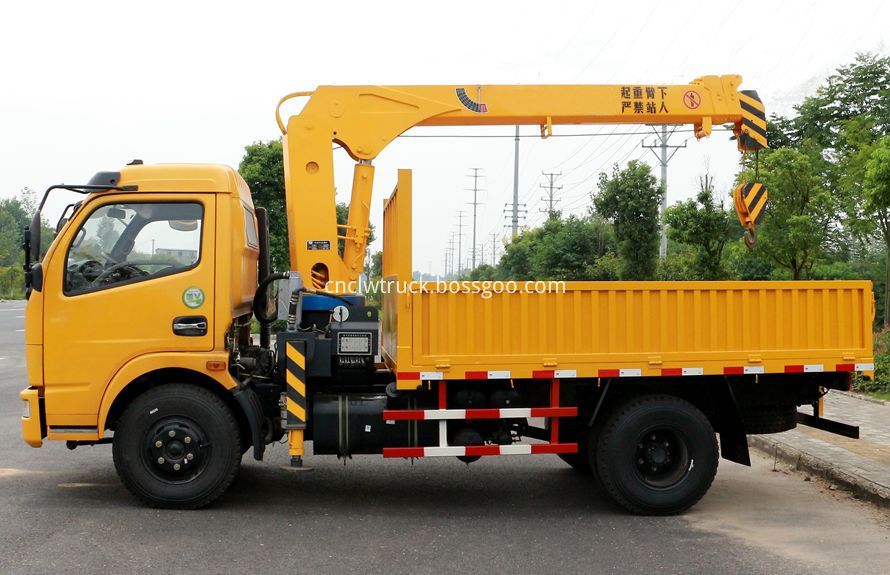

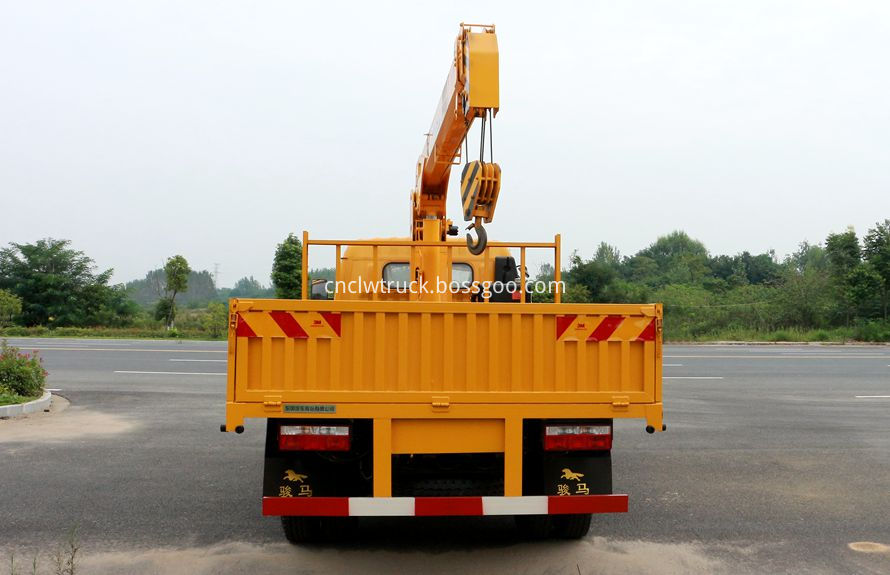

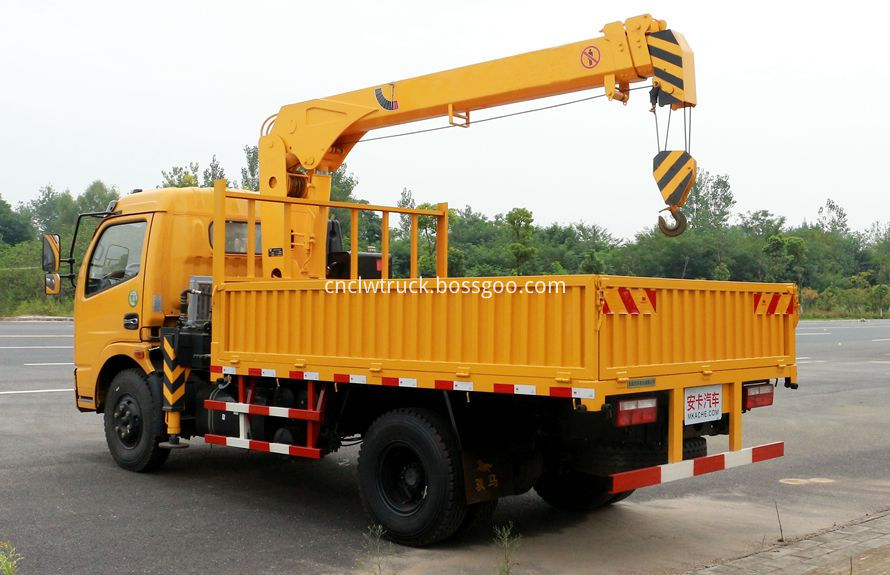

VEHICLE PICTURES :

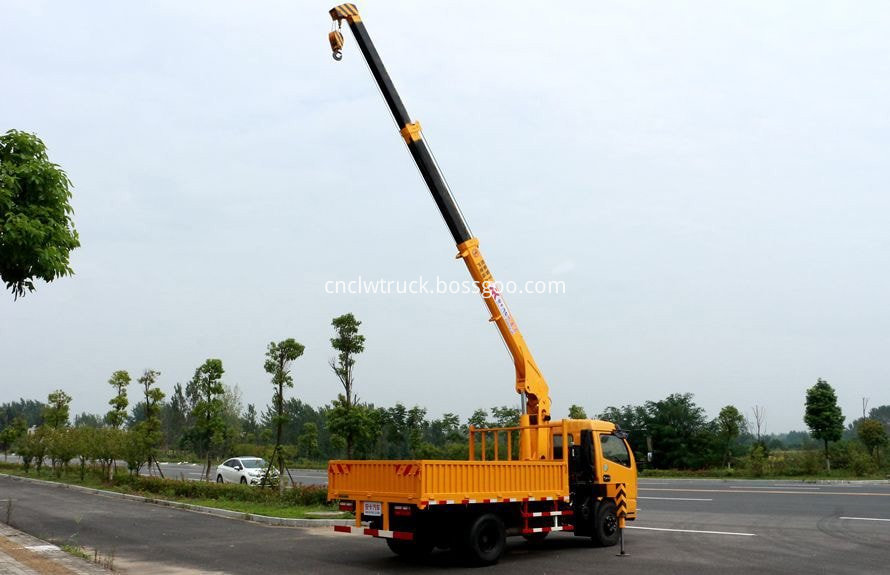

lorry mounted crane 1

 DFAC Lorry Mounted Crane 2Tons Picture 1

lorry mounted crane

DFAC Lorry Mounted Crane 2Tons Picture 2


lorry mounted crane 2

DFAC Lorry Mounted Crane 2Tons Picture 3

lorry mounted crane 4

DFAC Lorry Mounted Crane 2Tons Picture 4

lorry mounted crane 3

DFAC Lorry Mounted Crane 2Tons Picture 5

lorry mounted crane 2tons 1

DFAC Lorry Mounted Crane 2Tons Picture 6

lorry mounted crane 2tons 3

DFAC Lorry Mounted Crane 2Tons Picture 7

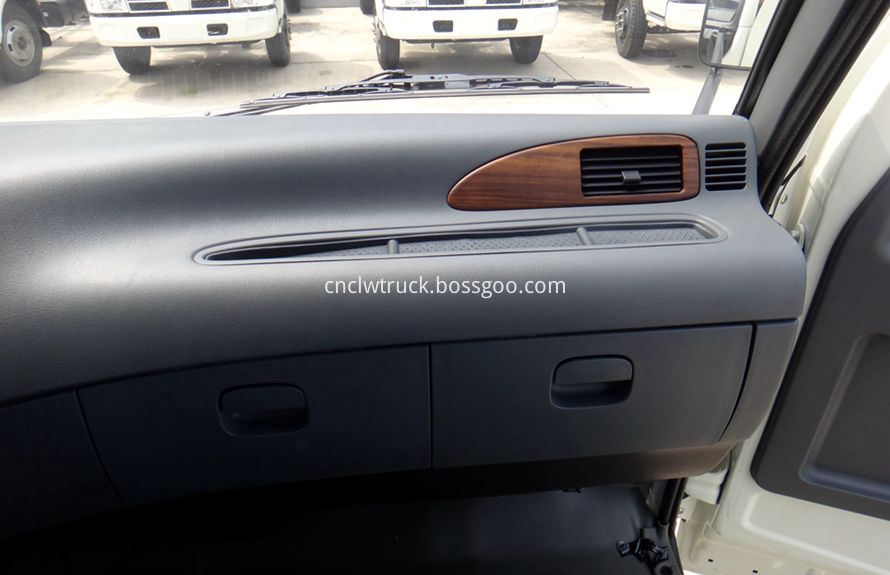

lorry mounted crane cab

DFAC Lorry Mounted Crane 2Tons Picture 8

lorry mounted crane electric windows

DFAC Lorry Mounted Crane 2Tons Picture 9

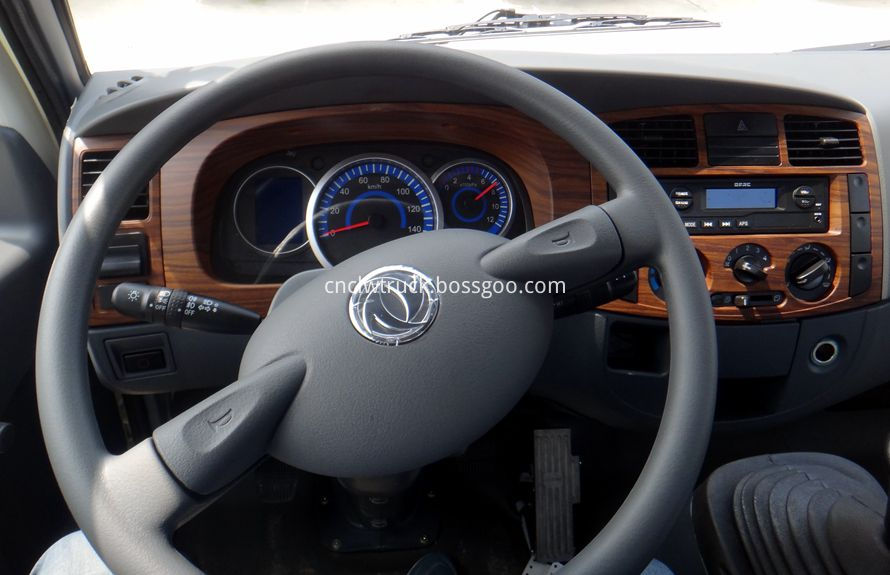

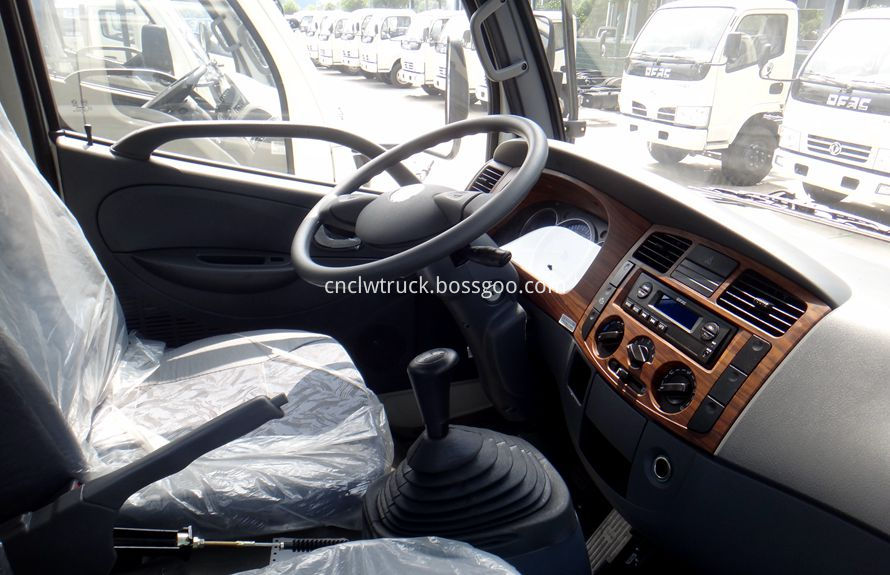

lorry mounted crane steering wheel

DFAC Lorry Mounted Crane 2Tons Picture 10


VEHICLE PARAMETERS :

VEHICLE  PARAMETERS

Chassis Brand

DFAC

Condition

Brand New

Crane Capacity

2T/3.2T

Crane Brand

XCMG/

Remote Control

Arm Type

Folding/Telescopic

Cab

Single Row

Engine Power/displacement

115HP/2982ml

Gearbox

5 Speed

Overall Size

5.995X2.2X2.945/m

GVW

4495kg

Cargo Size

3.26X2.01X0.4/m

Curb Weight

3610kg

Vehicle Frame

180mm crossbeam

Tire Spec.

7.00R16

Rear Axle Load

4T

Brake System

Air Brake

Wheelbase

3308mm

Allow Passengers

2

Max Speed

95km/h

Drive Model

4X2, LHD/RHD

CRANE  PARAMETERS

XCMG 2T Telescopic Arms

XCMG 3.2T Telescopic Arms

Max Lifting Capacity(kg)

2000

3200

Min Lifting Capacity(kg)

400

950

Working Radius(m)

5.8

5.5

Lifting Height(m)

6.8

6.8

Crane Weight(kg)

875

1105

Outriggers Span(mm)

1874-3024

1989-3329

Rotation Angle

360 Degree

360 Degree

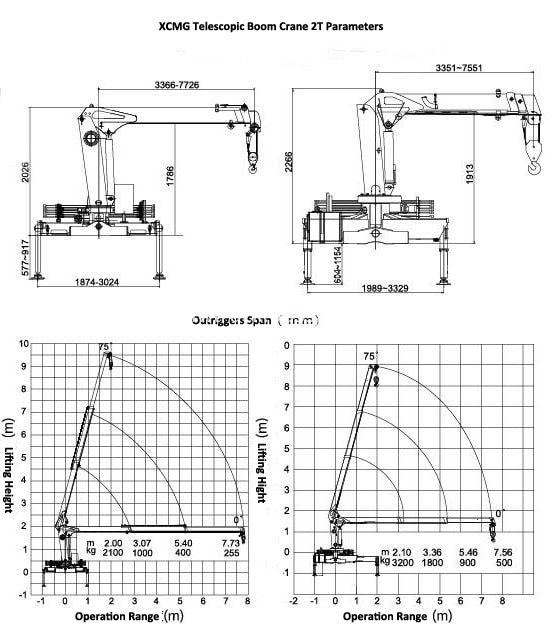

CRANE DIAGRAM :


lorry mounted crane xcmg 2ton diagram


Chassis Configurations: DFAC frk Chassis, Single-row Cab, YC Diesel 115HP Engine, 5 Speed Transmission, 7t Rear Axle, 230mm Crossbeam, 8.25R20 Tire, with EPS, ABS, Vacuum Clutch Booster, Air Brake, Adjustable Headlamp, with Fender


Crane Configurations:

Telescopic boom type, lifting capacity 2000kg, length of arm3.36m(not extend)-7.73m(full extend), front outriggers ,360 degree rotation;

Working radius 5.8m,  lifting height 6.8m, horizontal lifting parameters:lifting 255kg in 7.73m, 400kg in 5.4m, 1000kg in 3.07m, 2100kg in 2.1m.


Cargo Configurations:

Cargo Size:3260*2010*400/L*W*H/mm, cargo bottom thickness is 5mm, side thickness is 2mm.



Articulated Crane Truck Advantages :

1. Diesel fuel type, power engine, suitable for mountain road.

2. Wide and high-speed rotary, easy operation.

3. Unique design, small volume, low noise.

4. Wide application range, suitable for landscaping,electric power, petro-chemical industry, advertisement installation, construction site, narrow road, underground garage, service station, 4S shop, field rescue, factory workshop transportation, etc.
